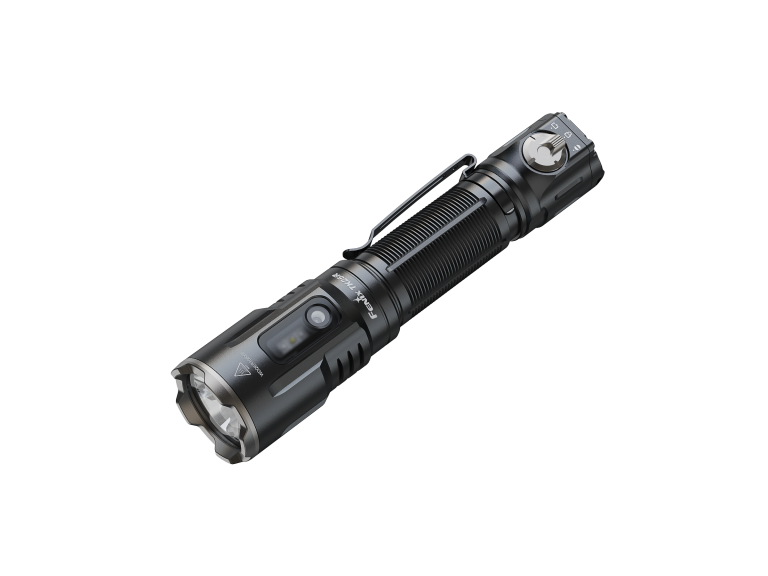

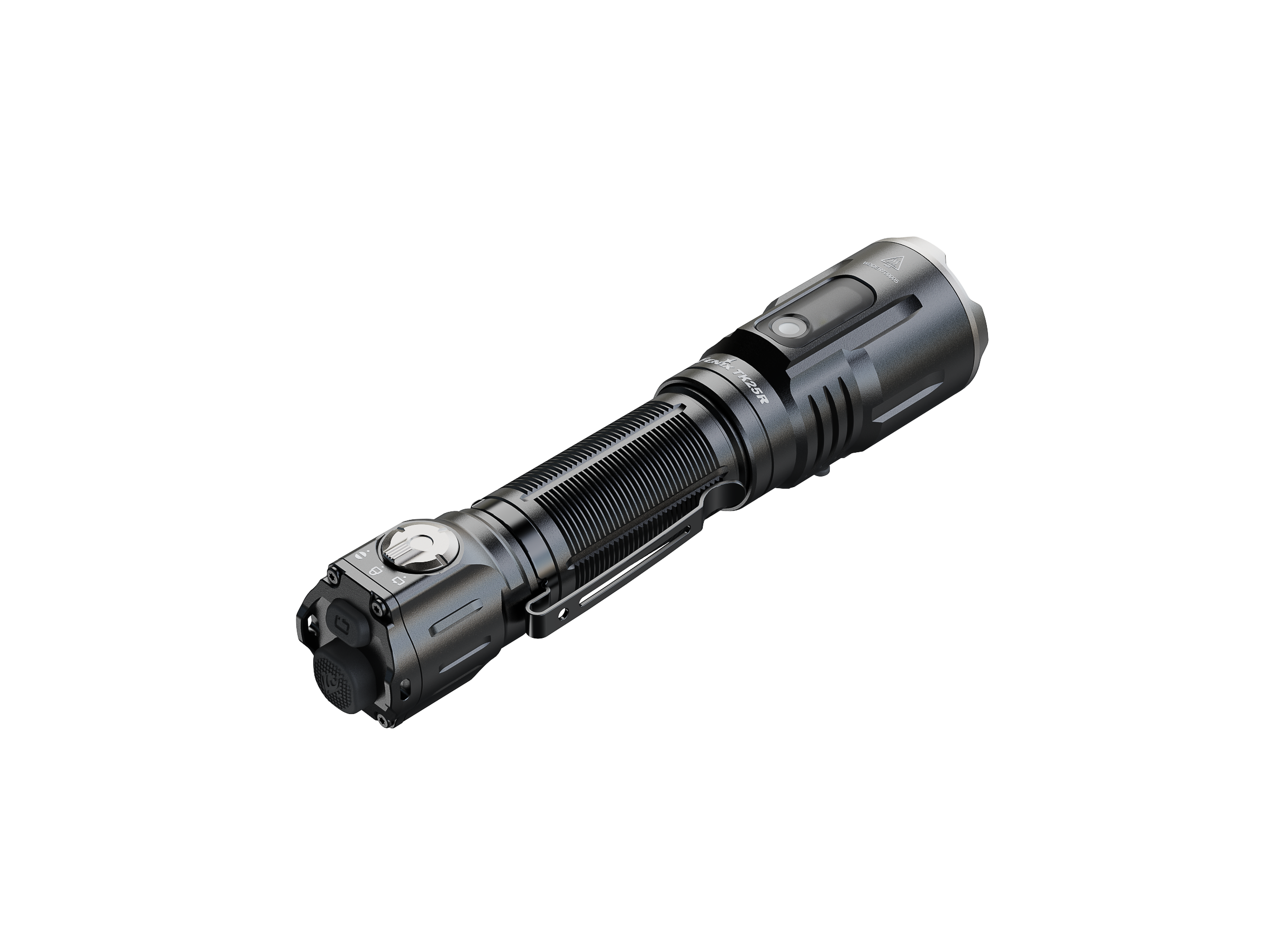

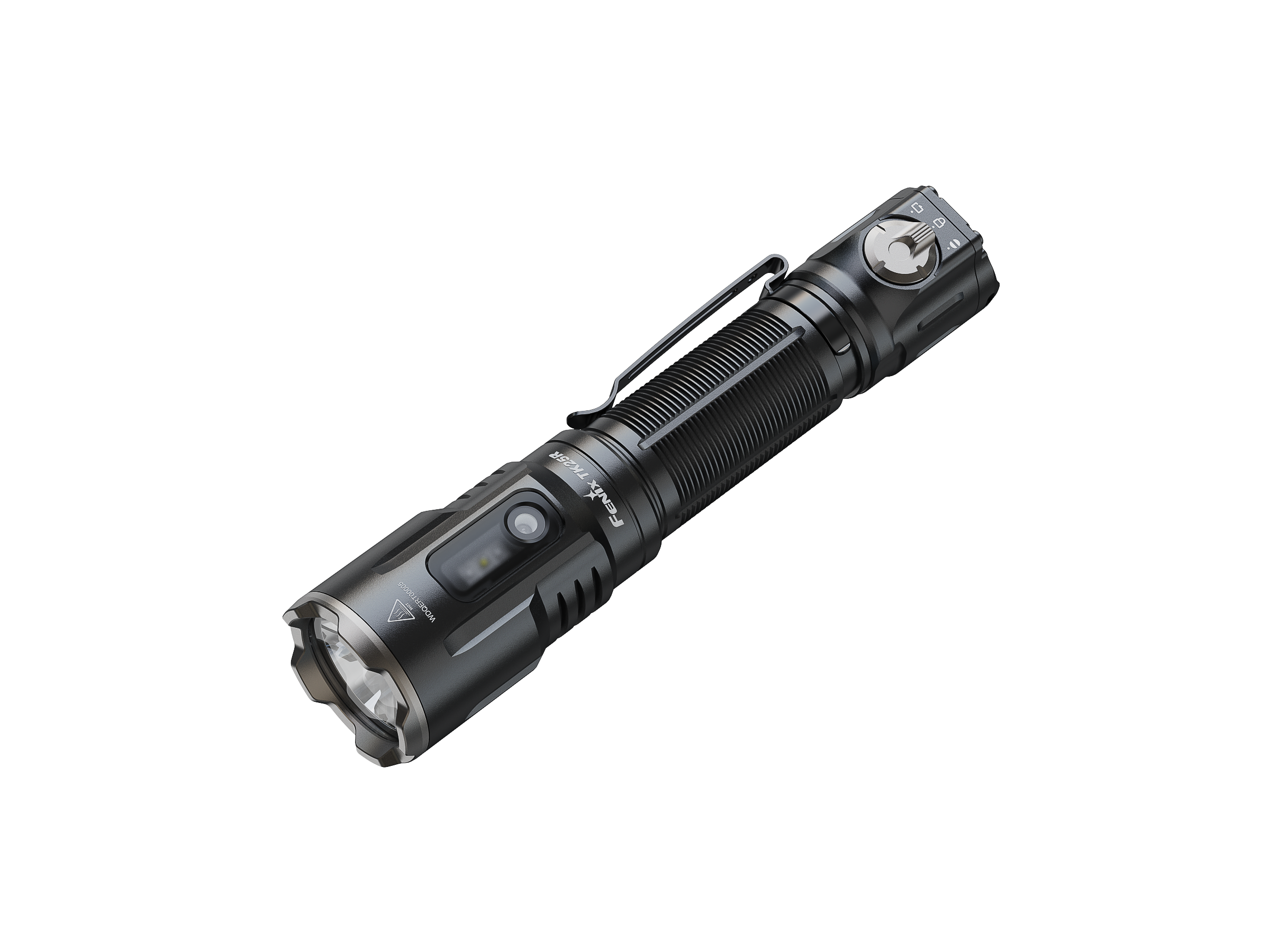

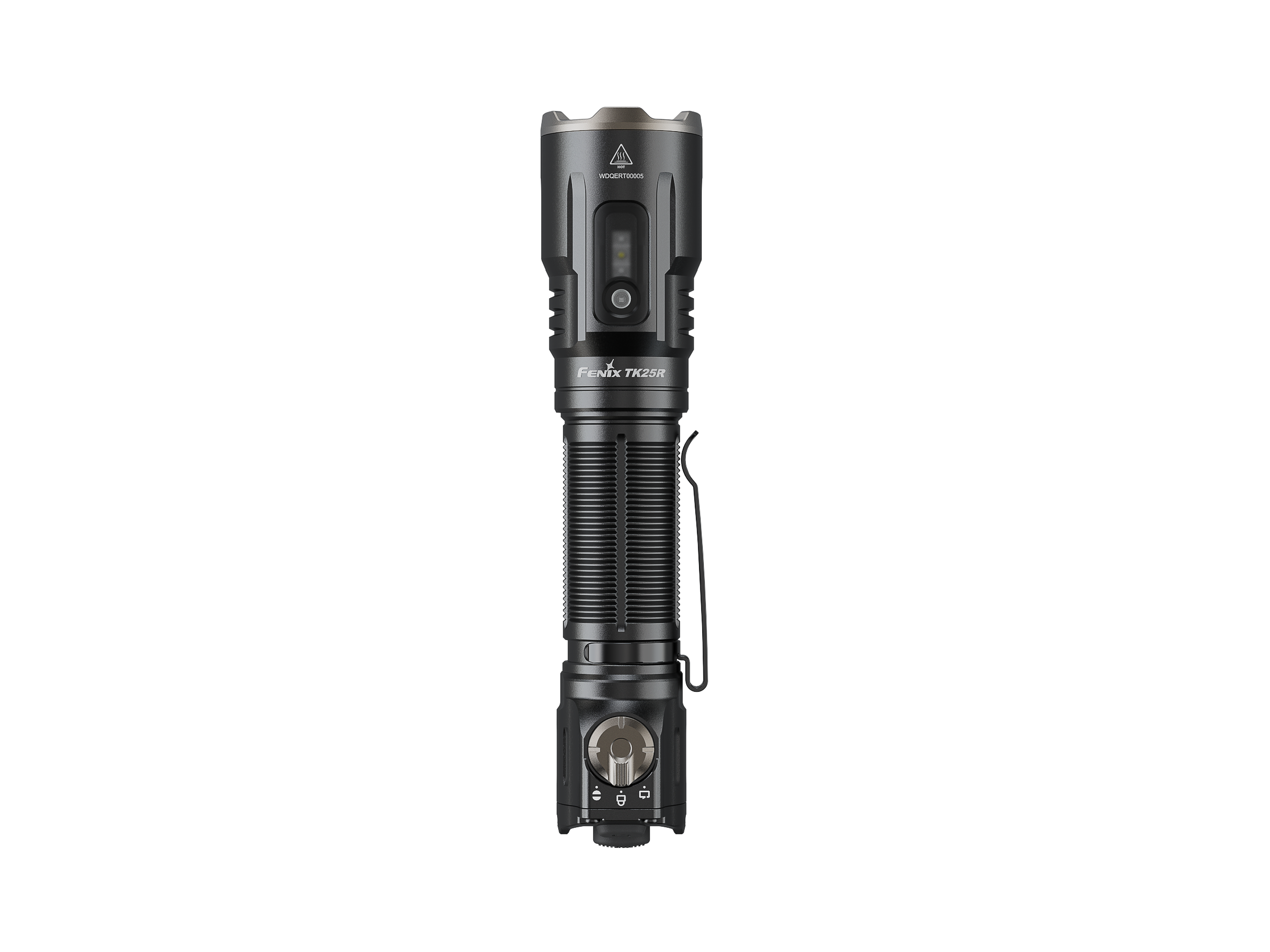

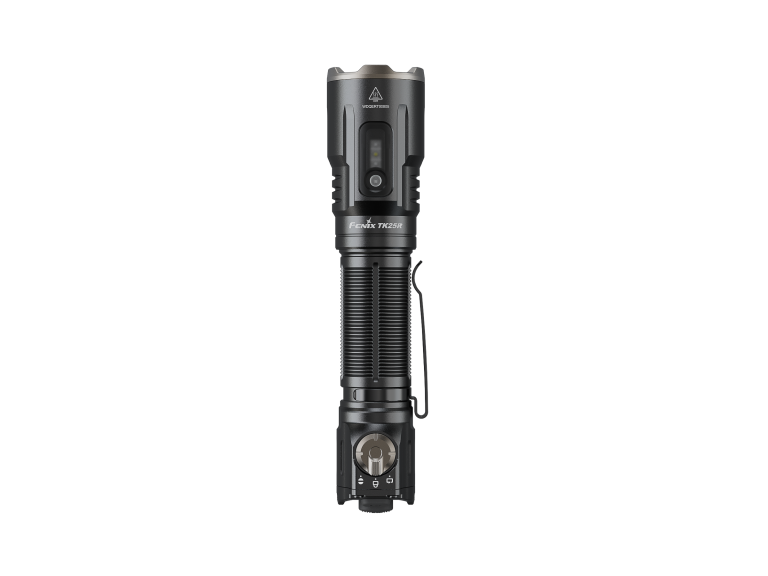

TK25R

MULTIFUNCTION LAW ENFORCEMENT AND DUTY FLASHLIGHT

The TK25R professional tactical flashlight is engineered specifically for law enforcement personnel, delivering high-output illumination and multi-functionality. Whether for tactical operations, document authentication, or critical field missions, the TK25R provides the reliability and performance that law enforcement demands. With its fast operation and multiple light sources, the TK25R, when combined with the ALC-03 tactical accessory, offers 360° directional and hands-free illumination. This setup enhances flexibility in work environments and outdoor search and rescue missions, significantly improving operational efficiency in complex terrains.

  • 3600 LM Lumens
  • 350 M Range
  • 55 H Run Time
  • IP68 Water Resistant
Contact Us Brochure
Size 6.46'' × 1.42'' × 1.03''/164 × 36 × 26.2 mm.
Weight 7.94 oz/225 g(including battery).
Battery Type ARB-L21-5000 V2.0


FEATURES

  • High lumen, long range   3600 lumens maximum output, 350 meters maximum beam distance.
  • Multi-light source LED   Includes a high-power tactical light, a wide side light, a UV light, red light, a red flashing light, and a red-and-blue flashing light.

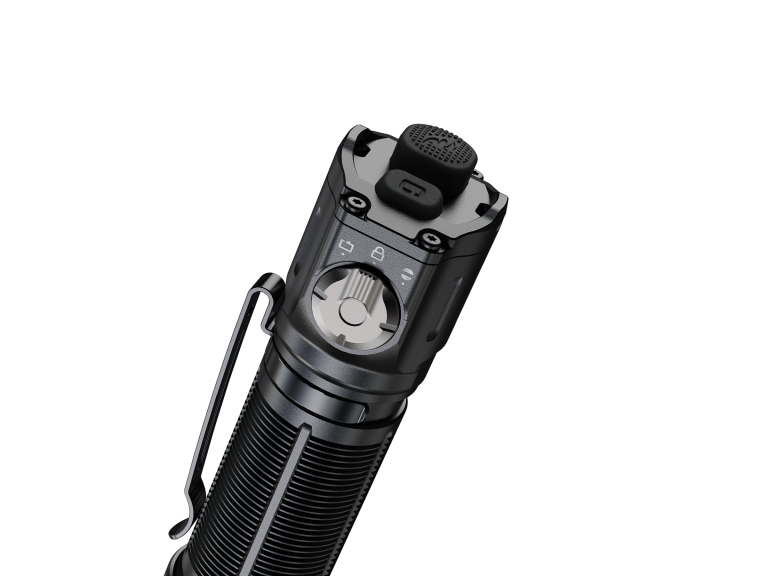

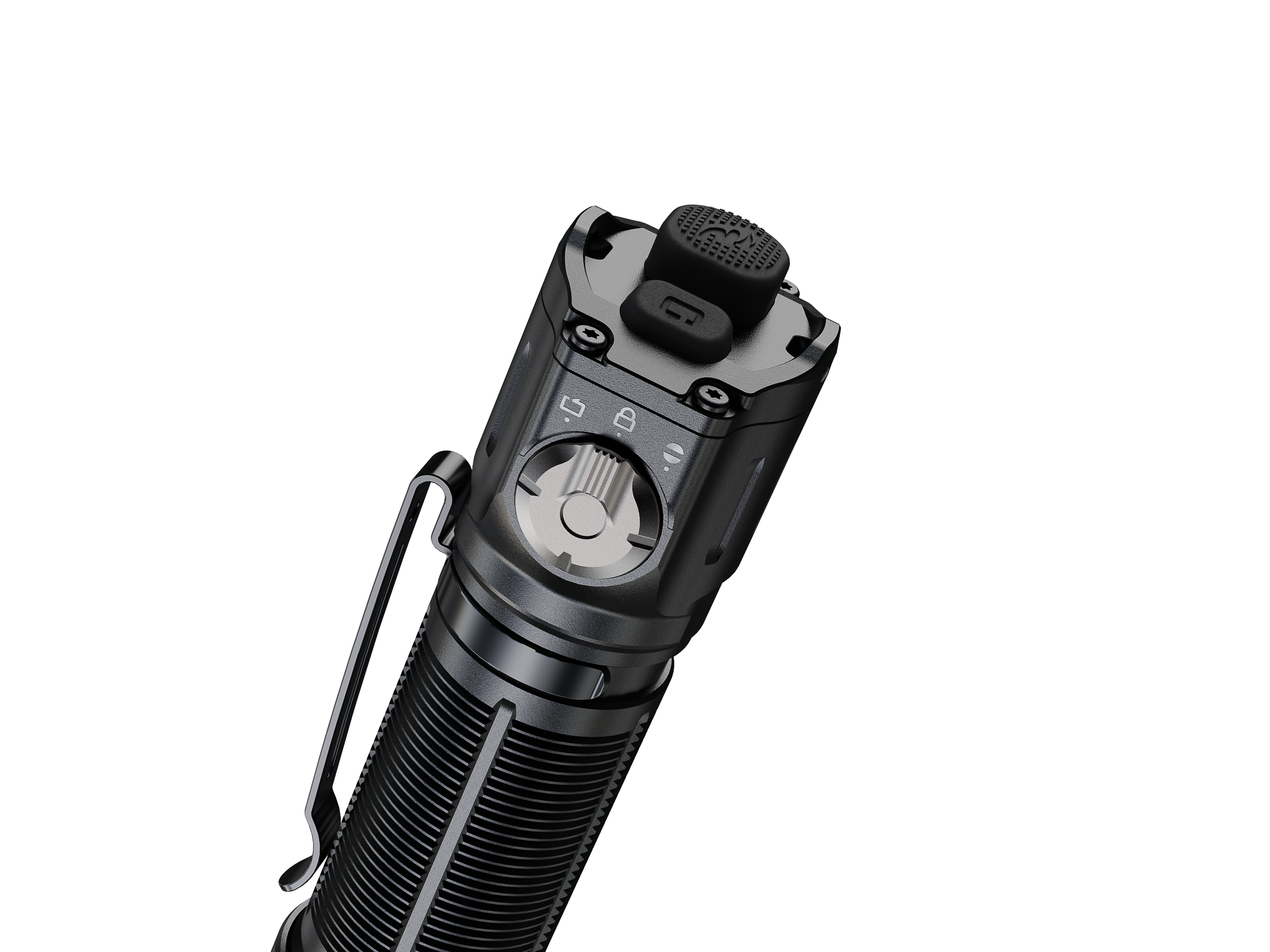

  • Dial switch supports mode selection Duty mode, Lockout/off mode, and Tactical support mode.
  • Focusing and flooding combined spot Taking into account both close-range wide-range lighting and long-range capabilities.
  • Dual tail switch instant turbo, and instant strobe.
  • USB Type-C port Fully charged in just 1.5 hours.


Take a Closer Look

MULTIFUNCTION LAW ENFORCEMENT AND DUTY FLASHLIGHT

FAQS

Contact Us
Q1. What is the product positioning of TK25R? What are the typical usage scenarios?

A: Fenix TK25R is a High-Performance Multi-Function Duty Flashlight. This flashlight is suitable for various activities such as searching, patrolling, and law enforcement.

Q2. What are the key features of TK25R?

A:

  • Multiple brightness levels for versatile use
  • Combined spotlight and floodlight beam for both wide close-range lighting and long-distance illumination
  • Multi LED system includes tactical high beam, wide side light, UV light, red light, red flash, and red&blue flash
  • Supports tactical momentary-on, one-touch turbo, and one-touch strobe functions
  • USB Type-C fast charging — fully charged in just 1.5 hours
  • Dual control with rotary switch and tail switch
Q3. What kind of LED is used in TK25R? Does Fenix offer to replace LED?

A: One Luminus Cree XHP50.3- LED with a lifespan of 50,000 hours.Color temperature: 5700K

Fenix does not provide LED replacement services for the time being, and users are not recommended to replace the LEDs independently, which may affect product performance and cause product damage.

Q4. What is the working voltage of TK25R?

A: The operating voltage is 3.0V～
4.2V.

Q5. What kind of battery can be used in TK25R?

A: It is recommended to use a Fenix 21700 Li-ion battery. Other Li-ion batteries are not recommended. As an unmatched battery may cause the flashlight to fail to work normally.

Q6. How to prevent accidentally activate the TK25R?

A: To prevent accidental activation, turn the rotary switch to the lock position before placing the flashlight in your bag, or loosen the tail cap to disconnect the battery.

Q7. What are the optional accessories for TK25R?

A: AOT-04 Traffic wand；ALP-20 Quick-pull holster；ALC-03 Flashlight Holder.

Q8. Why does the TK25R downshift to a lower mode after being used for a while and the higher mode cannot be selected?

A: There are two reasons:

1. Intelligent Overheat Protection

The flashlight will accumulate a lot of heat when used at high output levels for extended periods. When the light reaches a temperature of 55°C or above, the light will automatically step down a few lumens to reduce the temperature.

2. Low-voltage Warning

When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until the Low mode is reached.

Q9.What is the APF？

A: The APF (Advanced Pulse-Frequency Transmission System) was developed by Fenix laboratory, a major technology breakthrough of flashlight industry. Allowing the tactical flashlight achieve a higher level of performance:

  1. Take light to the extreme. Traditional forward switches are limited by current, and it is difficult to achieve brightness above 2000 lumens. In the age of 21700 batteries gradually expanding, 3000 lumens tactical flashlights are almost impossible; while the flashlight using APF technology can.
  2. Make the functional tail cap simpler. Traditional multi-function tail cap needs to achieve functional through the double-layer body or additional channels ; and the flashlight using APF technology offering a strong reliable flashlight in simple structure, we talking about single layer body if specifically.
  • Better anti-interference performance. Complex external environments such as strong magnetic fields are easily dealt through stronger anti-interference ability.
Q10. Why does the TK25R happen to flicker?

A: The reasons that may cause the light to flicker, shine intermittently or even fail to illuminate:

1. Poor battery level.

Solution: Recharge or replace the battery.

2. The contact or contact point of the battery or flashlight is dirty.

Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

If the above methods don't work, please contact your authorized distributor.
