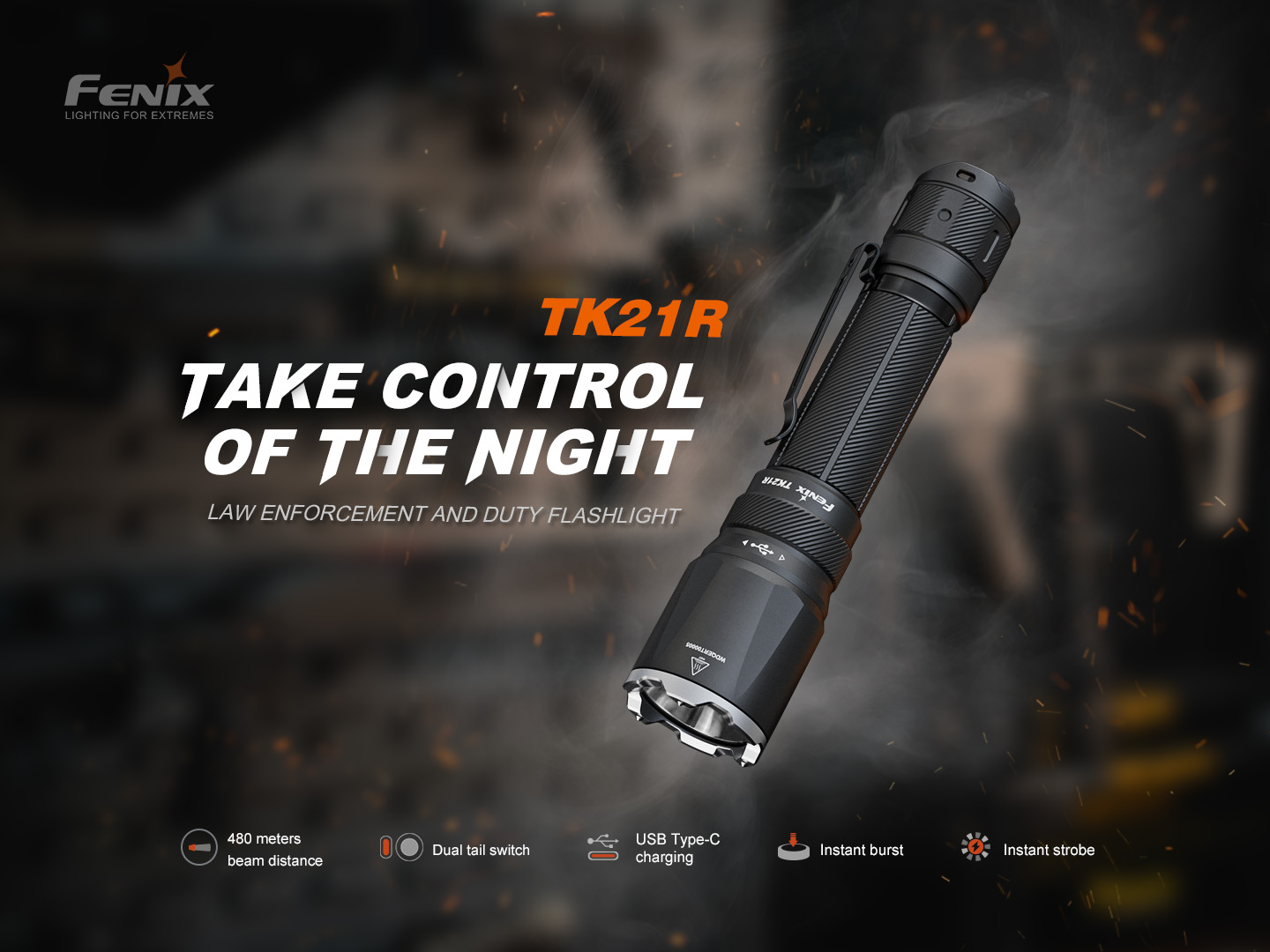

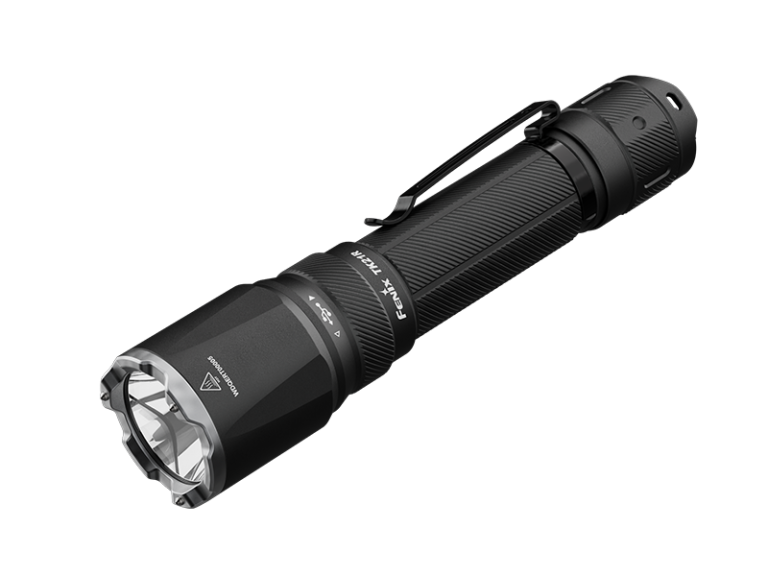

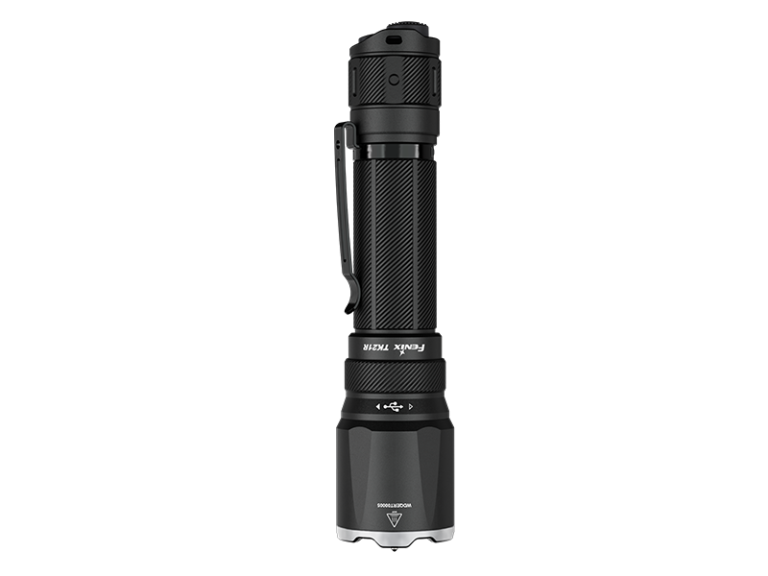

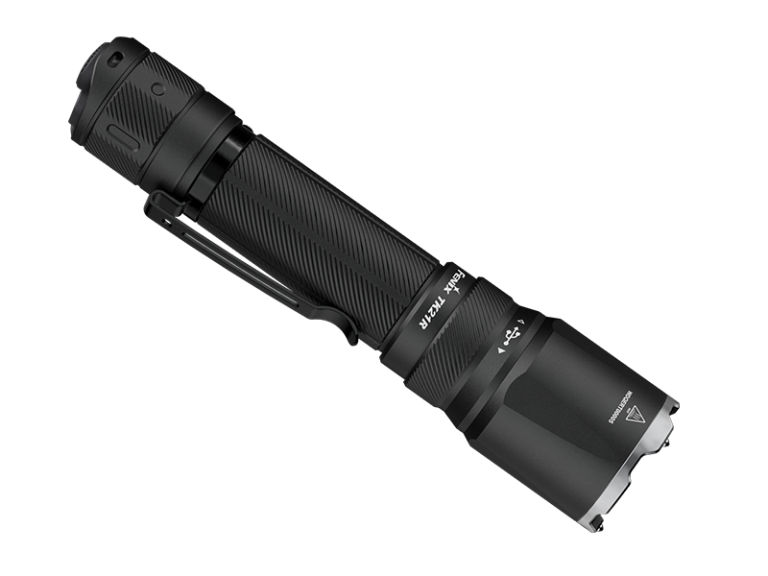

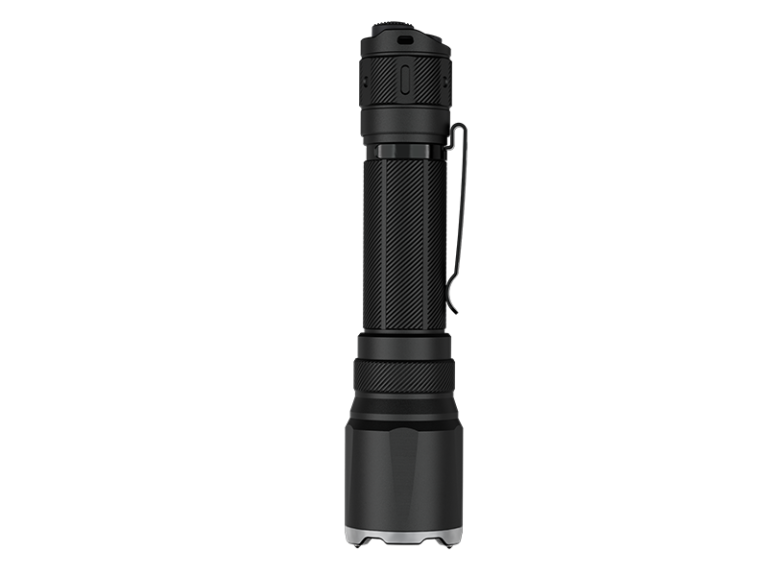

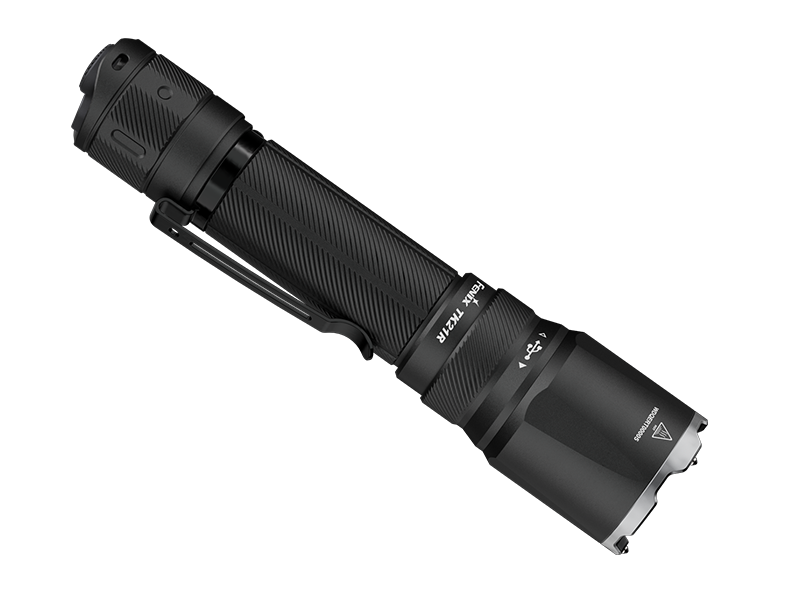

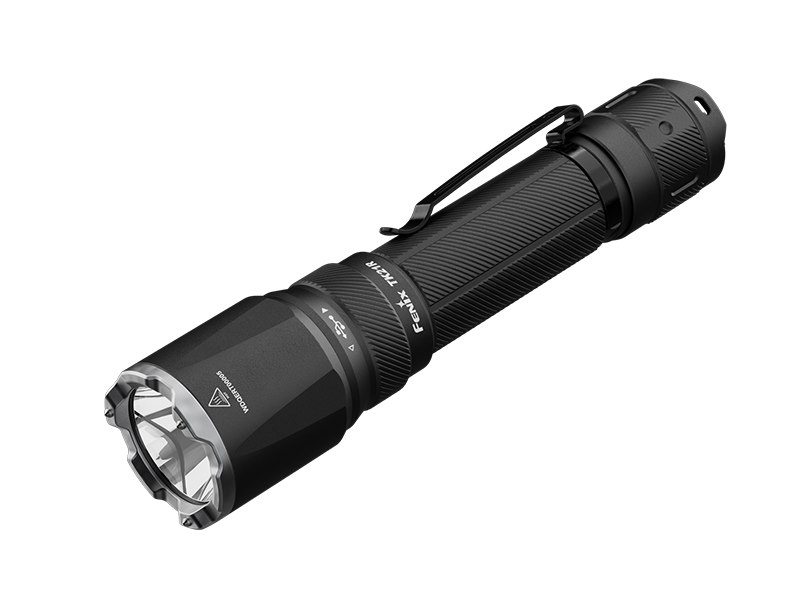

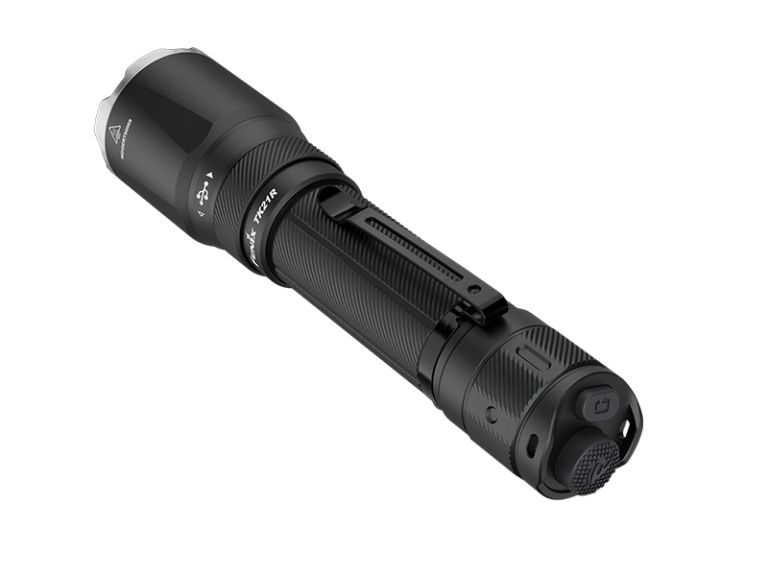

TK21R

MILITARY AND DUTY FLASHLIGHT

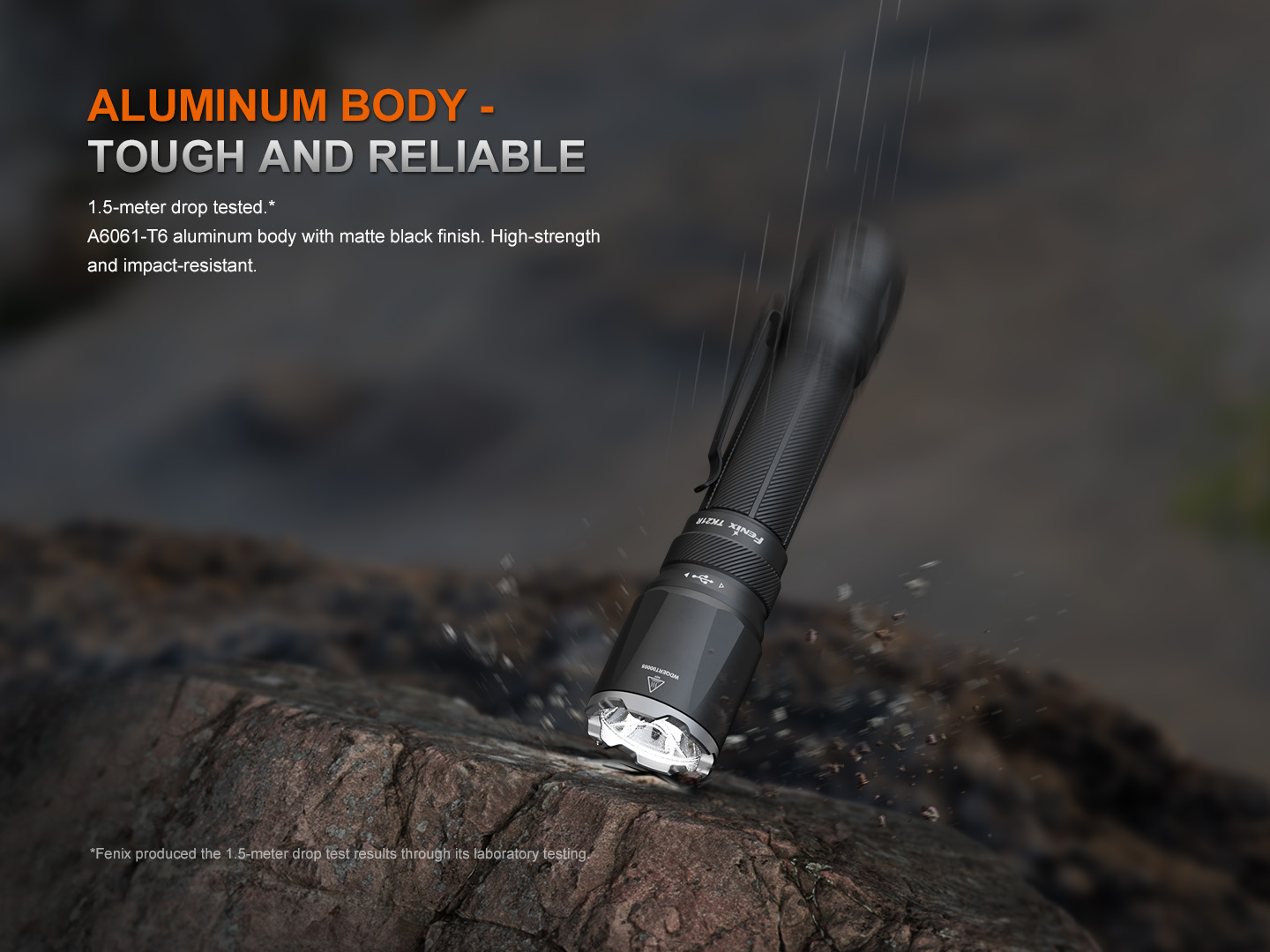

The Fenix TK21R military and duty flashlight stands out in performance and tactical deployment. Included with a 6000mAh rechargeable battery, the TK21R is an up to 3600 lumens flashlight in burst output while throwing its beam a distance of up to 480 meters. With the inner waterproof USB Type-C port, the TK21R will be fully charged in 1.5 hours. The dual tactical tail switch allows for intuitive, single-handed selection of burst and instant strobe. Additionally, it features IP68-rated protection and a light body made of high-quality aluminum alloy. You can count on the TK21R to deliver reliable, powerful lighting in tactical operations, law enforcement, or other missions.

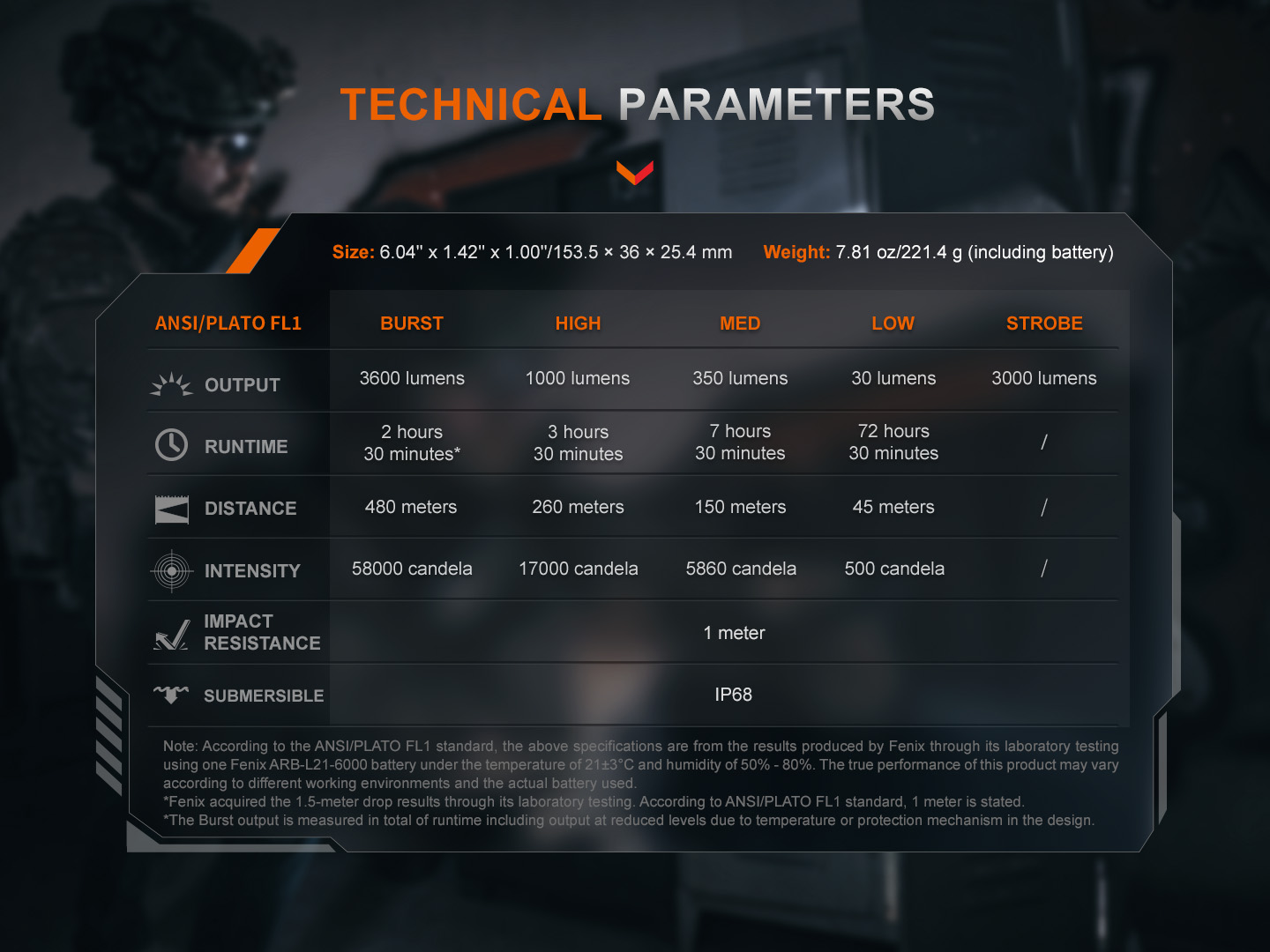

  • 3600 LM Lumens
  • 480 M Range

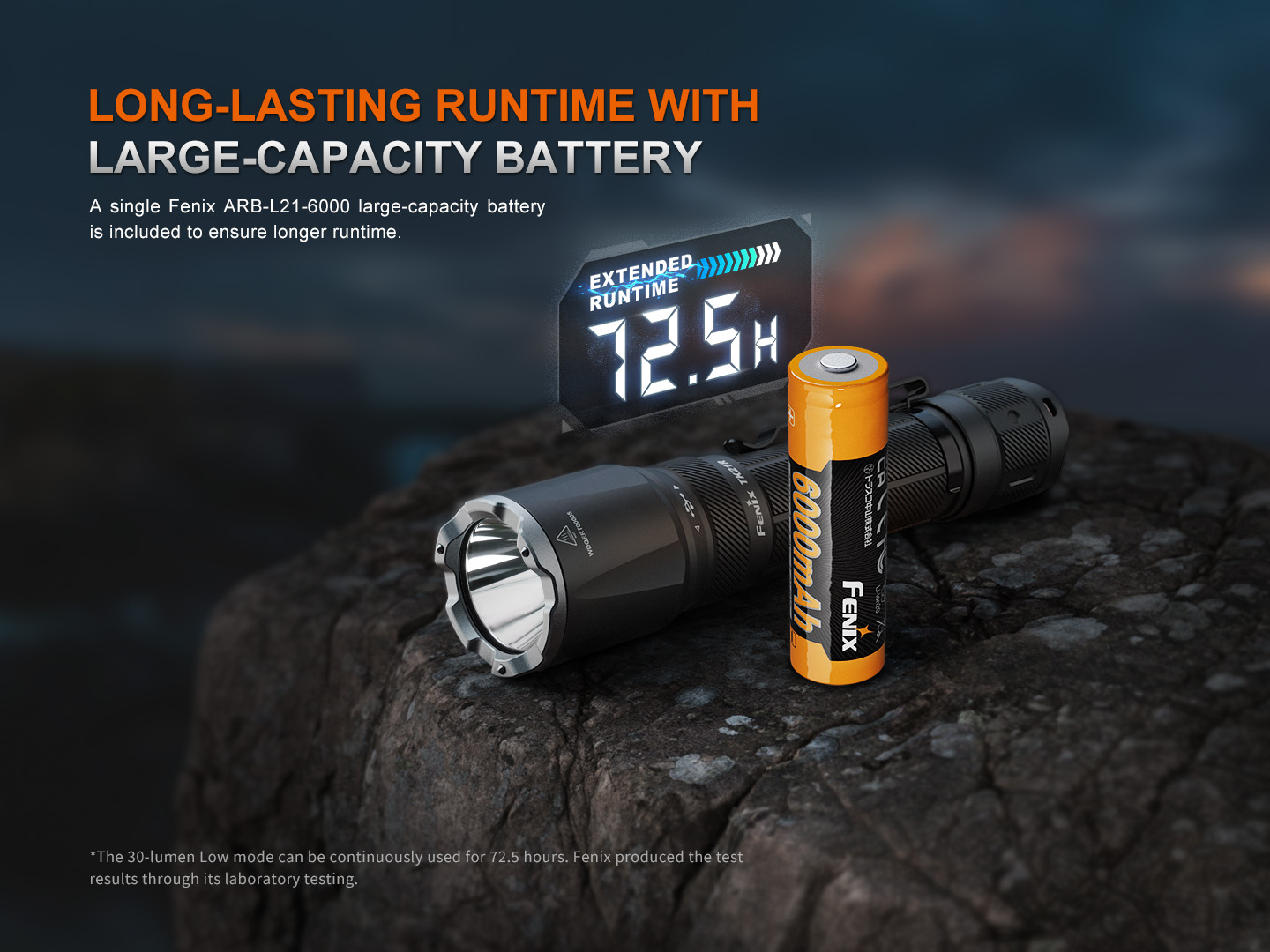

  • 72 H Run Time
  • IP68 Water Resistant
Size 6.04'' x 1.42'' x 1.00''/153.5 × 36 × 25.4 mm
Weight 7.81 oz/221.4 g (including battery)

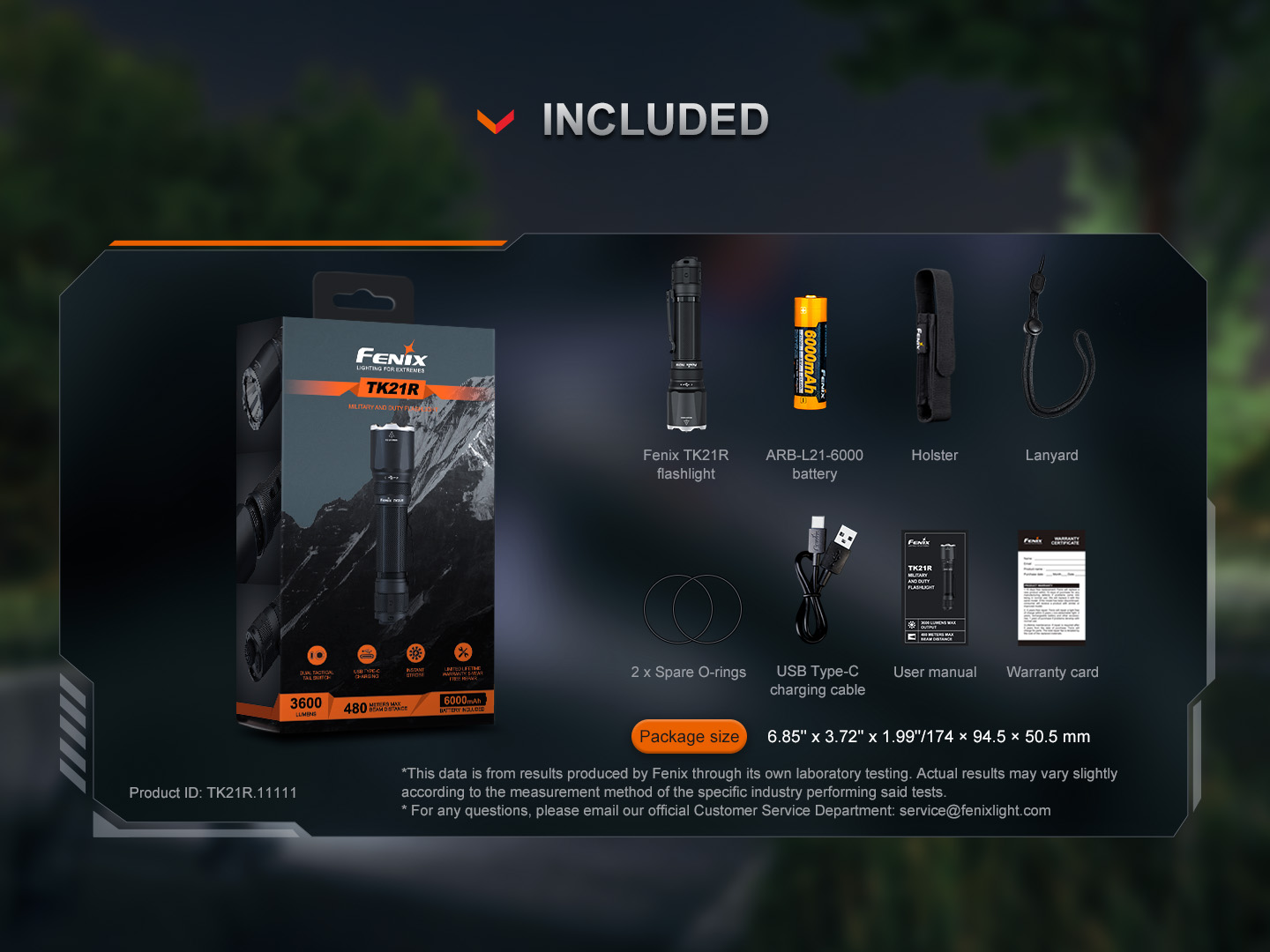

Battery Type ARB-L21-6000 battery



FEATURES

  • High lumen, long range 3600 lumens maximum output, 480 meters maximum beam distance.
  • One Luminus SFT90 LED One Luminus SFT90 LED with a lifespan of 50,000 hours.

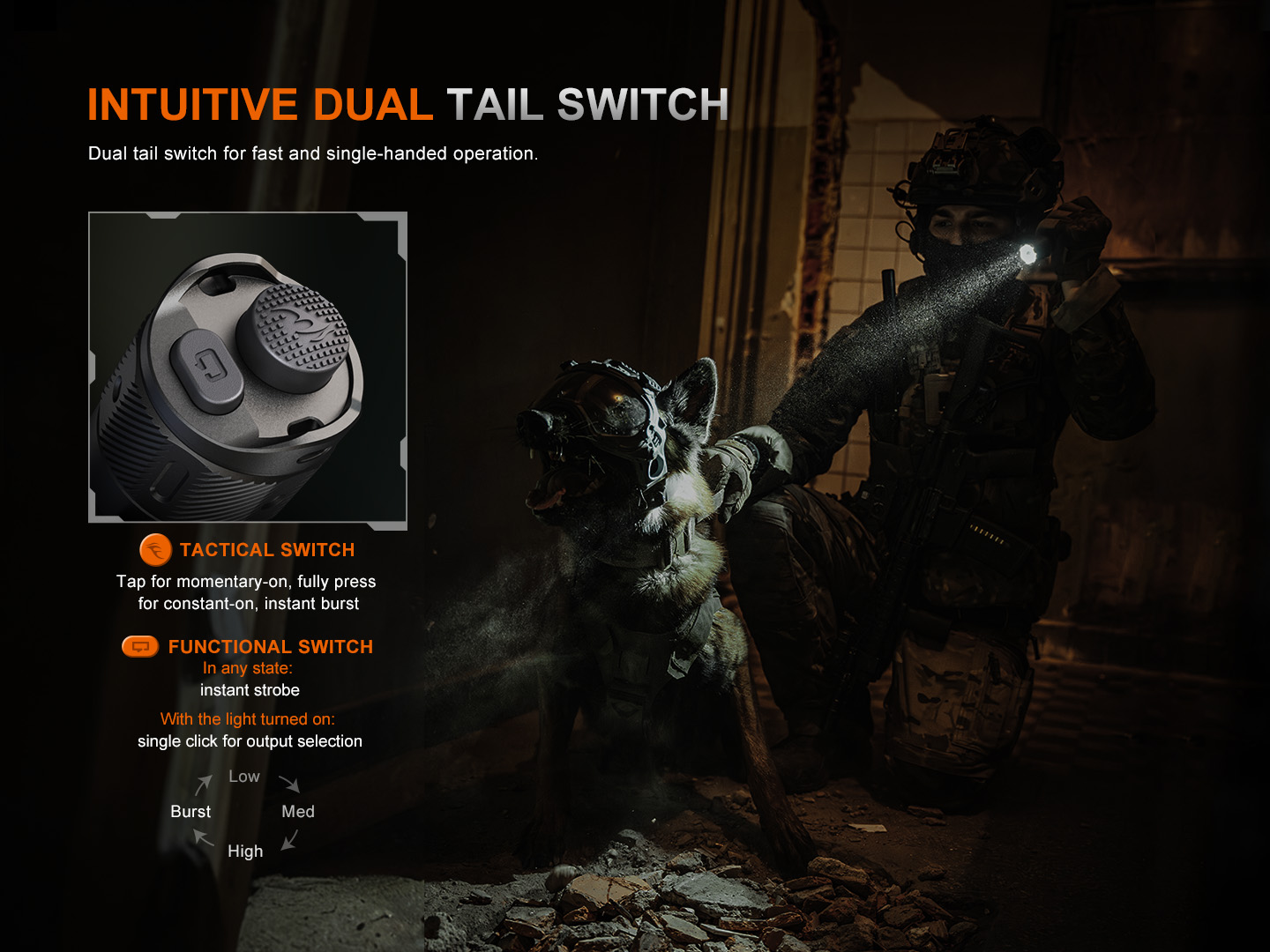

  • Dual tactical tail switchDual tactical tail switch for instant activation and instant strobe.

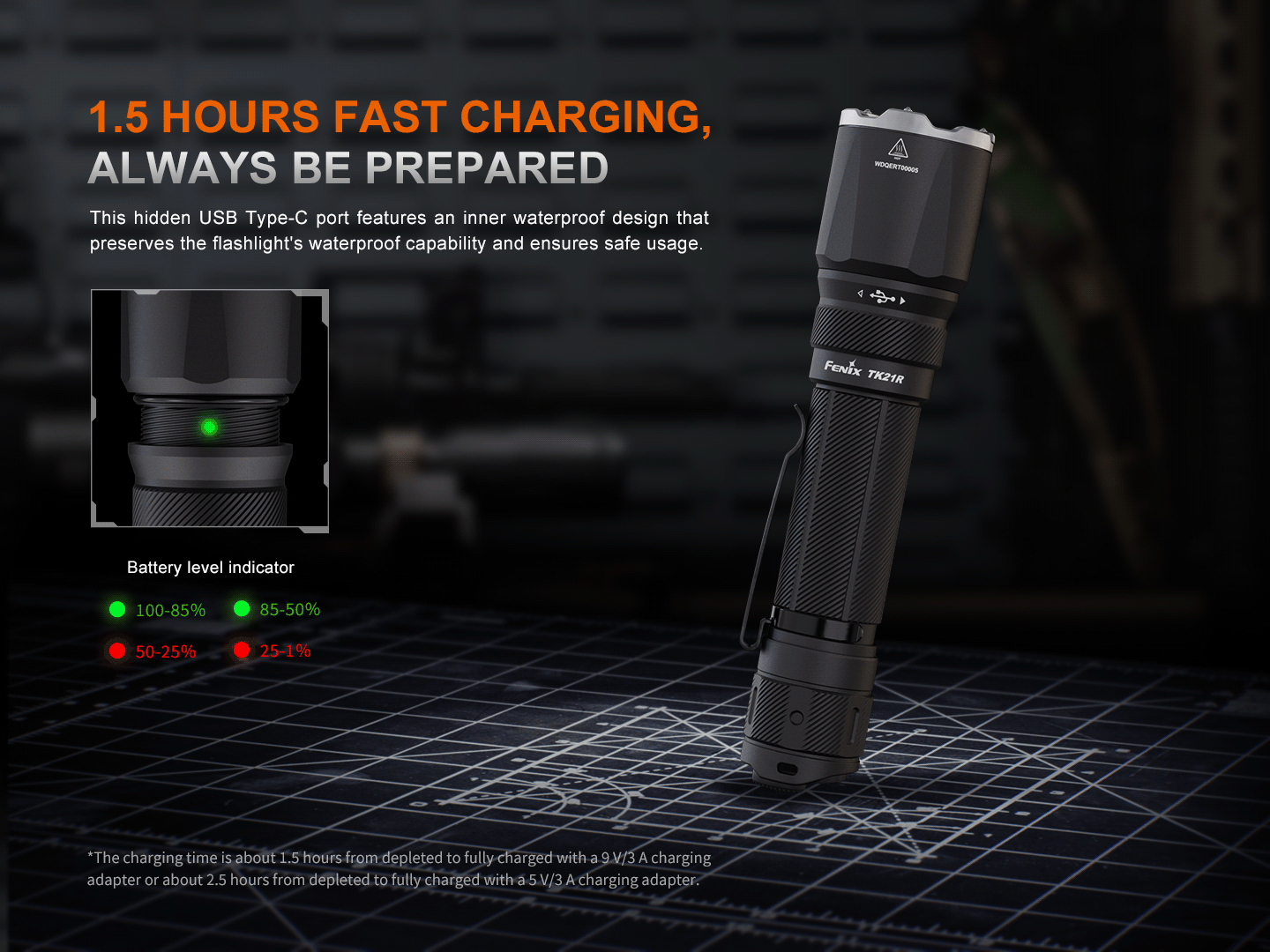

  • USB Type-C chargingHidden USB Type-C charging port supports fast charging.

  • Stable lightingInternal dual-spring structure ensures stable lighting even under severe impact.
  • APFAdvanced Pulse-Frequency Transmission System (APF).

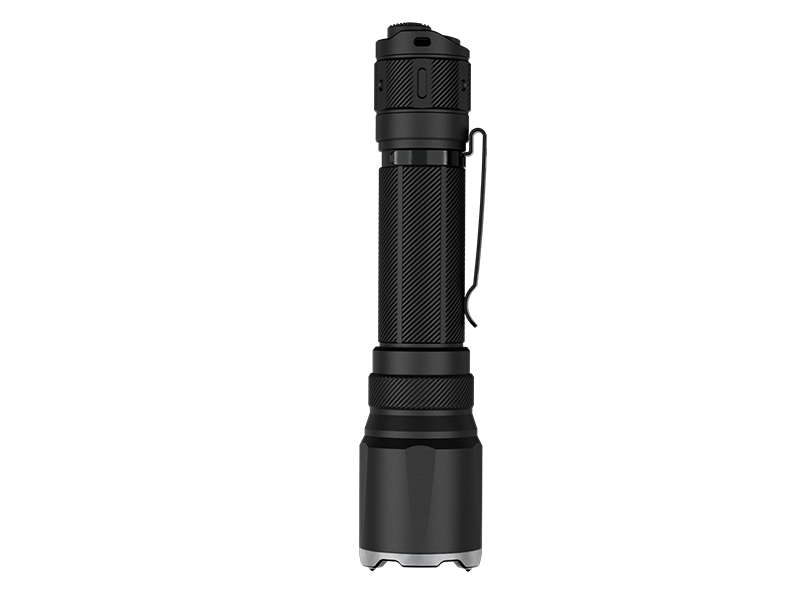

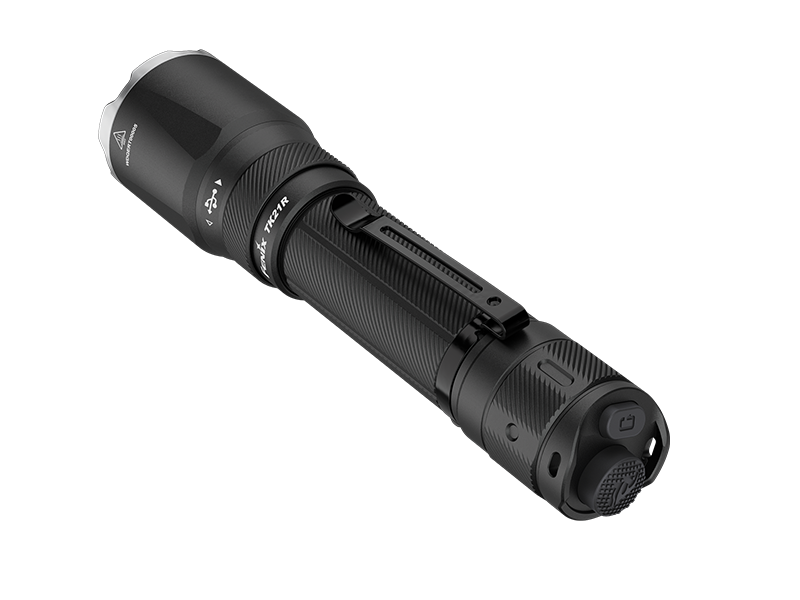

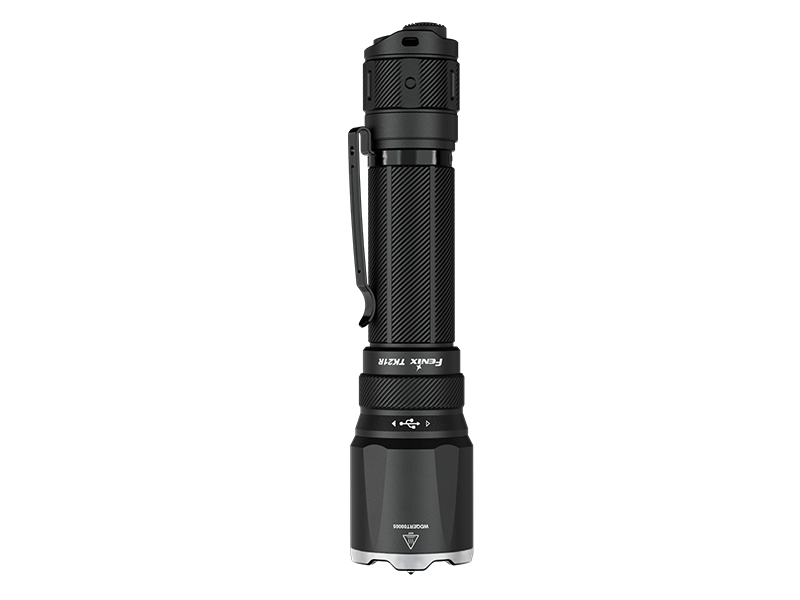

Take a Closer Look

Keep challenging the limits with HL45R

MILITARY AND DUTY FLASHLIGHT

FAQS

Contact Us
Q1. What is the product positioning of TK21R? What are the typical usage scenarios?

A: Fenix TK21R is a compact tactical and duty flashlight. This flashlight is suitable for various activities such as searching, patrolling, and law enforcement.

Q2. What are the key features of TK21R?

A:

1)Simple and rapid output selection.

2)High performance and impressive output.

3)USB Type-C charging.

4)This flashlight comes with a Fenix ARB-L21-6000 battery.

Q3.What kind of LED is used in TK21R? Does Fenix offer to replace LED?

A: One Luminus SFT90 cold white LED with a lifespan of 50,000 hours.

Fenix does not provide LED replacement services for the time being, and users are not recommended to replace the LEDs independently, which may affect product performance and cause product damage.

Q4. What is the working voltage of TK21R?

A: The operating voltage is 3.0V~4.2V;The maximum operating voltage range is 3.0V~
5.5V.

Q5. What kind of battery can be used in TK21R?

A: It is recommended to use a Fenix 21700 Li-ion battery. Other Li-ion batteries are not recommended. As an unmatched battery may cause the flashlight to fail to work normally.

Q6. How to prevent accidentally activate the TK21R?

A: Unscrew the light tail, or remove the battery to prevent accidental activation.

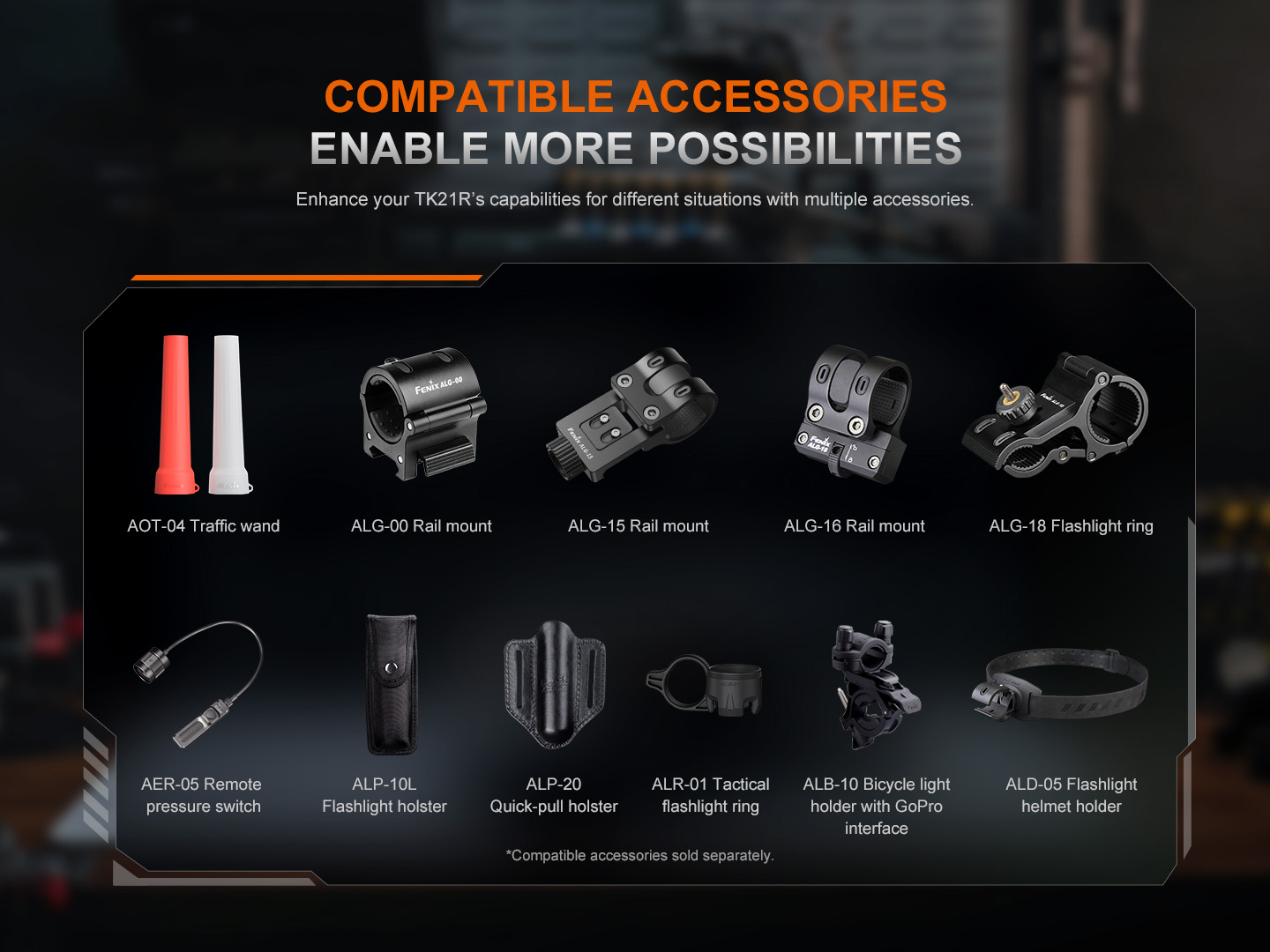

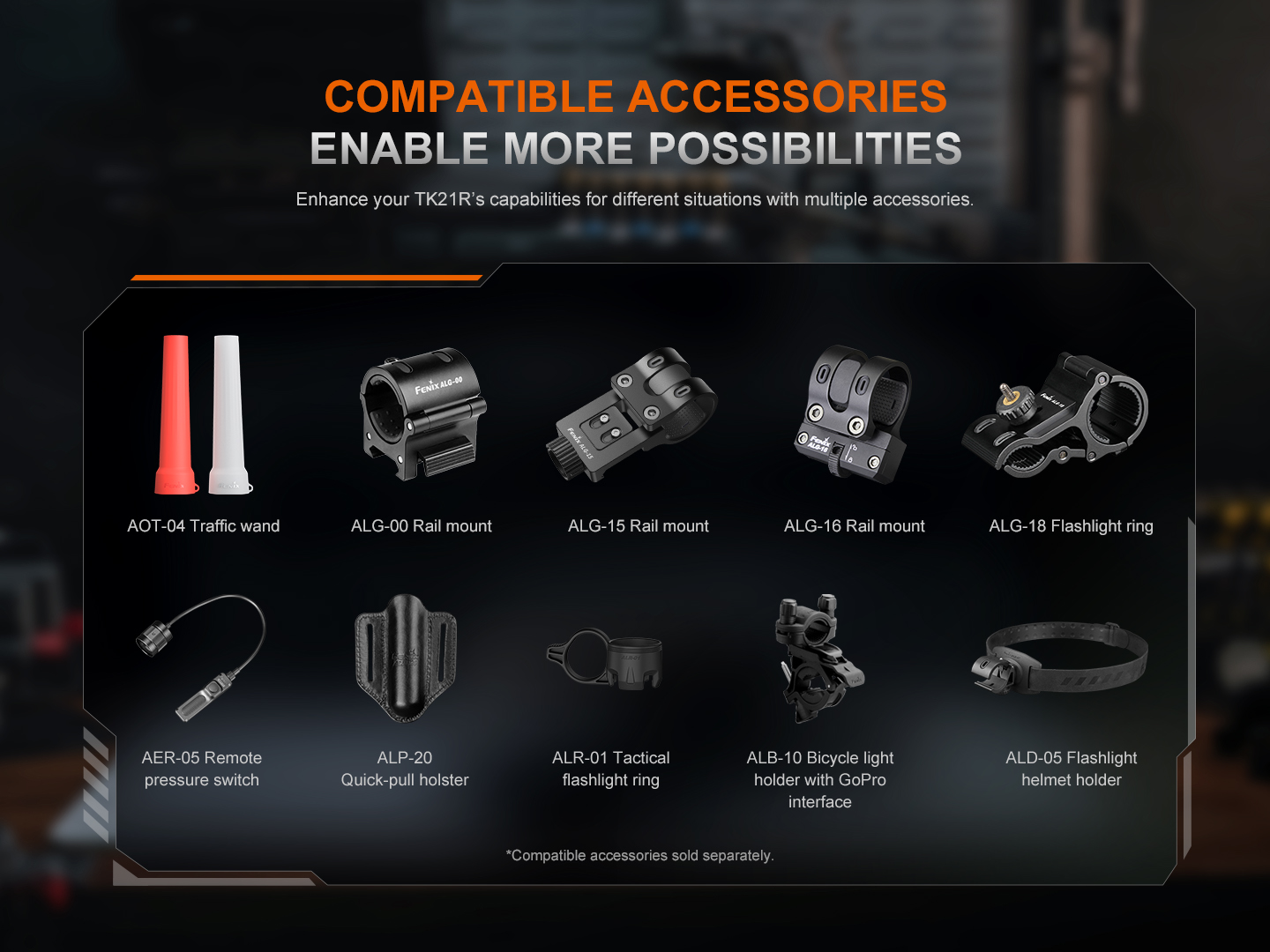

Q7. What are the optional accessories for TK21R?

A:

AOT-04 Traffic wand、ALG-00 Rail mount、ALG-15 Rail mount、ALG-16 Rail mount、ALG-18 Flashlight ring、AER-05 Remote pressure switch、ALP-10L Flashlight holster、ALP-20 Quick-pull holster、ALR-01 Tactical flashlight ring、ALB-10 Bicycle light holder with GoPro interface、ALD-05 Flashlight helmet holder.

Q8. Why does the TK21R downshift to a lower mode after being used for a while and the higher mode cannot be selected?

A: There are two reasons:

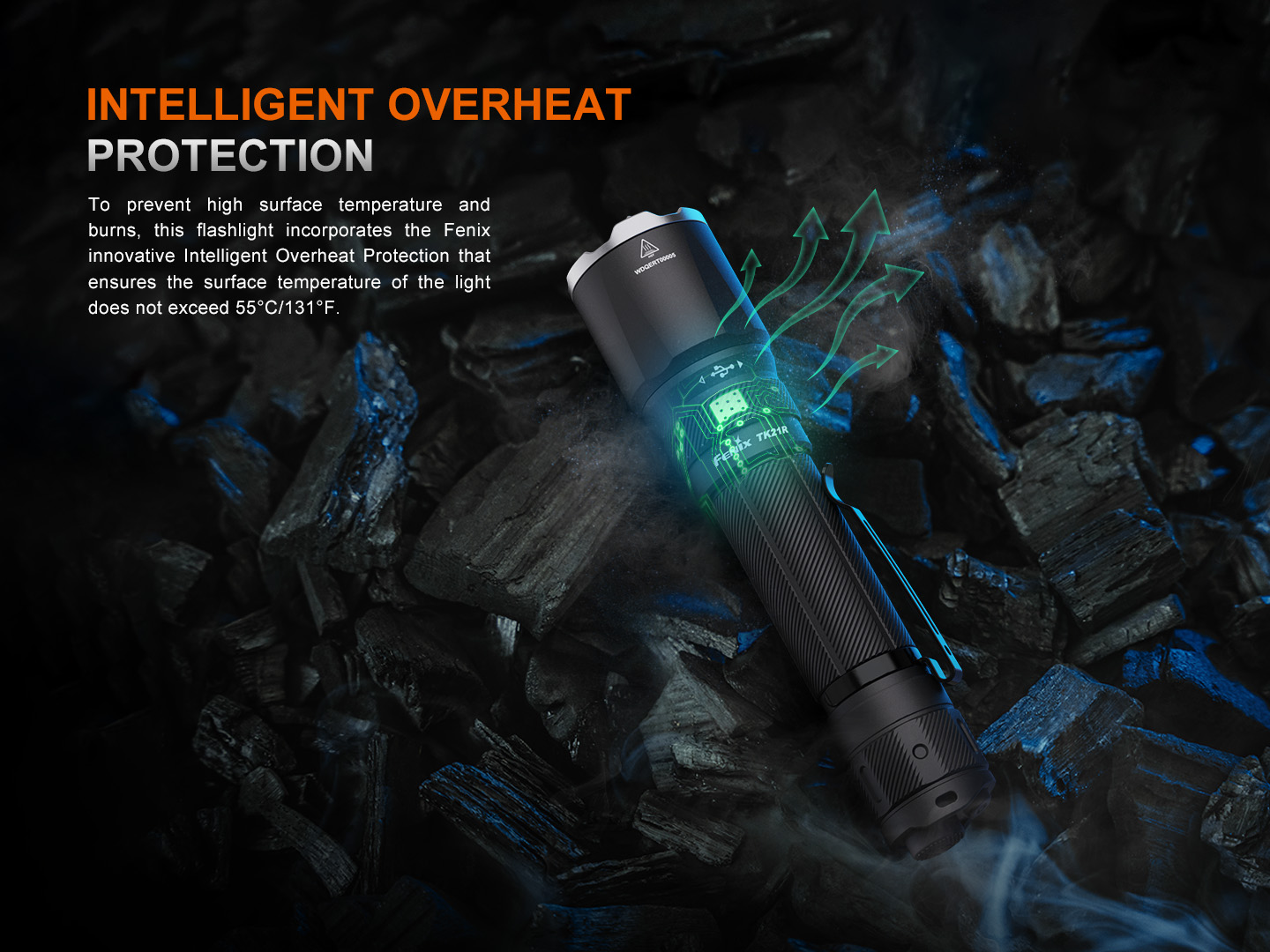

1. Intelligent Overheat Protection

The flashlight will accumulate a lot of heat when used at high output levels for extended periods. When the light reaches a temperature of 55°C or above, the light will automatically step down a few lumens to reduce the temperature.

2. Low-voltage Warning

When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until the Low mode is reached.

Q9.What is the APF?

A: The APF (Advanced Pulse-Frequency Transmission System) was developed by Fenix laboratory, a major technology breakthrough of flashlight industry. Allowing the tactical flashlight achieve a higher level of performance:

1.Take light to the extreme. Traditional forward switches are limited by current, and it is difficult to achieve brightness above 2000 lumens. In the age of 21700 batteries gradually expanding, 3000 lumens tactical flashlights are almost impossible; while the flashlight using APF technology can.

2.Make the functional tail cap simpler. Traditional multi-function tail cap needs to achieve functional through the double-layer body or additional channels ; and the flashlight using APF technology offering a strong reliable flashlight in simple structure, we talking about single layer body if specifically.

3.Better anti-interference performance. Complex external environments such as strong magnetic fields are easily dealt through stronger anti-interference ability.

Q10. Why does the TK21R happen to flicker?

A: The reasons that may cause the light to flicker, shine intermittently or even fail to illuminate:

1. Poor battery level. Solution: Recharge or replace the battery.

2. The contact or contact point of the battery or flashlight is dirty.   Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

If the above methods don't work, please contact your authorized distributor.
