Q1. What is the product positioning of PD45R ACE? What does the acronym ACE represent? What are the key features of PD45R ACE?

The Fenix PD45R ACE is a multi-mode tactical flashlight. The “ACE” stands for Advanced Command Edition. The flashlight's key features include:
1. Innovative SET mode features several lighting modes to choose from.

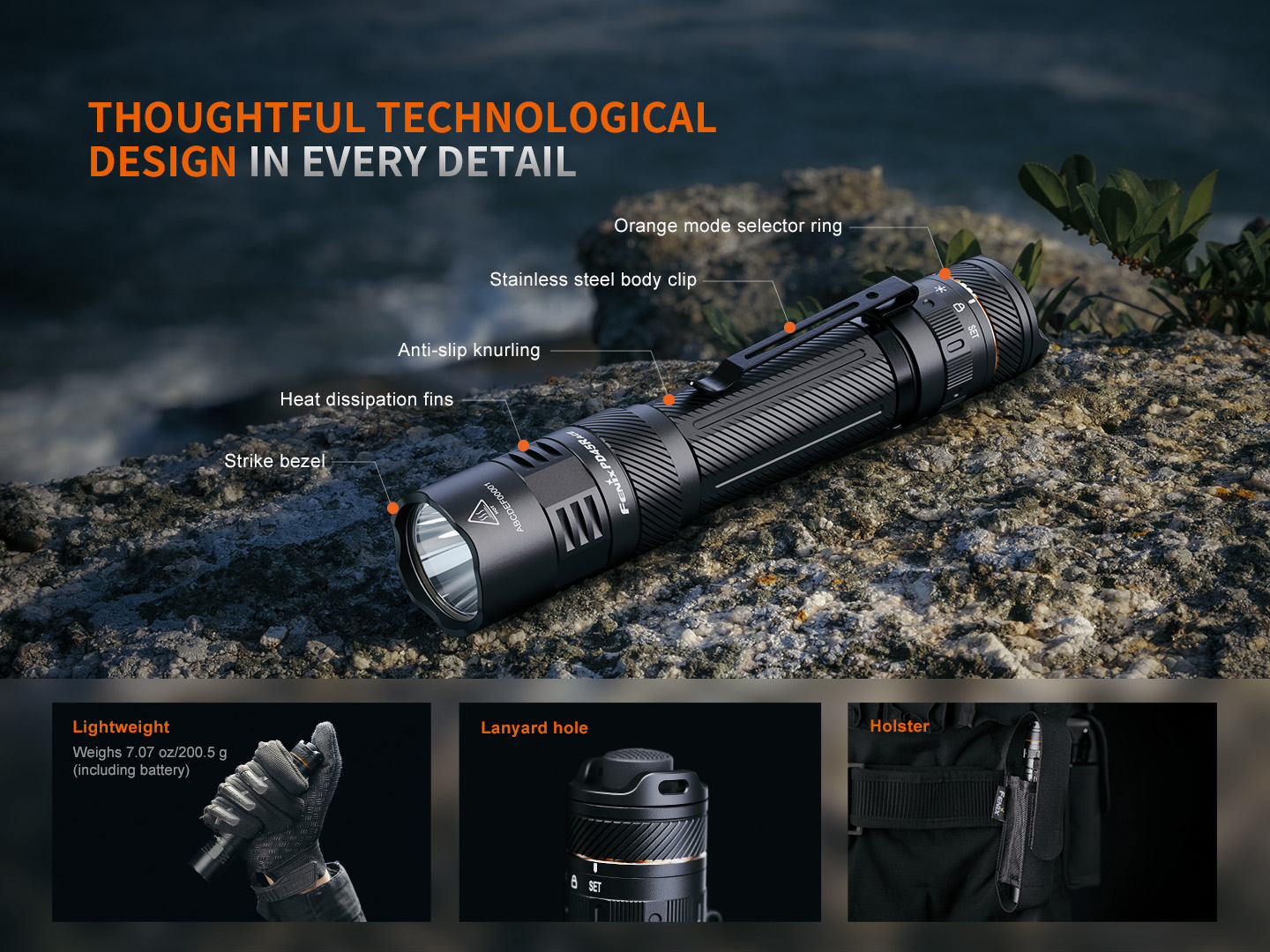

2. Tactical tail switch and mode selector ring enable precise and swift selection of modes.
3. Lock mode avoids accidental activation.

Q2. What kind of LED is used in PD45R ACE? Does Fenix offer to replace LED?

A Luminus SFT-70X-WS65-H2-H1652 LED with a lifespan of 50,000 hours.
Fenix does not provide LED replacement services for the time being, and users are not recommended to replace the LEDs independently, which may affect product performance and cause product damage.

Q3. What is the color temperature of PD45R ACE?

Around 6500K.

Q4. What is the working voltage of PD45R ACE?

The working voltage is 3.0 V - 4.2 V.

Q5. Is PD45R ACE rechargeable? How long is the charging time?

Yes, PD45R ACE is rechargeable with a hidden USB Type-C port. The indicator will display red while charging and will turn green when fully charged. The normal charging time of the included battery is about 3 hours from depleted to fully charged.

Additional question: Does the charging port remain waterproof after any water ingress?

The USB Type-C charging port features an inner waterproof design, enabling normal charging operations following any water ingress. After ensuring the port is thoroughly dried, users can start the charging process.

Q6. How to prevent accidentally activating the PD45R ACE?

The PD45R ACE features the Lock mode for locking and unlocking the flashlight.
Lock:
1. With the light switched on, rotate the mode selector ring to “

” to lock the currently selected output. Pressing or tapping the tactical tail switch cannot change the output or turn off the light.
2. With the light switched off, rotate the mode selector ring to “

” to lock the tactical tail switch. Pressing or tapping the tactical tail switch cannot turn on the light.
Unlock:
Rotate the mode selector ring from “

” to any designated mode to unlock the flashlight. After unlocking the flashlight, the tactical tail switch functions properly.

Q7. Why does the PD45R ACE downshift to a lower mode after being used for a while and the higher mode cannot be selected?

There are two reasons:
1. Intelligent Overheat Protection
The flashlight will accumulate a lot of heat when used at high output levels for extended periods. When the light reaches a temperature of 60°C or above, the light will automatically step down a few lumens to reduce the temperature.
2. Low-voltage Warning
When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until the lowest output is reached.

Q8. Why does the PD45R ACE happen to flicker?

The reasons that may cause the light to flicker, shine intermittently or even fail to illuminate:
1. Poor battery level.
Solution: Recharge or replace the battery.
2. The contact or contact point of the battery or light is dirty.
Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.
If the above methods don't work, please contact your authorized distributor.

Q9. What kind of battery can be used in PD45R ACE?

The PD45R ACE flashlight package comes with a Fenix ARB-L21-6000 battery. It is recommended to use a Fenix ARB-L21 series battery. Other Li-ion batteries are not recommended, as an unmatched battery may cause the flashlight to fail to work normally.

Q10. What are the optional accessories for PD45R ACE?

The PD45R ACE flashlight package comes with a lanyard and a holster. Other compatible accessories include:
AER-04 Remote pressure switch
AER-05 Remote pressure switch
ALG-00 Flashlight ring
ALG-18 Flashlight ring
ALG-15 Rail mount
ALG-16 M-LOK quick-release rail mount, etc.

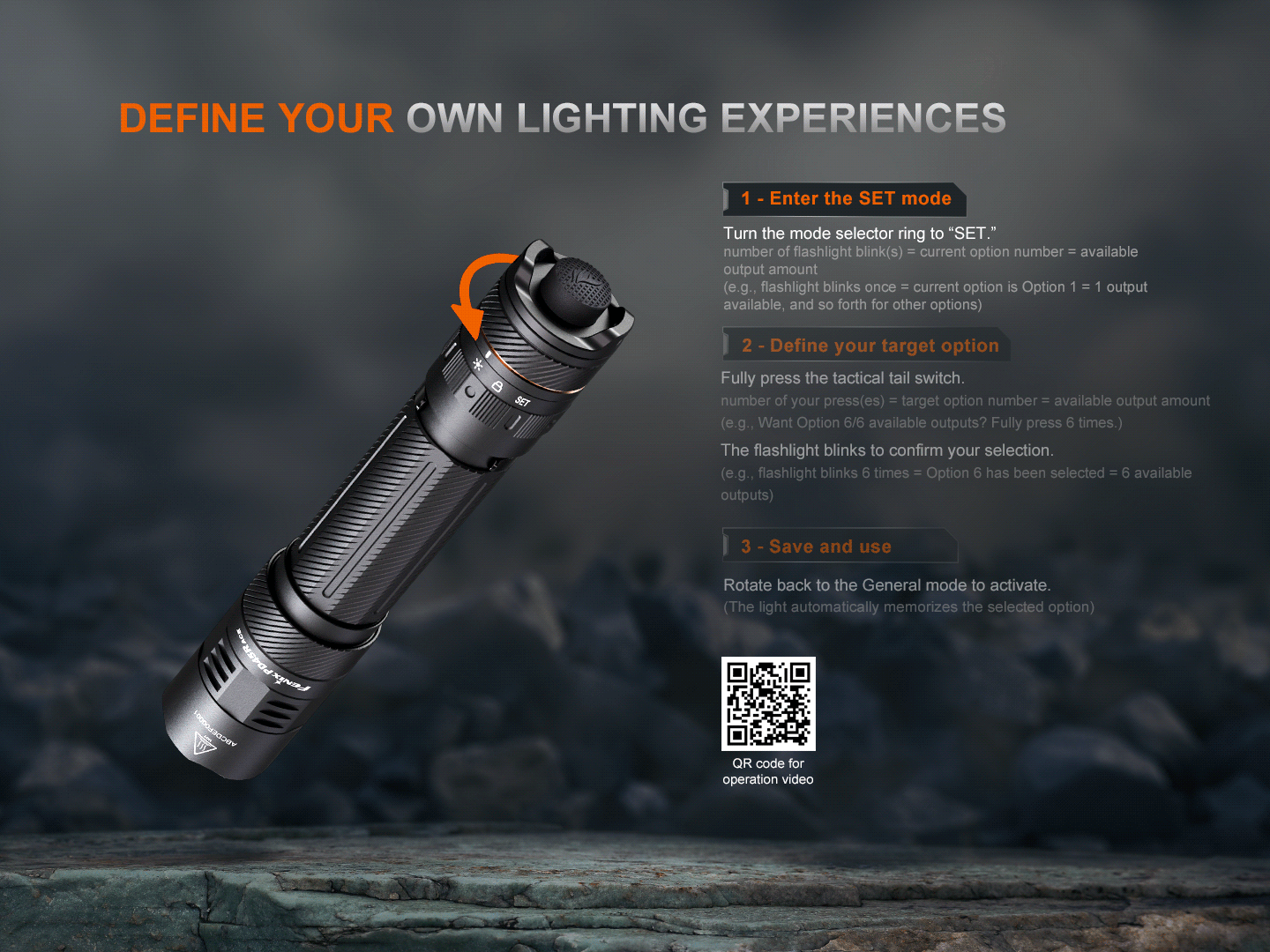

Q11. How to operate the SET mode of PD45R ACE?

The SET mode features 6 different output settings, which can be selected based on various application scenarios and users’ usage habits. The operations are as follows:
1. Enter the SET mode
→Turn the mode selector ring to “SET.”
→number of flashlight blink(s)=current option number=available output amount
(e.g., flashlight blinks once = current option is Option 1 = 1 output available, and so forth for other options)
2. Define your target option
→Fully press the tactical tail switch.
→number of your press(es) = target option number = available output amount
(e.g., Want Option 6/6 available outputs? Fully press 6 times.)
→The flashlight blinks to confirm your selection.
(e.g., flashlight blinks 6 times = Option 6 has been selected = 6 available outputs)
3. Save and use
→Rotate back to the General mode to activate.
(The light automatically memorizes the selected option)

Q12. What should I do when the PD45R ACE needs repair?

1. 15-day replacement: Fenix will replace identical or equal products with documented manufacturing defects within 15 days of purchase.
2. 5-year free repair: Fenix will repair a light free of charge within 5 years (rechargeable battery and other accessories: 1 year) of purchase if problems develop with normal use.
3. Lifetime limited warranty: If repair is required after 5 years from the date of purchase, Fenix will charge for parts. The total repair fee is dictated by the cost of the replaced materials.
4. Warranty certificate: Please keep the warranty card in contacting the authorized distributors for after-sale maintenance, Fenix will provide service support to the distributors.
