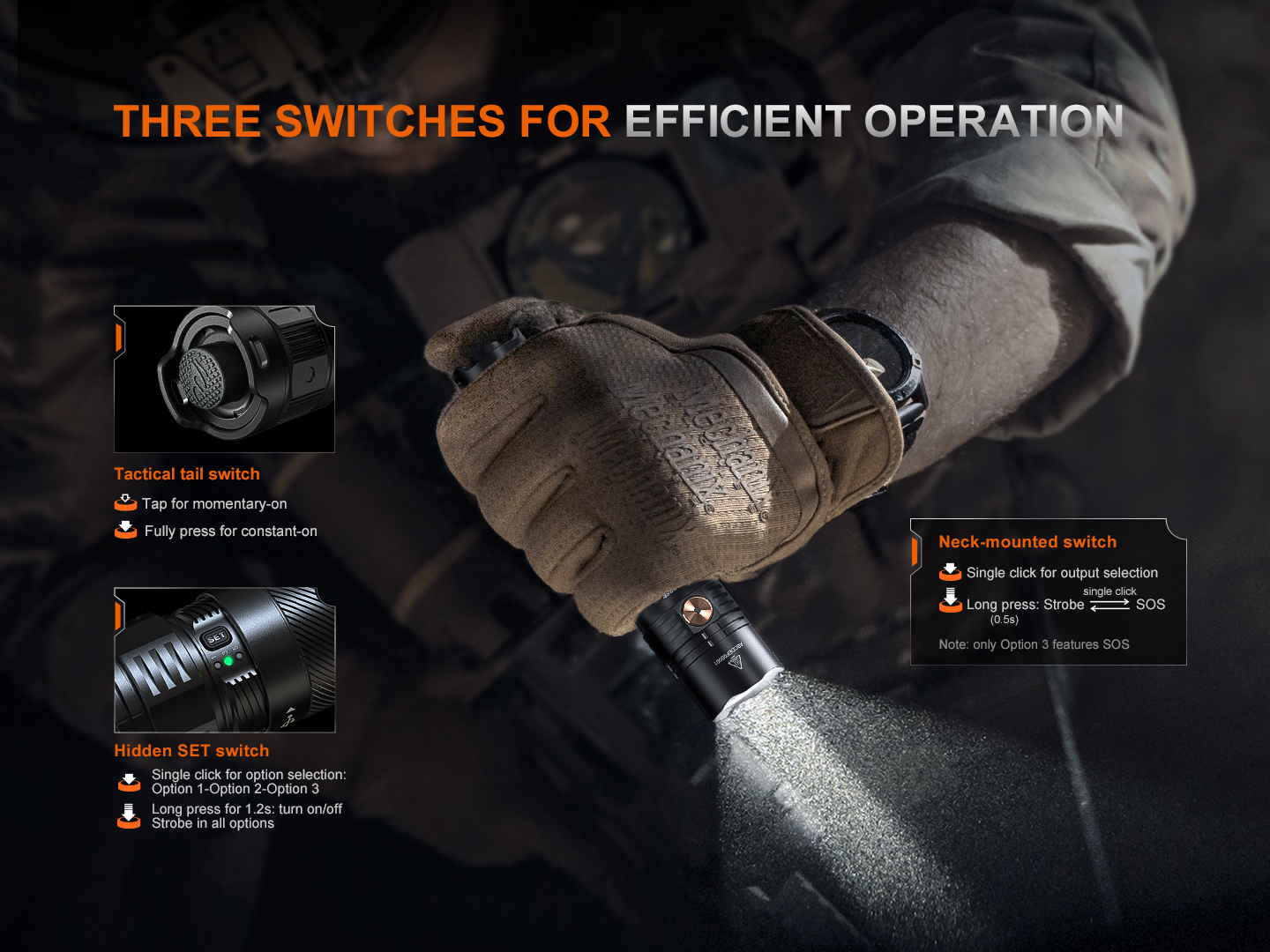

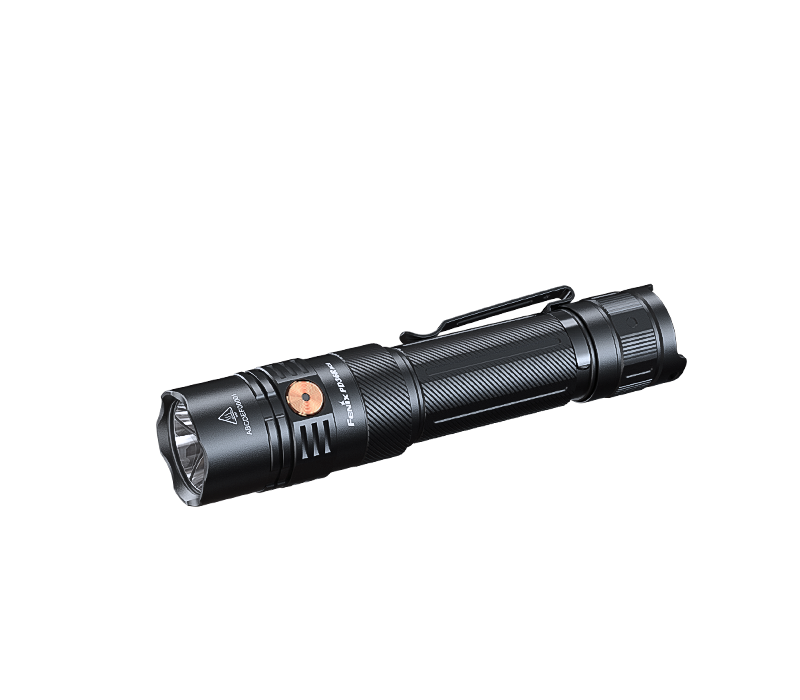

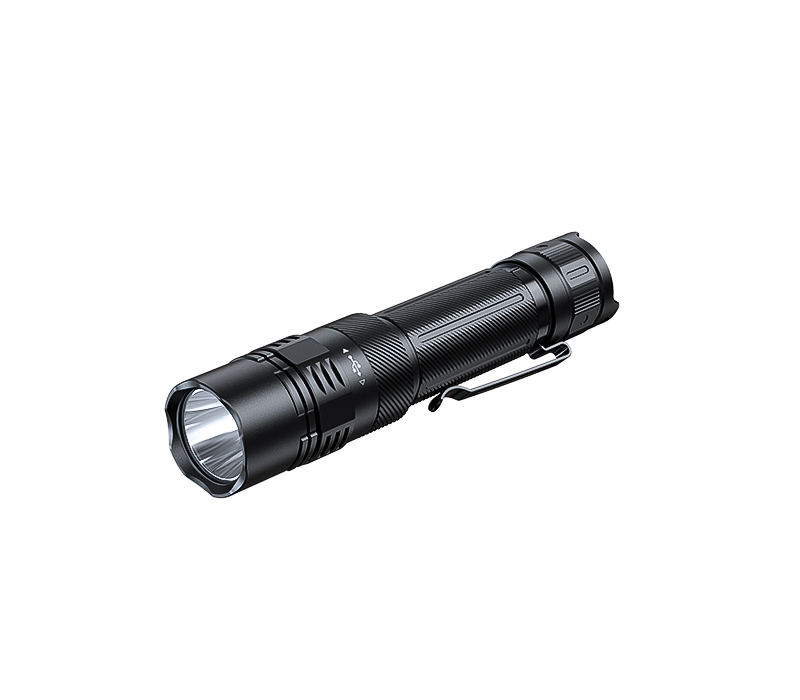

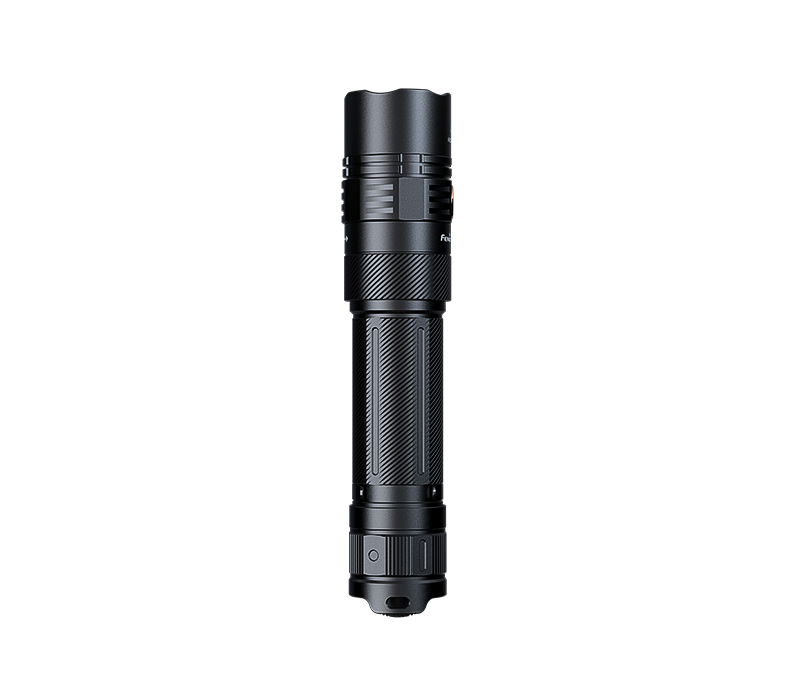

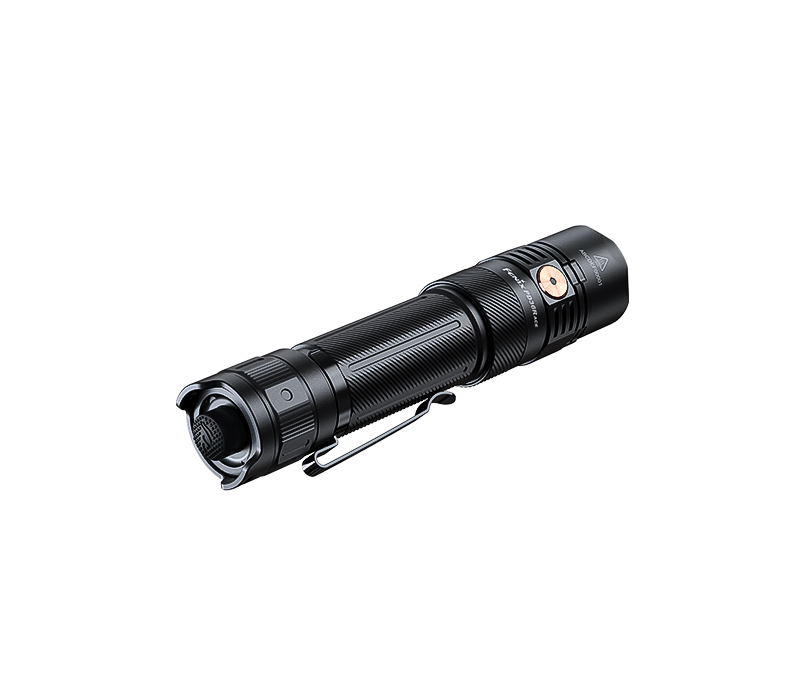

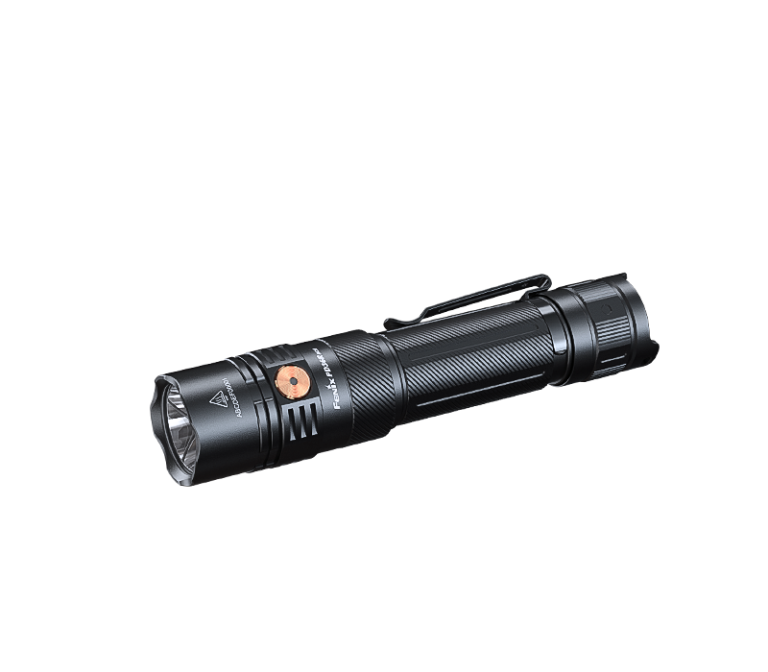

The Fenix PD36R ACE is a powerful multi-mode tactical flashlight featuring an innovative SET function structure, which allows users to customize brightness levels and lighting options for various scenarios. Experience impressive lighting with this flashlight that boasts an outstanding 3000lumen output and a beam distance of over 415 meters, ensuring stability and brightness in any situation. Its tail tactical switch and neck-mounted switch enable instant activation, output selection, Strobe mode, and SOS mode, providing efficient and easy operation. Equipped with a hidden USB Type-C charging port and a 5000mAh large-capacity battery, the PD36R ACE provides extended runtime for prolonged use. Additionally, it comes with a battery level indicator to remind users when the battery is running low. Fully IP68 waterproof and drop-tested to 1 meter, it’s the perfect flashlight for law enforcement, patrolling, and outdoor adventure.

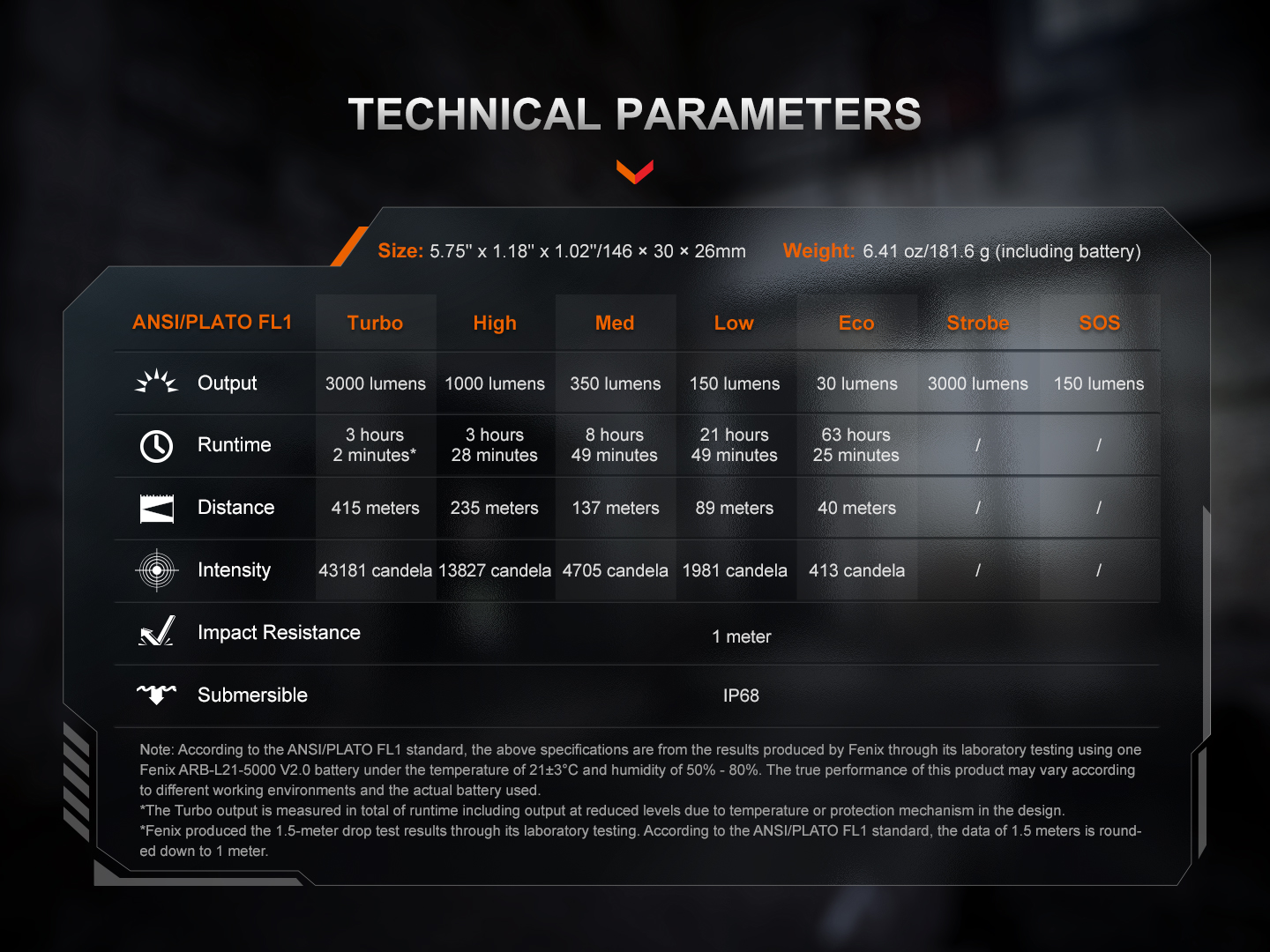

| Size |
5.75'' x 1.18'' x 1.02''/146 x 30 x 26 mm |
| Weight |
6.41 oz/181.6g (including battery) |
| Battery Type |
ARB-L21-5000 V2.0 |

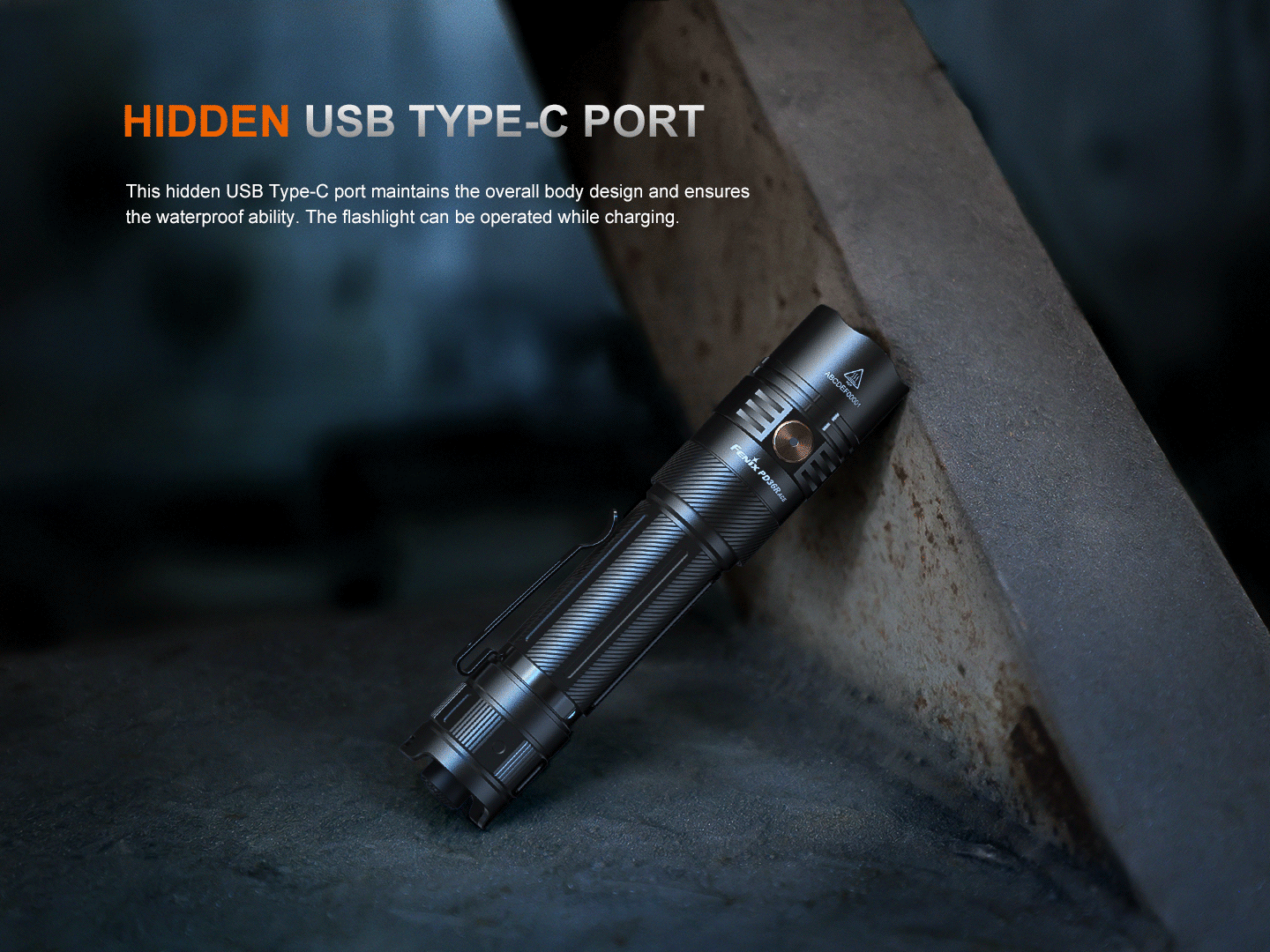

Hidden USB Type-C charging Hidden USB Type-C charging port in the light neck for convenient charging
MULTI-MODE TACTICAL FLASHLIGHT
A: The Fenix PD36R ACE is a multi-mode tactical flashlight. The “ACE” stands for Advanced Command Edition. The flashlight's key features include:
1. Innovative SET mode and customizable Strobe design match lighting needs on different occasions.
2. 3000 maximum output, 415 meters maximum beam distance.
3. Hidden USB Type-C port for convenient charging.

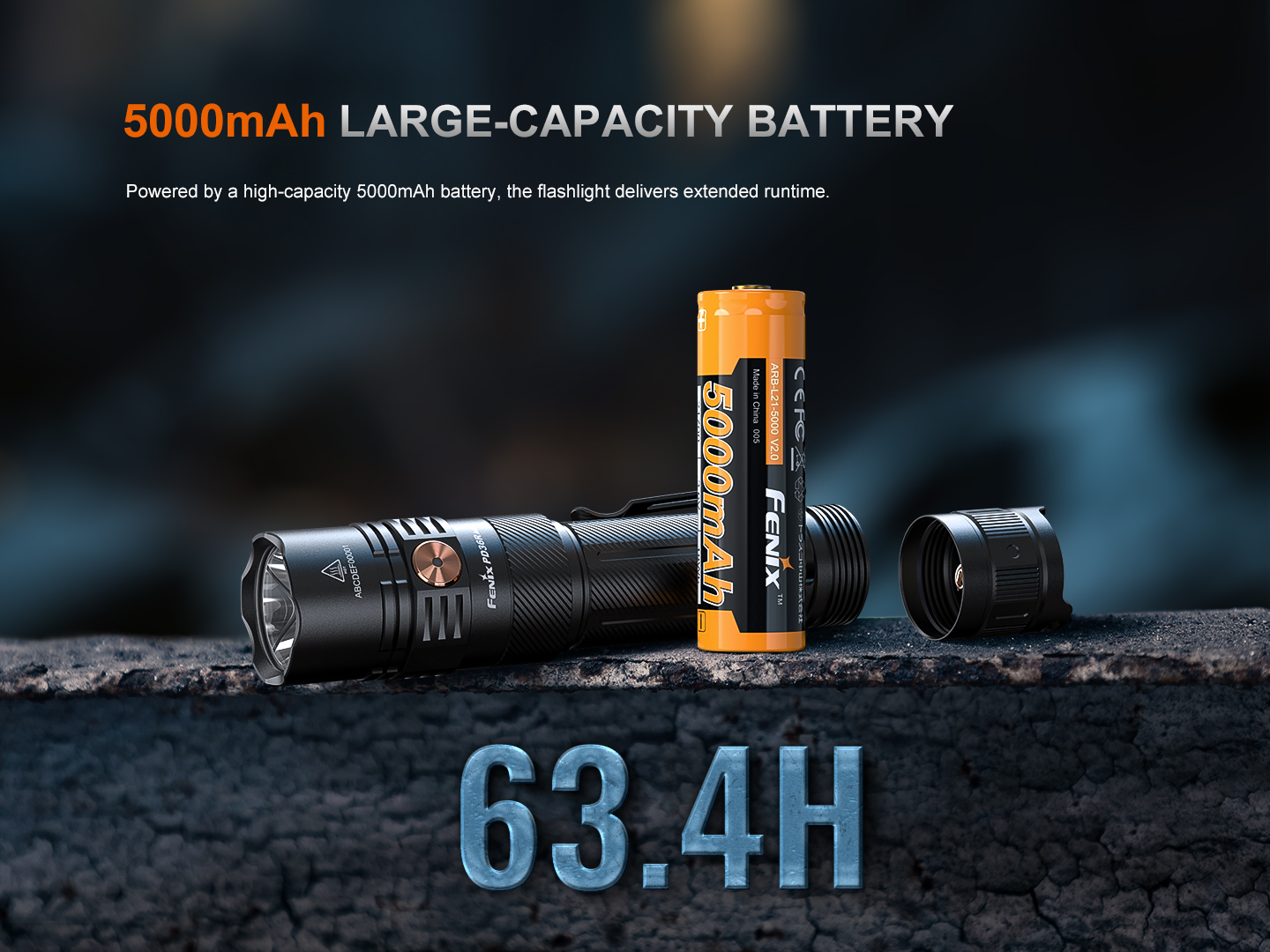

4. Powered by a Fenix ARB-L21-5000 V2.0 battery.

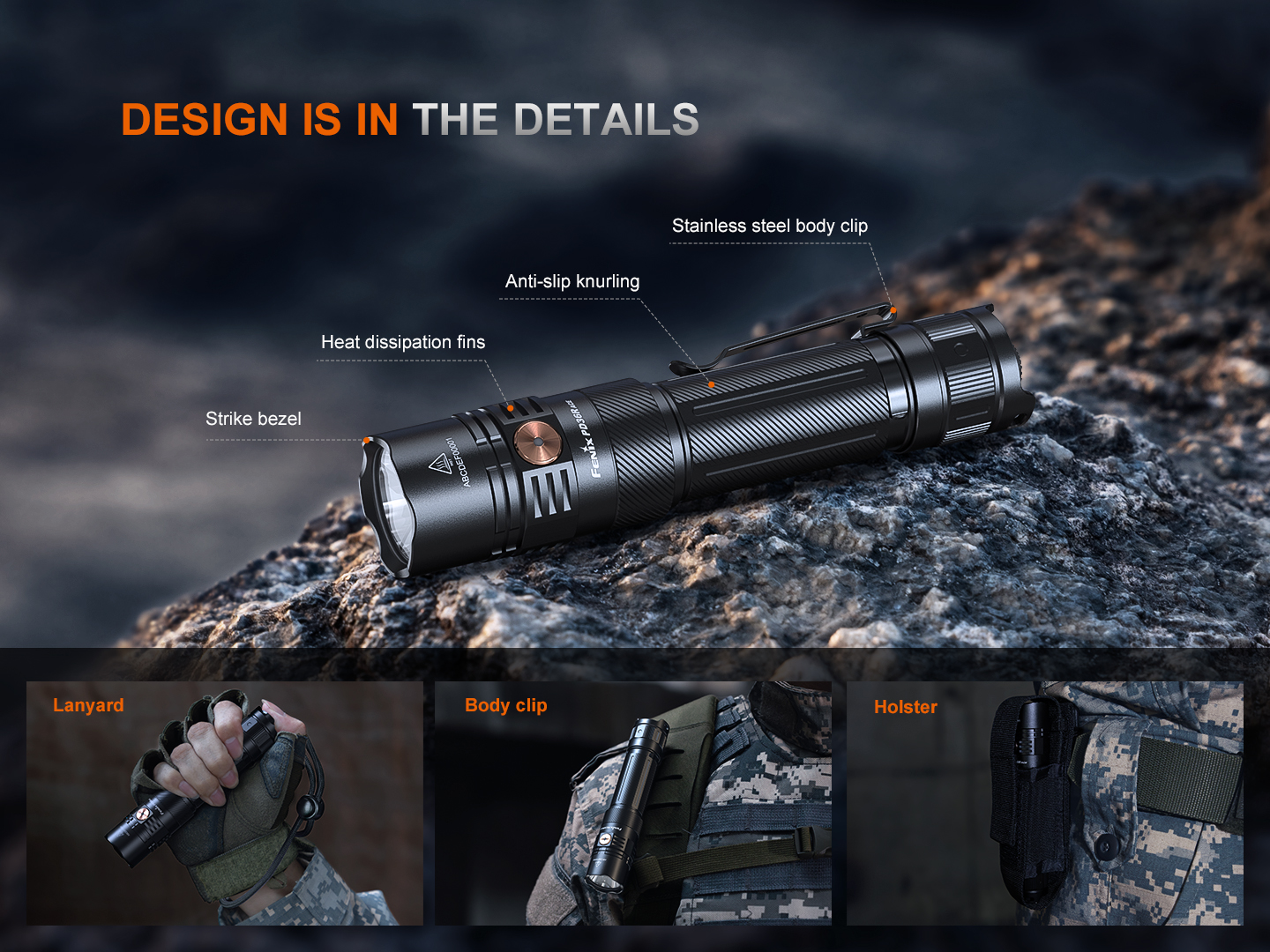

5. Anti-roll and anti-slip body design.
6. Included body clip for versatile attachment.
A: A LuminusSFT70 Gen2 LED with a lifespan of 50,000 hours.
Fenix does not provide LED replacement services for the time being, and users are not recommended to replace the LEDs independently, which may affect product performance and cause product damage.
A: Around 6500K.
A: The working voltage is 2.8V～4.2V.
A: Yes, PD36R ACE is rechargeable with a hidden USB Type-C port. The indicator will display red while charging and will turn green when fully charged. The normal charging time of the included battery is about 3 hours from depleted to fully charged.
A: There are two reasons:
1. Intelligent Overheat Protection
The flashlight will accumulate a lot of heat when used at high output levels for extended periods. When the light reaches a temperature of 60°C or above, the light will automatically step down a few lumens to reduce the temperature.
2. Low-voltage Warning
When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until the lowest output is reached.
A: The reasons that may cause the light to flicker, shine intermittently or even fail to illuminate:
1. Poor battery level.
Solution: Recharge or replace the battery.
2. The contact or contact point of the battery or flashlight is dirty.
Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.
If the above methods don't work, please contact your authorized distributor.

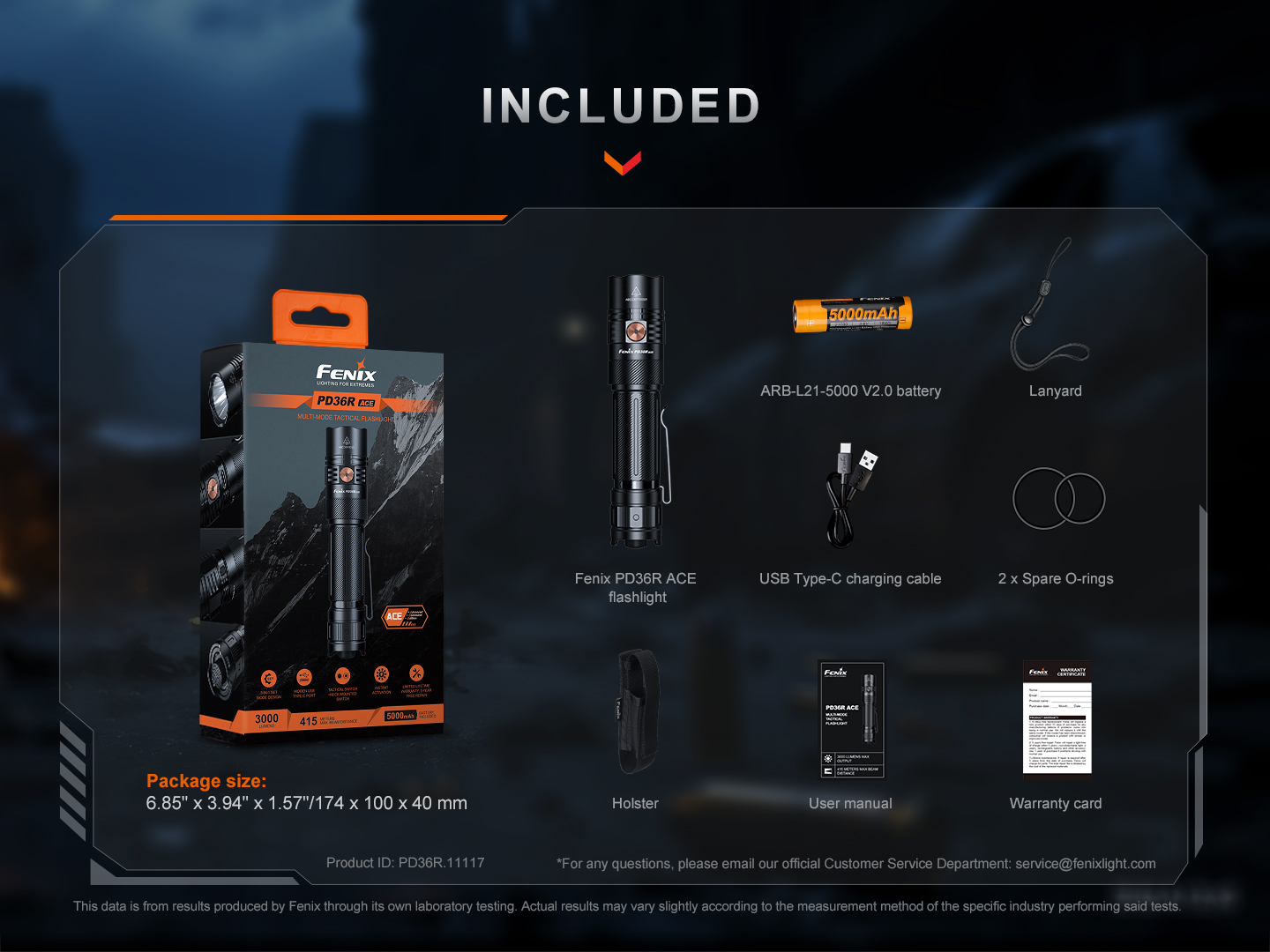

A: The PD36R ACE flashlight package comes with a lanyard and a holster. Other compatible accessories include:
AER-02 V2.0 Remote pressure switch、ALG-00 Flashlight ring、ALG-15 Rail mount、ALG-16 Rail mount、AOT-S+ Traffic wand、AOS-F+V2.0 Filter adapter、AOD-S V2.0 Diffuser tip.
A: The SET mode features 3 lighting options, which can be selected based on various application scenarios and users’ usage habits. The operations are as follows:
1. Loosen the light neck to reveal the hidden SET switch.
2.With the light turned on, single click the SET switch to cycle through Option 1(1 output)→Option 2(3 outputs)→Option 3(5 outputs). When users turn on the flashlight for the first time, Option 3 will be selected by default.
3.When a lighting option is selected, its corresponding indicator will display green for 3 seconds to confirm the selection. The corresponding numbers indicate the currently available output amounts for each option.
A: 1. 15-day replacement: Fenix will replace identical or equal products with documented manufacturing defects within 15 days of purchase.
2. 5-year free repair: Fenix will repair a light free of charge within 5 years (rechargeable battery and other accessories: 1 year) of purchase if problems develop with normal use.
3. Lifetime limited warranty: If repair is required after 5 years from the date of purchase, Fenix will charge for parts. The total repair fee is dictated by the cost of the replaced materials.
4. Warranty certificate: Please keep the warranty card in contacting the authorized distributors for after-sale maintenance, Fenix will provide service support to the distributors.
For more detailed information, please check:
