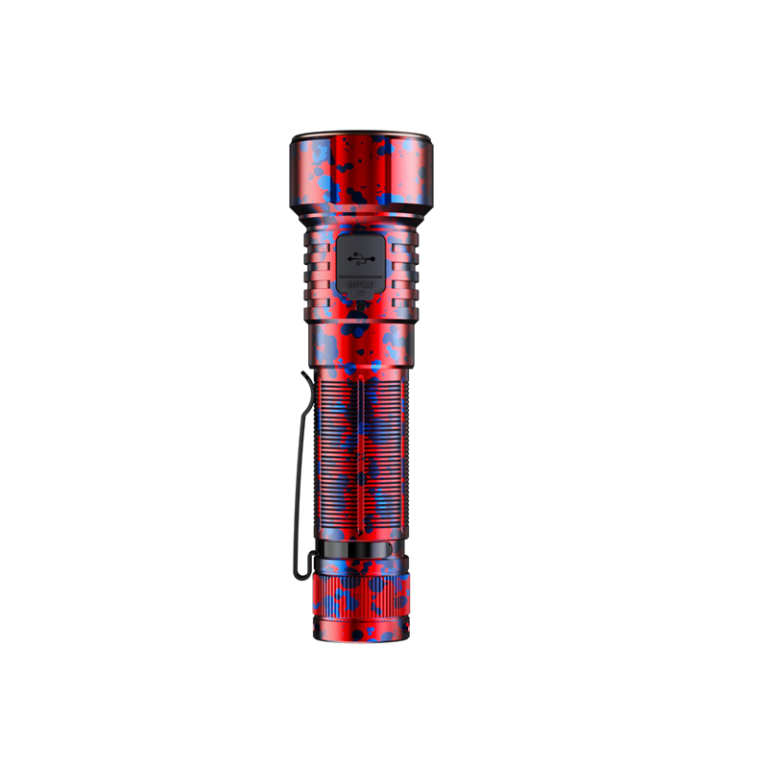

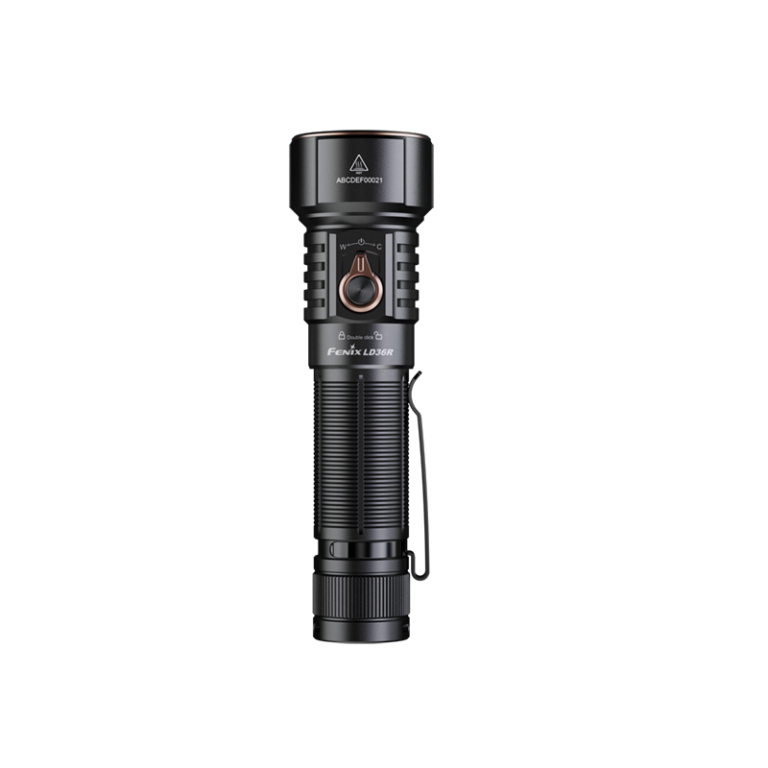

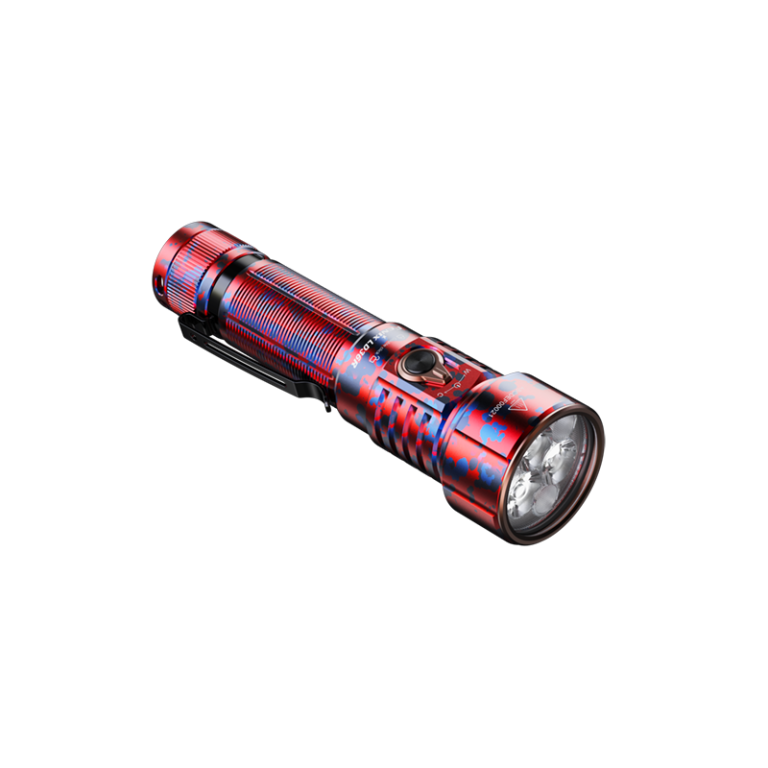

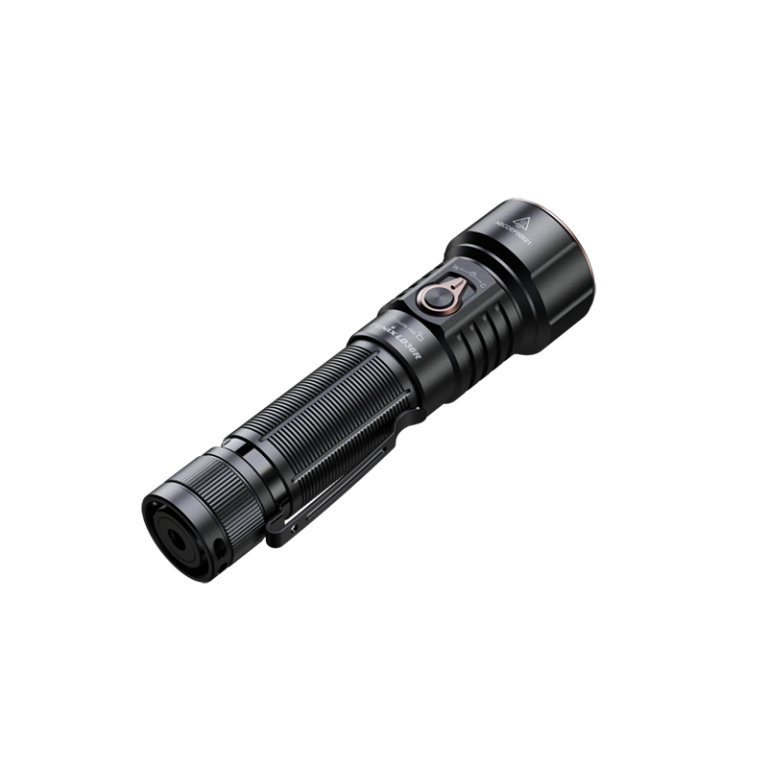

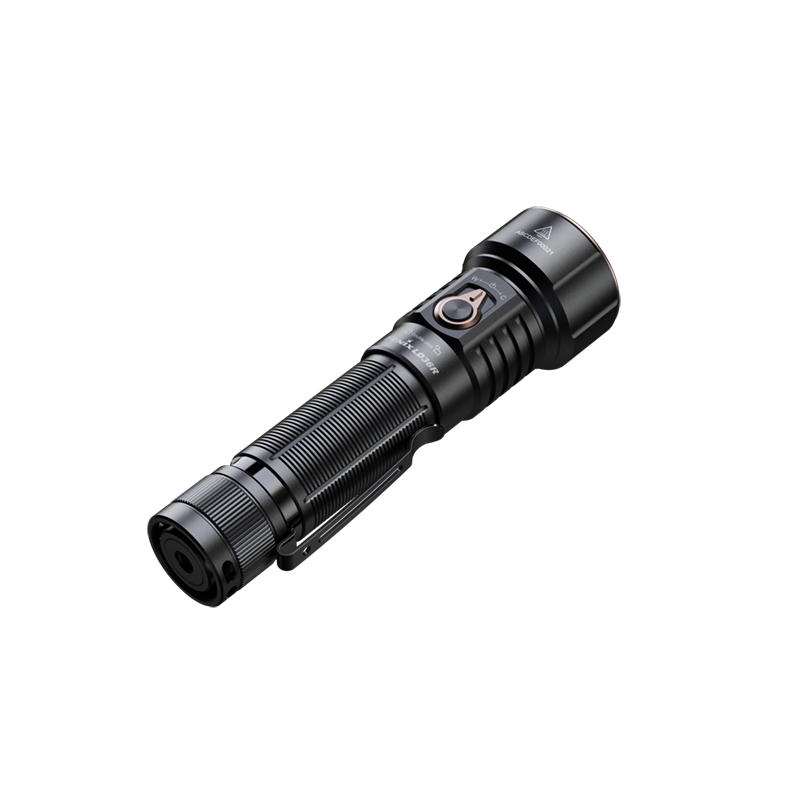

LD36R

HIGH-PERFORMANCE MULTICOLOR FLASHLIGHT

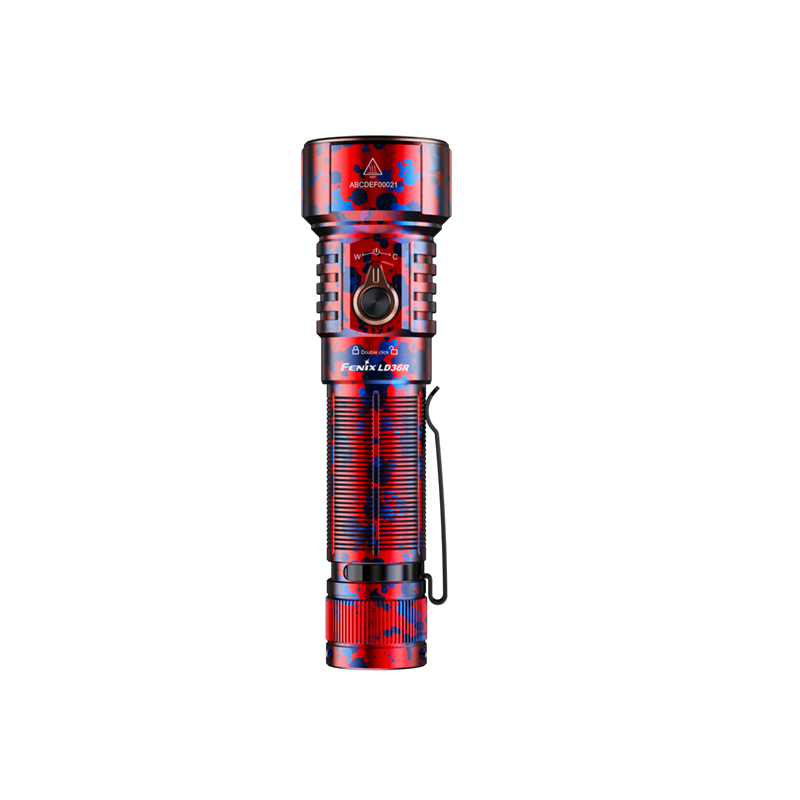

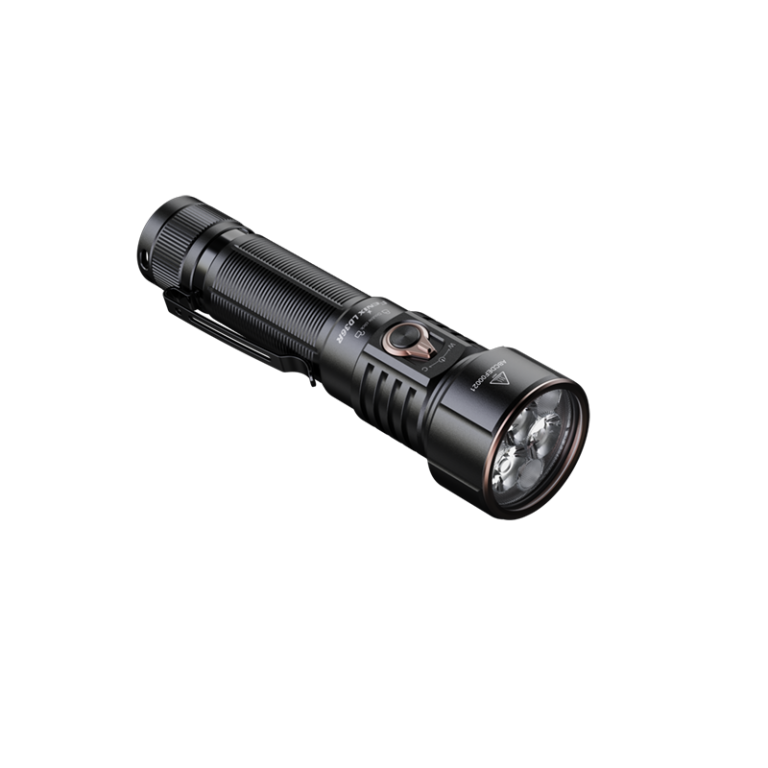

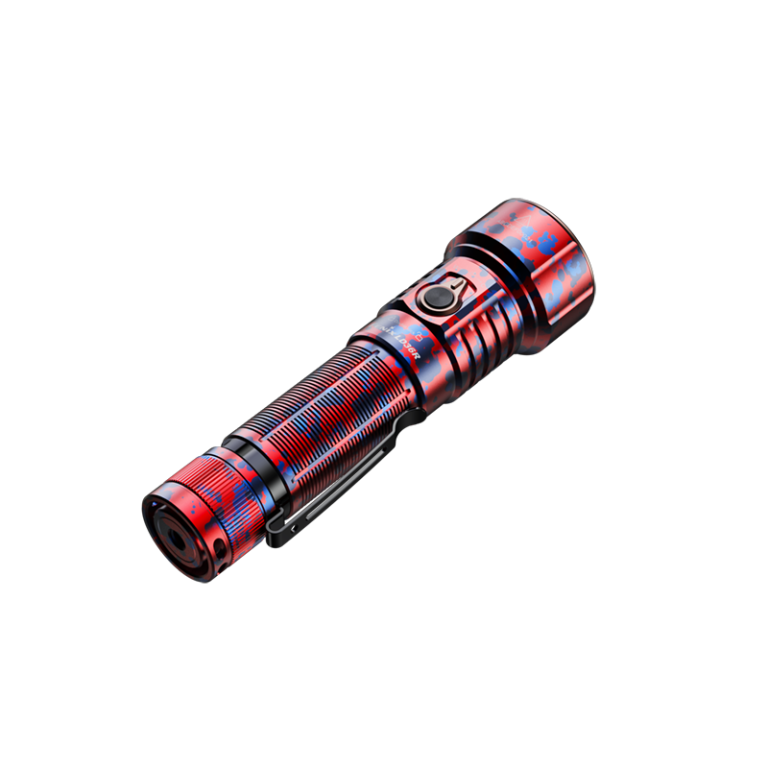

The LD36R flashlight is your ultimate lighting solution with a powerful 3600 lumens output and 385-meter beam distance. With both colorful light and stepless colorful light, this flashlight offers various lighting effects and allows you to select your preferred light color, creating enriched vibes for different scenes. Designed for convenience, the LD36R features a toggle switch and an electronic switch for easy single-handed control. The package comes with a high-capacity 6000mAh battery, which can be recharged through the inner waterproof USB Type-C port on the flashlight. Additionally, the flashlight features a 4 inch threaded socket at the tail, enabling it to be securely mounted on a tripod for hands-free illumination. With the included diffuser tip, you can quickly transform the LD36R into a reading or multicolor atmospheric light. Ideal for mountaineer- ing, camping, trekking, and photography, the LD36R merges power and multi-functionality into a sleek, multipurpose flashlight.

  • 3600 LM Lumens
  • 385 M Range
  • 65 H Run Time

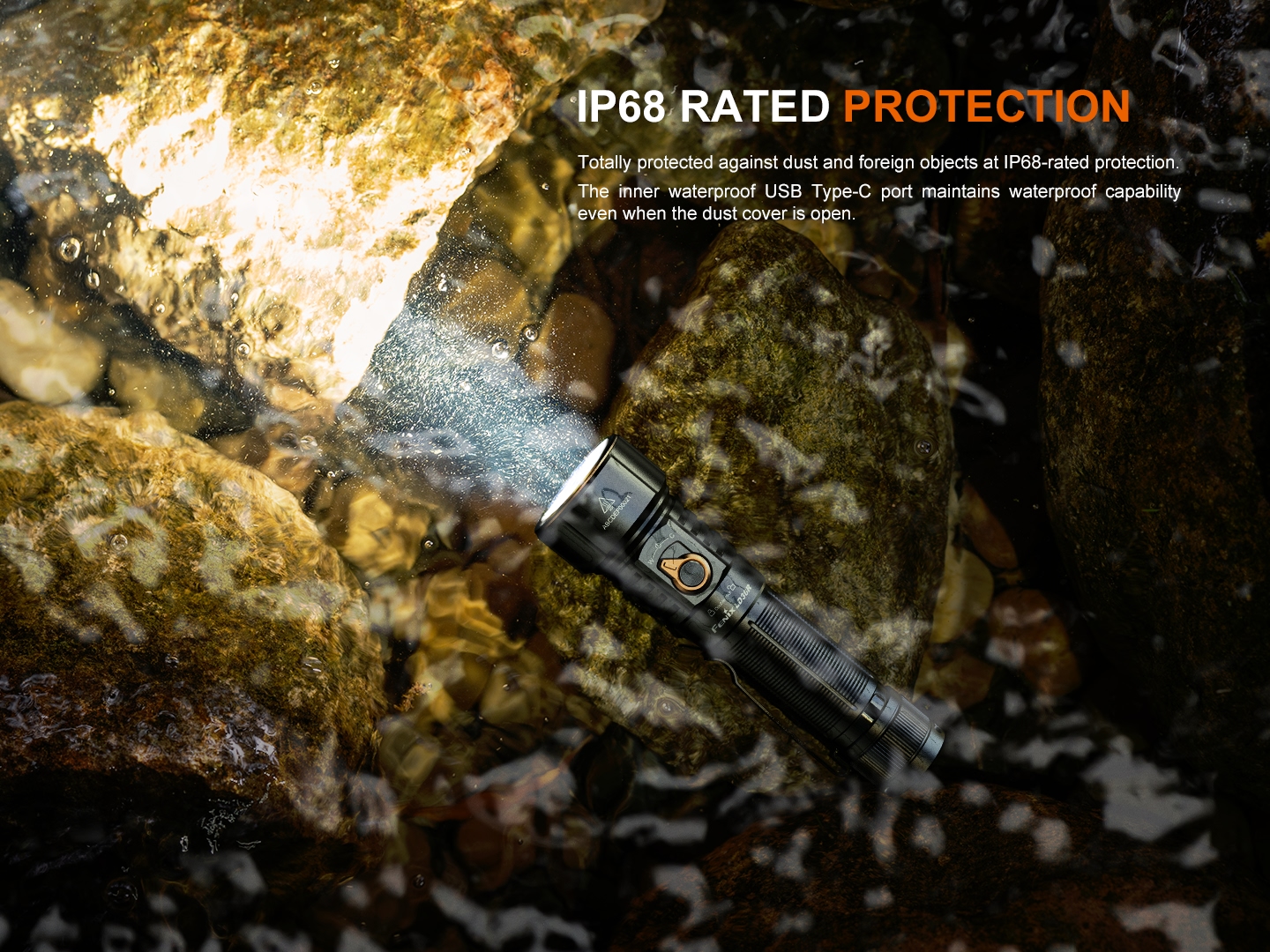

  • IP68 Water Resistant
Contact Us Brochure

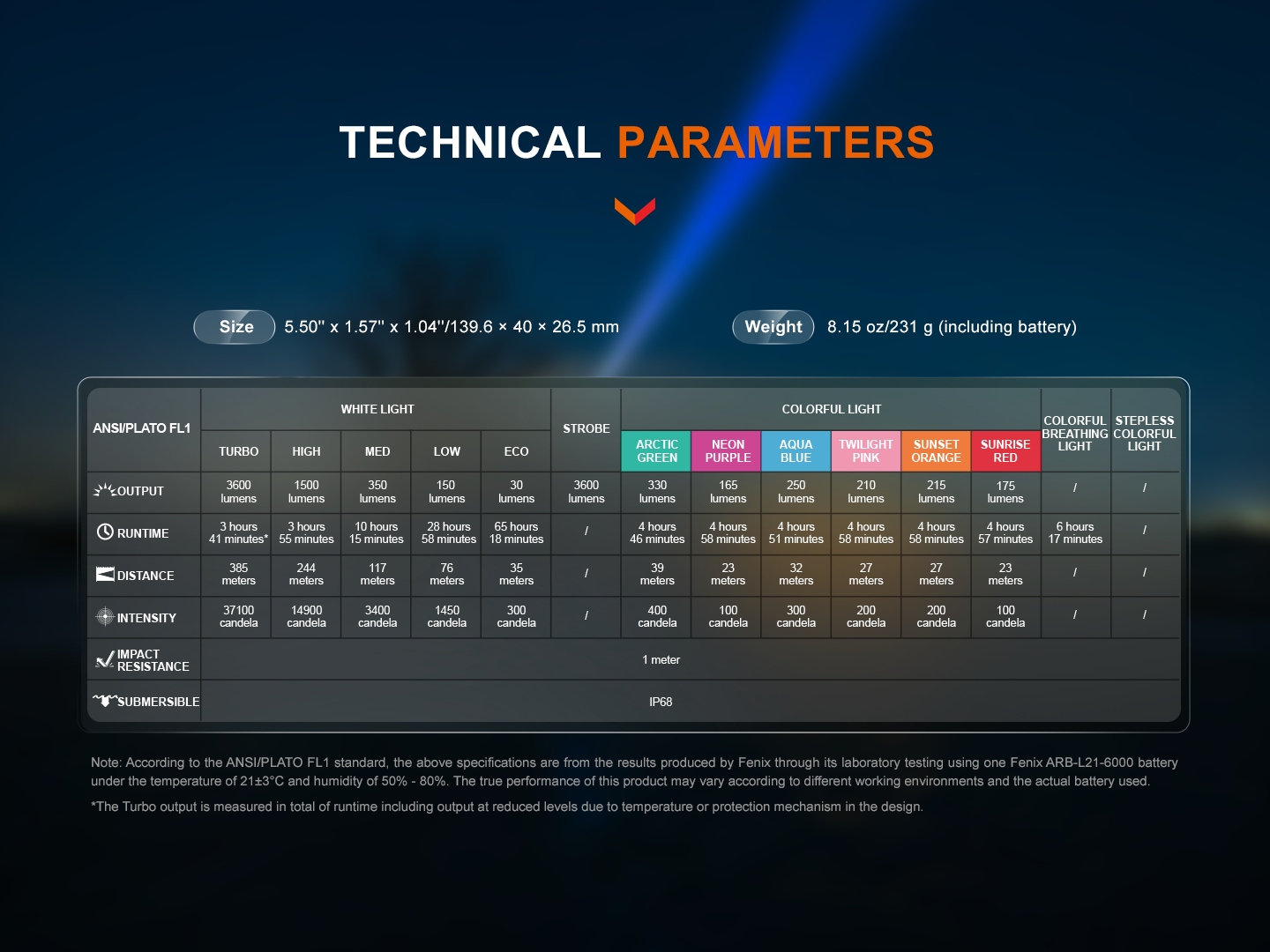

Size 5.50'' x 1.57'' x 1.04''/139.6 × 40.0 × 26.5 mm
Weight 8.15 oz/231 g (including battery)
Battery Type ARB-L21-6000 battery


FEATURES

  • 3600 Lumens and 385 Meters Beam Distance 3600 lumens maximum output and 385 meters maximum beam distance.

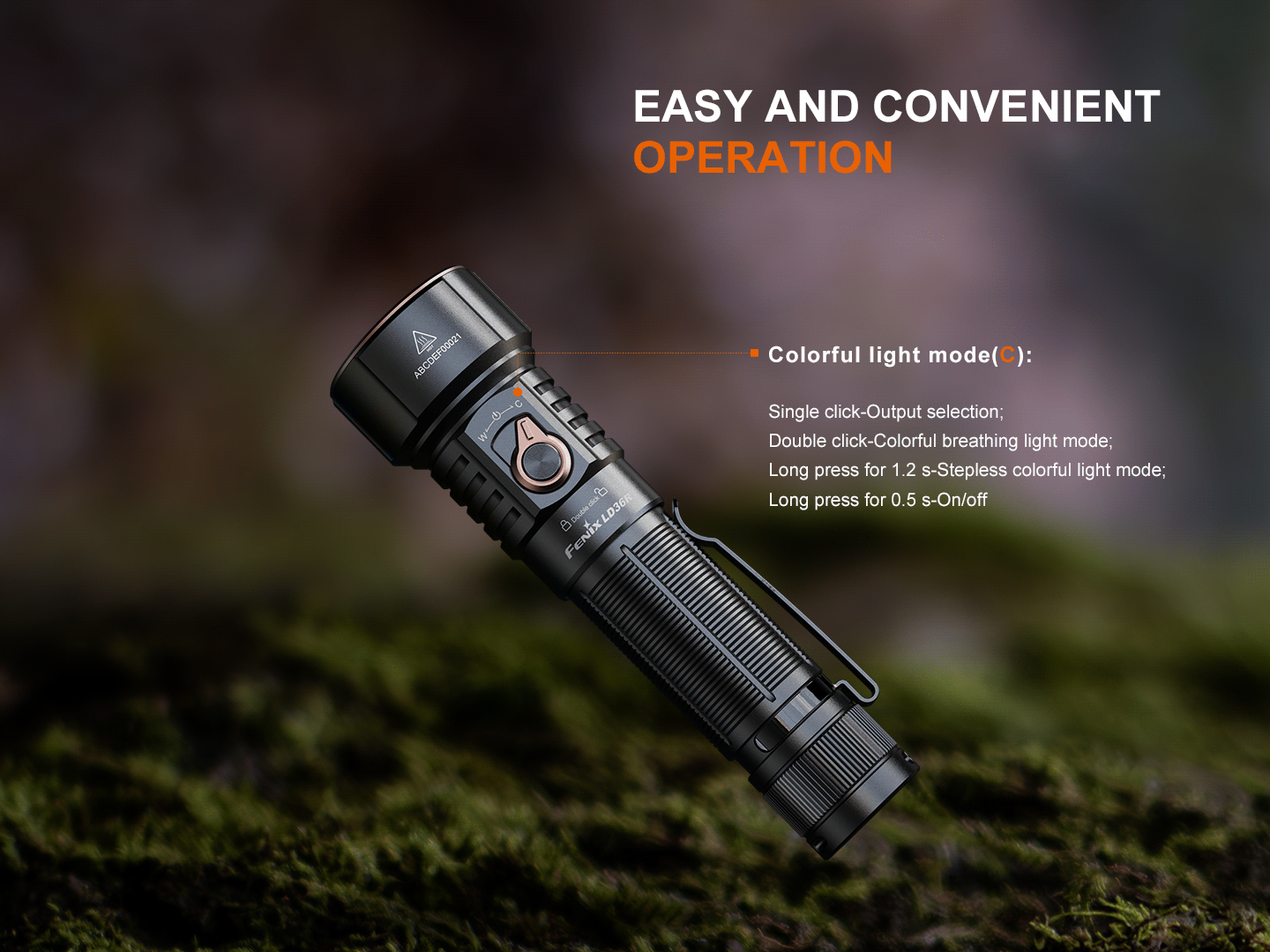

  • SIX SHADES OF LIGHT Create unique vibes with multiple atmospheric lighting effects.

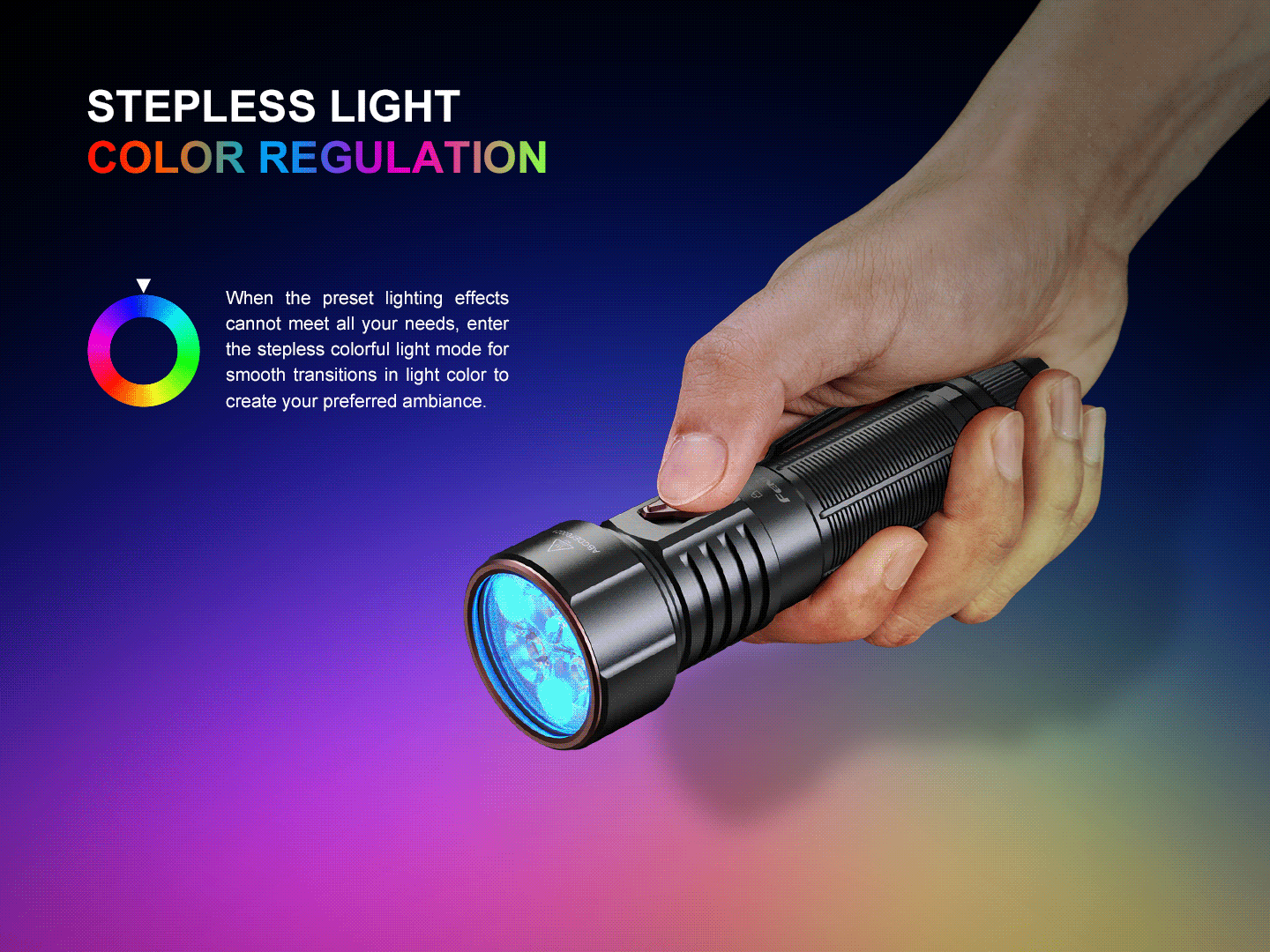

  • Stepless Color Customization Infinitely adjustable light color for personalized lighting.

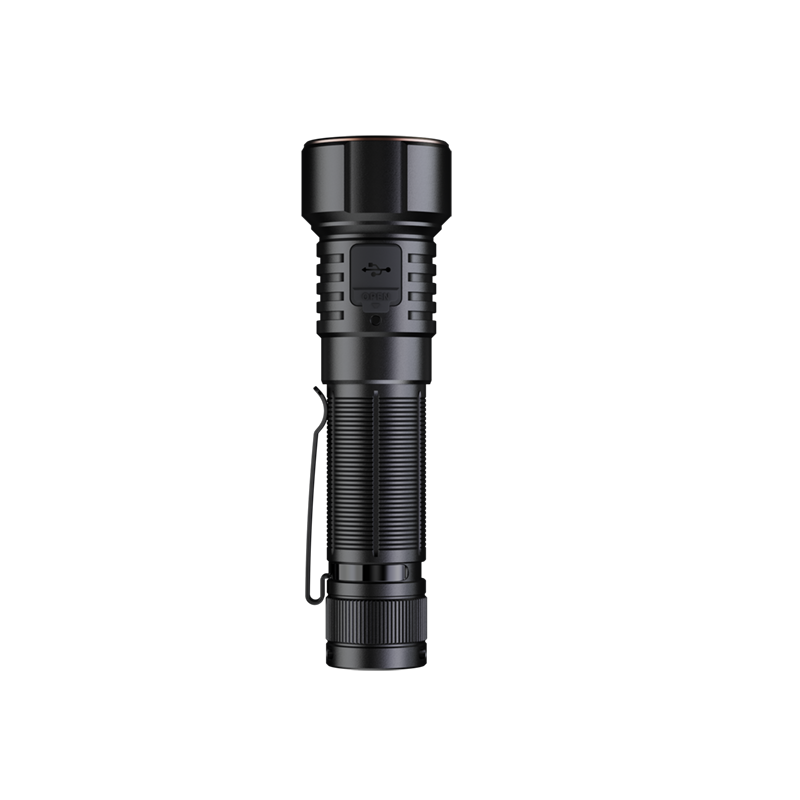

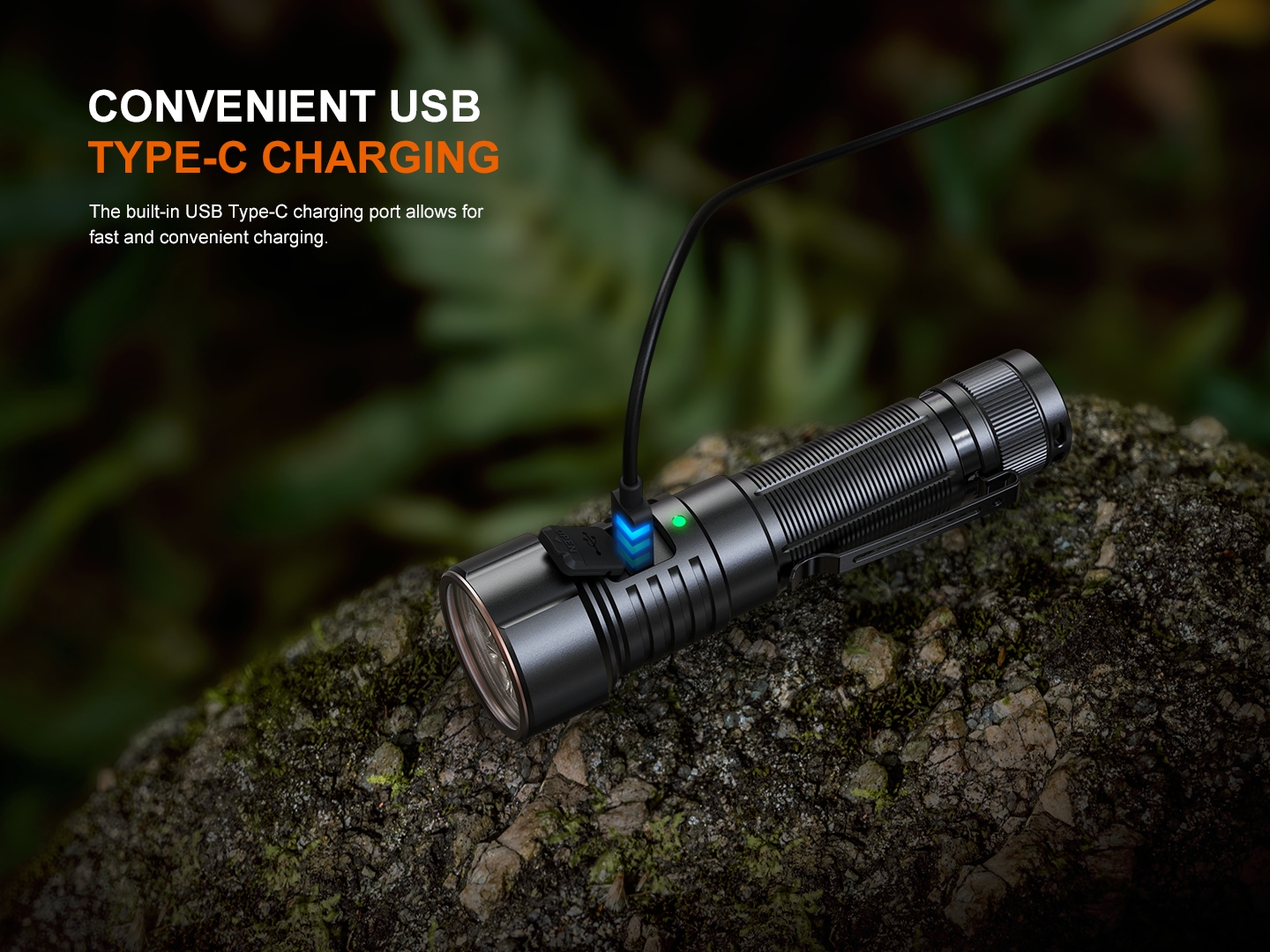

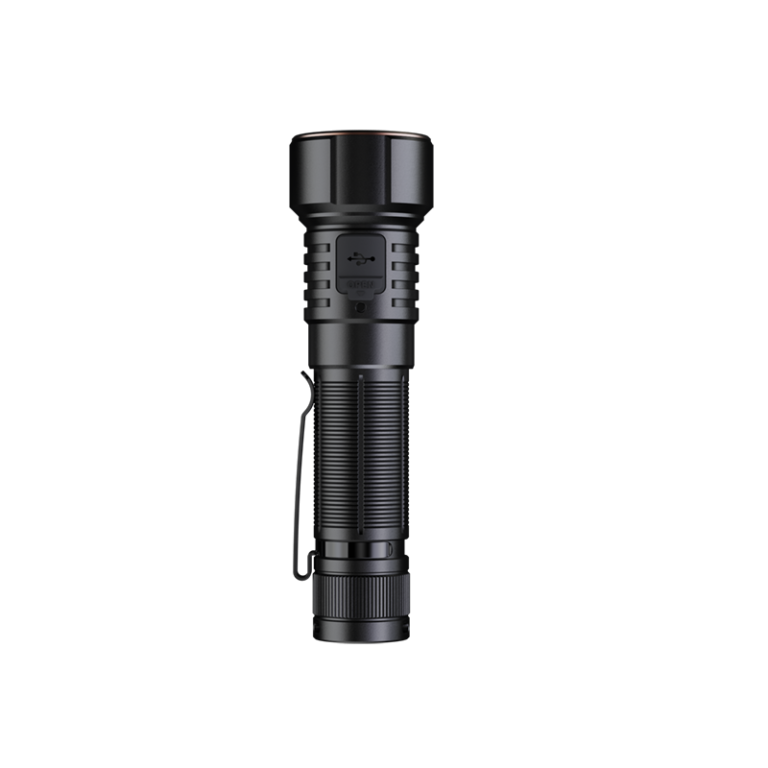

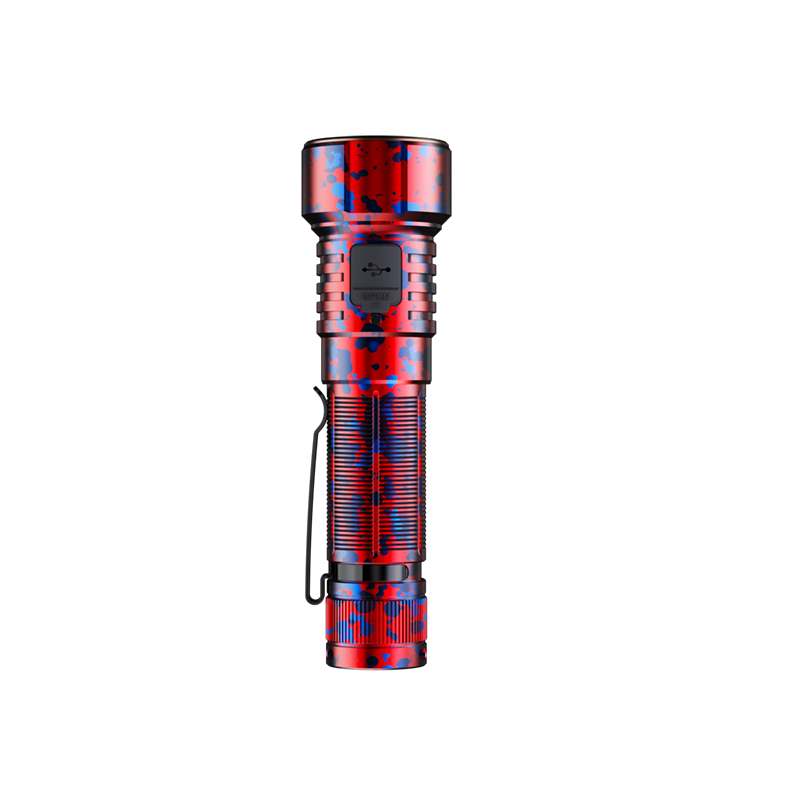

  • USB-C Charging Port USB Type-C charging port.
  • Tripod-Compatible Design Secure ¼” threaded socket for hands-free tripod mounting.

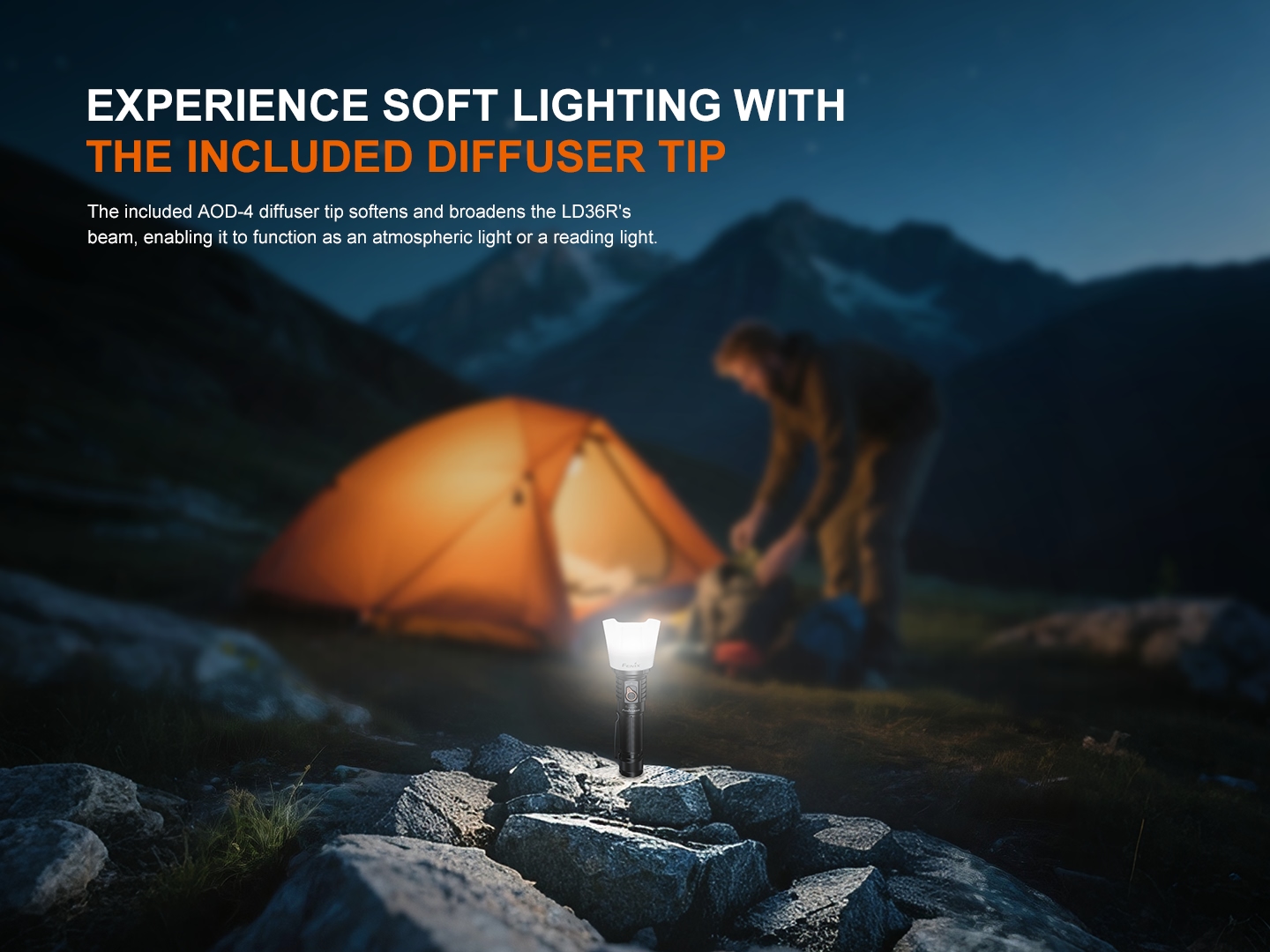

  • Versatile Diffuser Tip Transform the flashlight into a reading or ambient light instantly.

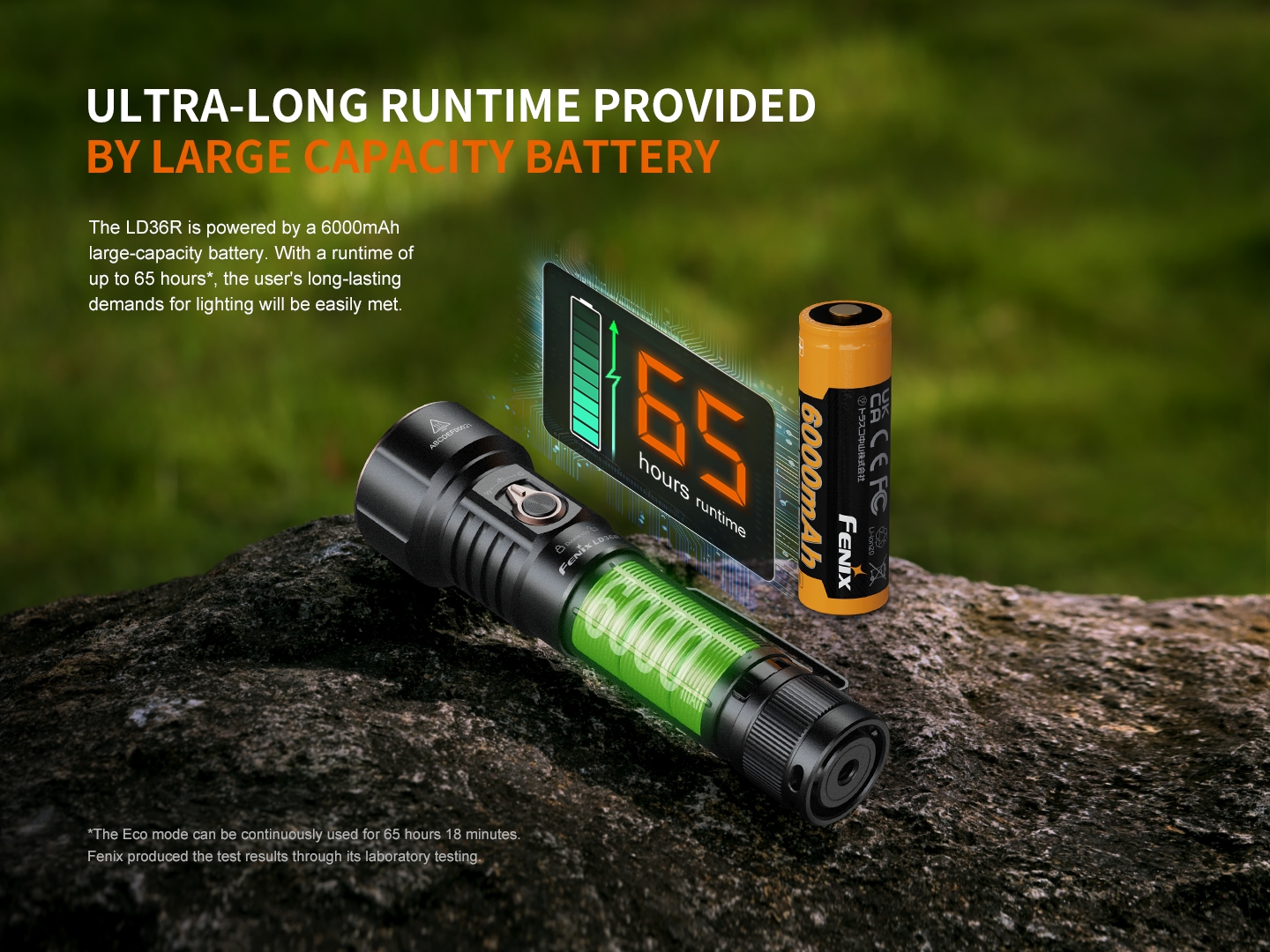

  • 6000mAh Rechargeable Battery Powered by a replaceable 6000mAh battery.

Take a Closer Look

HIGH-PERFORMANCE MULTICOLOR FLASHLIGHT

FAQS

Contact Us
Q1. What is the product positioning of LD36R? What are the key features of LD36R?

A: Fenix LD36R is a high-performance multicolor flashlight. Its key features include:

  1. Colorful light mode provides multiple atmospheric lighting effects for creating unique vibes.
  2. Stepless colorful light mode enables users to select their preferred light color to meet individual lighting needs.
  3. Included diffuser tip converts the LD36R into a reading or atmosphere light for more application scenarios.
  4. ¼ inch threaded socket at the tail allows the light to be securely mounted on a tripod for hands-free illumination.

Q2.What kind of LEDsare used in LD36R? Does Fenix offer to replace LED?

A: 3 x Luminus SFT25R Gen2 LEDs and 3 x high-performance RGB LEDs;  with a lifespan of 50,000 hours each. Fenix does not provide LED replacement services for the time being, and users are not recommended to replace the LEDs independently, which may affect product performance and cause product damage.

Q3. What is the color temperature of LD36R?

A: Around 6500K.

Q4. What are the working voltage and the working current of LD36R?

A: The working voltage is 3.0 V - 4.2 V and the maximum working current is 12 A.

Q5.What is the runtime of the Turbo output?

A: The runtime of the Turbo output is 3 hours 41 minutes. However, the light will accumulate a significant amount of heat used at Turbo output. When the light reaches a certain temperature, the light will automatically step down a few lumens to reduce the temperature. Therefore, this runtime data is measured in total of runtime including output at reduced levels due to temperature or protection mechanism in the design. According to the ANSI/PLATO FL1 standard, this runtime data is from the results produced by Fenix through its laboratory testing under the temperature of 21±3°C. (For additional details, please check the runtime graphic in the user manual).

*According to the ANSI/PLATO FL1 standard, the initial reading of runtime is taken at 30 seconds of continuous operation, and the end point of reading is reached when the output value reaches 10% of the initial value.

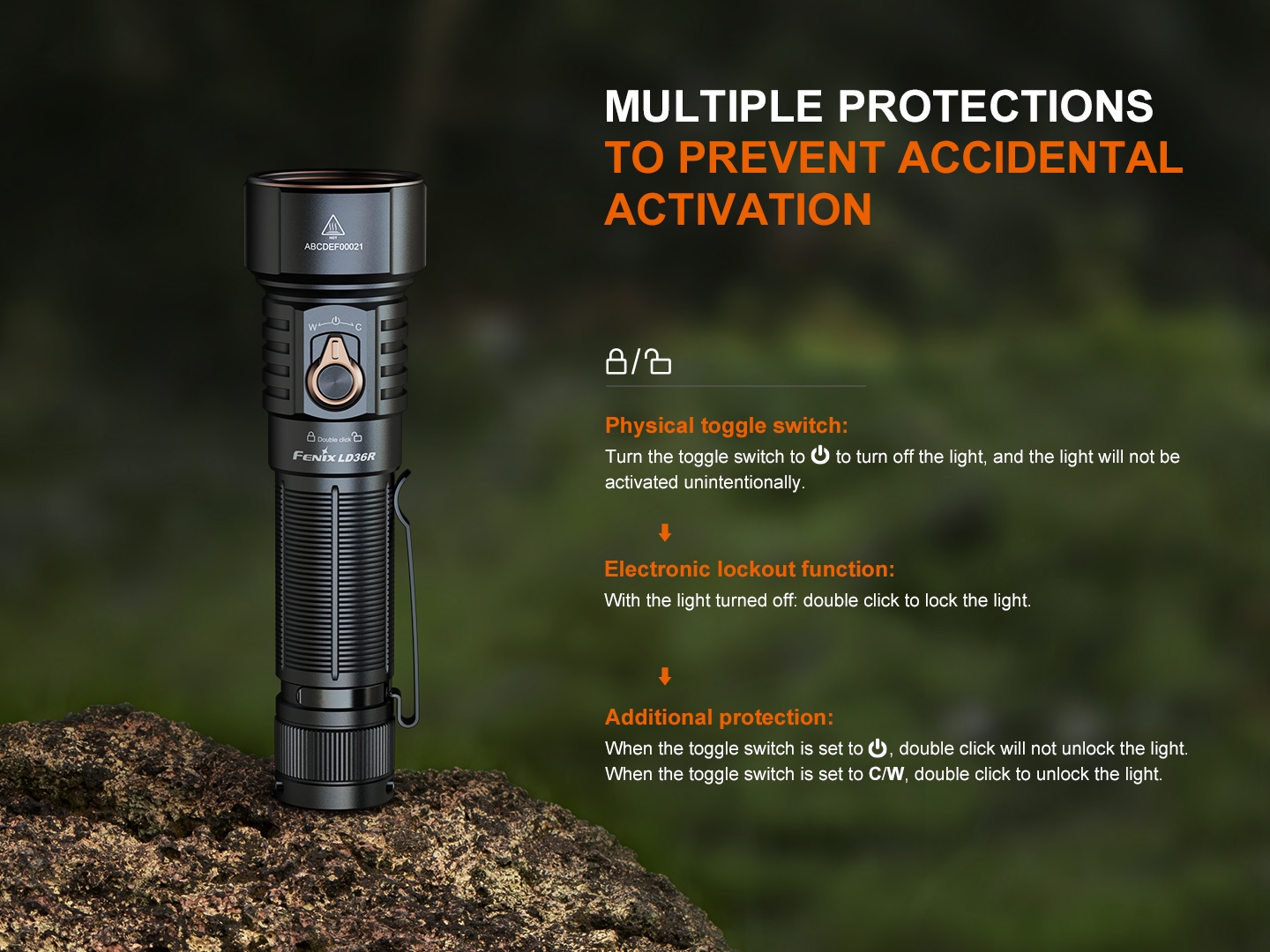

Q6. How to prevent accidentally activate the LD36R?

A: Turn off and lock the flashlight or take out the battery to prevent accidental activation during storage or transportation.

Q7. Is LD36R rechargeable? How long is the charging time?

A: Yes, LD36R is rechargeable with an inner waterproof USB Type-C port. While charging, please follow the steps below:

1.Turn off the flashlight and open the anti-dust cover to reveal the USB Type-C charging port, then connect the USB Type-C end of the charging cable to the light.

2. The indicator will display red while charging and will turn green when fully charged.

3. Once charging is completed, be sure to unplug the charging cable and close the anti-dust cover.

The normal charging time of the included Fenix ARB-L21-6000 battery is approximately 3.5 hours from depleted to fully charged with a 5 V/2.5 A charging adapter.

Q8. What are the optional accessories for LD36R？

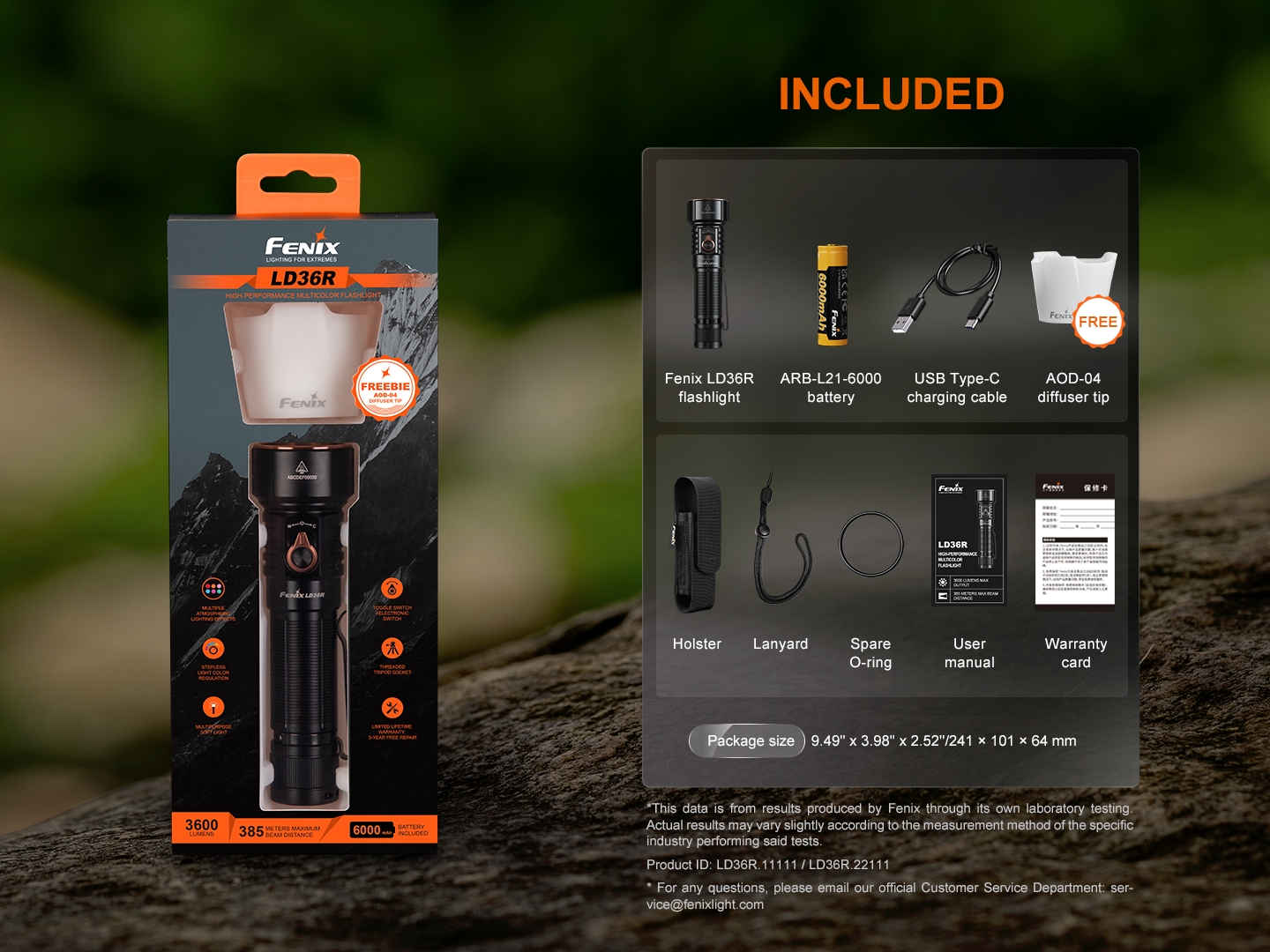

A: The package comes with a lanyard, a holster, and an AOD-04 diffuser tip. Compatible accessories include: AOF-L filter adapter, AOT-04 traffic wand, AOD-M diffuser tip, etc.

Q9. Why does the LD36R downshift to a lower mode after being used for a while and the higher mode cannot be selected?

A: There are two reasons:

1. Intelligent Overheat Protection

The flashlight will accumulate a lot of heat when used at high output levels for extended periods. When the light reaches a temperature of 60°C or above, the light will automatically step down a few lumens to reduce the temperature.

2. Low-voltage Warning

When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until the lowest output level is reached.

Q10. Why does the LD36R happen to flicker?

A: The reasons that may cause the light to flicker, shine intermittently or even fail to illuminate:

1. Poor battery level.

Solution: Recharge or replace the battery.

2. The contact or contact point of the battery or light is dirty.

Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

If the above methods don't work, please contact your authorized distributor.

Q11. What should I do when the LD36R needs repair?

A: 1. 15-day replacement: Fenix will replace identical or equal products with documented manufacturing defects within 15 days of purchase.

2. 5-year free repair: Fenix will repair a light free of charge within 5 years (rechargeable battery and other accessories: 1 year) of purchase if problems develop with normal use.

3. Lifetime limited warranty: If repair is required after 5 years from the date of purchase, Fenix will charge for parts. The total repair fee is dictated by the cost of the replaced materials.

4. Warranty certificate: Please keep the warranty card in contacting the authorized distributors for after-sale maintenance, Fenix will provide service support to the distributors.
