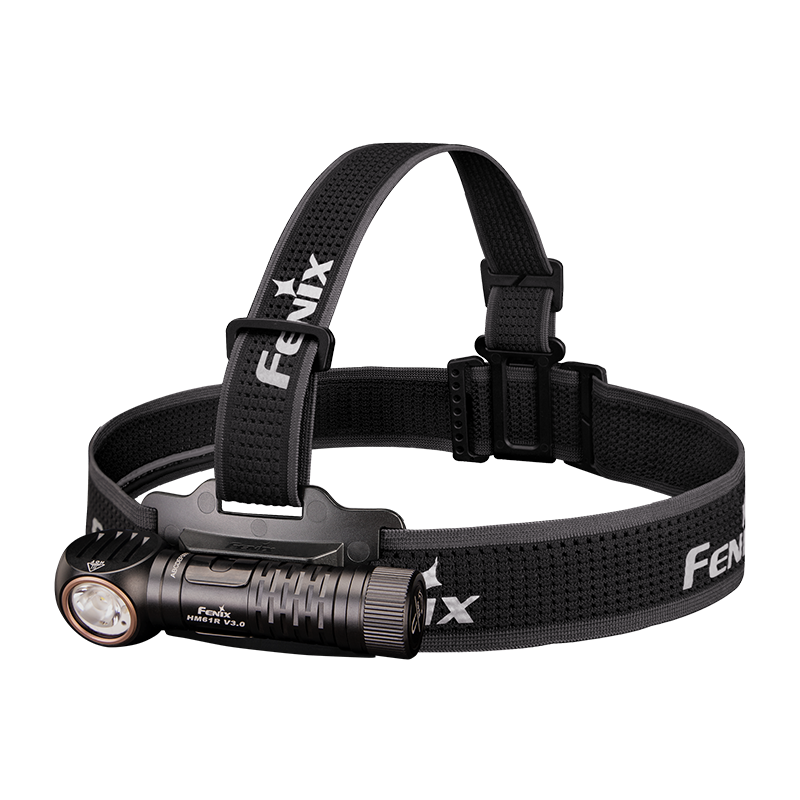

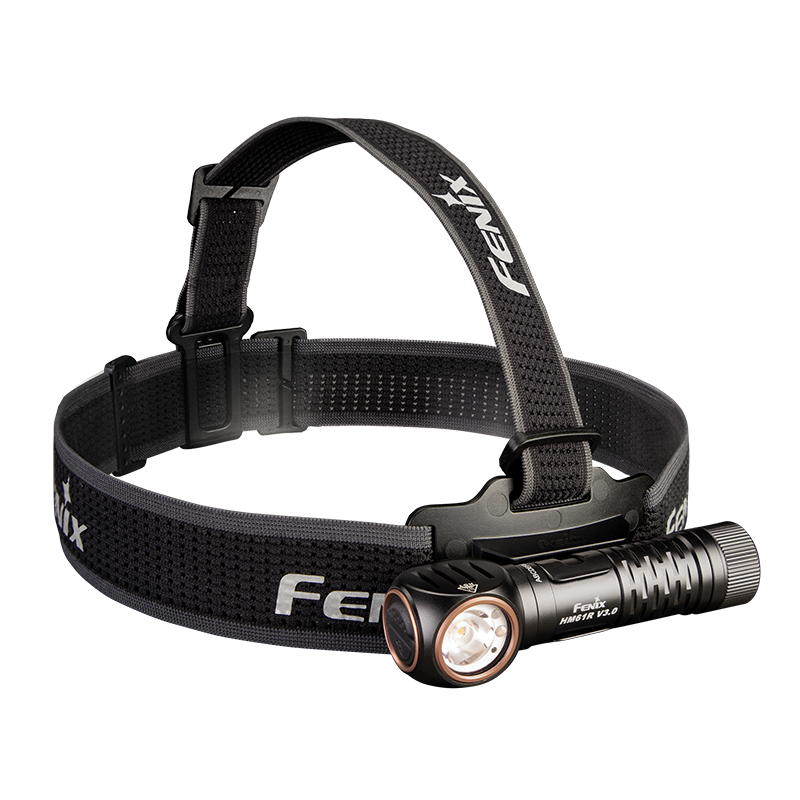

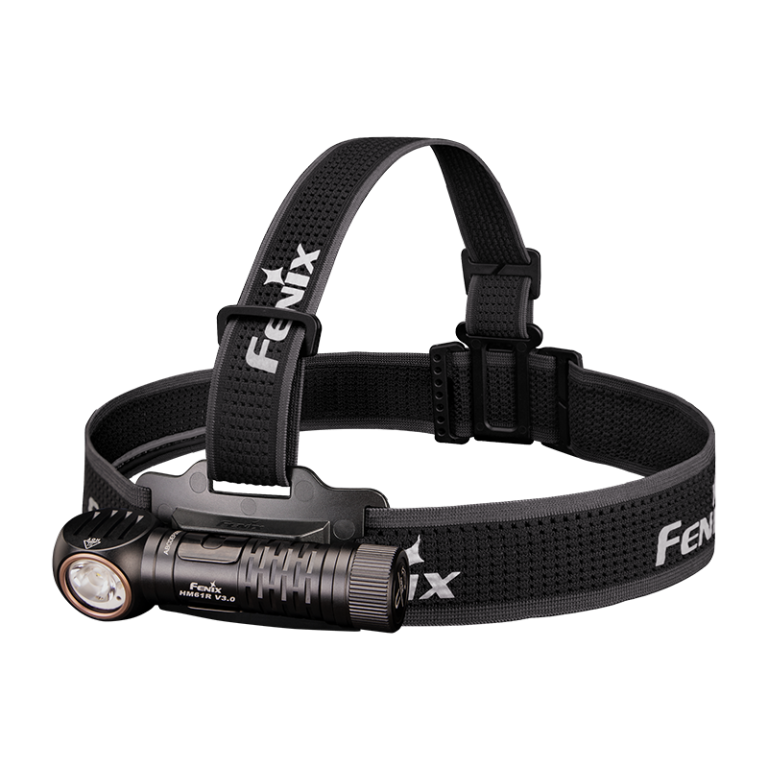

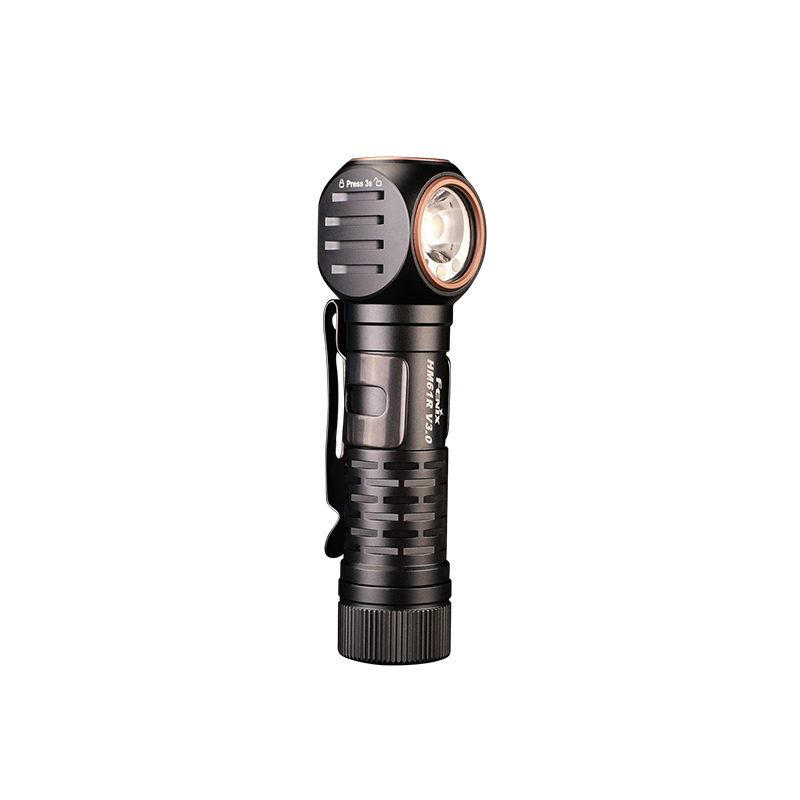

HM61R V3.0

RELIABLE MULTIFUNCTION HEADLAMP

Engineered for industrial lighting, the Fenix HM61R V3.0 brings together a powerful 1800-lumen spotlight, a high-CRI floodlight, and a red light-ready for everything from long-range patrols to close-up precision tasks. Adjust the headlamp to your ideal angle with its magnetic tail-cap and included body clip. Power is supplied by a high-capacity 4000mAh battery, rechargeable via an inner waterproof USB-C port, to deliver reliable, extended runtime. Built to endure the harshest conditions, it features an IP68 rating and 2-meter drop resistance. With its proven ruggedness and optimal performance, the HM61R V3.0 gives you the confidence to focus on the task at hand, whether on the work sites, during patrols, or deep in the outdoors.

  • 1800 LM Lumens
  • 195 M Range
  • 300 H Run Time
  • IP68 Water Resistant
Contact Us
Size 1.45'' × 1.50'' × 2.01''/105.4 × 38 × 50.95 mm.
Weight 5.91 oz/167.6 g(including battery).
Battery Type ARB-L18-4000


FEATURES

  • High lumen, long range   1800 lumens maximum output, 195 meters maximum beam distance.
  • Multi-light source LED   Utilizes one Luminus SST40-GEN2 white LED, one OSRAM 1414 CRI90 white LED, and one OSRAM 1414 red LED.
  • Dial switch supports mode selection Spotlight, floodlight and red light sources assist lighting needs in various complex outdoor scenarios.

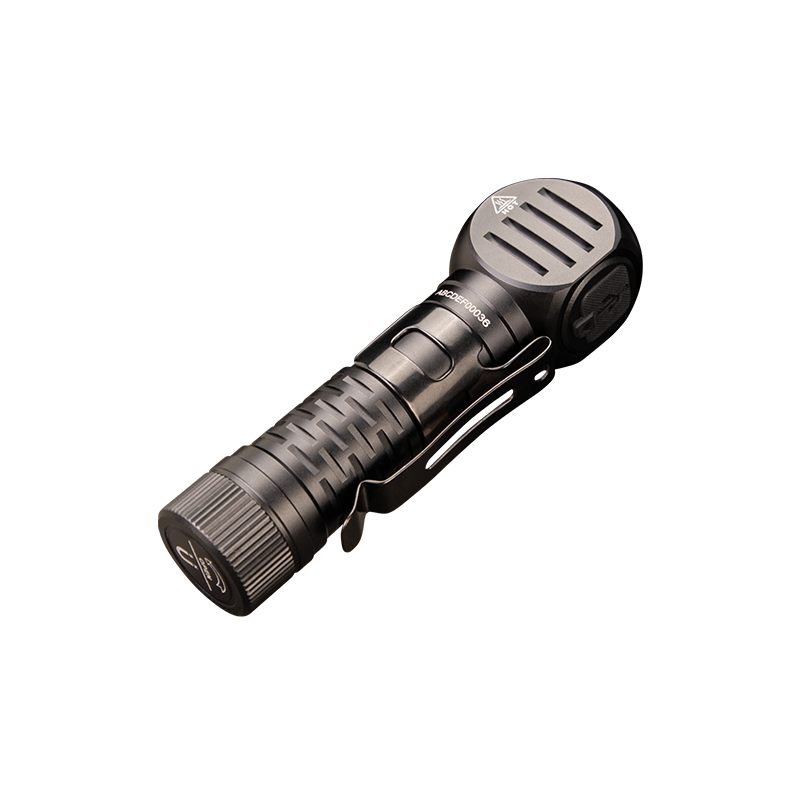

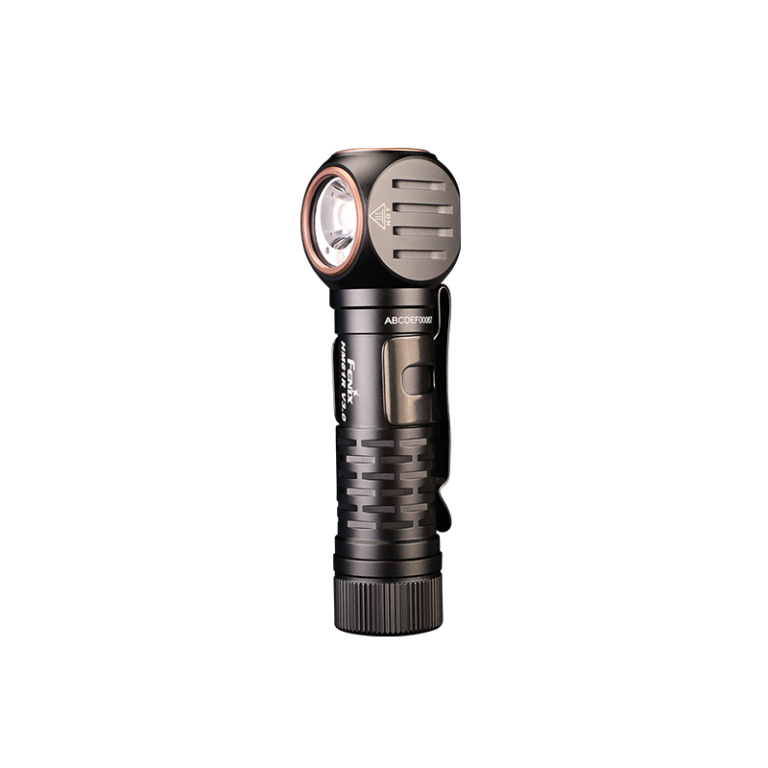

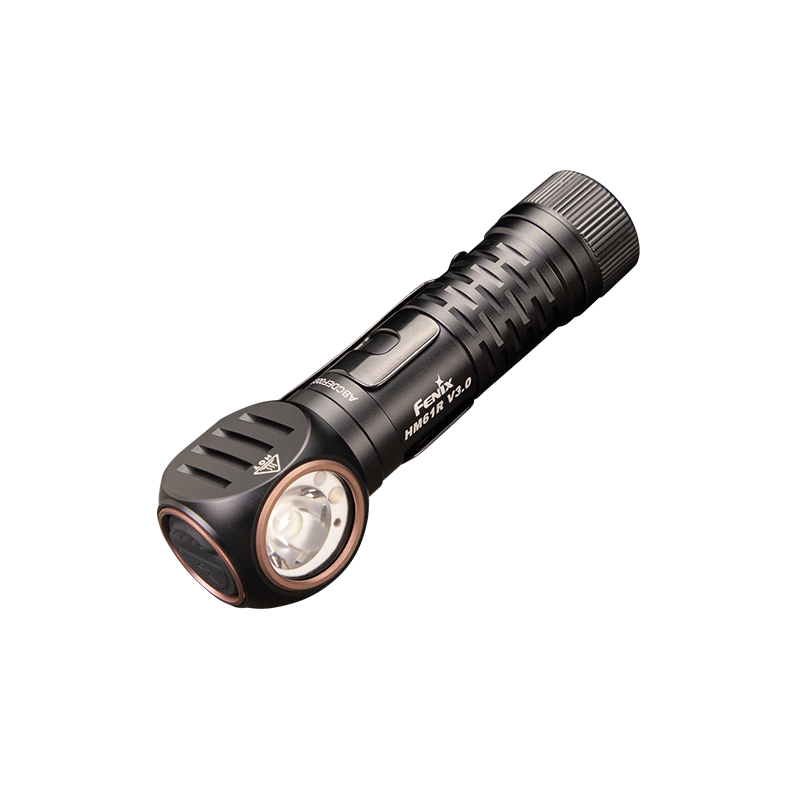

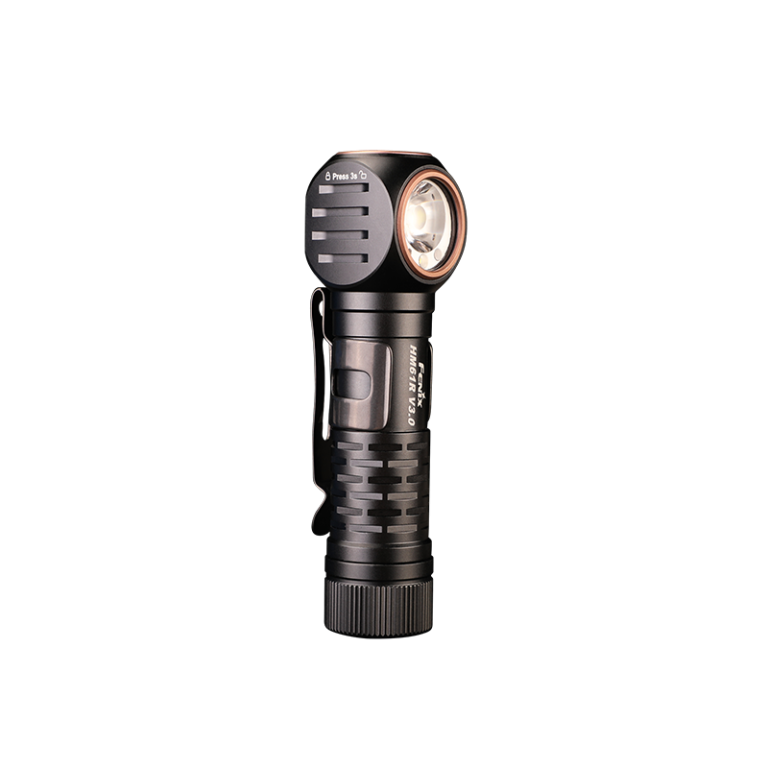

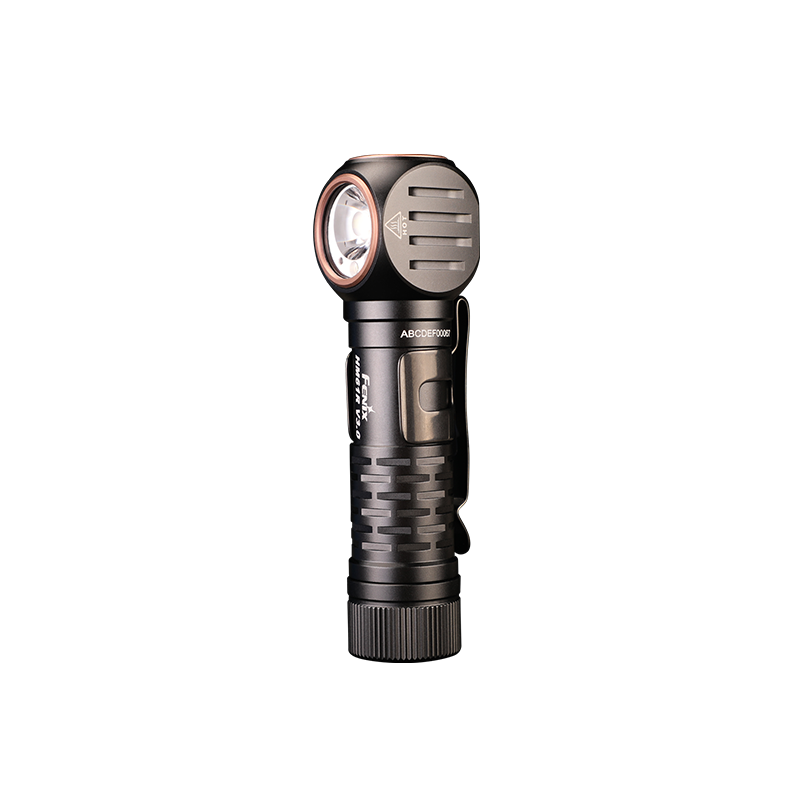

  • One light for two uses The detachable lamp can be used as a flashlight.
  • Magnetic tail-cap Magnetic tail-cap for easy and flexible mounting.
  • USB Type-C port Fully charged in just 2.5 hours.


Take a Closer Look

RELIABLE MULTIFUNCTION HEADLAMP

FAQS

Contact Us
Q1. What is the product positioning of HM61R V3.0? What are the key features of HM61R V3.0?

A: The Fenix HM61R V3.0 is a headlamp primarily designed for industrial and outdoor applications. Its key features include:

1、1800 lumens maximum output, 195 meters maximum beam distance.

2、Dual side switch for mode switching and output selection.

3、The detachable lamp can be used as a flashlight.Magnetic tail-cap for easy and flexible mounting.

4、Spotlight, floodlight and red light sources assist lighting.

Q2.What kind of LEDsare used in HM61R V3.0? Does Fenix offer to replace LED?

A:Utilizes one Luminus SST40-GEN2 white LED, one OSRAM 1414 CRI90 white LED, and one OSRAM 1414 red LED; with a lifespan of 50,000 hours each.

Fenix does not provide LED replacement services for the time being, and users are not recommended to replace the LEDs independently, which may affect product performance and cause product damage.

Q3. What is the color temperature of HM61R V3.0?

A: Around 6500K.

Q4. What is the working voltage of HM61R V3.0?

A: Operating voltage range: 3.0V～8.6V. Maximum operating voltage range: 2.8V～9.0V.

Q5. Is HM61R V3.0 rechargeable? How long is the charging time?

A: Yes, the HM61R V3.0 is rechargeable with its USB Type-C charging port. The normal charging time is approximately 2.5 hours from depleted to fully charged.

Q6. How to prevent accidentally activate the HM61R V3.0?

A:

Lock: With the lamp turned off, press and hold the main switch for 3 seconds, the lamp will blink 4 times in the Low output of Floodlight mode to indicate locked status.

Unlock: With the lamp locked, press and hold the main switch for 3 seconds, the lamp will be activated with 4 white blinks and activated in the Low output of Floodlight mode to indicate the lamp is unlocked.

Note: In locked status, any operation other than unlocking will activate 4 blinks in the Low output of Floodlight mode to indicate locked status. Reinserting the battery will unlock the headlamp.

Q7. How to enable the HM61R V3.0 smart sensing function?

A:

It only supports automatic and gradual reduction to low brightness when the headlamp's light-emitting surface is close to an object (within about 6cm) in the spotlight mode.

On: With the lamp turned off, press and hold the mode switch for 6 seconds, and the headlamp will blink twice in the Low output of Floodlight mode, indicating that this function is enabled.

Off: With the lamp turned off, press and hold the mode switch for 6 seconds, and the headlamp will blink 8 times in the Low output of Floodlight mode, indicating that this function is disabled.

Q8. Why does the HM61R V3.0 downshift to a lower mode after being used for a while and the higher mode cannot be selected?

A: There are two reasons:

1. Intelligent Overheat Protection

The flashlight will accumulate a lot of heat when used at high output levels for extended periods. When the light reaches a temperature of 55°C or above, the light will automatically step down a few lumens to reduce the temperature.

2. Low-voltage Warning

When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until the lowest output is reached.

Q9. Why does the HM61R V3.0 happen to flicker?

A: The reasons that may cause the light to flicker, shine intermittently or even fail to illuminate:

1. Poor battery level.

Solution: Recharge or replace the batteries.

2. The contact or contact point of the batteries or flashlight is dirty.

Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

If the above methods don't work, please contact your authorized distributor.

Q10. What kind of batteries can be used in HM61R V3.0?

A: It is recommended to use one Fenix ARB-L18-4000 batteries. In addition, it is recommended to use Fenix ARB-L18-4000U/Fenix ARB-L18-3500/Fenix ARB-L18-3400 series batteries.

For optimal performance, it is recommended to use the included battery. When using CR123A or 16340 batteries, do not charge them to ensure safety. With these batteries, the headlamp will operate with fewer brightness levels and shorter runtime.

Q11.What should I do when the HM61R V3.0 needs repair?

A: 1. 15-day replacement: Fenix will replace identical or equal products with documented manufacturing defects within 15 days of purchase.

2. 5-year free repair: Fenix will repair a light free of charge within 5 years (rechargeable battery and other accessories: 1 year) of purchase if problems develop with normal use.

3. Lifetime limited warranty: If repair is required after 5 years from the date of purchase, Fenix will charge for parts. The total repair fee is dictated by the cost of the replaced materials.

4. Warranty certificate: Please keep the warranty card in contacting the authorized distributors for after-sale maintenance, Fenix will provide service support to the distributors.

For more detailed information, please check:

http://www.fenixlight.com

http://www.fenixlight.com.cn
