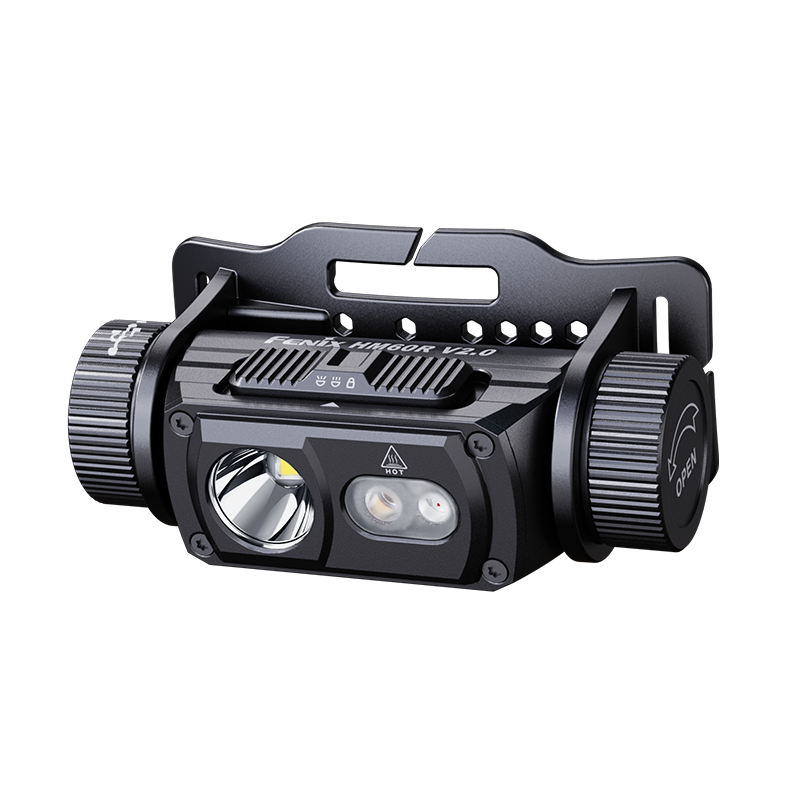

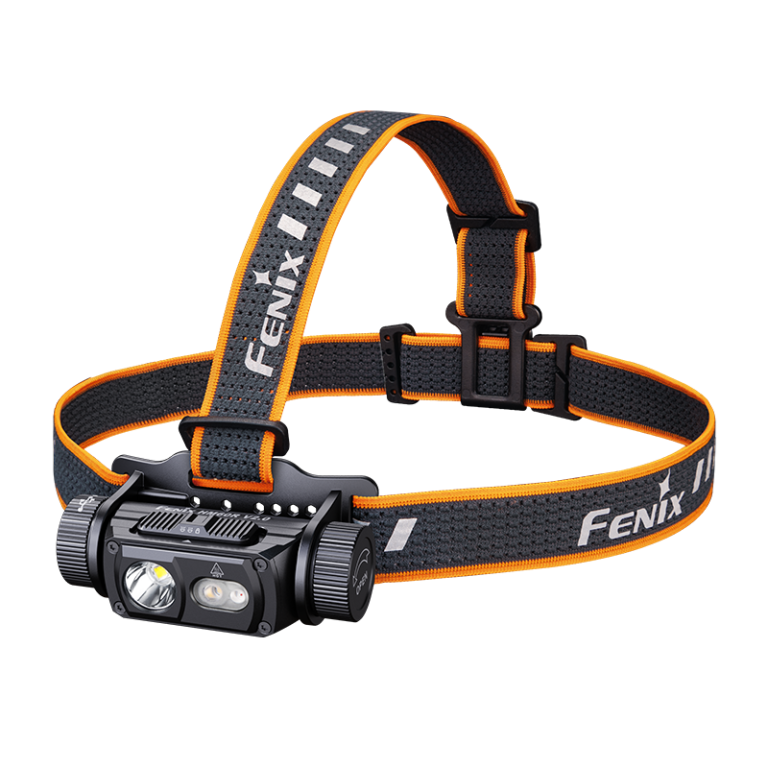

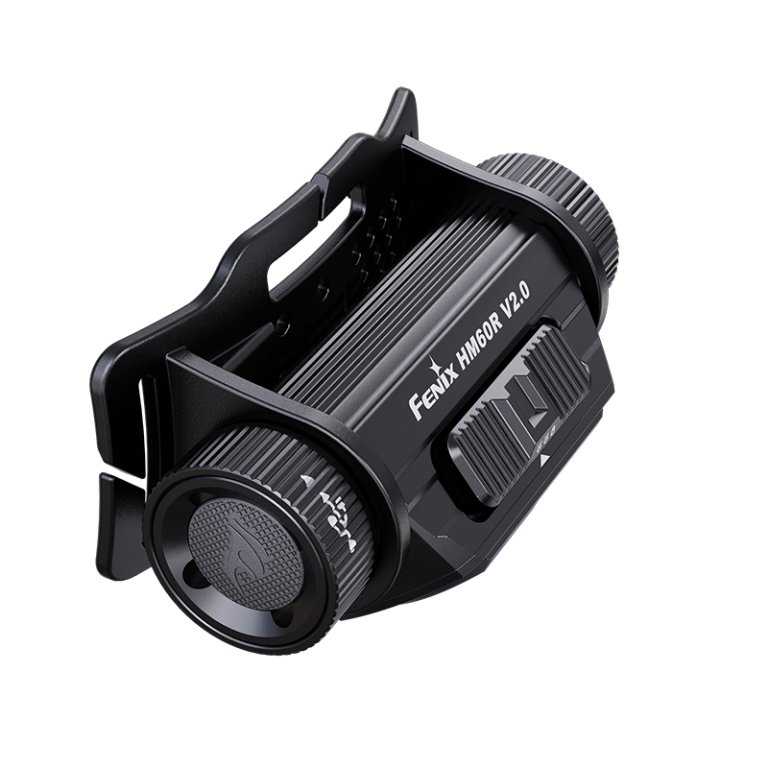

HM60R V2.0

OUTDOOR HIGH-PERFORMANCE METAL HEADLAMP

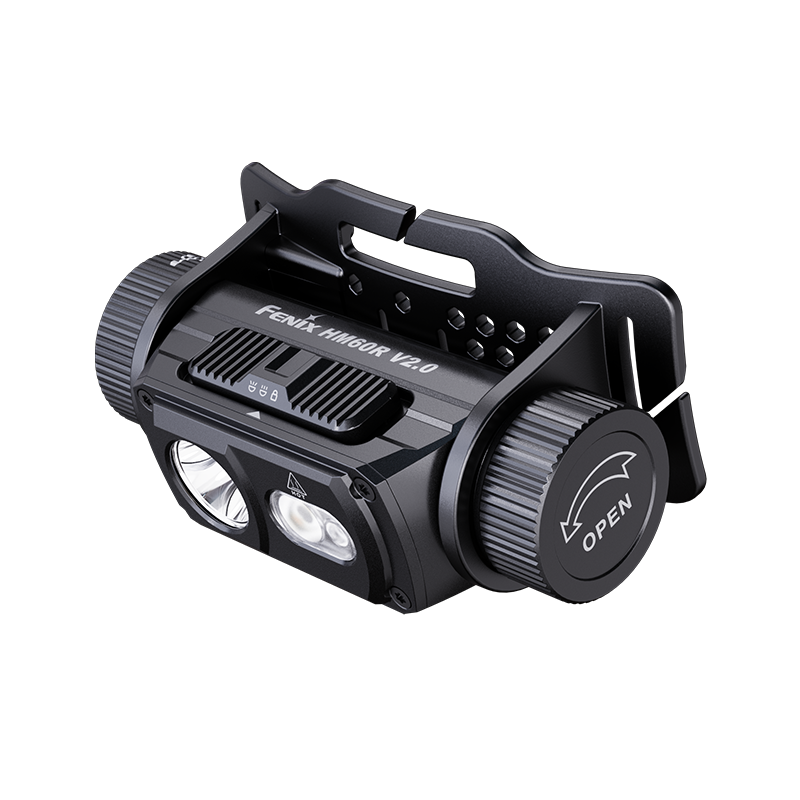

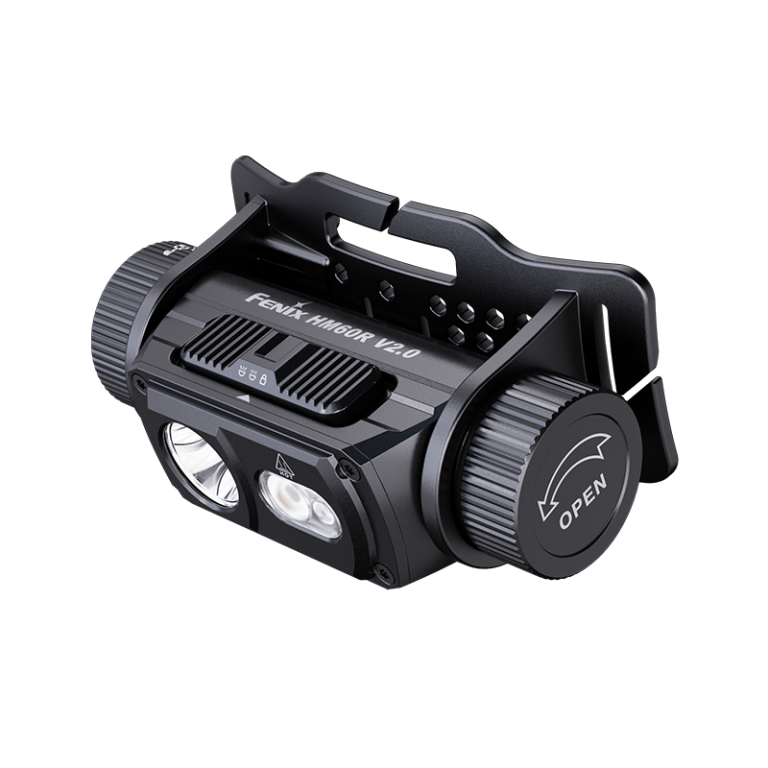

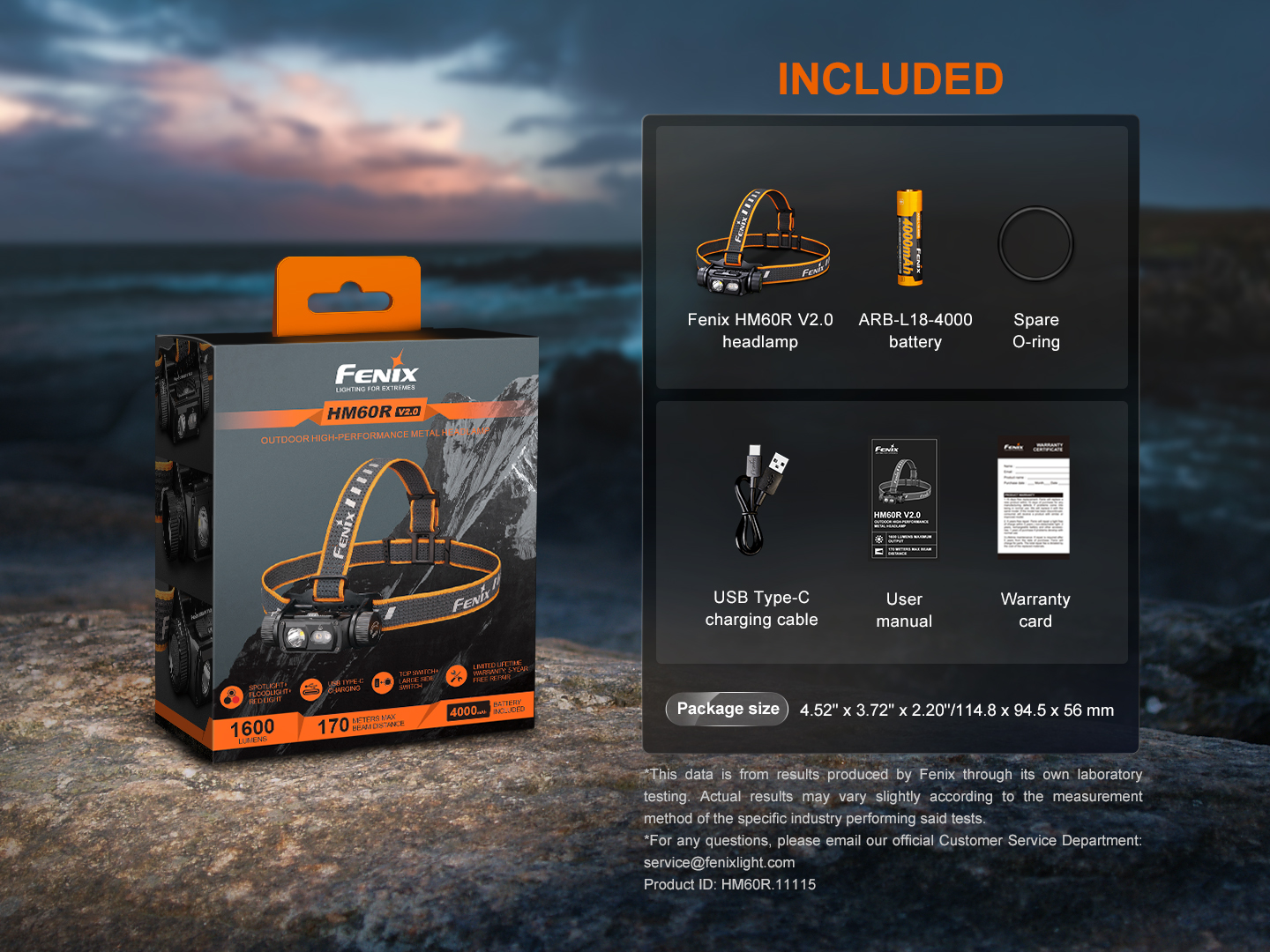

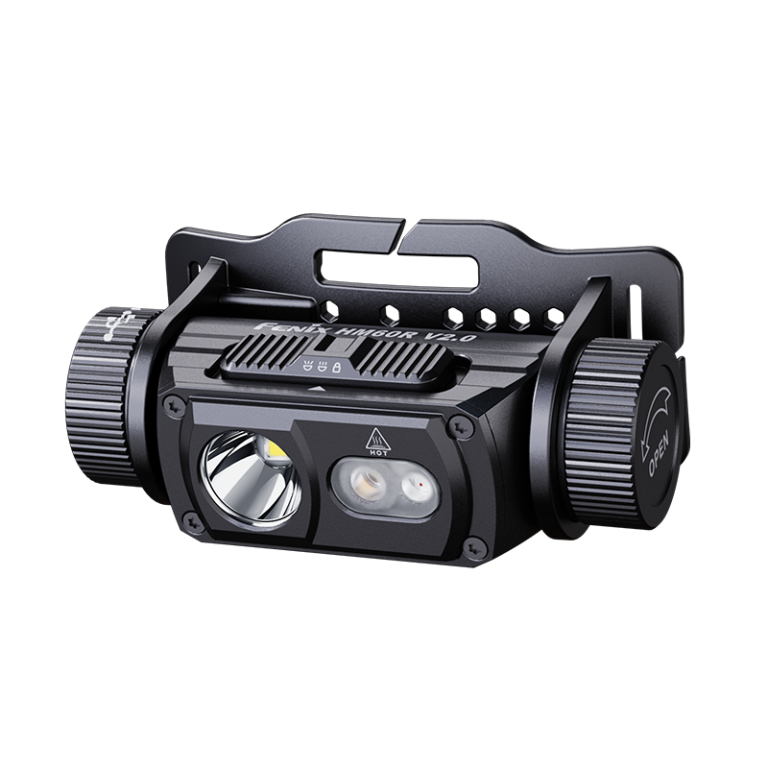

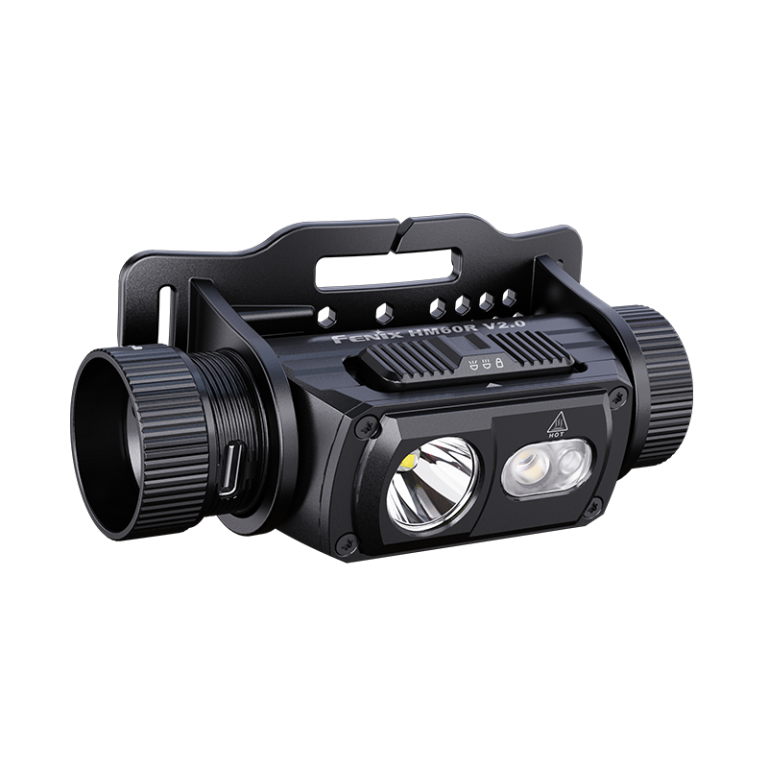

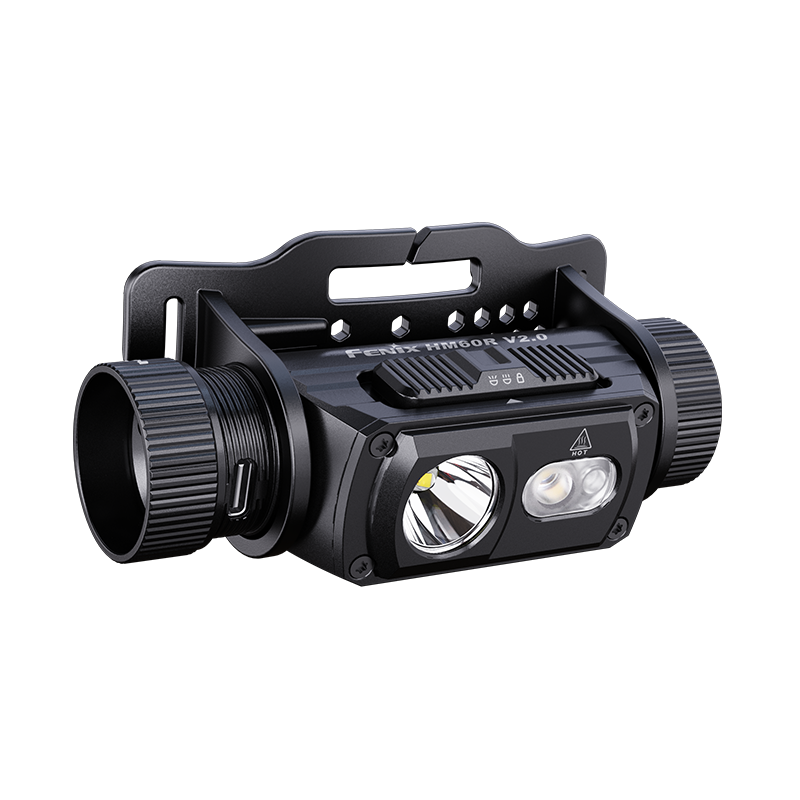

The Fenix HM60R V2.0 is a high-performance metal headlamp that combines a spotlight, a floodlight, and a red light. It delivers a maximum output of 1600 lumens and a maximum beam distance of up to 170 meters. Featuring a top mode switch and a large side switch, this headlamp ensures intuitive and precise operation, even when wearing gloves. The package includes a rechargeable 4000mAh battery, which can be recharged via the inner waterproof USB Type-C port on the headlamp. For emergency use, the headlamp can also be powered by two CR123A batteries. In addition to its lightweight and compact design, this headlamp features IP68-rated protection and 2 meters of impact resistance, making it ideal for rugged outdoor adventures and harsh environments.

  • 1600 LM Lumens
  • 170 M Range
  • 292 H Run Time
  • IP68 Water Resistant
Contact Us Brochure

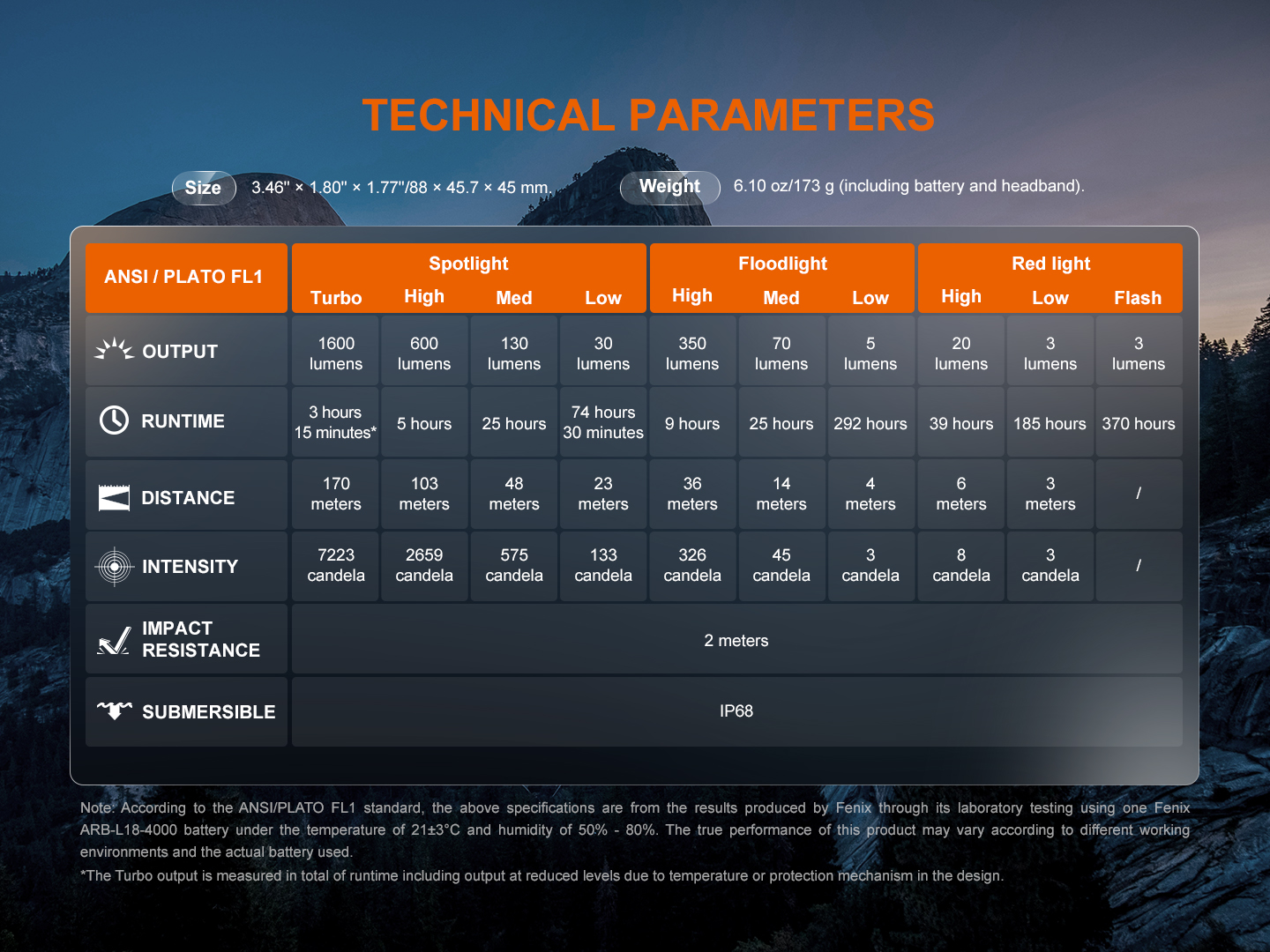

Size

3.46'' × 1.80'' × 1.77''/88 × 45.7 × 45 mm.
Weight

6.1 oz / 173 g (including battery and headband)
Battery Type

ARB-L18-4000



FEATURES

  • High lumen, long range   1600 lumens maximum output, 160 meters maximum beam distance.
  •  High quality LED   Uses one Luminus SST40-GEN2 white LED, one Luminus SST20-GEN2 high-CRI neutral white LED, and one OSRAM 2835 red LED;

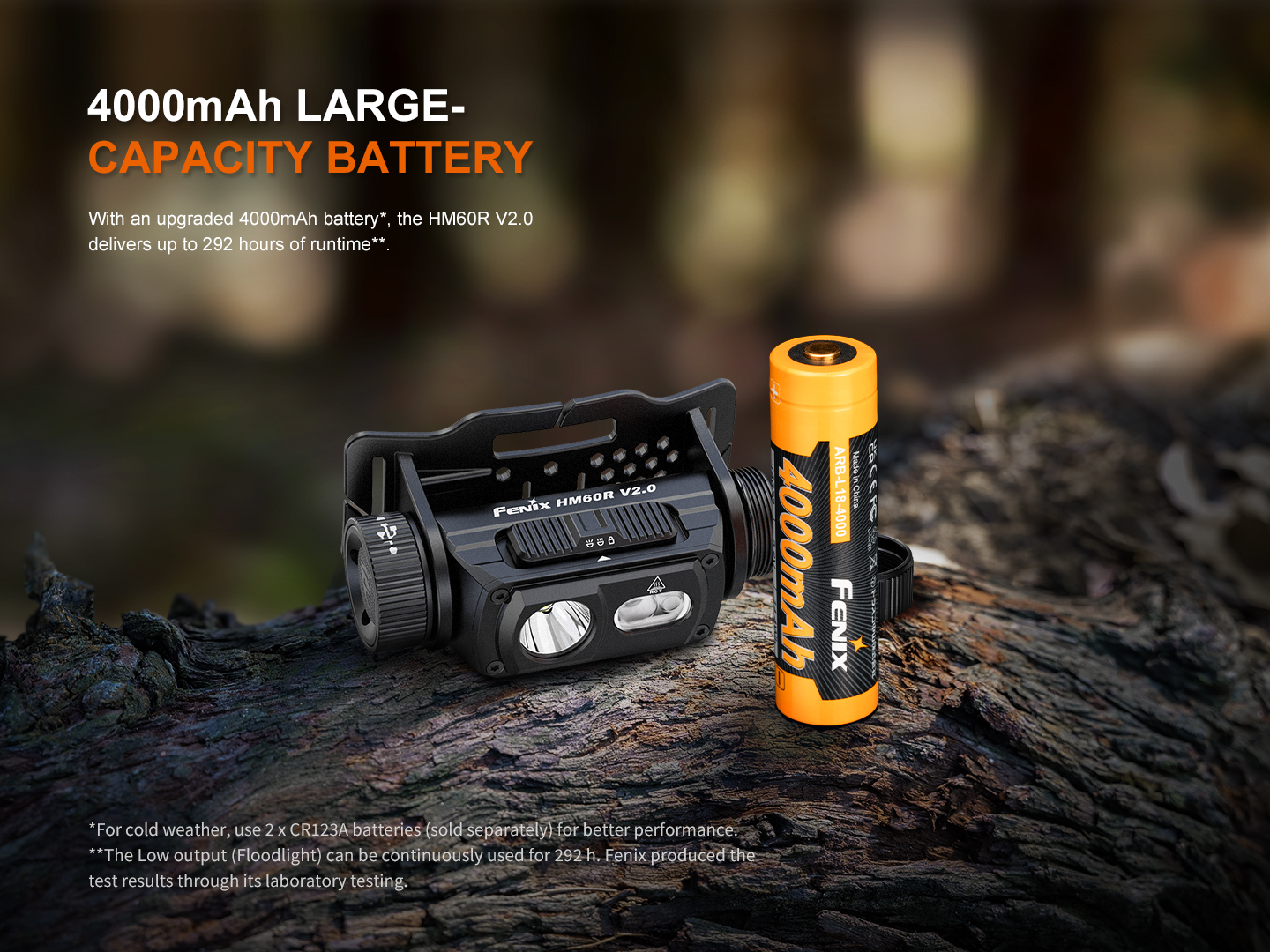

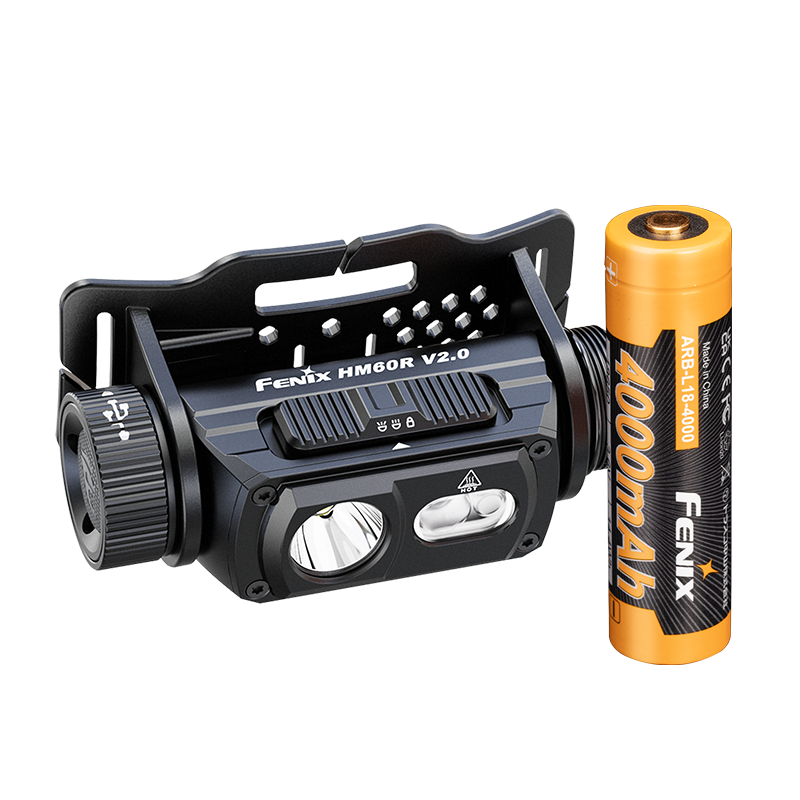

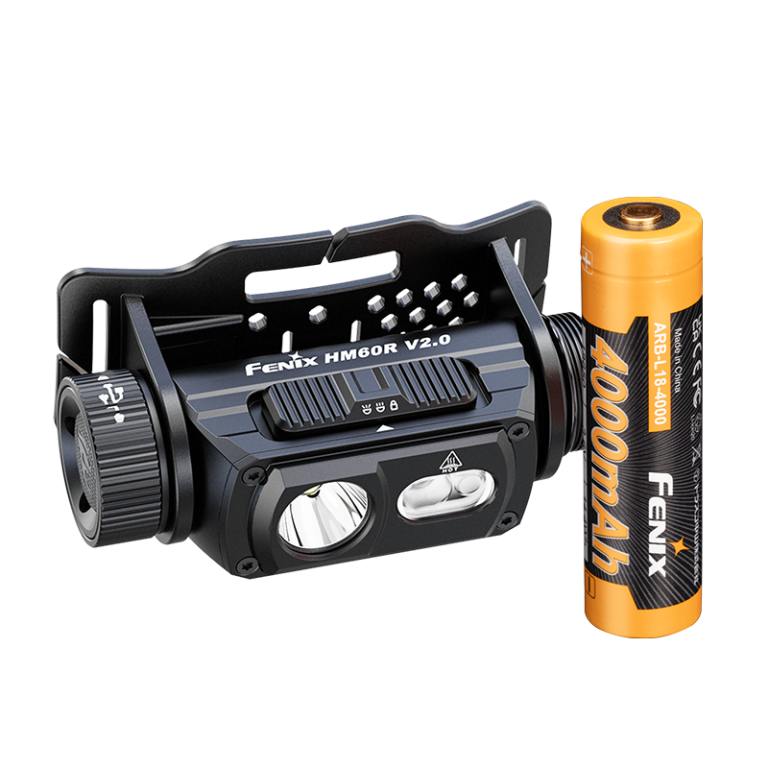

  • ARB-L18-4000 Powered by one 4000mAh 18650 battery.

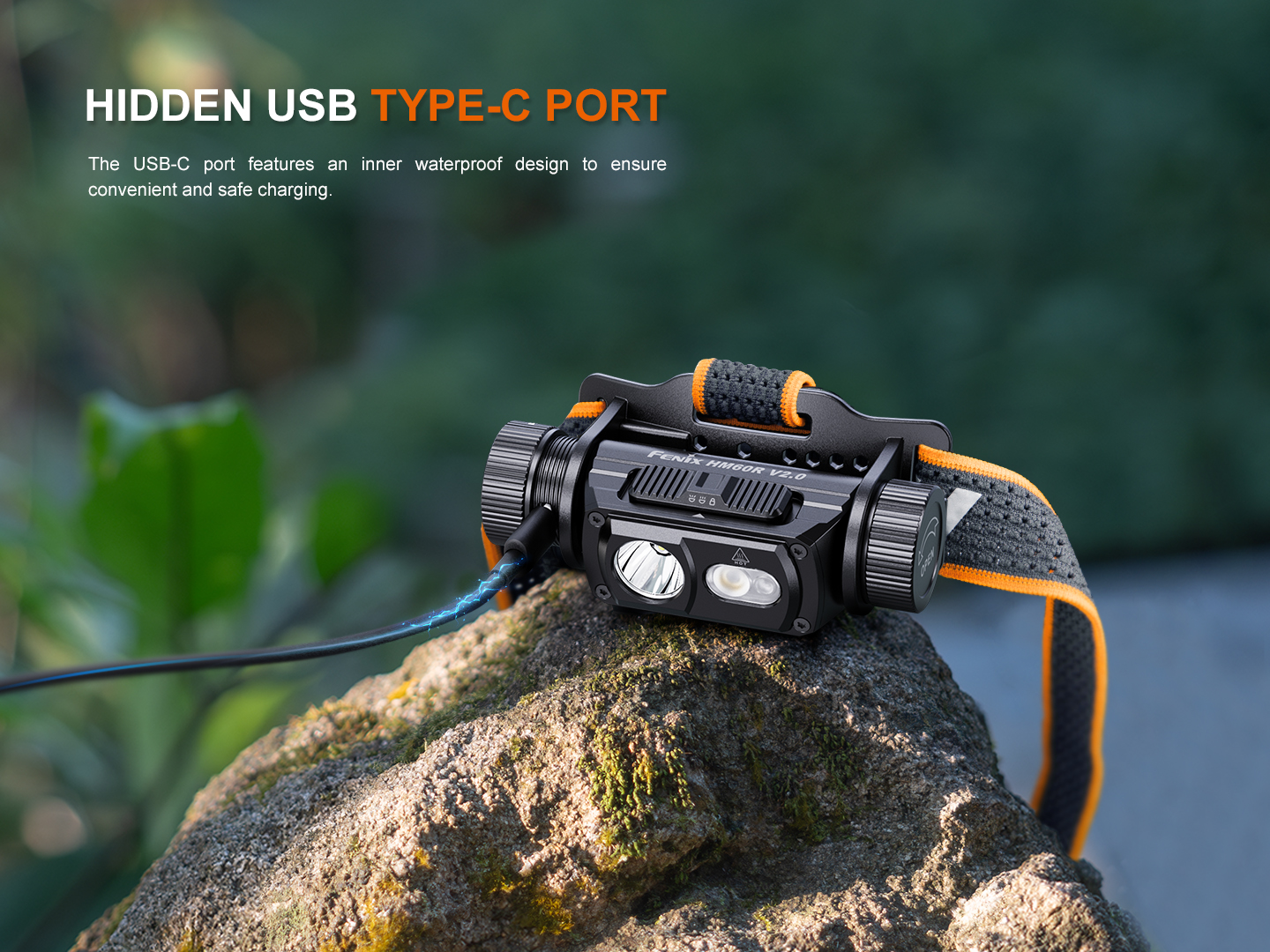

  • USB Type-C charging Hidden USB Type-C charging port with inner waterproof treatment.

  • Spotlight, floodlight and red light  Spotlight, floodlight and red light sources assist various lighting needs in various complex outdoor scenarios.

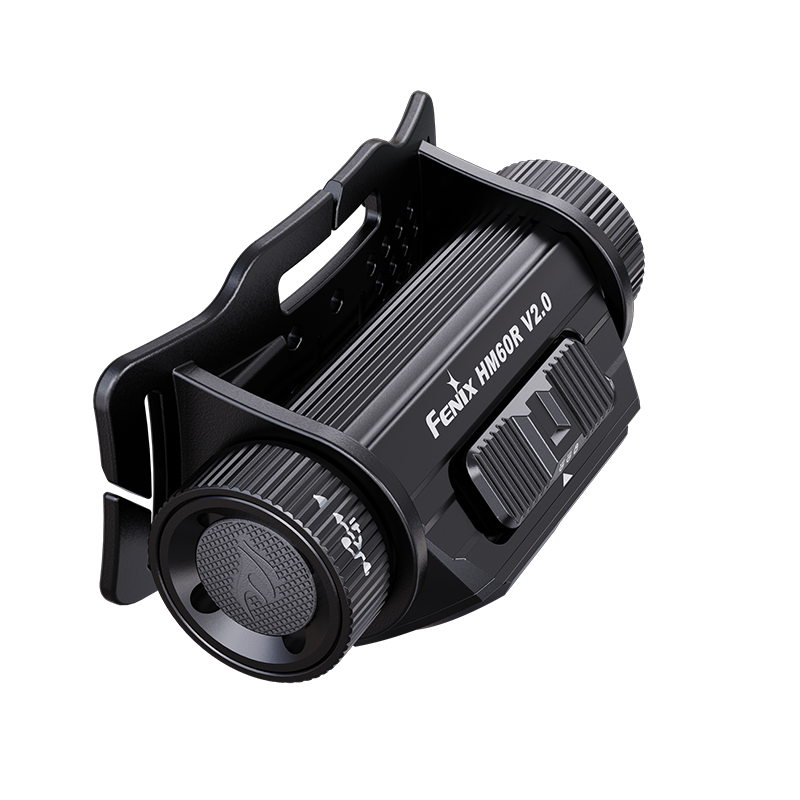

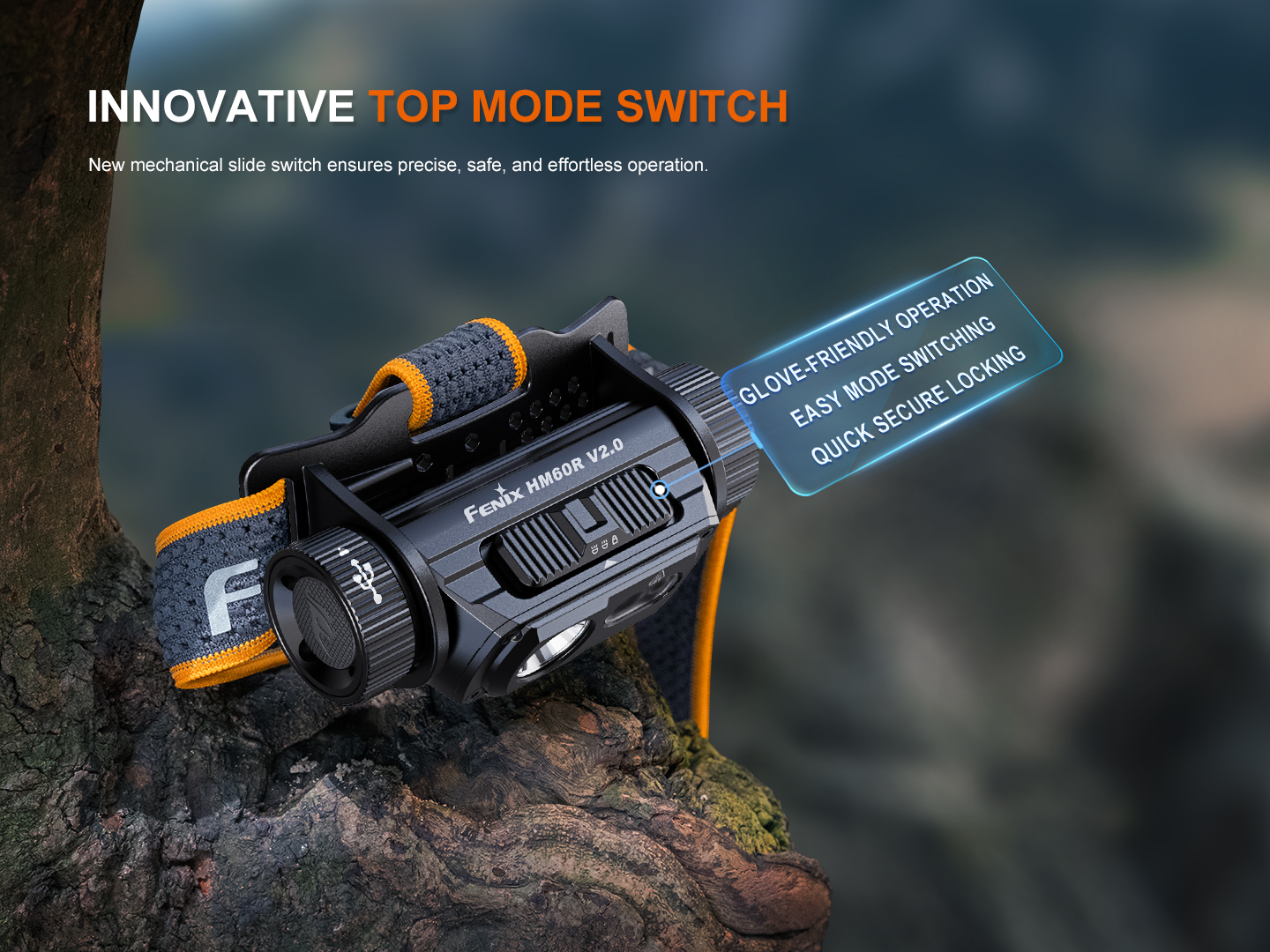

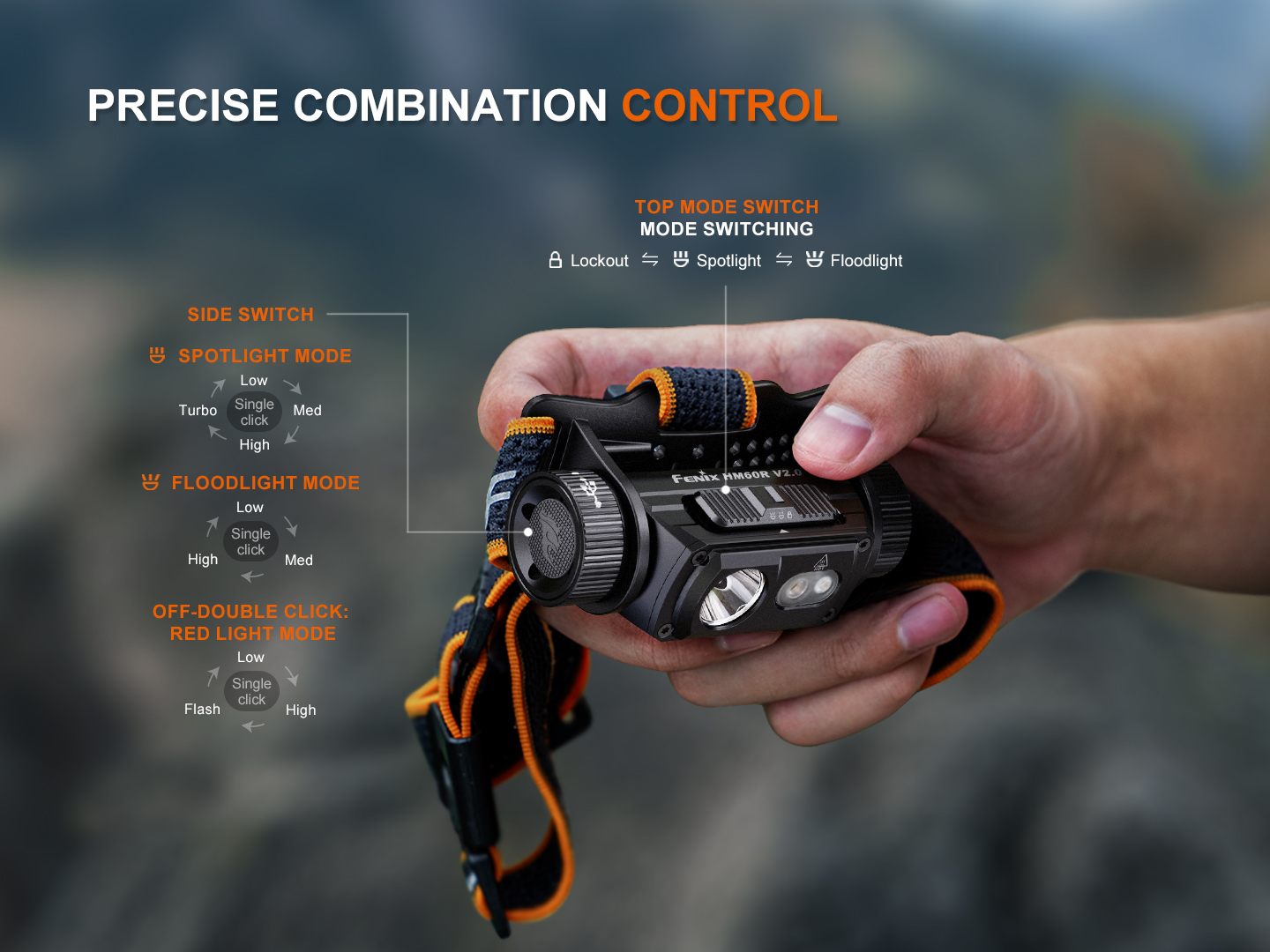

  • Top mode switch  Top mode switch enables quick locking and mode switching.

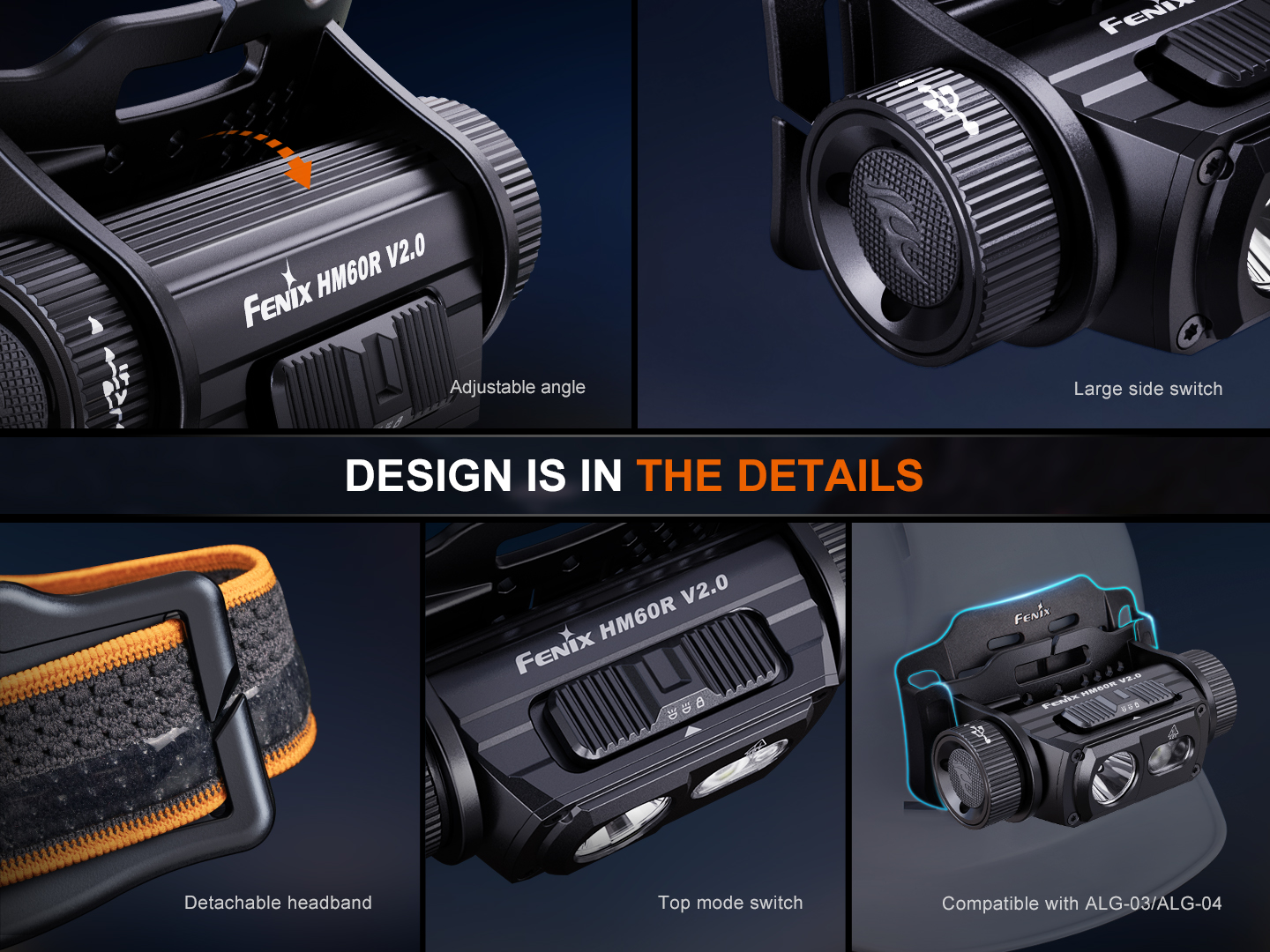

Take a Closer Look

OUTDOOR HIGH-PERFORMANCE METAL HEADLAMP

FAQS

Contact Us
Q1. What is the product positioning of HM60R V2.0? What are the key features of HM60R V2.0?

A: The Fenix HM60R V2.0 is an outdoor high-performance metal headlamp. Its key features include:

  1. 1600 lumens maximum output, 170 meters maximum beam distance.
  2. Spotlight, floodlight and red light.
  3. Top mode switch enables quick locking and mode switching.
  4. Large side switch for simple and convenient operation.
  5. Hidden USB Type-C charging port with inner waterproof treatment.

Q2.What kind of LEDsare used in HM60R V2.0? Does Fenix offer to replace LED?

A: Uses one Luminus SST40-GEN2 white LED, one Luminus SST20-GEN2 high-CRI neutral white LED, and one OSRAM 2835 red LED; with a lifespan of 50,000 hours each.

Fenix does not provide LED replacement services for the time being, and users are not recommended to replace the LEDs independently, which may affect product performance and cause product damage.

Q3. What is the color temperature of HM60R V2.0?

A: Spotlight:6000-7000K. Floodlight: 5000K.

Q4. What is the working voltage of HM60R V2.0?

A: 3.0 V-7.4 V.

Q5. Is HM60R V2.0 rechargeable? How long is the charging time?

A: Yes. The normal charging time of the included battery is approximately 2.5 hours from depleted to fully charged with a 5 V/2 A or above charging adapter. The indicator will display red while charging and will turn green when fully charged.

Q6. How to prevent accidentally activating the HM60R V2.0?

A: Lock the headlamp or remove the battery to prevent accidental activation.

Q7. Why does the HM60R V2.0 downshift to a lower mode after being used for a while and the higher mode cannot be selected?

A: There are two reasons:

1. Intelligent Overheat Protection

The headlamp will accumulate a lot of heat when used at high output levels for extended periods. When the headlamp reaches a temperature of 55°C or above, the headlamp will automatically step down a few lumens to reduce the temperature.

2. Low-voltage Warning

When the voltage level drops below the preset level, the headlamp is programmed to downshift to a lower brightness level until the lowest output level is reached.

Q8. Why does the HM60R V2.0 happen to flicker?

A: The reasons that may cause the headlamp to flicker, shine intermittently or even fail to illuminate:

A: Poor battery level.

Solution: Recharge or replace the battery.

B: The contact point or contact of the battery or headlamp is dirty.

Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

If the above methods don't work, please contact the distributor.

Q9. What is the IP rating of the HM60R V2.0? Does its USB Type-C port feature inner waterproof treatment?

A: IP68. Yes, its USB Type-C port features inner waterproof treatment.

Q10.What should I do when the HM60R V2.0 needs repair?

A: 1. 15-day replacement: Fenix will replace identical or equal products with documented manufacturing defects within 15 days of purchase.

2. 5-year free repair: Fenix will repair a light free of charge within 5 years (rechargeable battery and other accessories: 1 year) of purchase if problems develop with normal use.

3. Lifetime limited warranty: If repair is required after 5 years from the date of purchase, Fenix will charge for parts. The total repair fee is dictated by the cost of the replaced materials.

4. Warranty certificate: Please keep the warranty card in contacting the authorized distributors for after-sale maintenance, Fenix will provide service support to the distributors.

For more detailed information, please check:

http://www.fenixlight.com

http://www.fenixlight.com.cn
