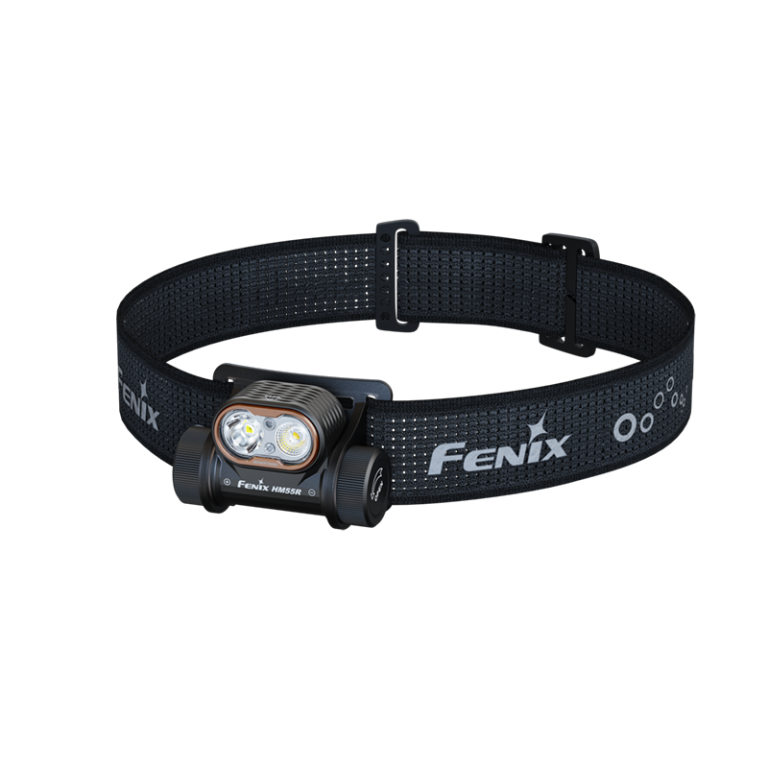

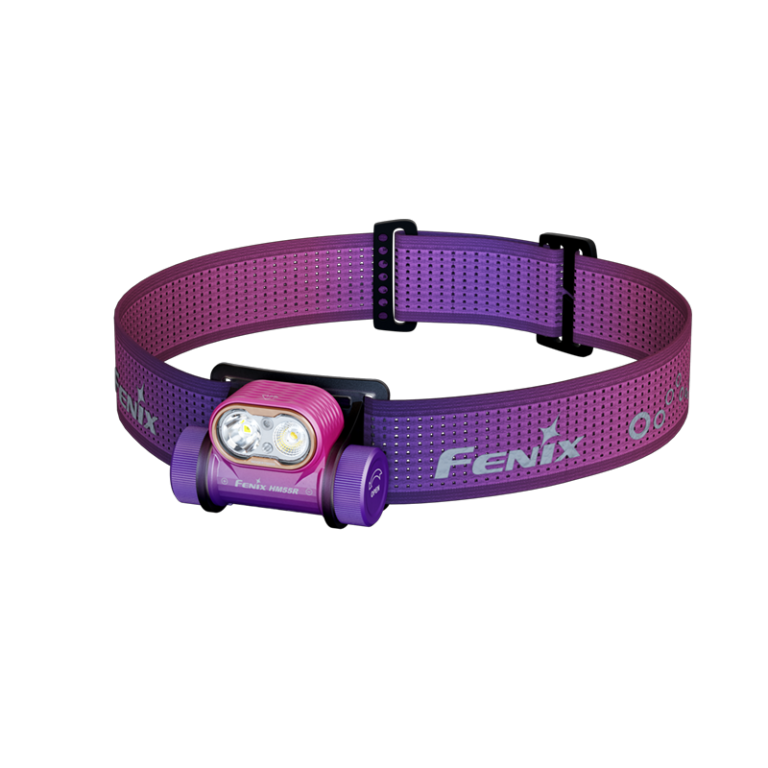

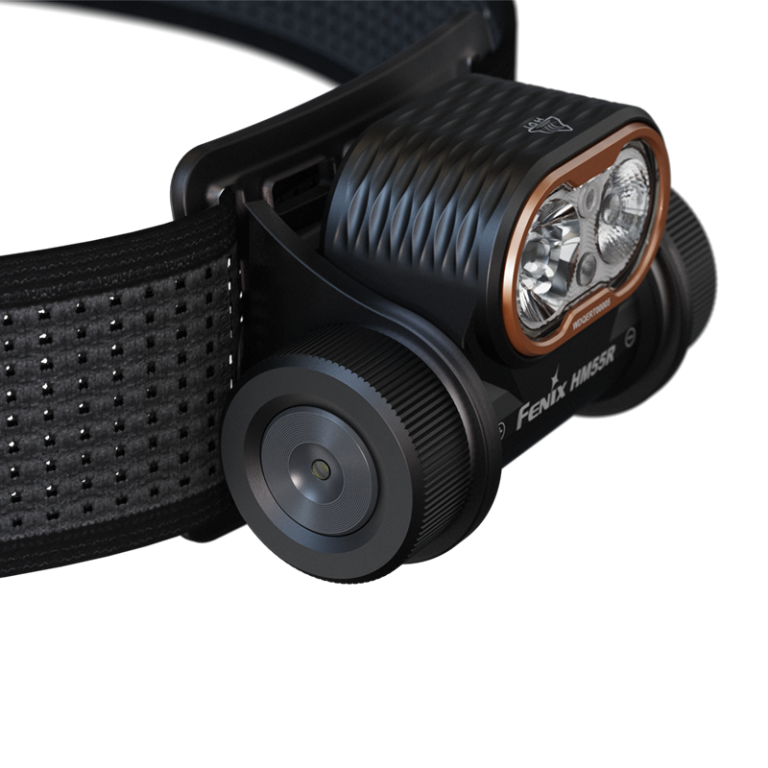

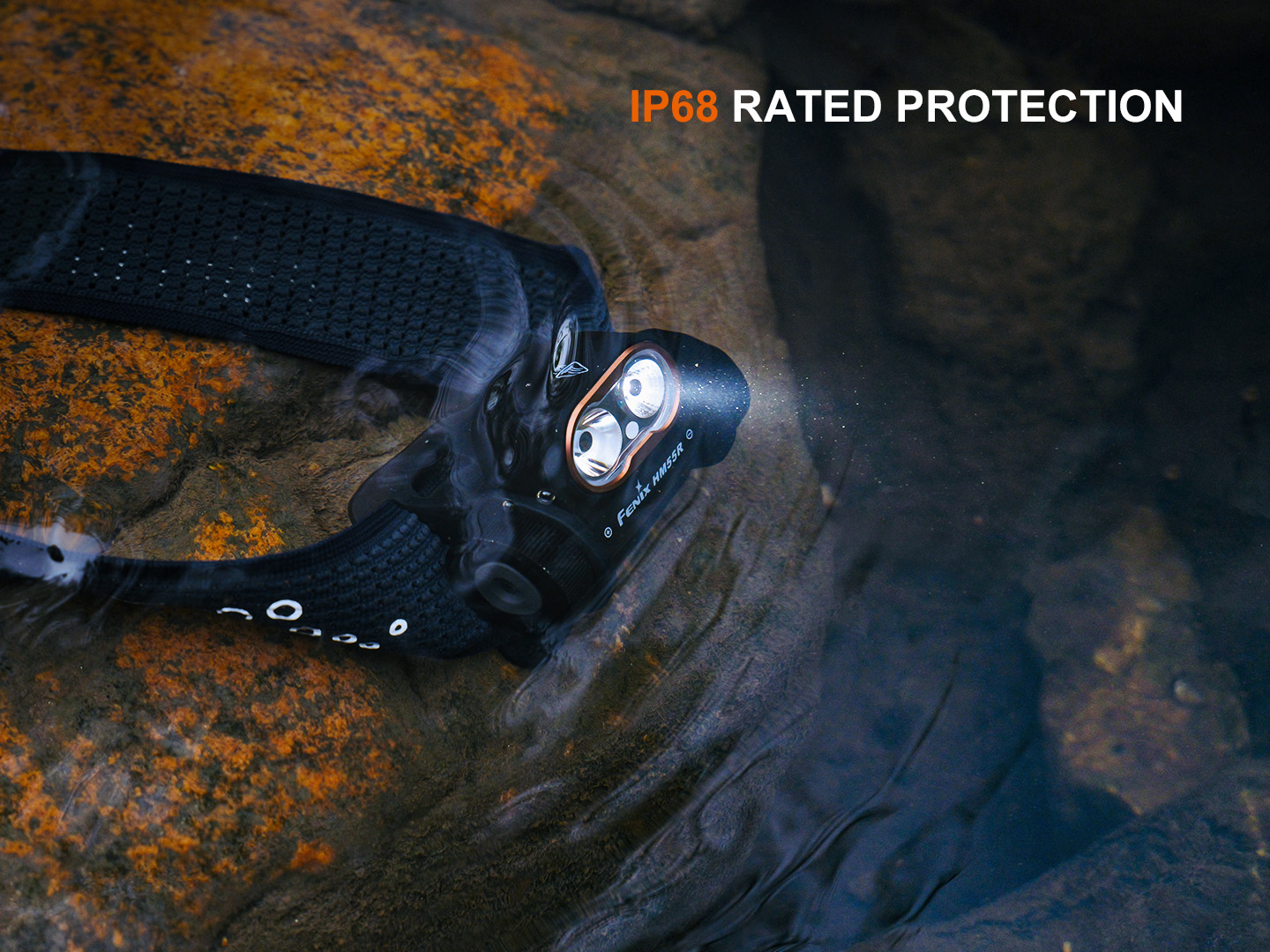

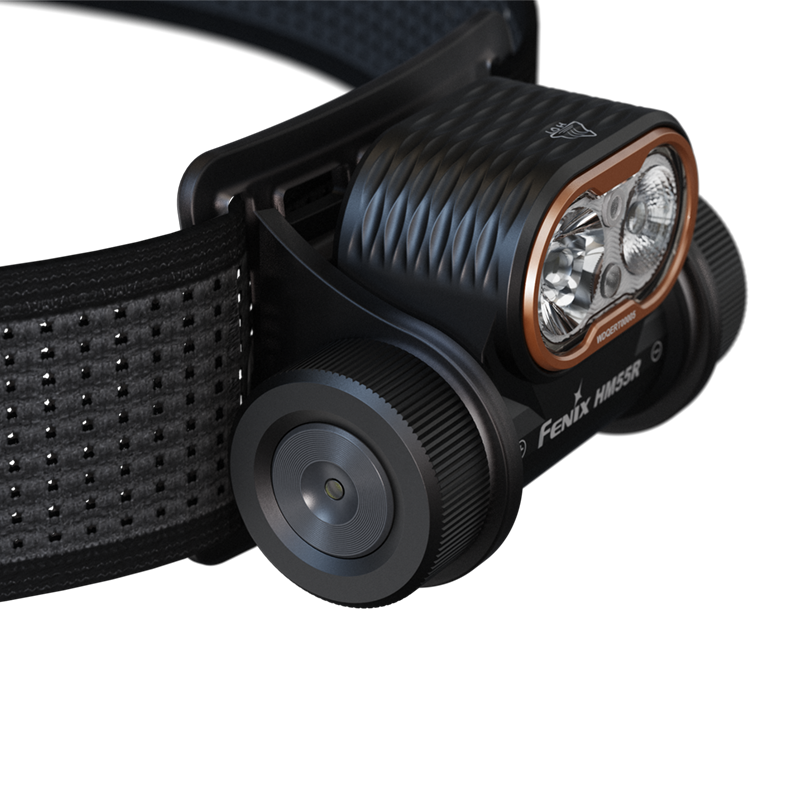

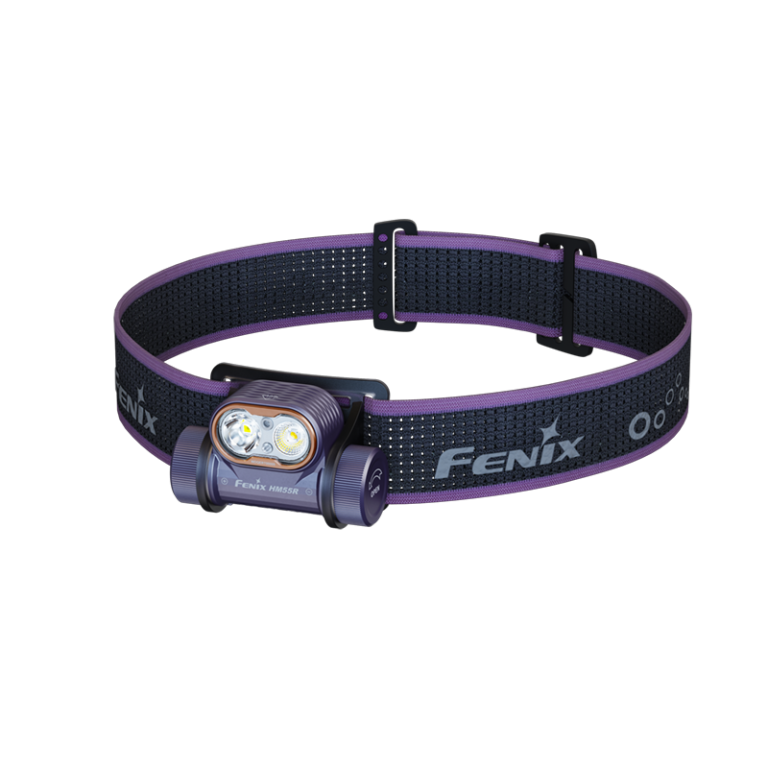

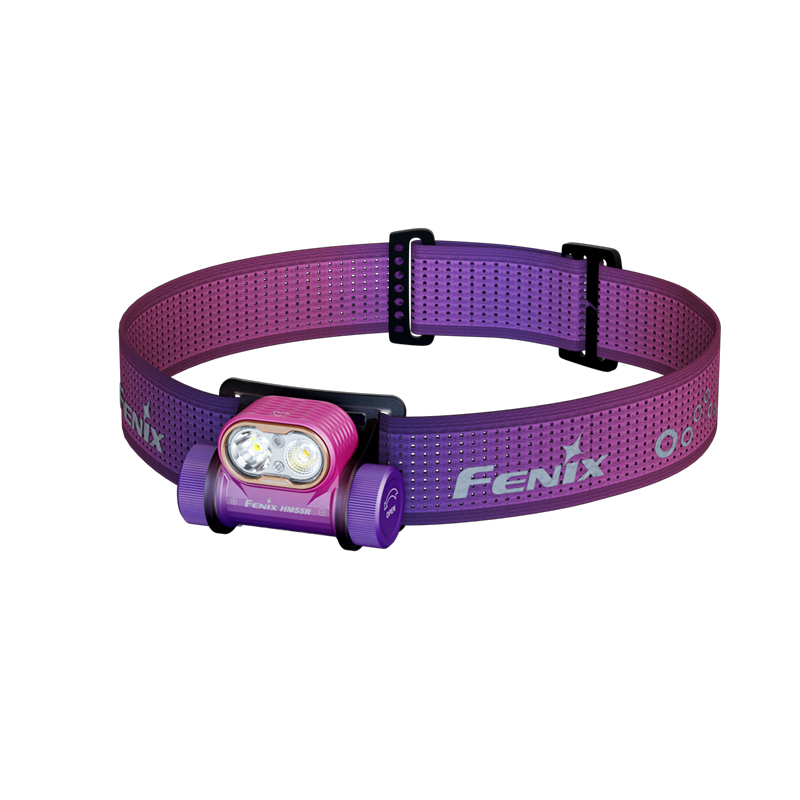

The Fenix HM55R headlamp is a lightweight, high-performance device that combines a spotlight, a floodlight, and a red light. It delivers a maximum output of 1200 lumens and a maximum beam distance of up to 150 meters, making it versatile for various situations. This headlamp is powered by a replaceable 18350 battery and is rechargeable via a USB Type-C port, ensuring long-lasting use. With IP68-rated protection and 2 meters of impact resistance, this headlamp is a reliable companion for all your adventures and daily tasks.

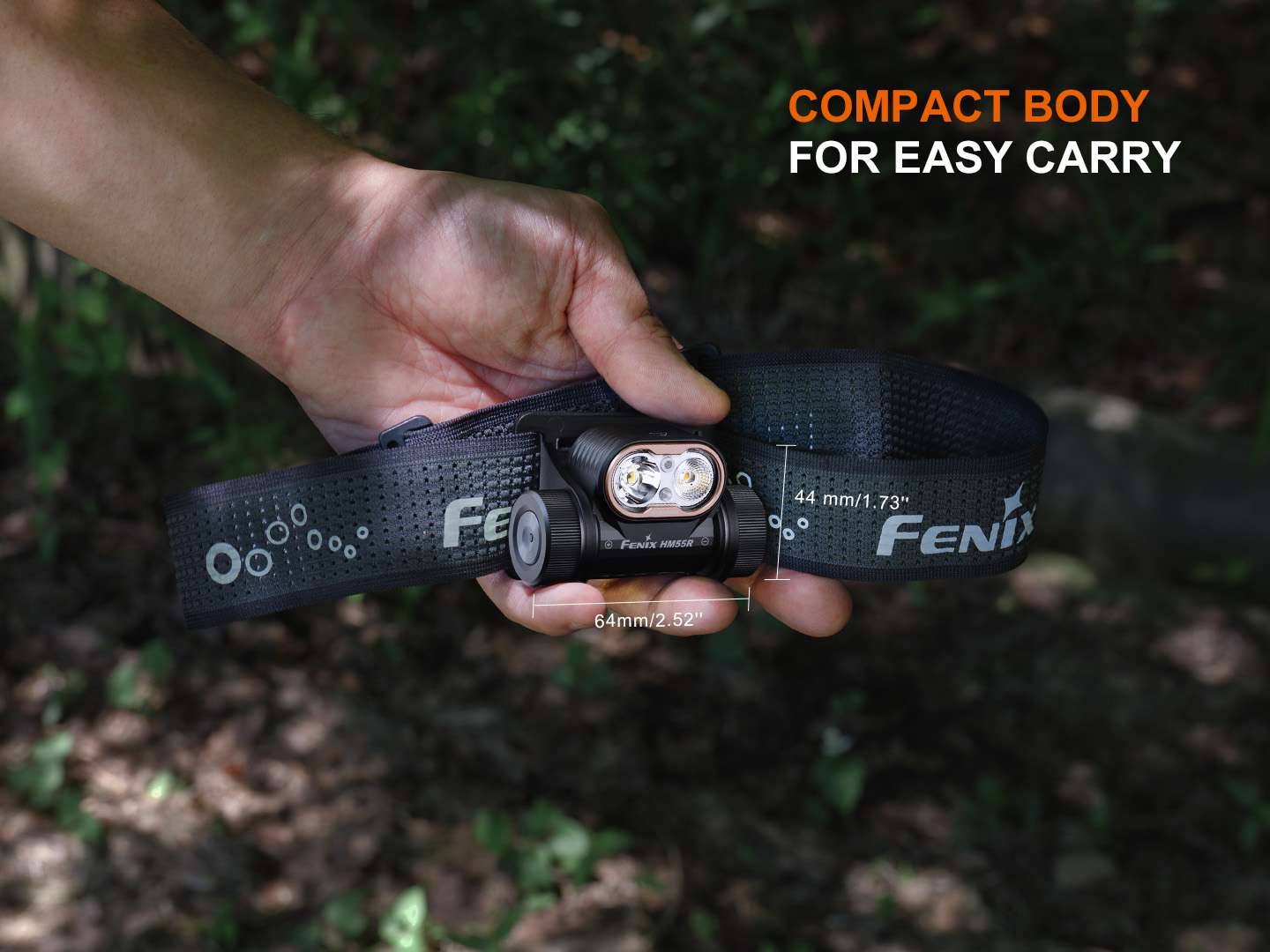

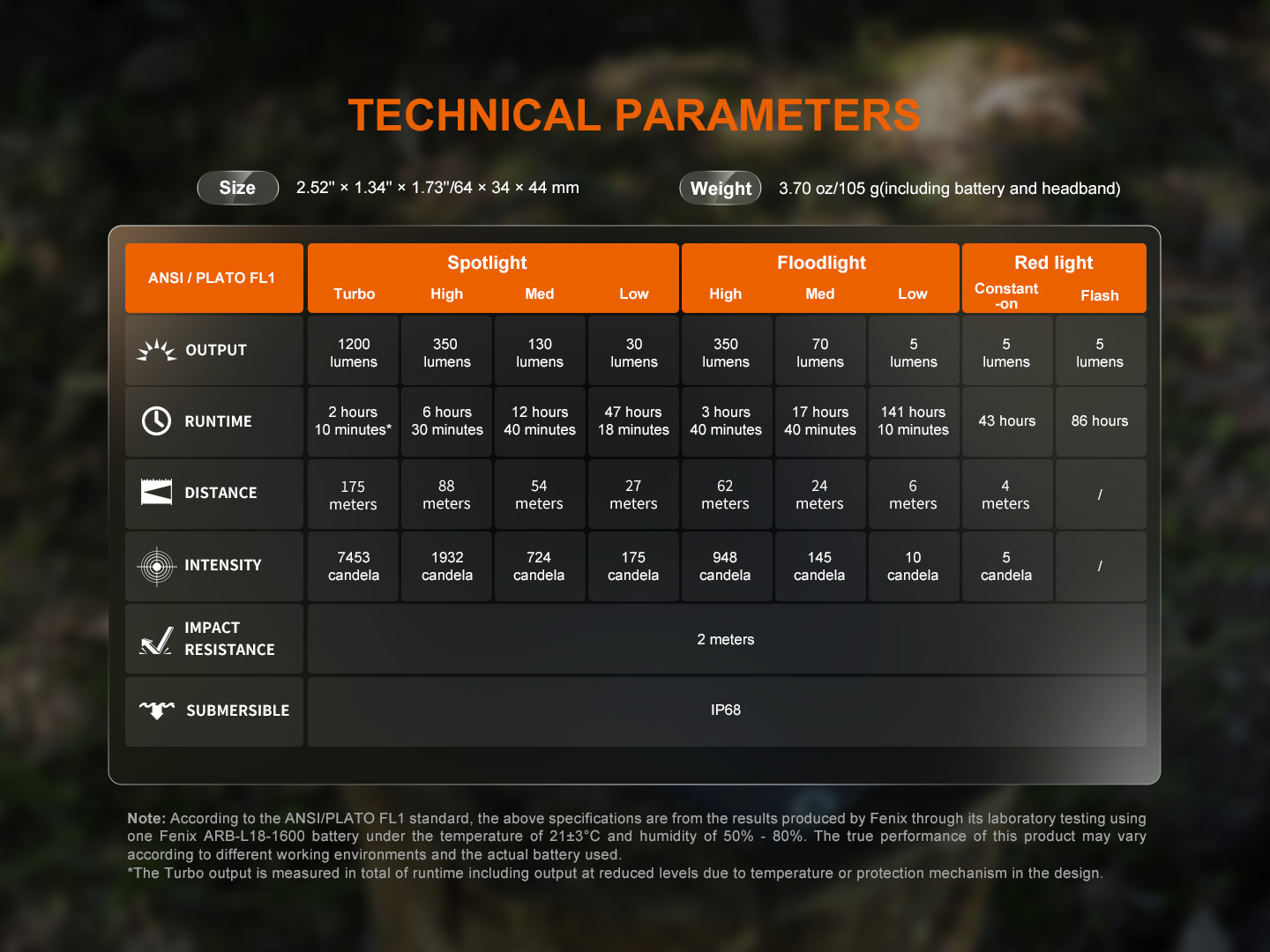

| Size |
2.52'' × 1.34'' × 1.73''/64 × 34 × 44 mm |
| Weight |
3.70 oz/105 g(including battery and headband) |

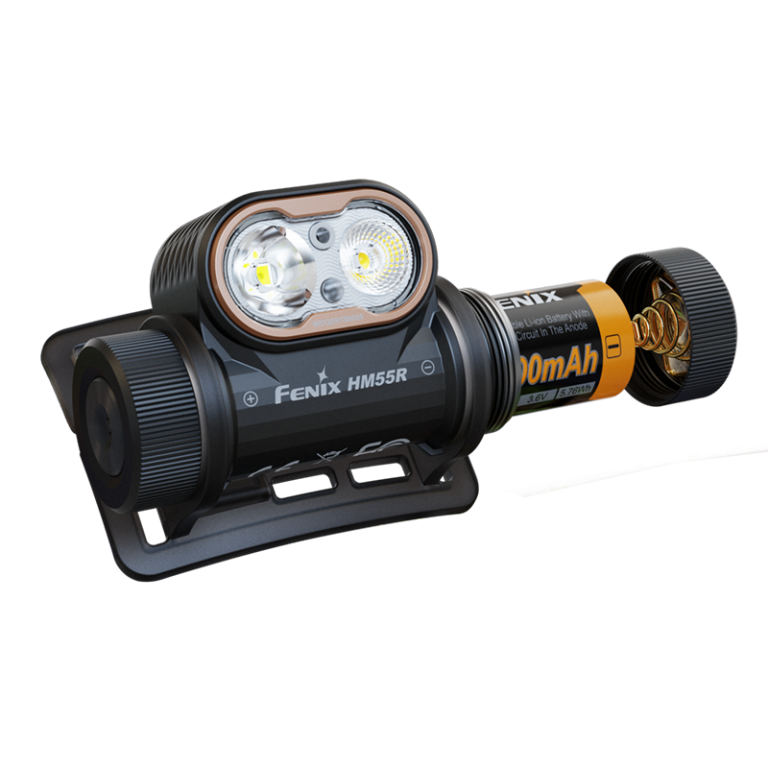

| Battery Type |

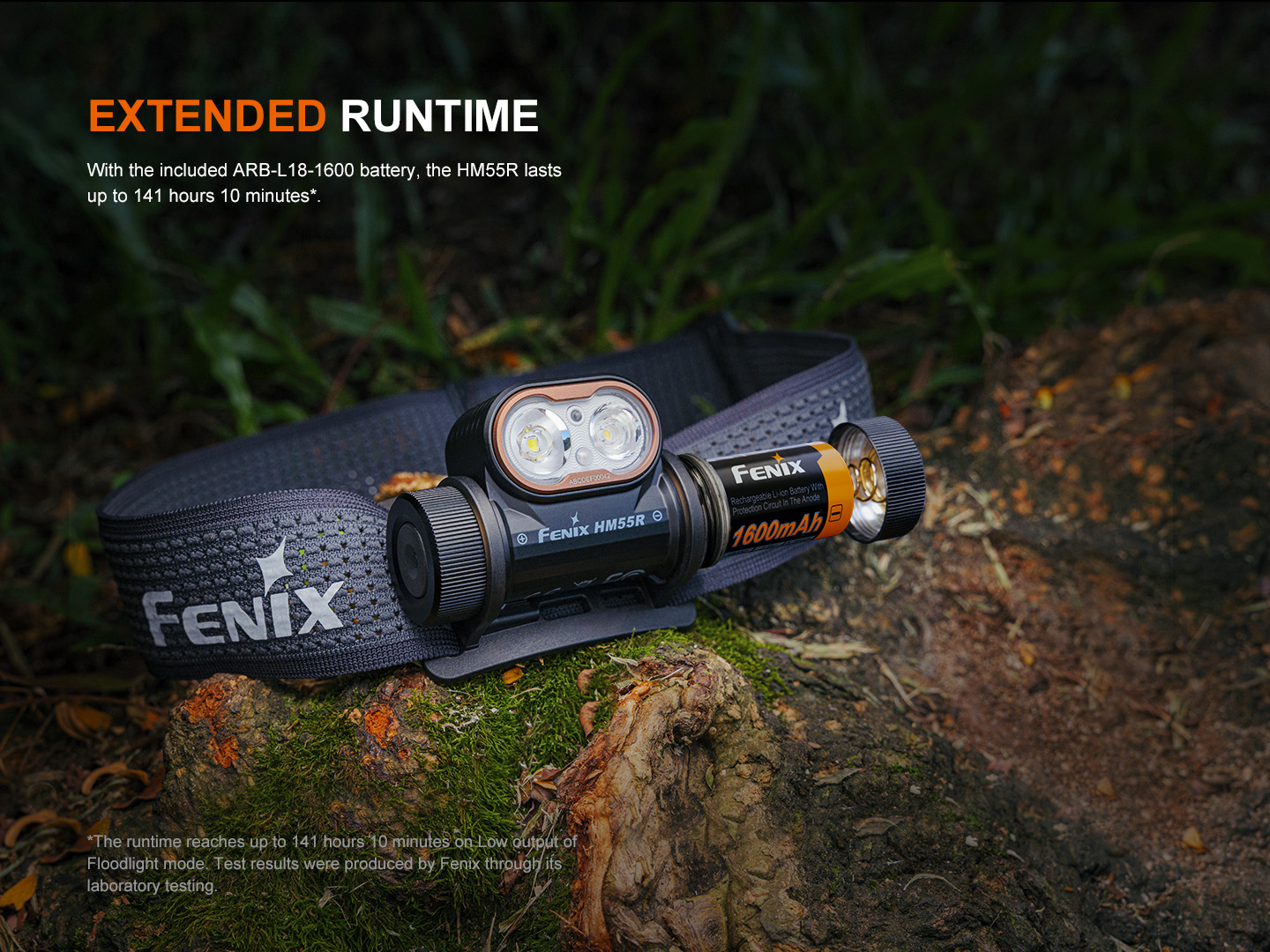

1 x ARB-L18-1600 |
SUBMERGE IN AURORA'S GLOW
MULTIPURPOSE QUICK-RELEASE MAGNETIC HEADLAMP
A: Uses one Luminus SST25 LED, one Luminus SST20V-Ra90 LED, one 2835 red LED; with a lifespan of 50,000 hours each.
Fenix does not provide LED replacement services for the time being, and users are not recommended to replace the LEDs independently, which may affect product performance and cause product damage.
A: Spotlight: 6500K. Floodlight: 5000K.
A: The working voltage range is 3.0 - 4.2 V. The limiting working voltage range is 2.75 - 4.2 V.

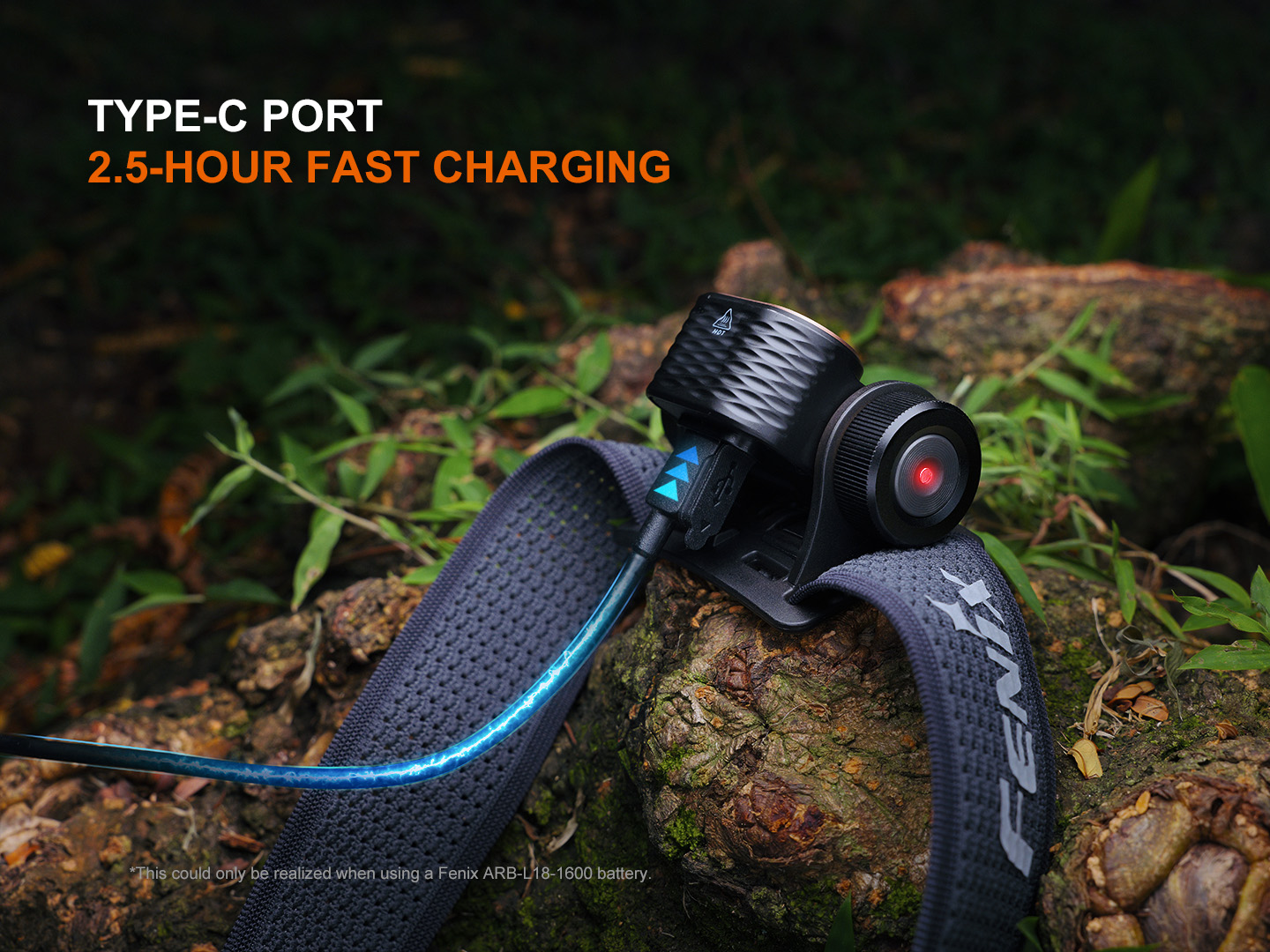

A: Yes. The HM55R is rechargeable via its USB Type-C port. The normal charging time is approximately 2.5 hours from depleted to fully charged.

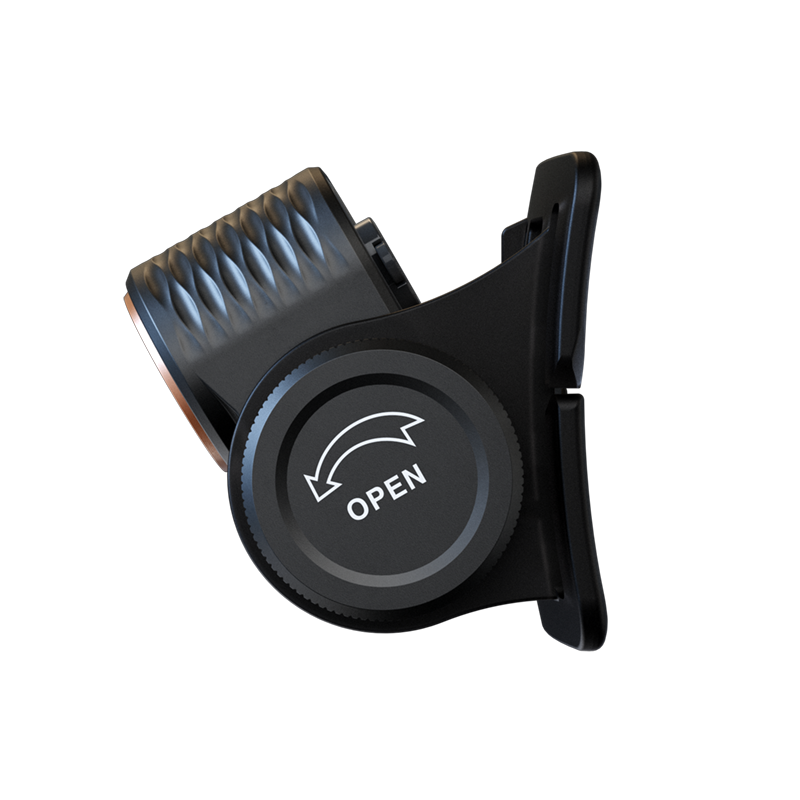

A: Remove the battery to prevent accidental activation.
A: There are two reasons:
1. Intelligent Overheat Protection
The headlamp will accumulate a lot of heat when used at high output levels for extended periods. When the headlamp reaches a temperature of 55°C or above, the headlamp will automatically step down a few lumens to reduce the temperature.
2. Low-voltage Warning
When the voltage level drops below the preset level, the headlamp is programmed to downshift to a lower brightness level until the lowest output level is reached.
A: The reasons that may cause the lamp to flicker, shine intermittently or even fail to illuminate:
B: Poor battery level.
Solution: Recharge or replace the battery.
C: The contact point or contact of the battery or headlamp is dirty.
Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.
If the above methods don't work, please contact the distributor.
A: 1. 15-day replacement: Fenix will replace identical or equal products with documented manufacturing defects within 15 days of purchase.
2. 5-year free repair: Fenix will repair a light free of charge within 5 years (rechargeable battery and other accessories: 1 year) of purchase if problems develop with normal use.
3. Lifetime limited warranty: If repair is required after 5 years from the date of purchase, Fenix will charge for parts. The total repair fee is dictated by the cost of the replaced materials.
4. Warranty certificate: Please keep the warranty card in contacting the authorized distributors for after-sale maintenance, Fenix will provide service support to the distributors.
For more detailed information, please check:
