Home / Headlamps / HM53R

HM53R

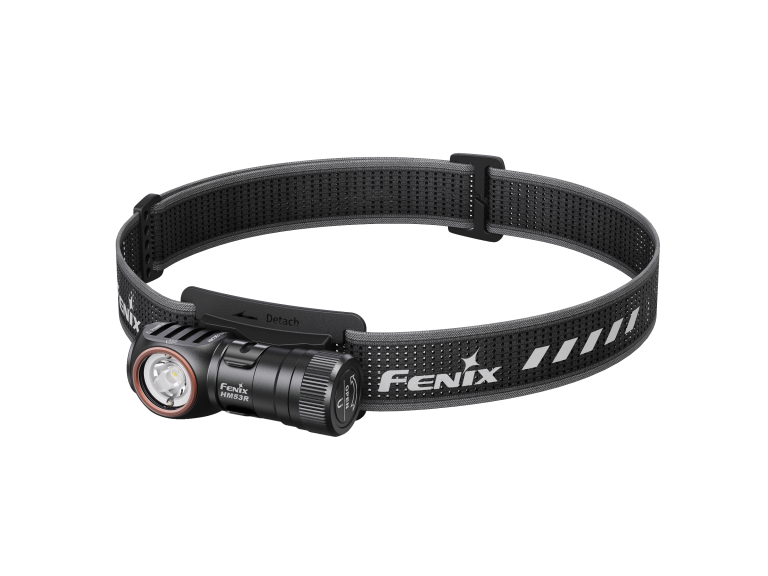

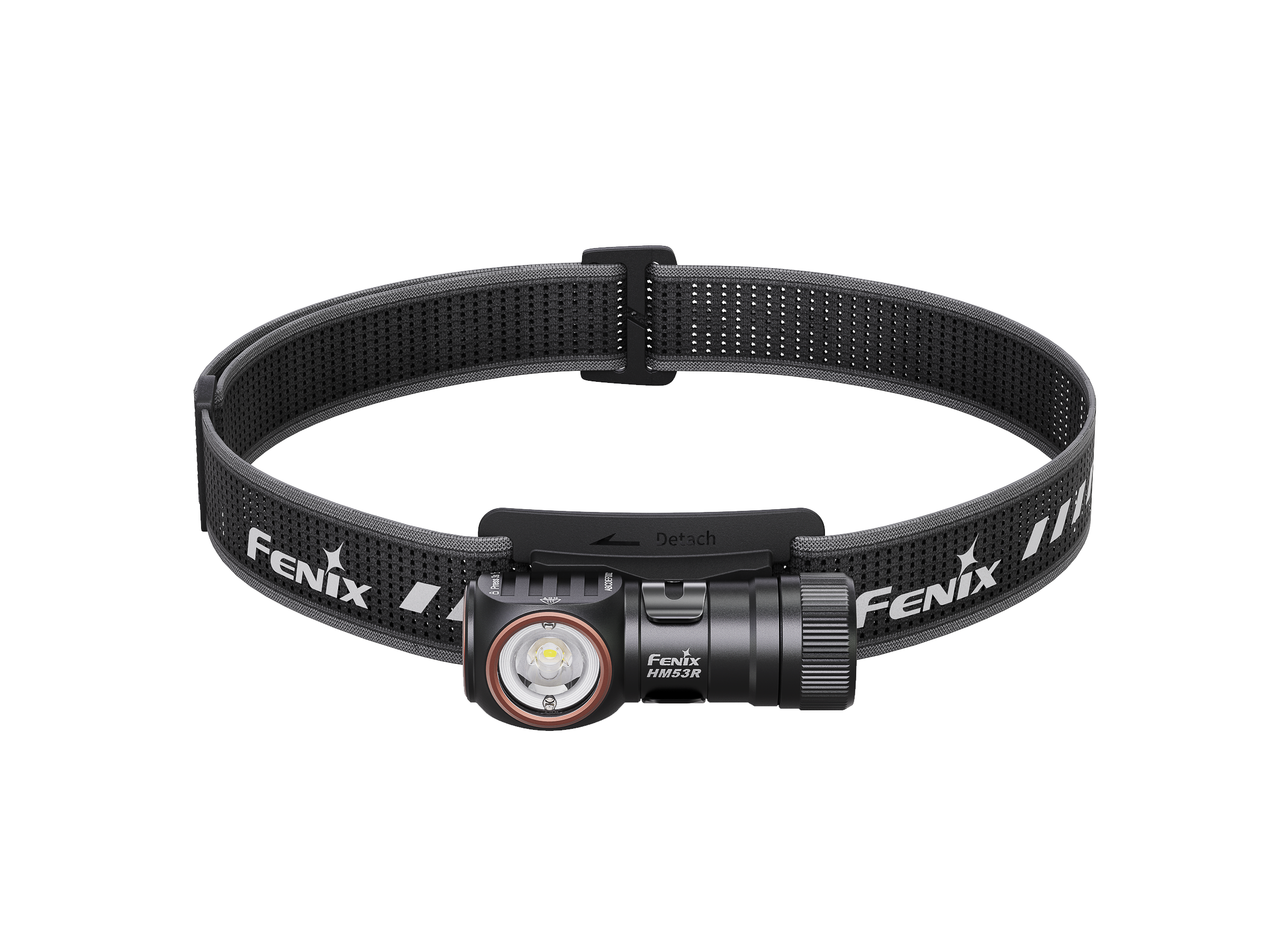

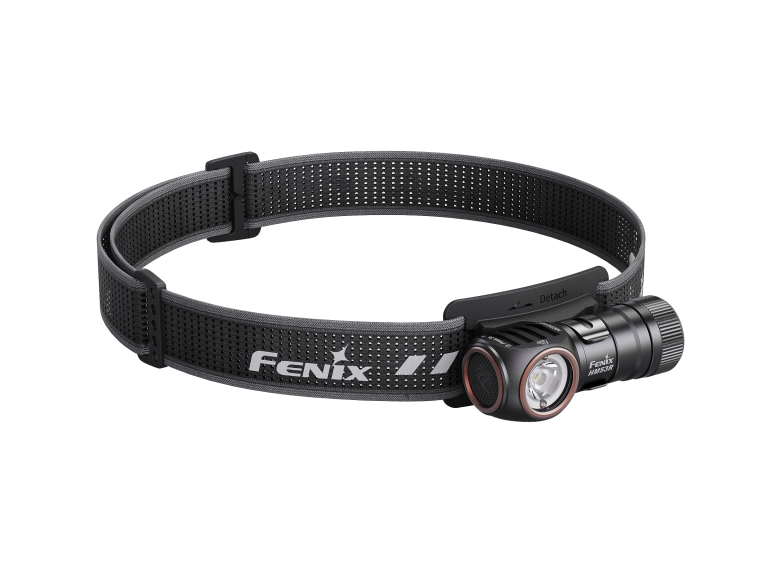

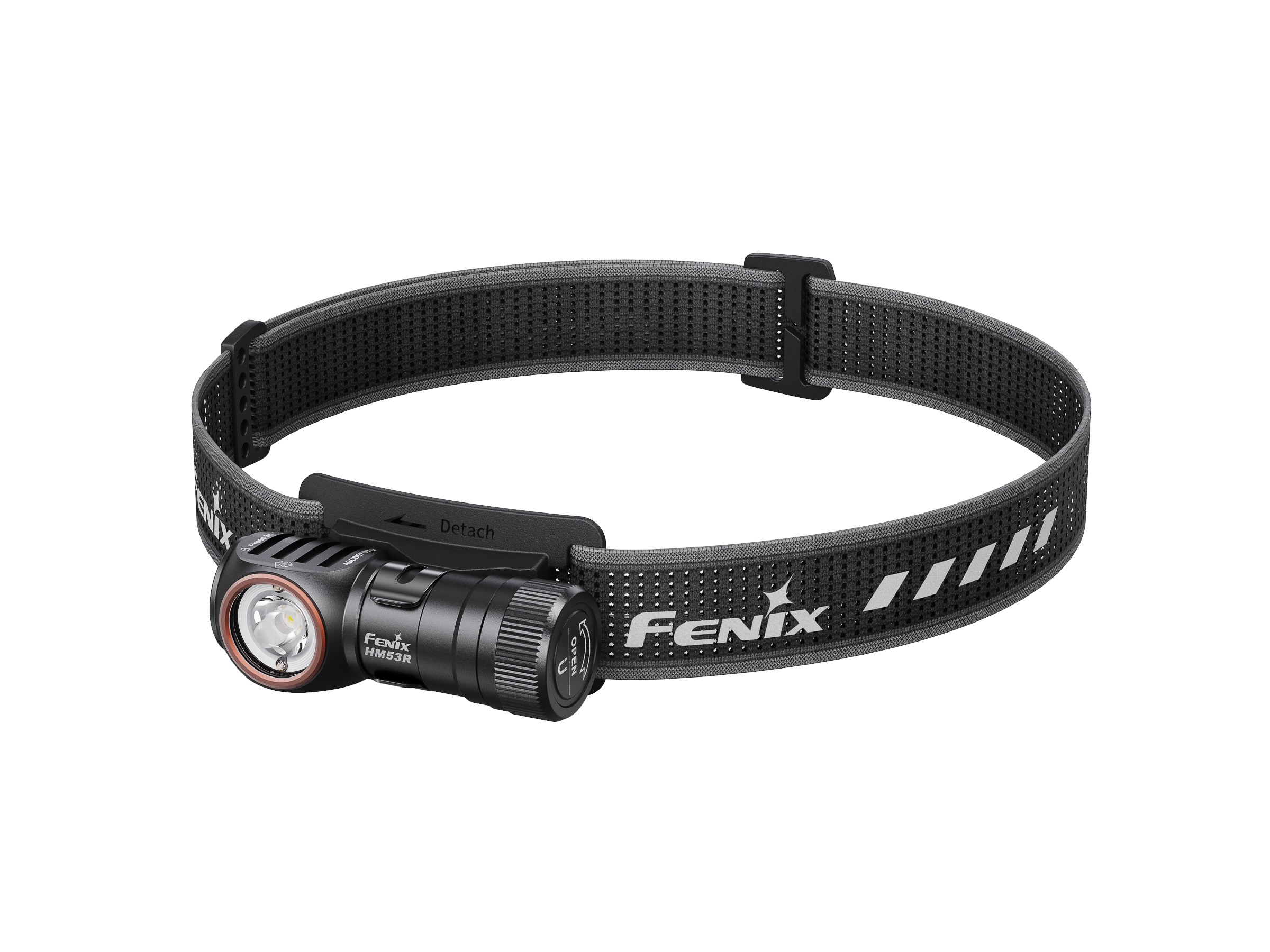

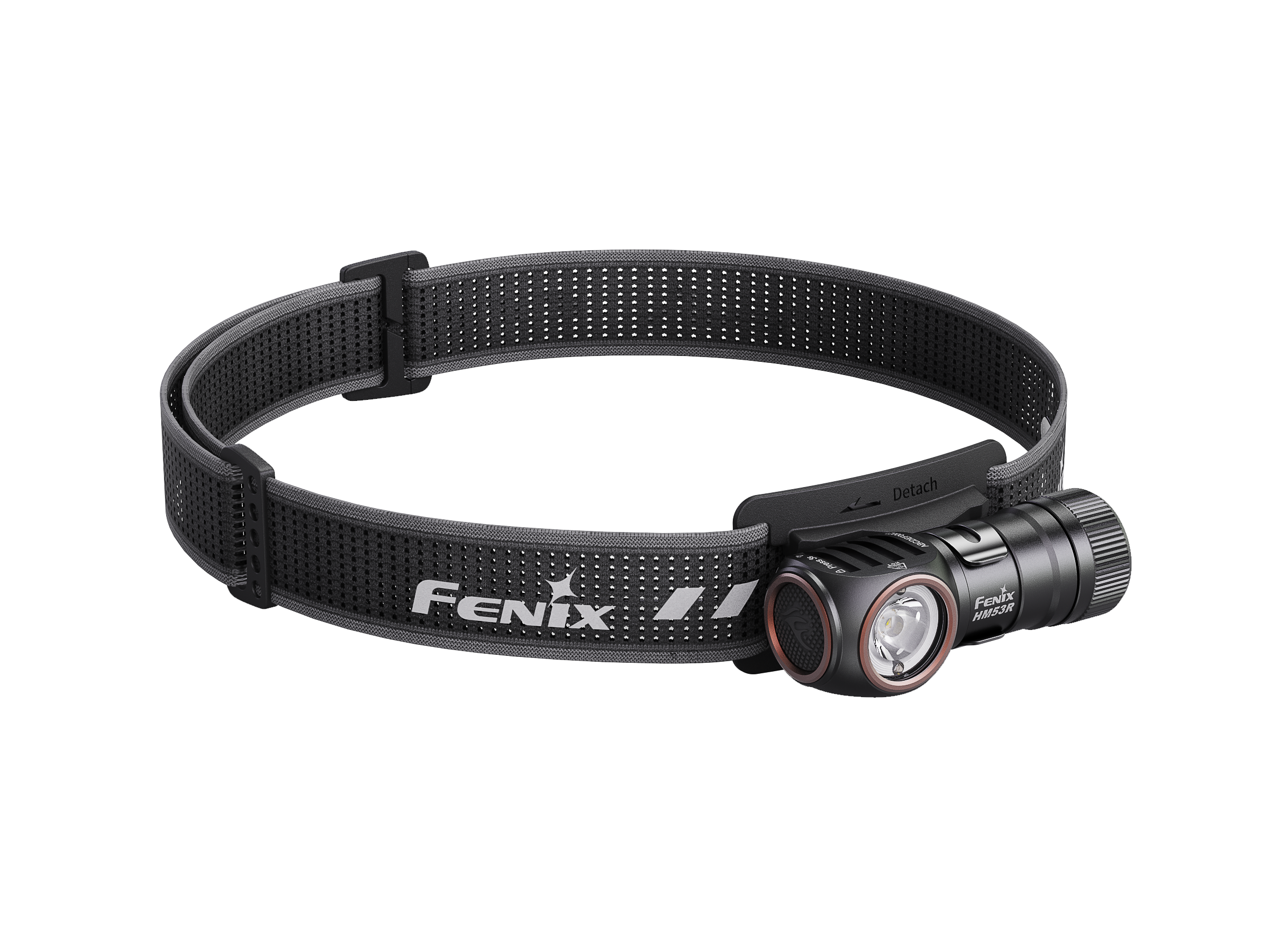

Combining high performance, versatility, and lightweight design, this HM53R headlamp delivers a max output of 1200 lumens for everyday tasks, features a red light mode to preserve night vision, and reaches up to 158 meters for long-distance exploration. It comes with a high-capacity 1600mAh 18350 battery, but is also fully compatible with 16340 and CR123A batteries, offering flexible power options for extended use. Its inner waterproof Type-C port supports universal and convenient charging, while the large side switch enables intuitive operation. Easily convert the HM53R to a chest light using the removable clip, or secure it hands-free with the magnetic tail-cap. Designed for industrial work, inspection and maintenance, and outdoor adventures, the HM53R adapts to all scenarios as your ultimate lighting companion.

  • 1200 LM Lumens
  • 158 M Range
  • 135 H Run Time
  • IP68 Water Resistant
Contact Us Brochure
Size 2.80'' × 1.46'' × 1.42''/71 × 37 × 36 mm.
Weight 3.60 oz/102 g (including battery, headband, and mount).
Battery Type ARB-L18-1600


FEATURES

  • High lumen, long range   1200 lumens maximum output, 158 meters maximum beam distance.
  •  High quality LED   Uses one Luminus SST-25 cold white LED and two OSRAM-2835 red LEDs, with a lifespan of 50,000 hours each.
  • ARB-L18-1600 Powered by one 1600mAh 18350 battery.
  • USB Type-C charging Hidden USB Type-C charging port with inner waterproof treatment.

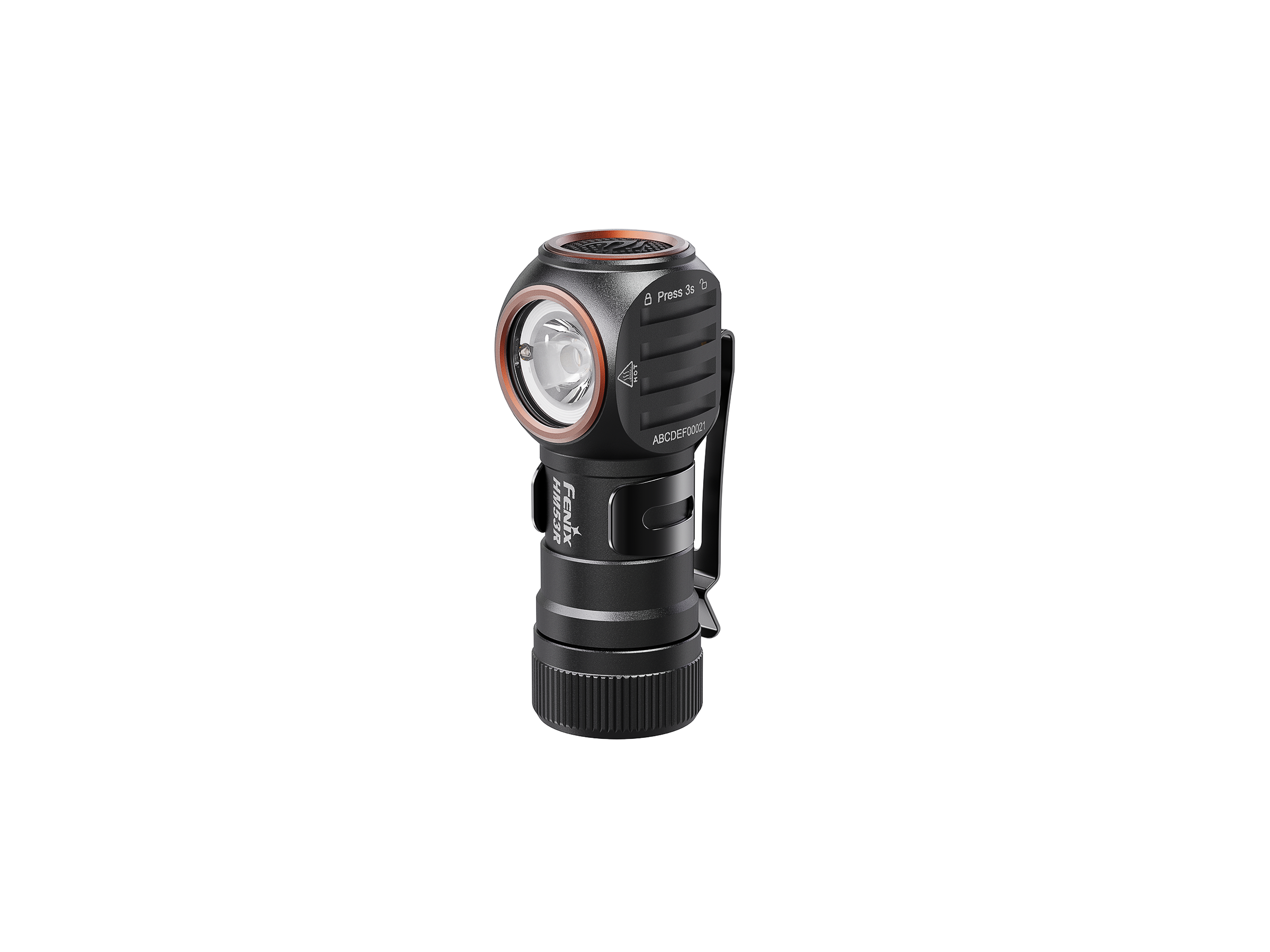

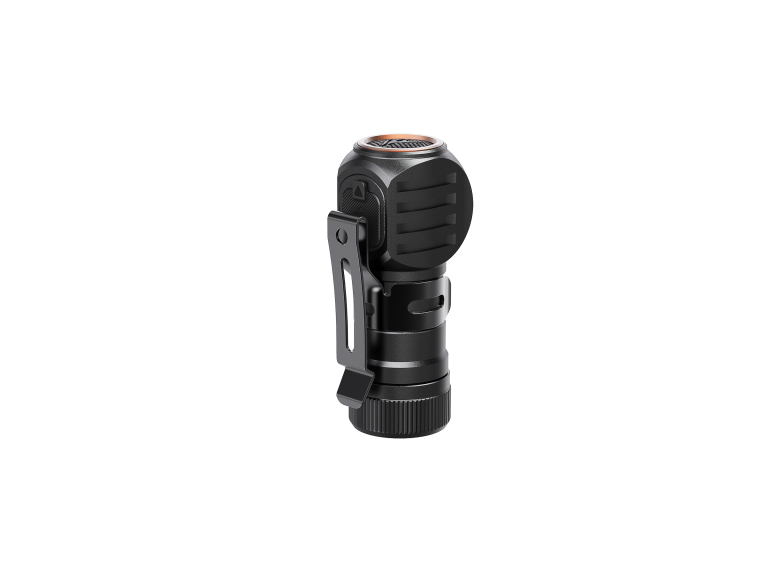

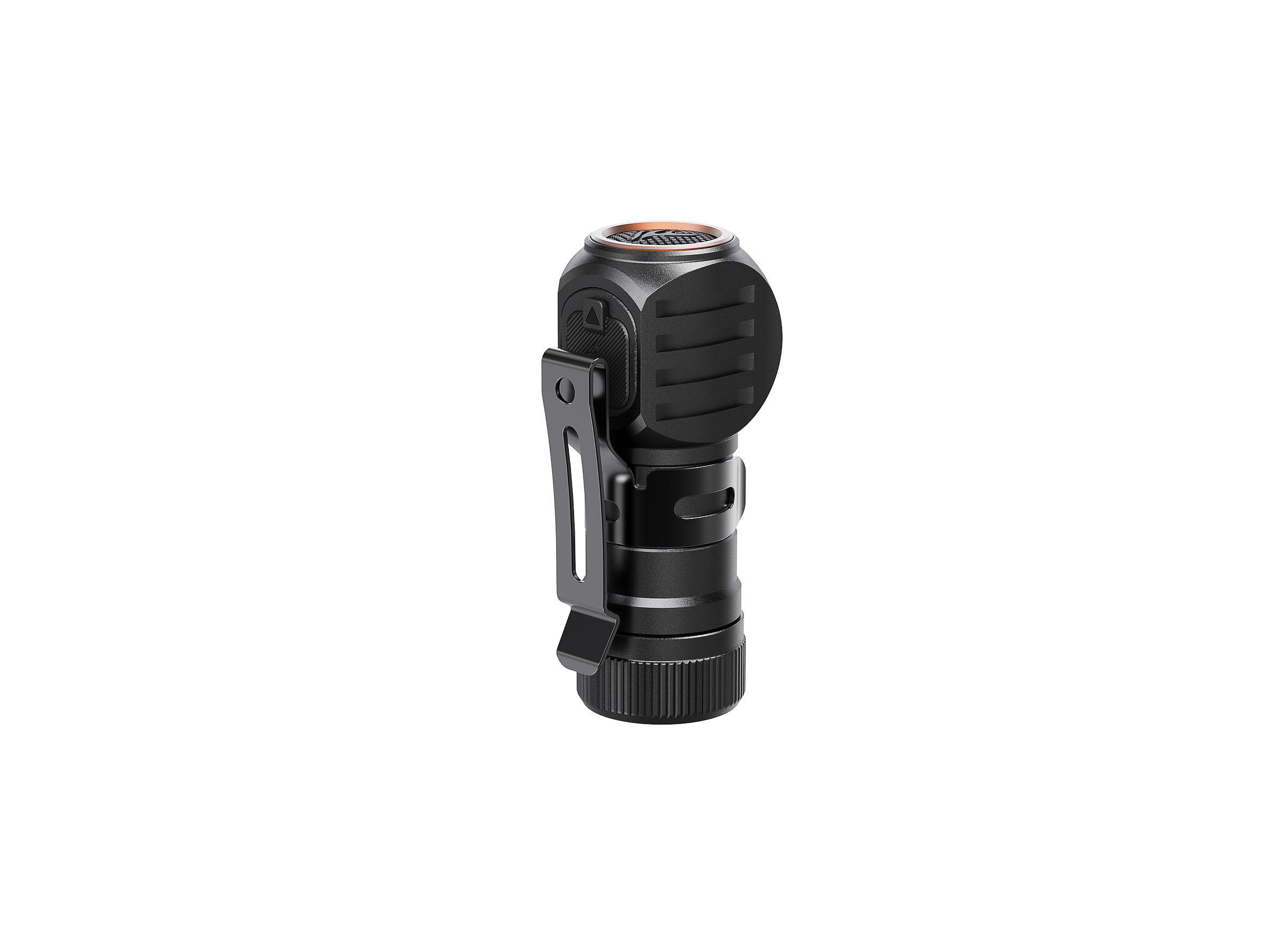

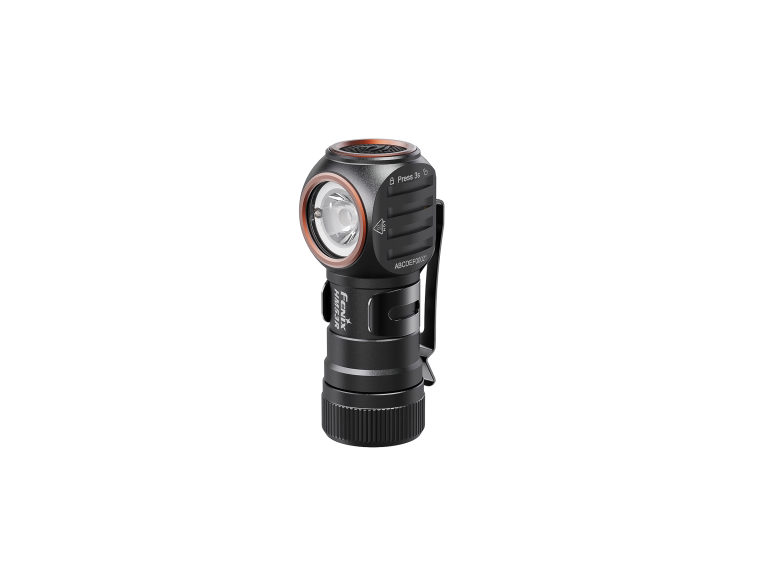

  • Headlamp mount, body clip, and magnetic tail-cap Headlamp mount, body clip, and magnetic tail-cap provide multiple mounting options.
  • Large side switch Large side switch for simple and glove-friendly operation.


Take a Closer Look

MULTI-FUNCTION LIGHTWEIGHT HEADLAMP

FAQS

Contact Us
Q1. What is the product positioning of HM53R? What are the key features of HM53R?

A: The Fenix HM53R is a lightweight multifunctional headlamp that is mainly used for outdoor and industrial scenarios. Its key features include:

  1. 1200 lumens maximum output, 158 meters maximum beam distance.
  2. High-output cold white light and red light.
  3. Headlamp mount, body clip, and magnetic tail-cap provide multiple mounting options.
  4. Large side switch for simple and glove-friendly operation.

Q2.What kind of LEDsare used in HM53R? Does Fenix offer to replace LED?

A: Uses one Luminus SST-25 cold white LED and two OSRAM-2835 red LEDs; with a lifespan of 50,000 hours each.

Fenix does not provide LED replacement services for the time being, and users are not recommended to replace the LEDs independently, which may affect product performance and cause product damage.

Q3. What is the color temperature of HM53R?

A: 6500K.

Q4. What is the working voltage of HM53R?

A: Operating voltage: 3.0 V~4.2 V. Maximum operating voltage range: 2.75 V~4.2 V.

Q5. Is HM53R rechargeable? How long is the charging time?

A: Yes. The HM53R features a USB Type-C port for charging. The normal charging time is approximately 2.5 hours from depleted to fully charged with a 5 V/1 A or above charging adapter.

Q6. How to prevent accidentally activating the HM53R?

A:

Lock: With the lamp turned off, press and hold the switch for 3 seconds, the lamp will blink four times in Eco output of White light and then go out to indicate the locked status.

Unlock: With the light locked, press and hold the switch for 3 seconds, the lamp will blink four times and then activate in Eco output of White light to indicate that the lamp is unlocked.

Note: In locked status, clicking the switch will activate four blinks in Eco output of White light before turning off to indicate the locked status.

Q7. Why does the HM53R downshift to a lower mode after being used for a while and the higher mode cannot be selected?

A: There are two reasons:

The headlamp will accumulate a lot of heat when used at high output levels for extended periods. When the headlamp reaches a temperature of 55°C or above, the headlamp will automatically step down a few lumens to reduce the temperature.

2. Low-voltage Warning

When the voltage level drops below the preset level, the headlamp is programmed to downshift to a lower brightness level until the lowest output level is reached.

Q8. Why does the HM53R happen to flicker?

A: The reasons that may cause the headlamp to flicker, shine intermittently or even fail to illuminate:

A: Poor battery level.

Solution: Recharge or replace the battery.

B: The contact point or contact of the battery or headlamp is dirty.

Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

If the above methods don't work, please contact the distributor.

Q9.What should I do when the HM53R needs repair?

A: 1. 15-day replacement: Fenix will replace identical or equal products with documented manufacturing defects within 15 days of purchase.

2. 5-year free repair: Fenix will repair a light free of charge within 5 years (rechargeable battery and other accessories: 1 year) of purchase if problems develop with normal use.

3. Lifetime limited warranty: If repair is required after 5 years from the date of purchase, Fenix will charge for parts. The total repair fee is dictated by the cost of the replaced materials.

4. Warranty certificate: Please keep the warranty card in contacting the authorized distributors for after-sale maintenance, Fenix will provide service support to the distributors.

For more detailed information, please check:

http://www.fenixlight.com

http://www.fenixlight.com.cn
