E05R

RECHARGEABLE MINI KEYCHAIN FLASHLIGHT

The Fenix E05R flashlight is a rechargeable mini flashlight that can emit up to 400 lumens from its built-in 320mAh Li-polymer battery. Fully rechargeable via a built-in micro USB charging port, the flashlight has a maximum runtime of 30 hours. This little flashlight is built tough with an IP68 dustproof and waterproof rating. Super small and compact, this keychain flashlight is a great choice for everyday carry.

  • 400 LM Lumens
  • 64 M Range
  • 30 H Run Time
  • IP68 Water Resistant
Size
2.68'' x 0.60'' x 0.59'' / 68 x 15.3 x 15 mm
Weight
0.85 oz / 24 g
Battery Type
Built-in 320mAh Li-polymer battery

FEATURES

  • Cree XP-G2 S3 LED with 50,000-Hour Lifespan

    Cree XP-G2 S3 white light LED with a lifespan of 50,000 hours.

  • Battery Life: 320mAh Li-polymer

    Built-in 320mAh Li-polymer battery.

  • Hidden Micro USB Charging Port

    Hidden micro USB charging port.

  • Metal Switch: On/Off & Output Selection

    Metal switch for on/off and output selection.

  • Instant Energy Boost

    Instant Burst.

  • High-Efficiency Lens with Total Reflective Coating

    High-efficiency lens with a total reflective coating.

  • Durable Aluminum A6061-T6

    Made of durable A6061-T6 aluminum.

  • Premium HAIII Hard-Anodized Finish

    Premium type HAIII hard-anodized anti-abrasive finish.

Take a Closer Look

FAQS

Contact Us
Q1. What is the product positioning of E05R? And who are the target customers?
A:The Fenix E05R flashlight is a rechargeable mini flashlight that can emit up to 400 lumens from its built-in 320mAh Li-polymer battery. Fully rechargeable via a built-in micro USB charging port, the flashlight has a maximum runtime of 30 hours. This little flashlight is built tough with an IP68 dustproof and waterproof rating. Super small and compact, this keychain flashlight is a great choice for everyday carry.
Q2. What are the key features and benefits of E05R?
1) 400 lumens maximum output.
2)Thumb-sized body.
3)Hidden charging interface.
4) Instant Burst.

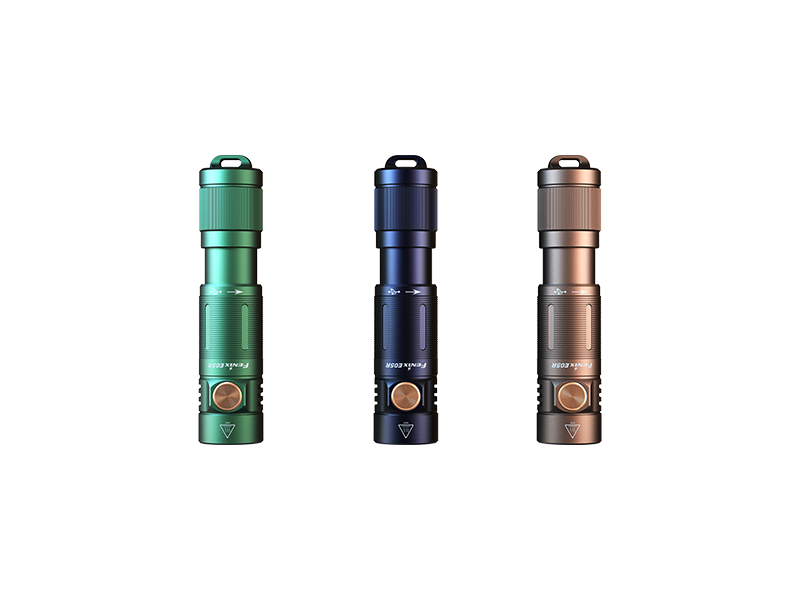

5) Three colors for option.
Q3. What kind of LED is used in E05R? And what are the beam angles?
Cree XP-G2 S3 white light LED.
Beam angles: spot beam angle of 22°, spill beam angle of 95°.
Q4. Does E05R have overheat protection?
Yes. The light will accumulate a lot of heat when used at High mode for extended periods. When the light reaches a temperature of 60°C or above, the light will automatically step down a few lumens to reduce the temperature. When the temperature drops below 60°C, it will then allow the user for the reselection of the mode.
Q5. What battery does E05R support?
The light comes with a built-in 320mAh Li-polymer battery; it can't be replaced.
Q6. What’s the color temperature of E05R?
6300K.
Q7. What’s the standby current of E05R?
Less than 20µA.
Q8. Note about IP68
IP68 ratings is ensured ONLY when the charging port is tightened.
