E04R

The Fenix E04R is a meticulously crafted compact EDC flashlight where precision meets portability. It masterfully combines a practical white light, a night-vision-preserving red light, and a versatile multi-function side light. Its unique side light features emergency red/blue flashing, an atmospheric RGB breathing mode, and a dynamic RGB chase effect, delivering unmatched visual signaling for critical situations while adding ambiance to outdoor leisure. Power is supplied by a built-in 400mAh battery, recharged swiftly via a USB Type-C port on the flashlight. The innovative 360° rotatable clip offers secure, flexible attachment to pockets, caps, backpacks, shoulder straps, MOLLE, and beyond, adapting effortlessly to any scenario. More than a flashlight, the E04R elevates the daily carry and makes an especially thoughtful gift. It’s the perfect choice for those who value both preparedness and presentation.

  • 300 LM Lumens
  • 46 M Range
  • 87 H Run Time
  • IP66 Water Resistant
Contact Us
Size 2.30'' × 1.18' × 1.17''/58.5 × 30× 29.8 mm.
Weight 1.45 oz/41 g (including battery).
Battery Type built-in 400mAh battery


FEATURES

  • High lumen, long range   300 lumens maximum output, 46 meters maximum beam distance.
  •  High quality LED   Uses one Luminus SST-12 white LED and one red light LED, with a lifespan of 50,000 hours each.

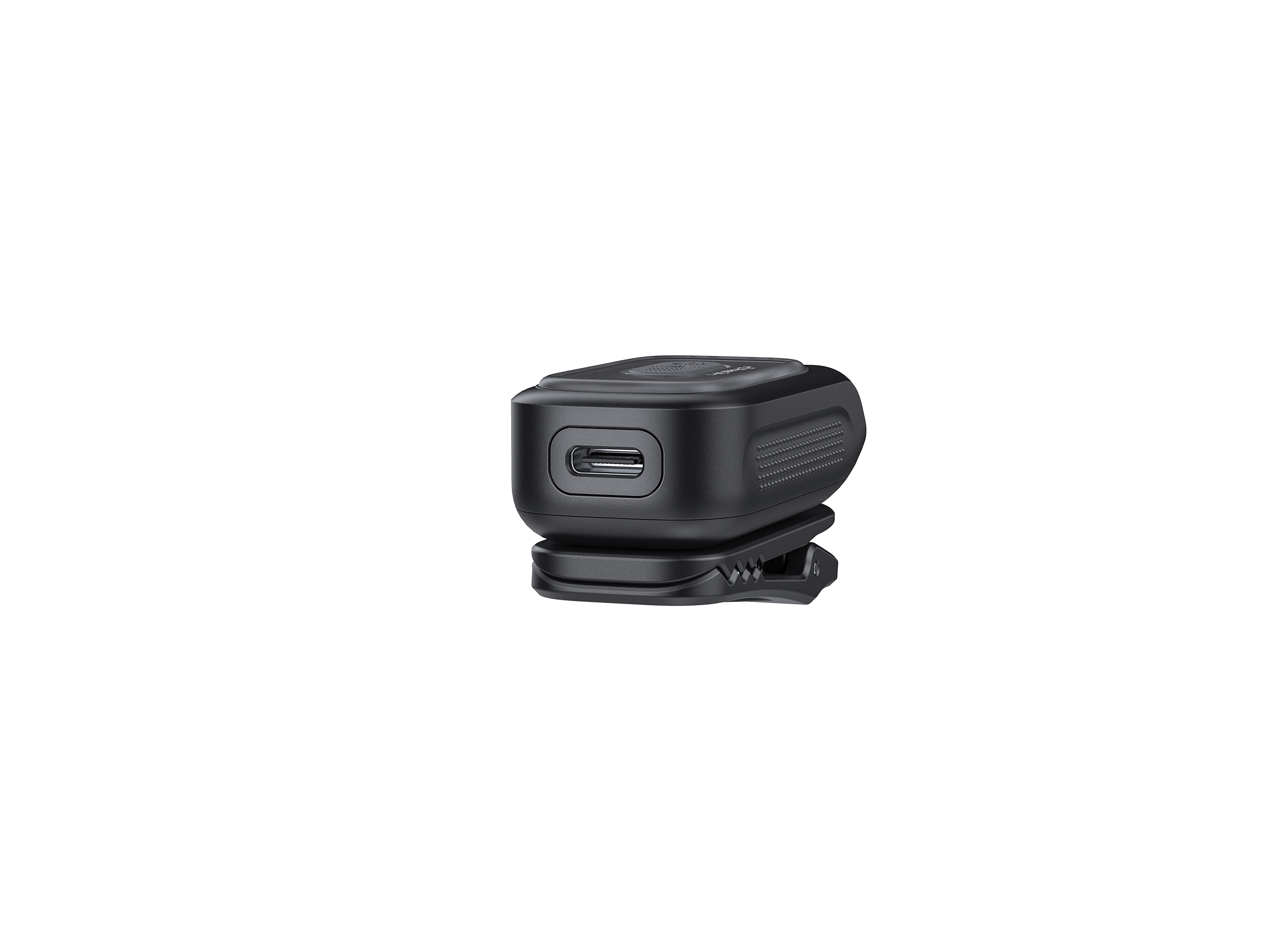

  • USB Type-C charging USB Type-C charging port with inner waterproof treatment.

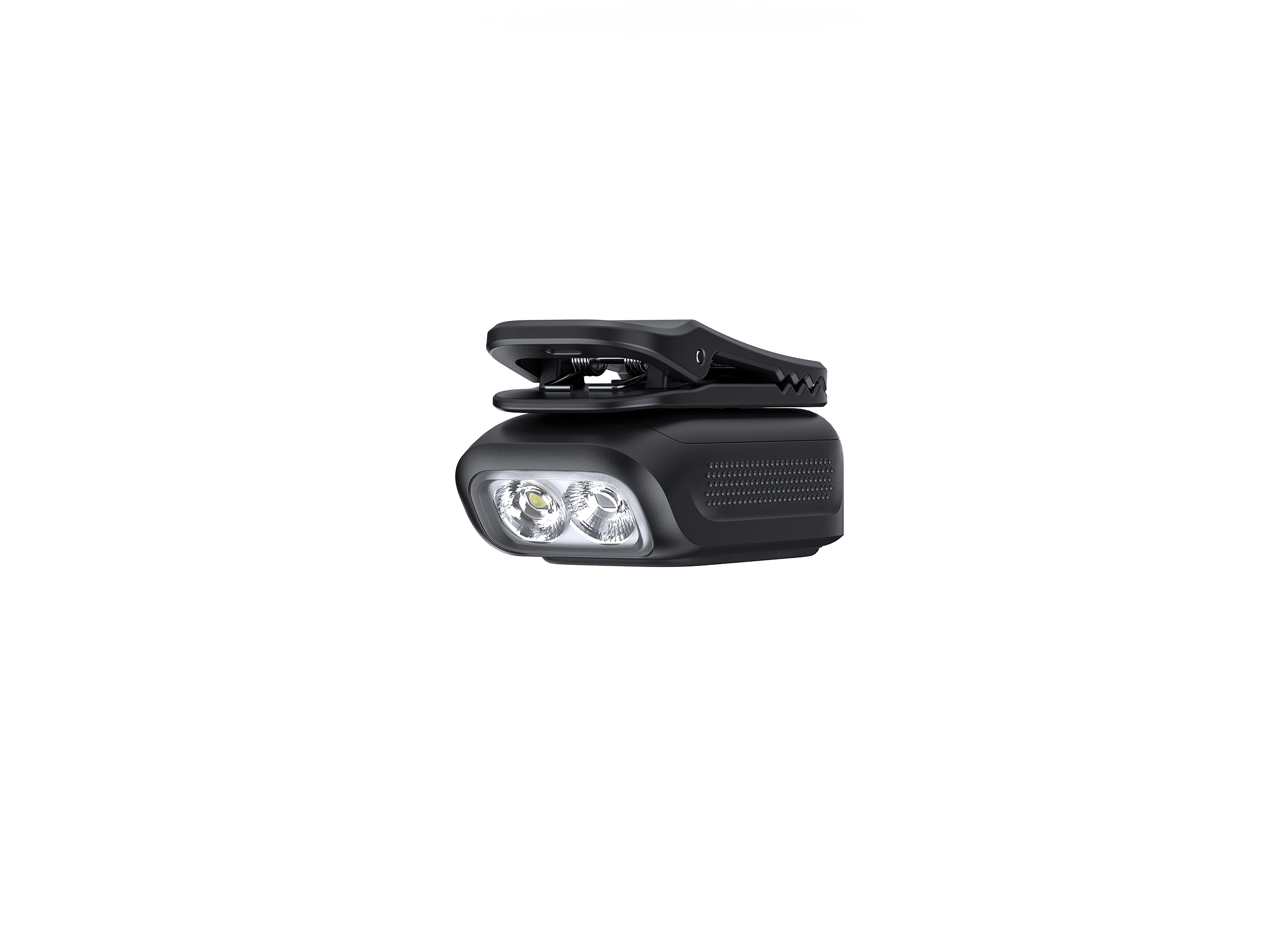

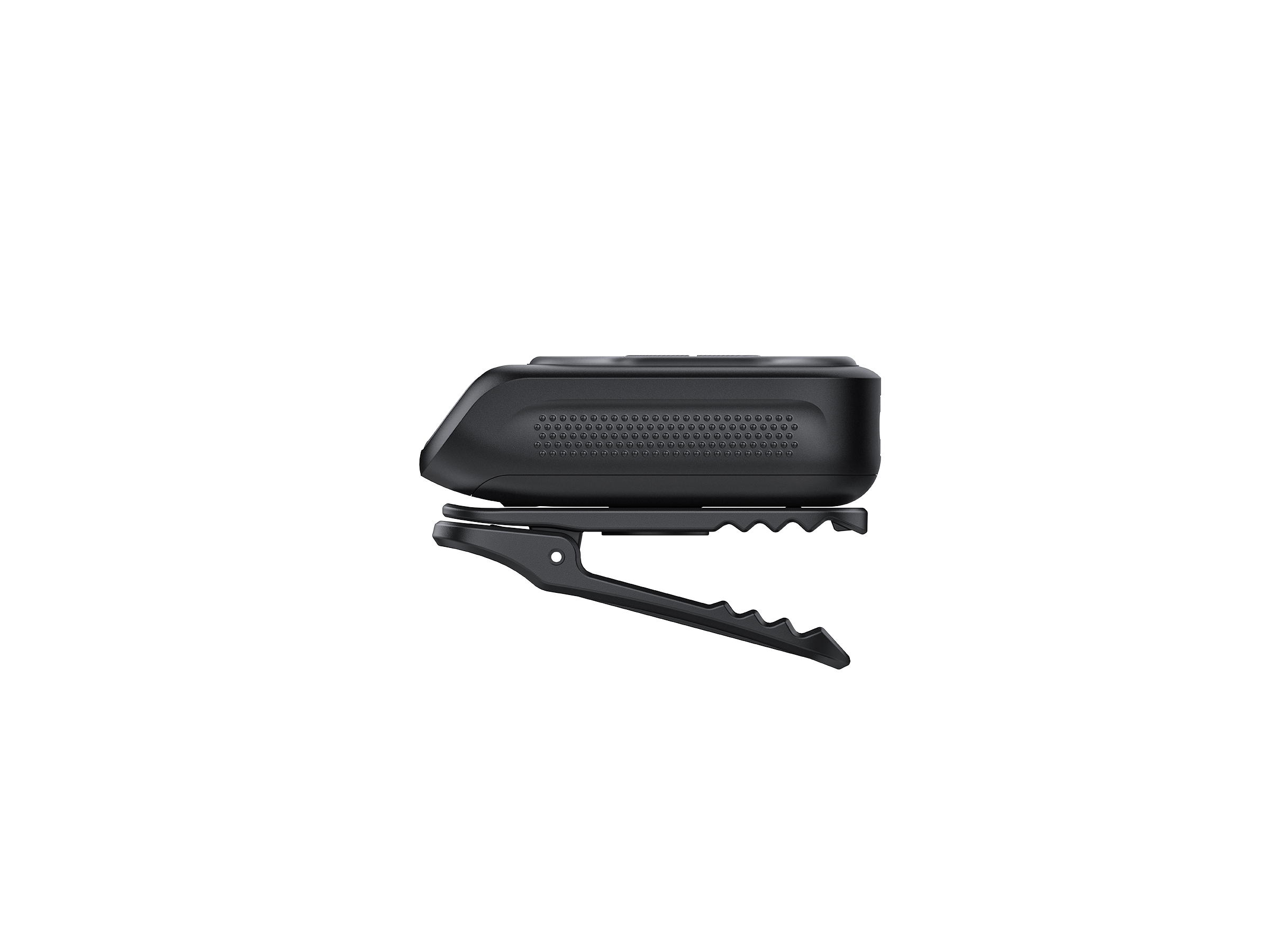

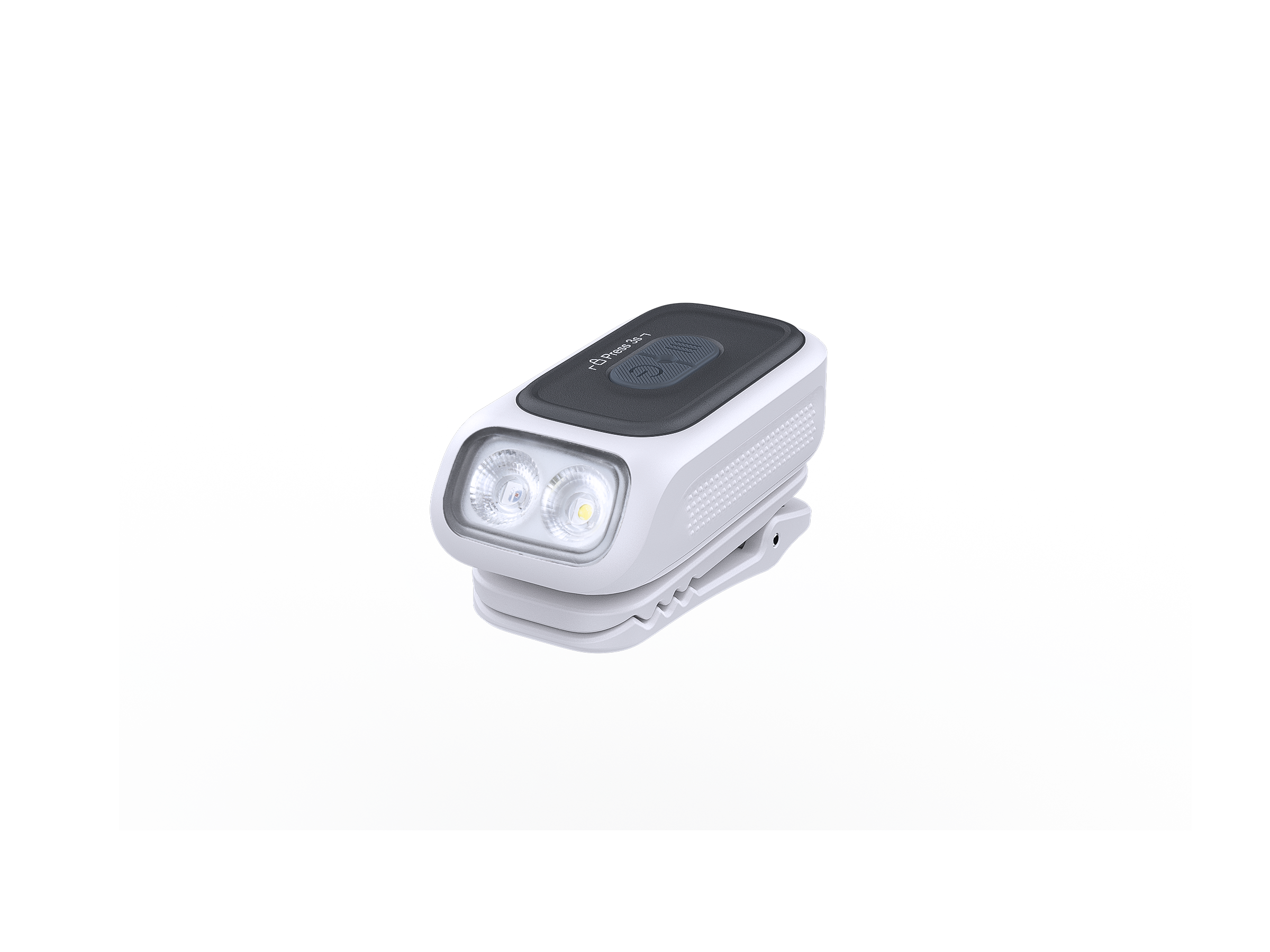

  • 360° rotatable clip + 40° beam angle Supporting multiple wearing and usage methods (pockets, caps, backpacks, and more), leaving your hands free.

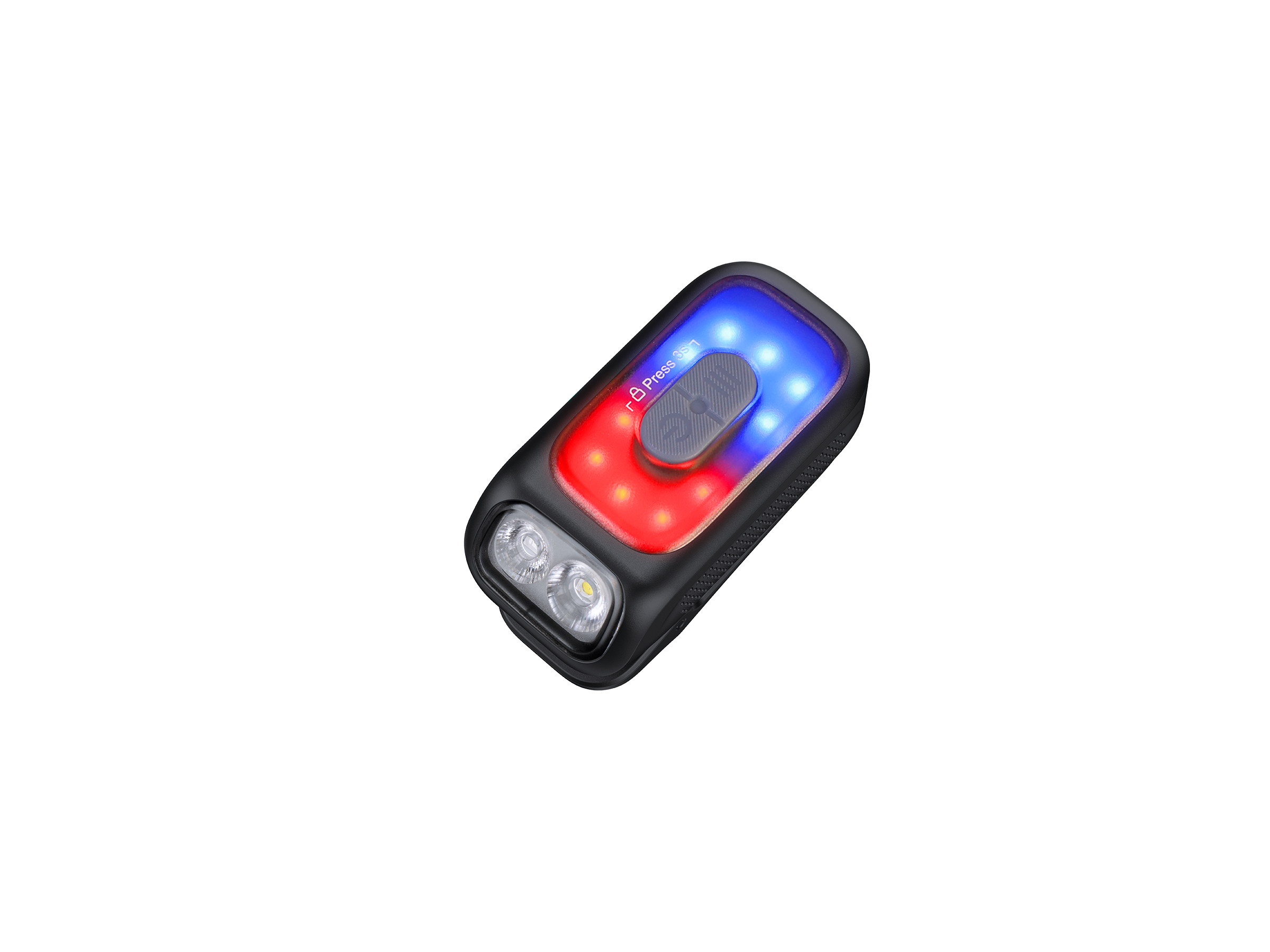

  • Multi-light effect design Red-and-white dual main light and side warning light (supporting Red & blue flash, Red flash, and Blue flash), ideal for both everyday illumination and safety warnings.

Take a Closer Look

FAQS

Contact Us
Q1. What is the product positioning of E04R? What are the key features of E04R?

A: Fenix E04R is a 360° rotatable clip EDC flashlight specifically designed for outdoor adventures and law enforcement. Its key features include:

  1. 300 lumens maximum output and 46 meters maximum beam distance.
  2. Multi-light effect design integrating red-and-white dual main light and side warning light (supporting Red & blue flash, Red flash, and Blue flash), ideal for both everyday illumination and safety warnings.
  3. 360° rotatable clip + 40° beam angle, supporting multiple wearing and usage methods (pockets, caps, backpacks, and more), leaving your hands free.

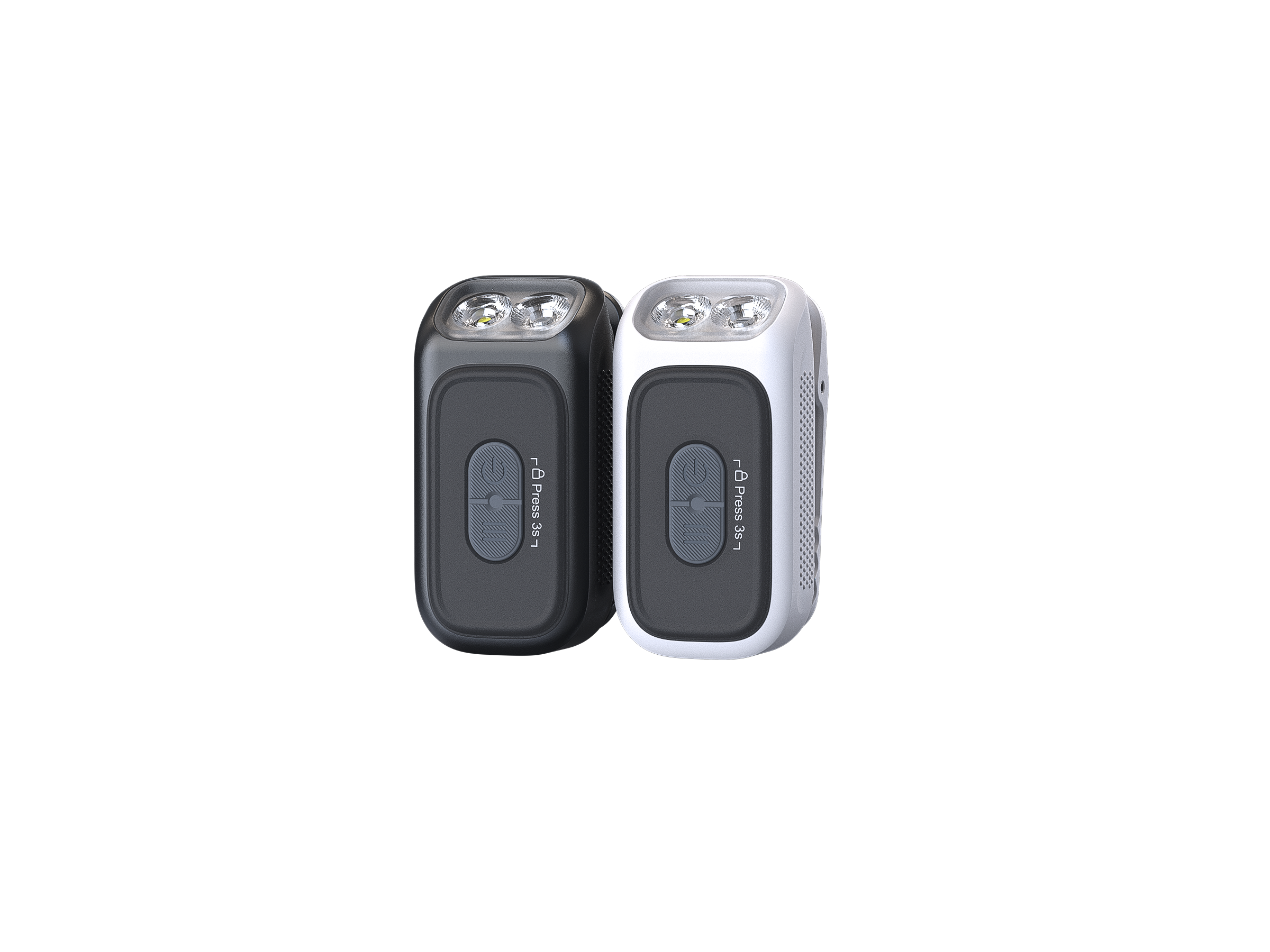

  4. Simple and fast operation with the dual switch.

Q2. What kind of LEDsare used in E04R? Does Fenix offer to replace LED?

A: Utilizes one Luminus SST-12 white light LED and one red light LED. Fenix does not provide LED replacement services for the time being, and users are not recommended to replace the LEDs independently, which may affect product performance and cause product damage.

Q3. What is the color temperature of E04R?

A: 6500k.

Q4. What is the working voltageof E04R?

A: The working voltage is 3.0 V - 4.2 V. The limiting working voltage range is 2.8 V-4.35 V.

Q5. Is E04R rechargeable? How long is the charging time?

A: Yes. The E04R is rechargeable via the USB Type-C charging port. The normal charging time is about 2 hours from depleted to fully charged with a 5V/1A or above charging adapter.

Q6. How to prevent accidentally activating the E04R?

A: Press and hold the two switches simultaneously for 3 seconds to lock or unlock the flashlight.

Q7. Why does the E04R downshift to a lower mode after being used for a while and the higher mode cannot be selected?

A: There are two reasons:

1. Intelligent Overheat Protection

The light will accumulate a lot of heat when used at high output levels for extended periods. When the light reaches a temperature of 60°C/140°F or above, it will automatically step down a few lumens to reduce the temperature.

2. Low-voltage Warning

When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until the lowest output is reached.

Q8. Why does the E04R happen to flicker?

A: The reasons that may cause the light to flicker, shine intermittently or even fail to illuminate:

1. Poor battery level.

Solution: Recharge the battery.

  • The flashlight is locked.

Solution: Press and hold the main light switch and the side light switch simultaneously for 3 seconds to unlock the flashlight.

If the above methods don't work, please contact your authorized distributor.

Q9. What should I do when the E04R needs repair?

A: 1. 15-day replacement: Fenix will replace identical or equal products with documented manufacturing defects within 15 days of purchase.

2. 2-year free repair: Fenix will repair a light free of charge within 2 years of purchase if problems develop with normal use.

3. Lifetime limited warranty: If repair is required after 2 years from the date of purchase, Fenix will charge for parts. The total repair fee is dictated by the cost of the replaced materials.

4. Warranty certificate: Please keep the warranty card in contacting the authorized distributors for after-sale maintenance, Fenix will provide service support to the distributors.

For more detailed information, please check:

http://www.fenixlight.com

http://www.fenixlight.com.cn
