Flashlights

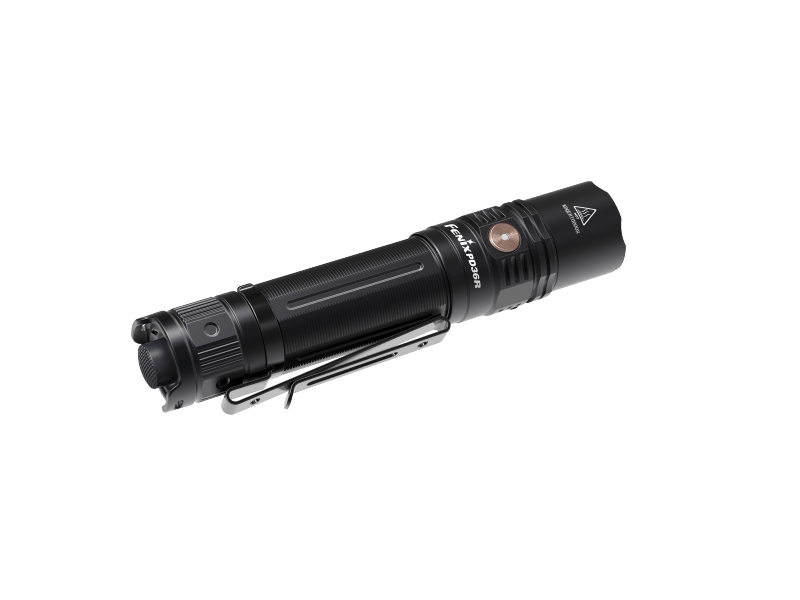

PD36R

USB TYPE-C RECHARGEABLE TACTICAL FLASHLIGHT

The PD36R is an ultra-compact flashlight with a powerful USB Type-C charging port. Driven by a long-lasting 21700/5000mAh rechargeable Li-ion battery, the light emits a max output of 1600 lumens and 283 meters. Dual switches control five output levels and strobe for easy and fast operation. Additional features include battery level indicator, smart output memory and two-position body clip, all which enhance daily usage in outdoor activities and tactical applications.

Size    5.53" x 1.04" x 1.0"

Weight    3.0 oz (excluding batteries)

Battery Type    One 21700 Rechargeable Li-ion Battery

Product Features



  • 1600 maximum lumens output and 283 meters beam distance.
  • Powered by a High Capacity 21700 Rechargeable Li-ion Battery (included)
  • 4-hour fast charging with 5V/3A USB Type-C charging port.
  • Instant power activation with momentary tactical tail switch.
  • Simple output selection with side switch.
  • Two-way body clip for different lighting demands.
  • Boot-up battery level indication and low-voltage warning.
  • Made of durable high-strength and oxidation-resistance aluminum.
  • Premium type HAIII hard-anodized anti-abrasive finish.
  • Toughened ultra-clear glass lens with an anti-reflective coating.
  • Digitally regulated circuit for maintaining a stable output.
  • Reverse polarity protection, to protect from improper battery insertion
  • Body with anti-roll and anti-slip design.
  • Size: 5.35'' x 1.04'' x 1.0'' / 136 x 26.4 x 25.4 mm
  • Weight: 3.0 oz / 85 g (excluding battery)



TECHNICAL PARAMETER

FREQUENTLY Q&A

FAQs about PD36R Flashlight

    Q1. What is the product positioning of PD36R? And who are the target customers?

    A: The PD36R is an ultra-compact flashlight with a powerful USB Type-C charging port. Driven by a long-lasting 21700/5000mAh rechargeable Li-ion battery, the light emits a max output of 1600 lumens and 283 meters. Dual switches control five output levels and strobe for easy and fast operation. Additional features include battery level indicator, smart output memory and two-position body clip, all which enhance daily usage in outdoor activities and tactical applications.



    Q2. What are the key features and benefits of PD36R?

    A: 1) Compact size with high performance.

      2) USB Type-C fast charging.

      3) Operates on 21700/5000mAh rechargeable Li-ion battery (included).

      4) Dual switch operation.

      5) Battery level indication.



    Q3. Does the battery level indication and low-voltage warning work with all batteries?

    A: No, the battery level indication and low-voltage warning function only work with Fenix ARB-L21-5000 21700 rechargeable Li-ion battery.



    Q4. How long does it take to fully charge a PD36R from power depletion?

    A: It takes about 4 hours to fully charge the included Fenix ARB-L21-5000 with the 5V/3A adapter.



    Q5. What are the working conditions of 10-minute charging, 5-hour usage in Low (150 lumens)?

    A: The test results are given by Fenix from its laboratory testing for reference only; using the Fenix ARB-L21-5000 21700 rechargeable Li-ion battery under the temperature of 21±3°C and humidity of 50% - 80%. And the battery voltage is not lower than 3V, charging with the adapter of 5V/3A for 10 minutes.



    Q6. What are the advantages of inner waterproof charging port?

    A: The charging port features inner waterproofing treatment, waterproof ability is ensured even with the USB dust cover opened, the light can be normally used underwater 2 meters. While the USB dust cover should be replaced to maintain dustproof performance.



    Q7. What kinds of LED's are used in PD36R?

    A:LUMINUS SST-40 LED

DOWNLOAD CENTER

Fenix_PD36R_Multilingual_User_Manual
