BC06R

SMART BRAKE SENSING BICYCLE TAILLIGHT

The Fenix BC06R is a high-output, rechargeable bicycle taillight engineered for cycling enthusiasts, especially those who prioritize safety and better lighting effects. With its built-in 560mAh large-capacity battery and the included USB Type-C charging cable, the light effectively solves the low-battery issues that often occur during long-distance cycling. This taillight offers an 90 lumens max output and multiple lighting effects for enhanced cycling experiences. Its high-output smart brake sensing function and 270° wide-angle beam alert pedestrians to your position, thus ensuring safer rides. Additionally, this compact taillight supports mounting on saddle rails and seatposts for convenient and firm installation, which allows for quick assembly and disassembly based on your preference. Built tough with an all-metal CNC machined light body, you can count on the Fenix BC06R taillight for safe and carefree rides.

  • 90 LM Lumens
  • 100 M Range
  • 245 H Run Time
  • IP66 Water Resistant
Get a Quote Brochure


  • SIZE: 1.50'' x 1.50'' x 1.50''/38 × 38× 38 mm(excluding mount)
  • WEIGHT: 1.57 oz/44.5 g(including battery)


FEATURES

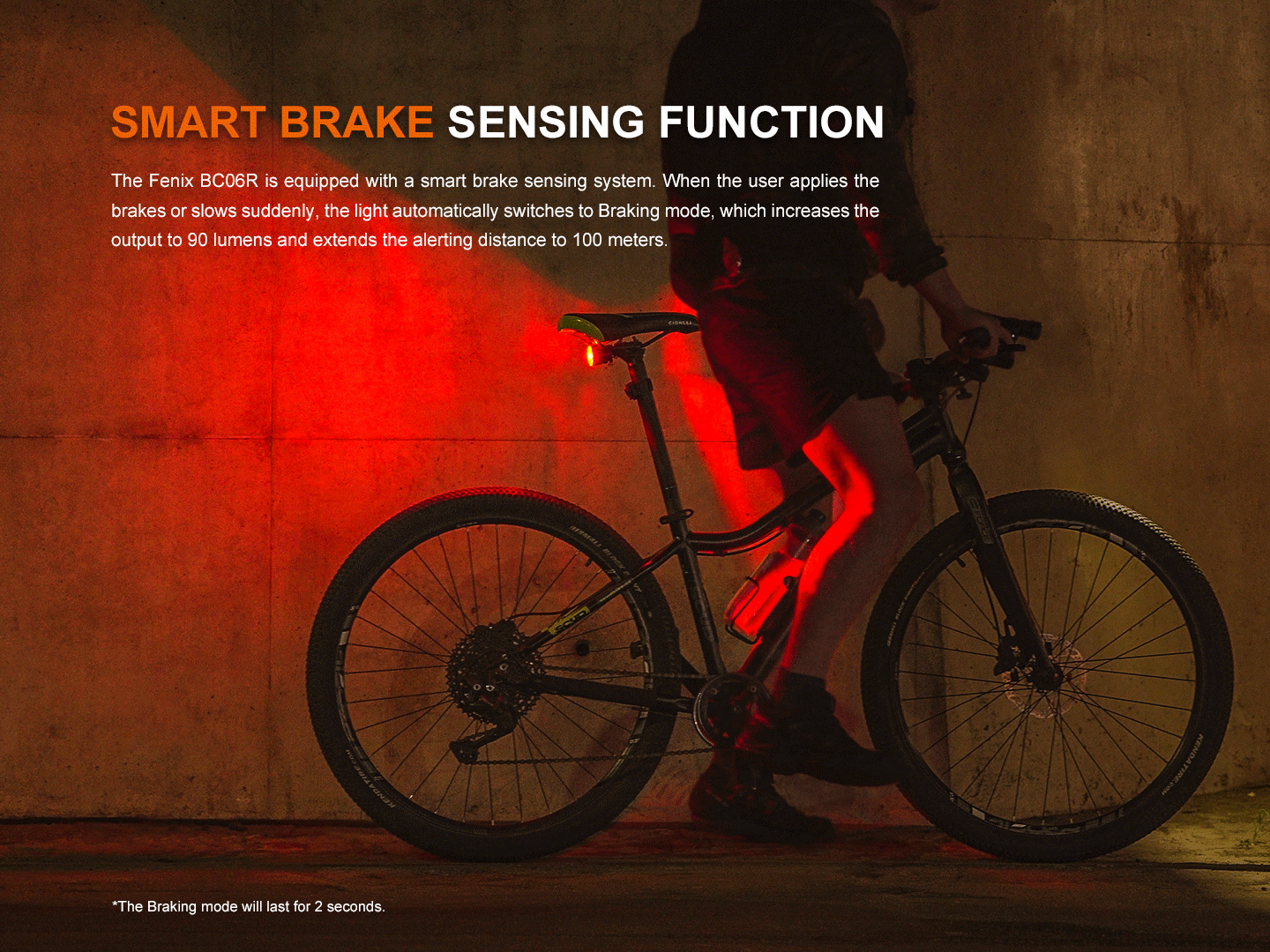

  • Smart Brake Sensing

    Smart brake sensing function.

  • Braking Output: 90 Lumens, 100m Alert Distance

    The output of Braking is 90 lumens and the alerting distance is 100 meters.

  • Mountable on saddle Rails or Seatposts

    Can be mounted on saddle rails or seatposts.

  • Quick Assembly and Disassembly Structure

    Quick-release structure for fast assembly and disassembly.

  • Built-in 560mAh Battery

    Built-in 560mAh battery.

  • USB Type-C Charging

    USB Type-C charging.

  • 270° Lighting Angle

    270° lighting angle.

  • Fashionable Ultra-Compact Lighting Modes

    Ultra-compact and fashionable appearance; multiple lighting modes for option.

  • Battery Level Indicator

    Battery level indication.

  • Quick and Easy Operation with One Switch

    Easy and fast operation with a single switch.

Take a Closer Look

FAQS

Contact Us
Q1. What kind of LEDs are used in BC06R ? Does Fenix offer to replace LED?
The BC06R uses CREE XP-E2 red LEDs.Fenix does not provide LED replacement services for the time being, and users are not recommended to replace the LEDs independently, which may affect product performance and cause product damage.
Q2. What is the working voltage of BC06R?
Operating voltage is 3.0~4.2V, limit operating voltage range: 2.8~4.2V.
Q3.What is the viewing angle of BC06R?
The viewing angle is 270°，and the floodlight luminous angle is 106°.
Q4. Is BC06R rechargeable? How long is the charging time?
BC06R is rechargeable with a USB Type-C charging port. The indicator will display red while charging and will turn green when fully charged. The charging time is about 2 hours.
Q5. Can BC06R be used in severe weather such as rain and sandstorm?
BC06R features IP66 rated protection: fully protected against dust and foreign objects, can withstand heavy rain and splashes.
Q6. Why does the BC06R happen to flicker?
Poor battery level.
Solution: Recharge the battery.
If the above methods don't work, please contact the distributor.
Q7.BC06R will automatically reduce the brightness after using it for a while, and it can’t light up higher gears, why is that?
When the voltage level drops below 3.0V, the light is programmed to downshift to a lower brightness level. The battery level indicator blinks red at 3Hz to remind you to recharge the battery. To ensure normal use, the light will not turn off automatically and will work till the battery level runs out.
Q8.Does the BC06R have a memory mode?
The light memorizes the last selected output excluding Braking. When turned on again, the previously used output will be recalled.Avoid repeating the settings each time.
Q9.How to carry out the detailed installation steps?

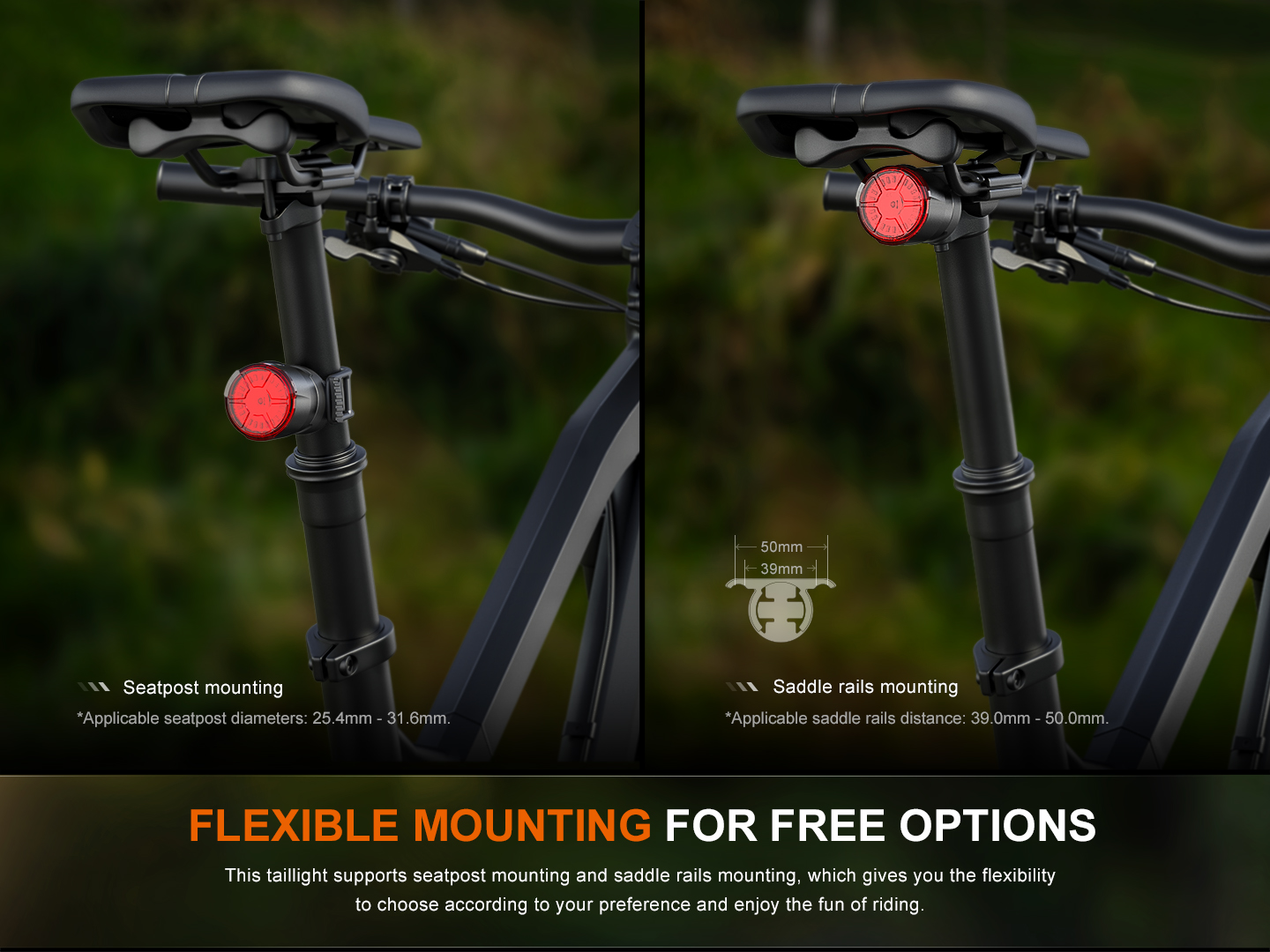

A：Seatpost mount:
First loop the mounting strap (without LOGO) around one of the attachment ear of the seatpost mount, and place the seatpost mount(silicone pad thinner side face up) on the seatpost, then loop the other end of the mounting strap (with LOGO) around the other attachment ear of the seatpost mount, adjust as the size of the seat post. Finally, attach the BC06R taillight to the seatpost mount with the switch facing upwards.
Note: This taillight is applicable to bike seatpost diameters between 25.4mm - 31.6mm.
Saddle rail mount:
Place the saddle rail mount on the saddle rails of the bike. Thread a fastening tie through the top hole on one side of the mount, and tie the corresponding saddle rail and the saddle mount together. Repeat the same process for the other side. Trim any excess parts of the fastening ties. Attach the BC06R taillight to the saddle rail mount with the switch facing upwards.
Note: This taillight is applicable to bike saddle rail distance between 39.0mm - 50.0mm.
Q10. What should I do when the BC06R needs repair?
1. 15-day replacement: Fenix will replace identical or equal products with documented manufacturing defects within 15 days of purchase.
2. 5-year free repair: Fenix will repair a light free of charge within 5 years (non-detachable light: 2 years, rechargeable battery and other accessories: 1 year) of purchase if problems develop with normal use.
3. Lifetime maintenance: If repair is required after 5 years from the date of purchase, Fenix will charge for parts. The total repair fee is dictated by the cost of the replaced materials.
4. Warranty certificate: Please keep the warranty card in contacting the authorized distributors for after-sale maintenance, Fenix will provide service support to the distributors.
For more detailed information, please check:
http://www.fenixlight.com
http://www.fenixlight.com.cn
