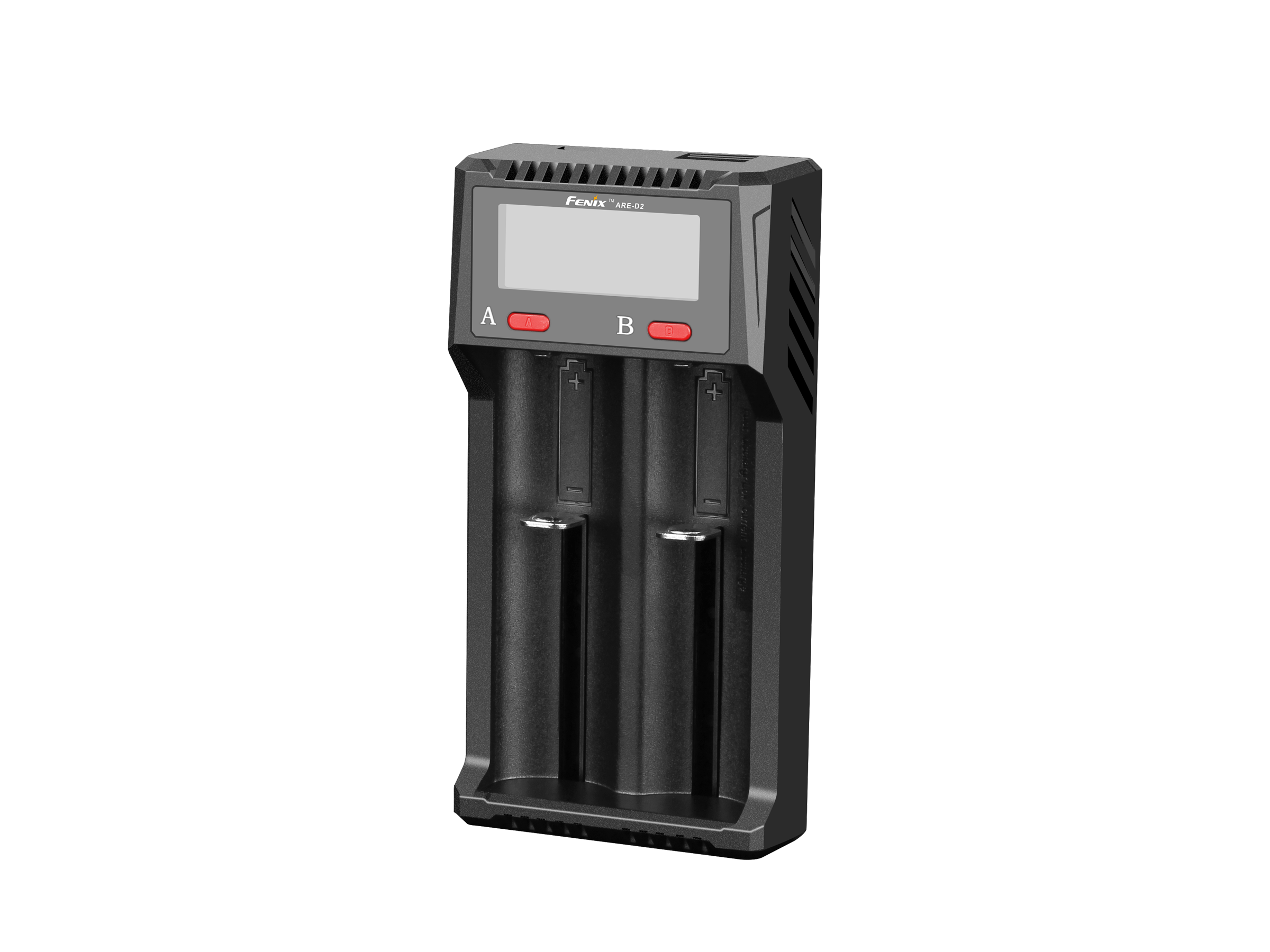

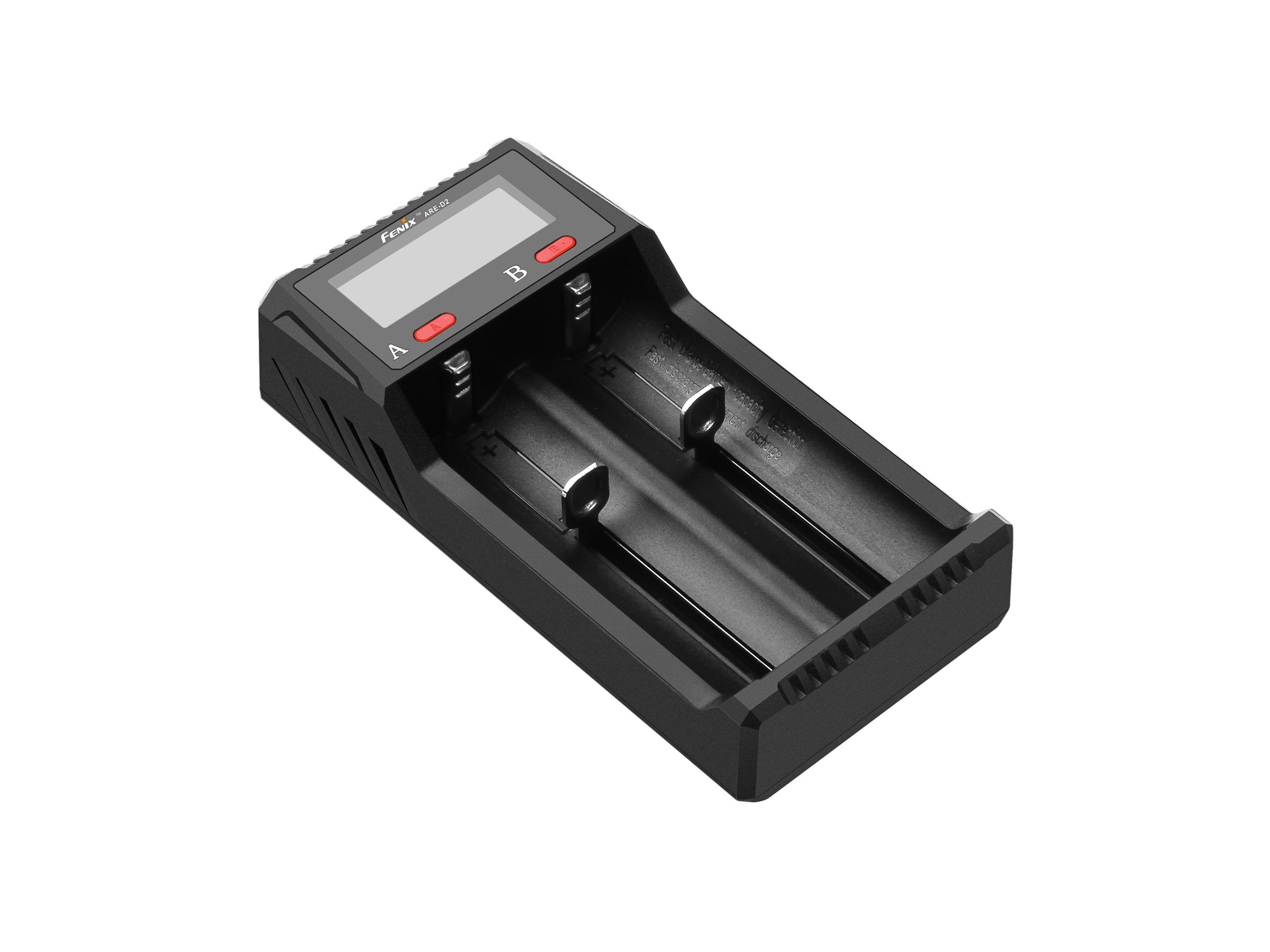

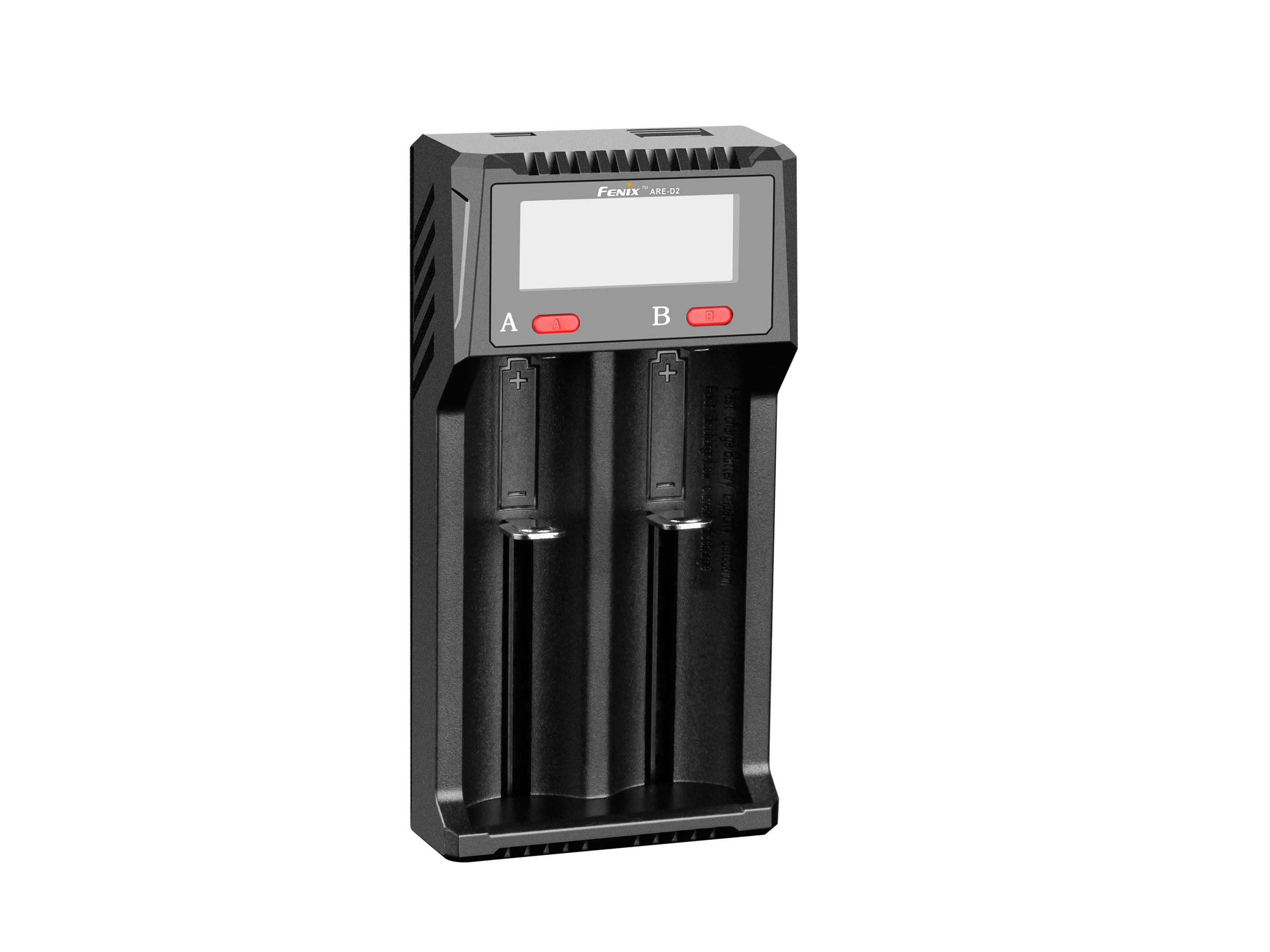

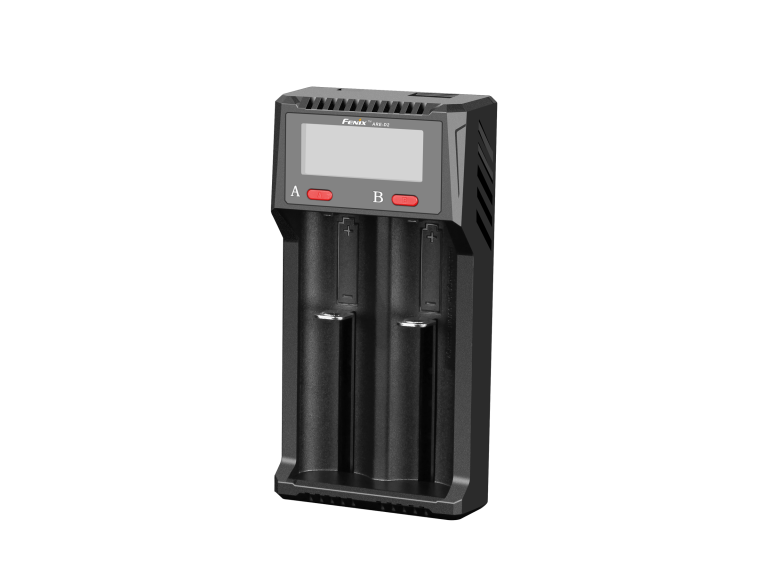

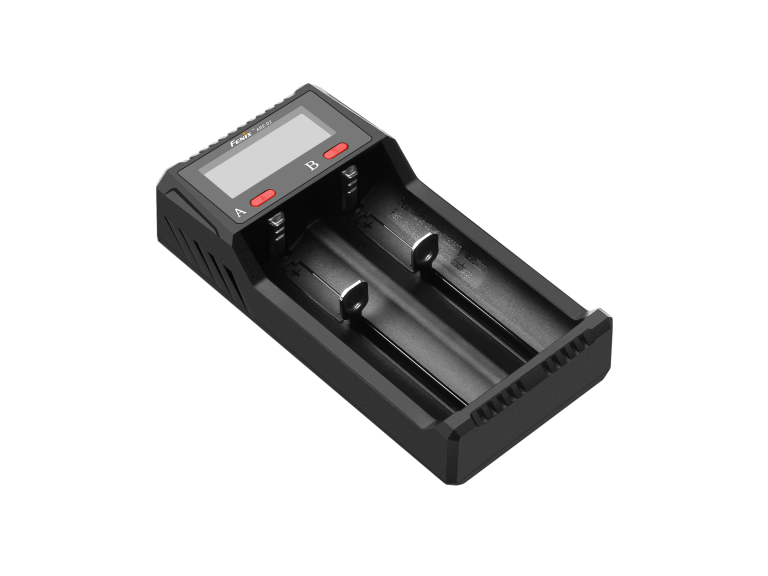

ARE-D2

DUAL CHANNEL SMART CHARGER

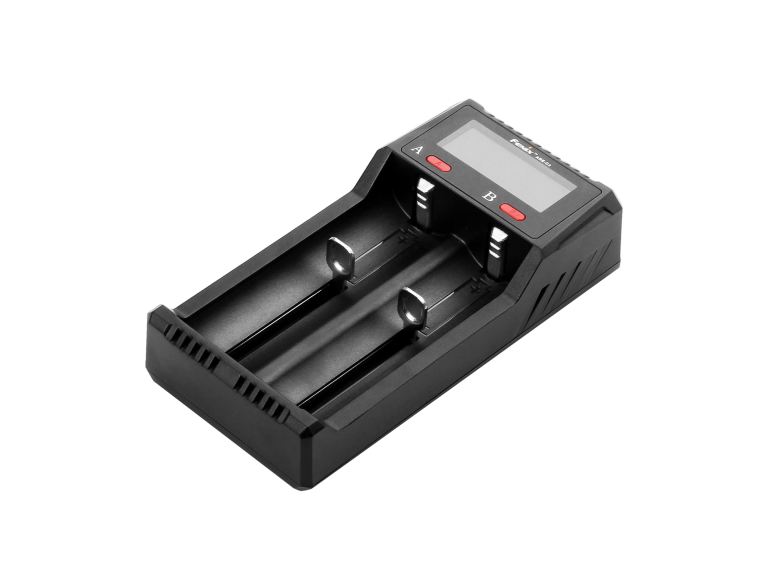

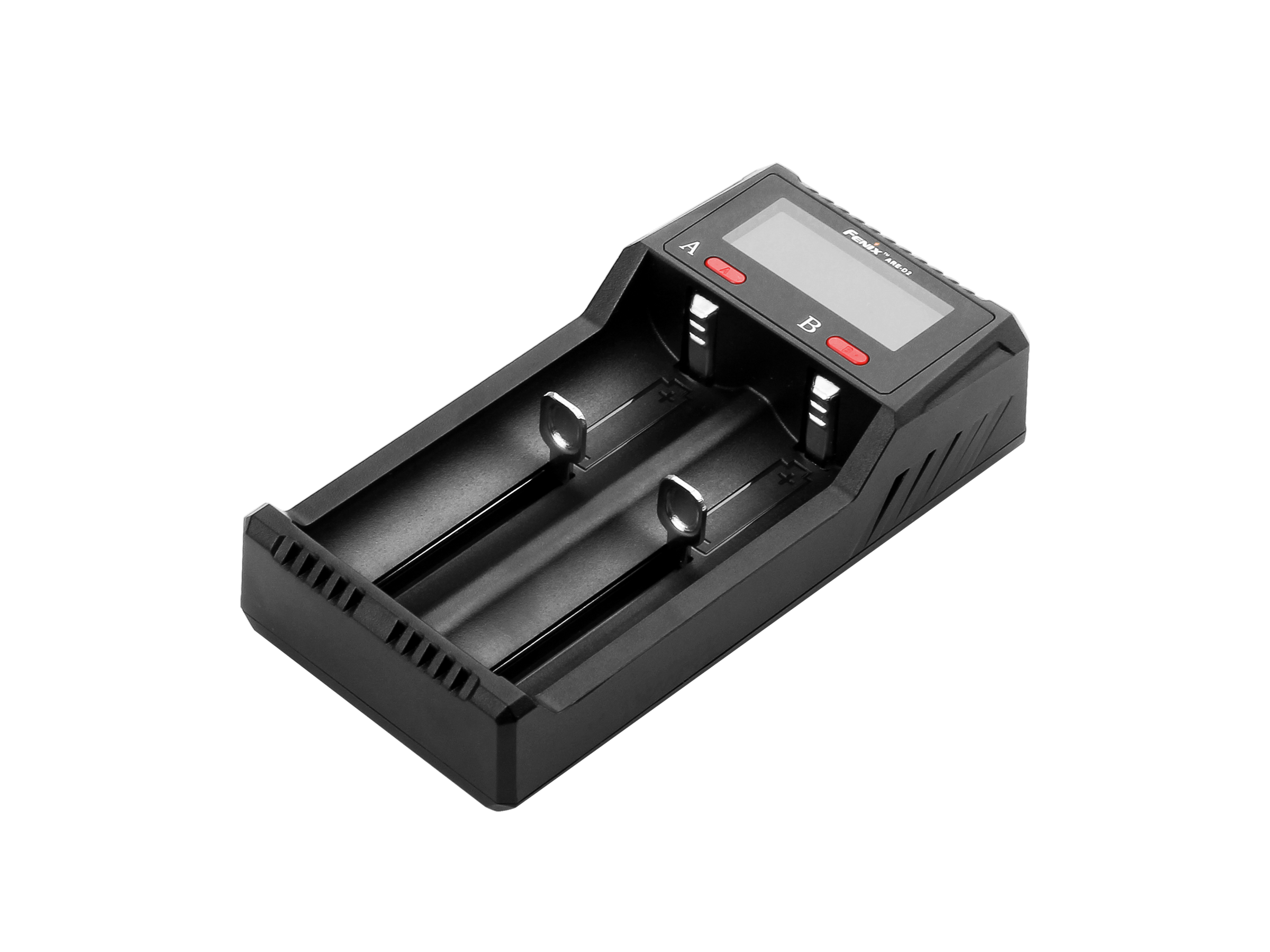

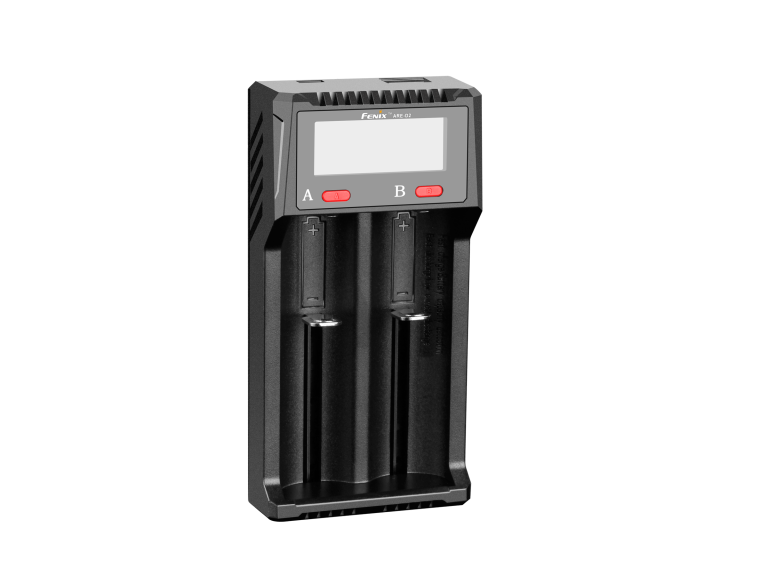

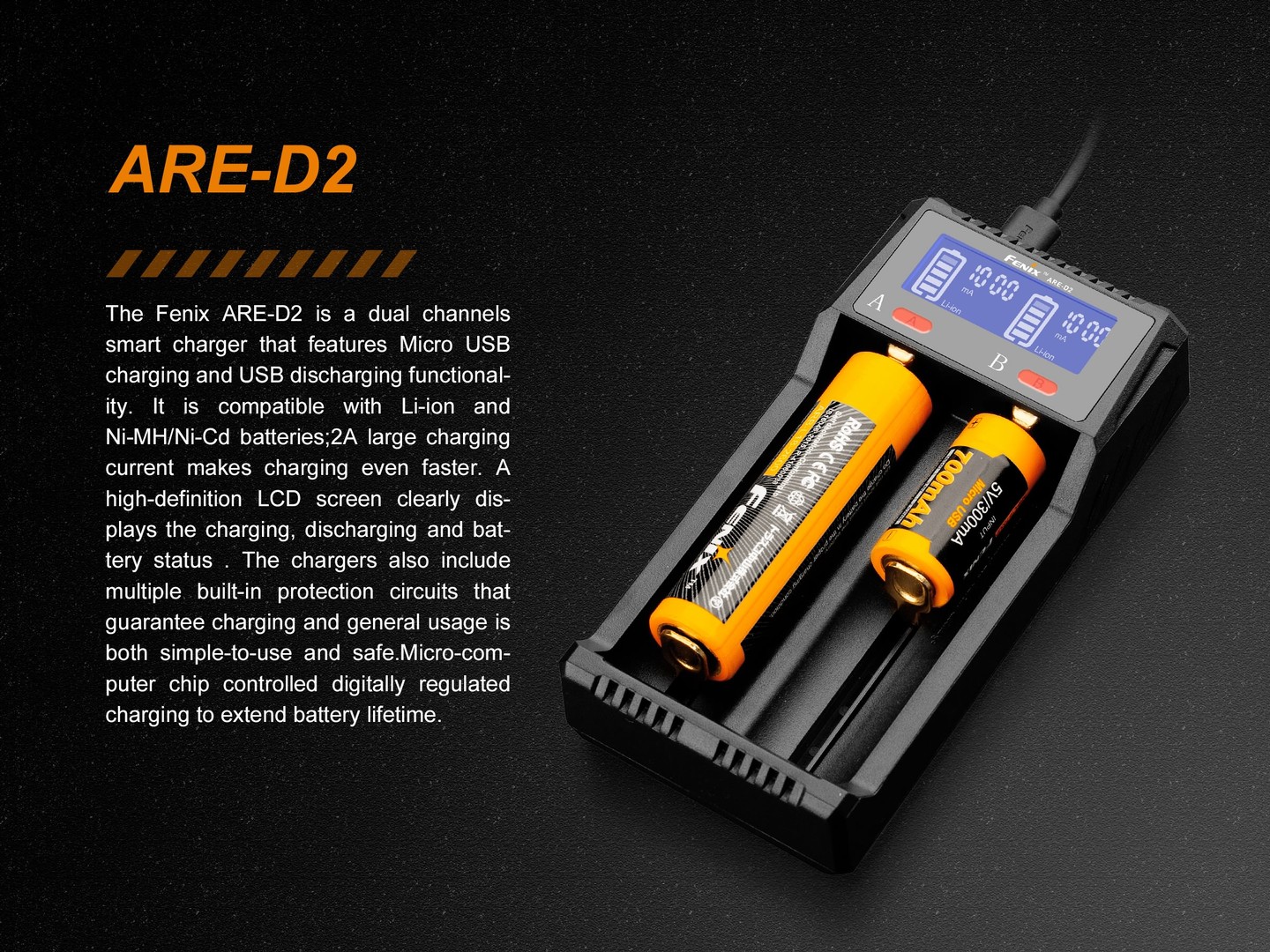

The Fenix ARE-D2 is a dual channels smart charger that features Micro USB charging and USB discharging functionality. It is compatible with Li-ion and Ni-MH/Ni-Cd batteries; 2A large charging current makes charging even faster. A high-definition LCD screen clearly displays the charging, discharging and battery status. The chargers also include multiple built-in protection circuits that guarantee charging and general usage is both simple-to-use and safe. Micro-computer chip controlled digitally regulated charging to extend battery lifetime.

Contact Us

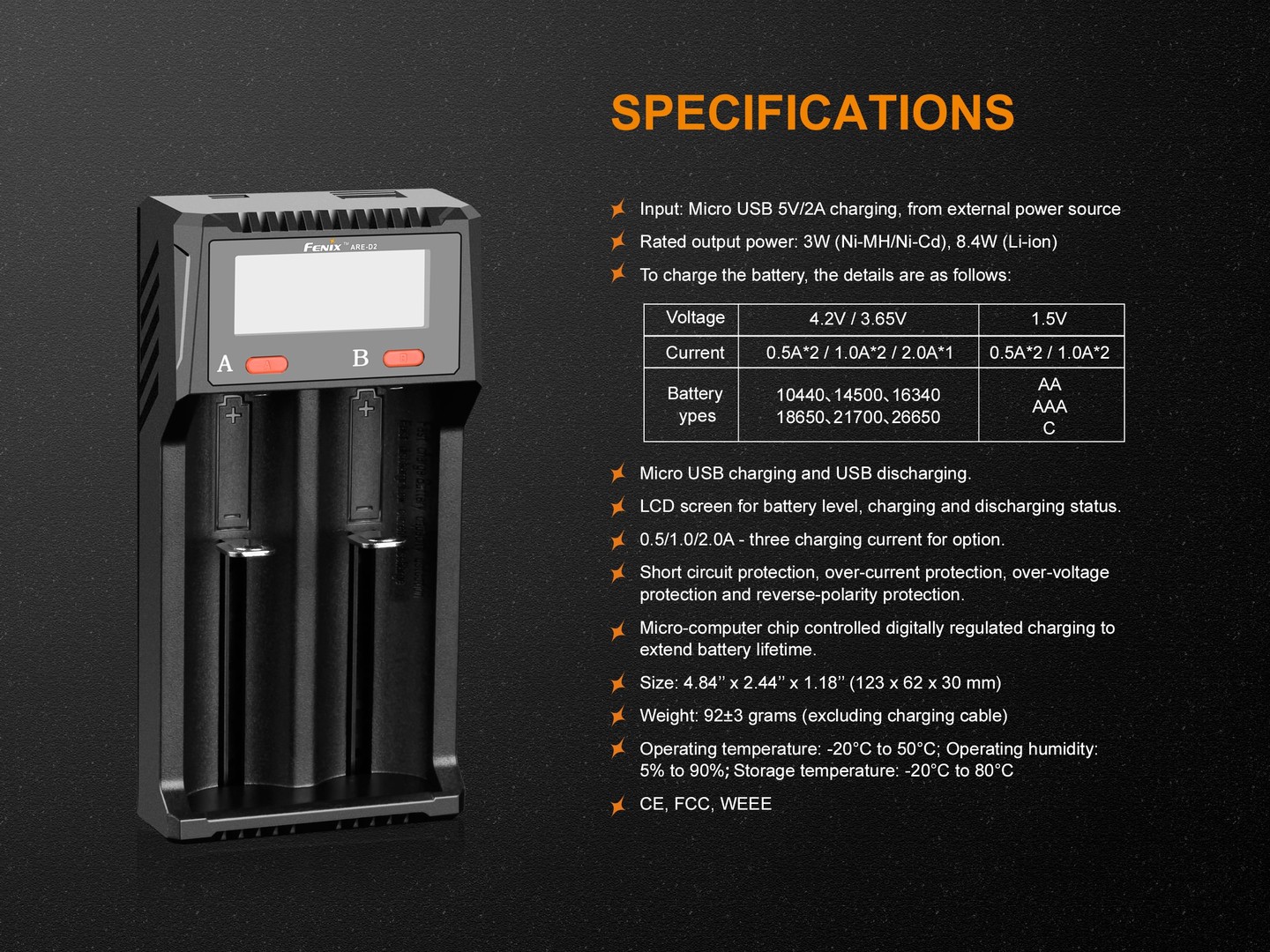

FEATURES

  • Micro USB 5V/2A Charging

    Input: Micro USB 5V/2A charging, from external power source

  • Power Rating: 3W and 8.4W

    Rated output power: 3W (Ni-MH/Ni-Cd), 8.4W (Li-ion)

  • Charging the Battery: Step-by-Step Guide

    To charge the battery, the details are as follows:

  • Voltage: 4.2V & 1.5V

    Voltage:4.2V    1.5V

  • Current Specifications: 2*0.5A, 2*1.0A, 1*2.0A

    Current:2*0.5A/2*1.0A/1*2.0A    2*0.5A/ 2*1.0A

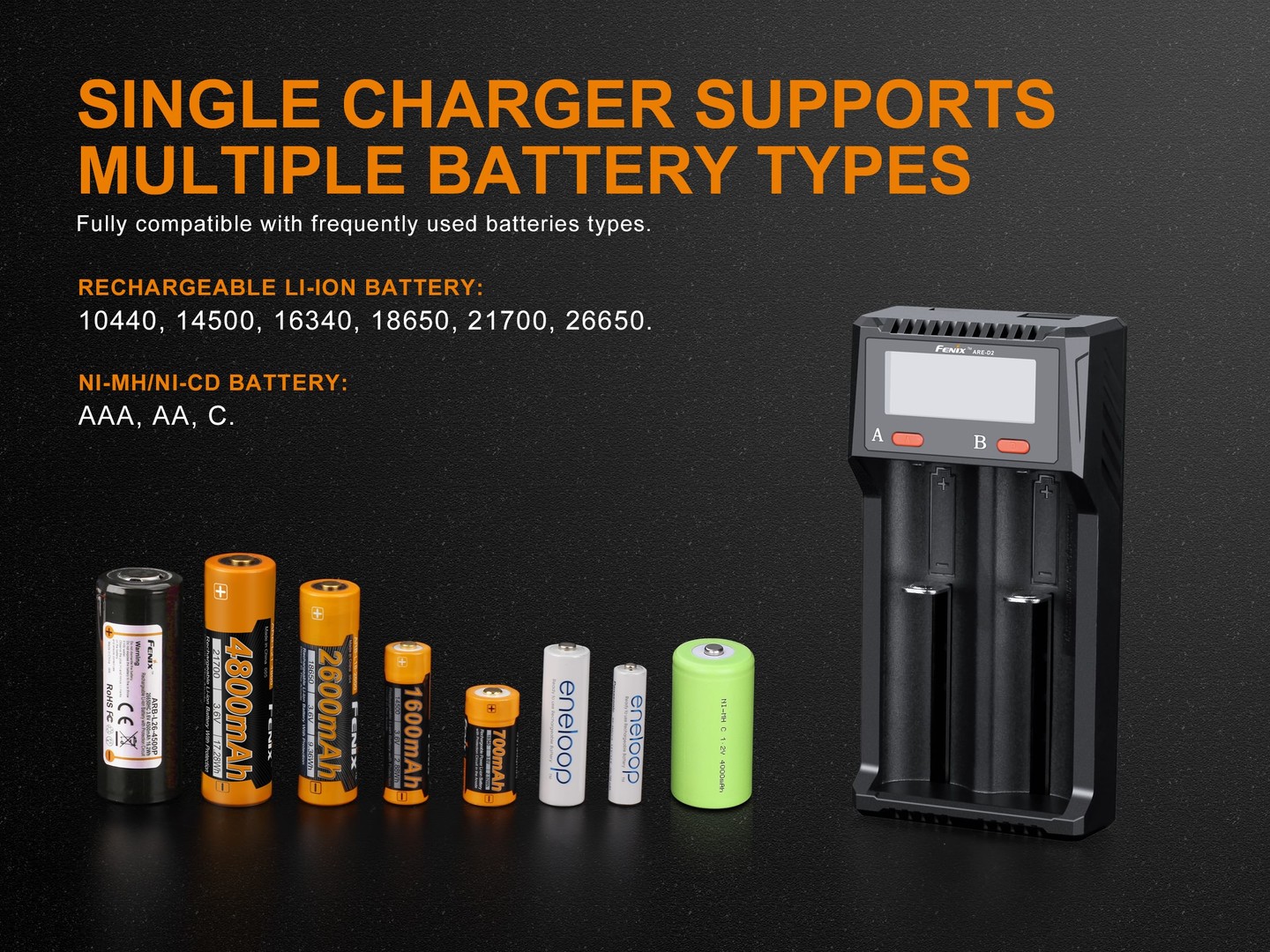

  • Battery Types Overview

    Battery Types:26650 21770 18650 16340 14500 10440    AA/AAA/C

  • USB Power Output: 5V/2A

    USB output: 5V/2A, for external power source

  • Dimensions of the Product

    Size: 4.84’’ Length x 2.44’’ Width x 1.18’’ Height (123 x 62 x 30 mm)

  • Weight: 92±3 grams (excluding charging cable)

    Weight: 92±3 grams (excluding charging cable)

  • Operating Temperature Range: -20°C to 50°C

    Operating temperature: -20°C to 50°C

  • Humidity Range: 5% to 90%

    Operating humidity：5% to 90%

  • Storage Temperature Range: -20°C to 80°C

    Storage temperature: -20°C to 80°C

Take a Closer Look

FAQS

Contact Us
Q1. What is the product positioning of ARE-D2? And who are the target customers?
A: Fenix ARE-D2 is a dual channels smart charger that features charging and discharging function. It is compatible with 9 types of Li-ion and Ni-MH/Ni-Cd batteries; 2000mA large charging current makes charging even faster. High definition LCD screen displays the charging, discharging and battery status clearly. Multiple built-in protection circuits guarantee safer charging and usage. Micro-computer chip controlled digitally regulated charging to extend battery lifetime.
Q2. What are the key features and benefits of ARE-D2?
1) Supports Micro USB charging and USB discharging; to charge different battery types, to discharge different digital devices.
2) Fully compatible with frequently used batteries types; to charge two batteries at one time.
3) 2000mA large charging current, making charging even faster.
4) High-definition LCD screen - readable real-time battery status.
5) Multiple built-in protection circuits.

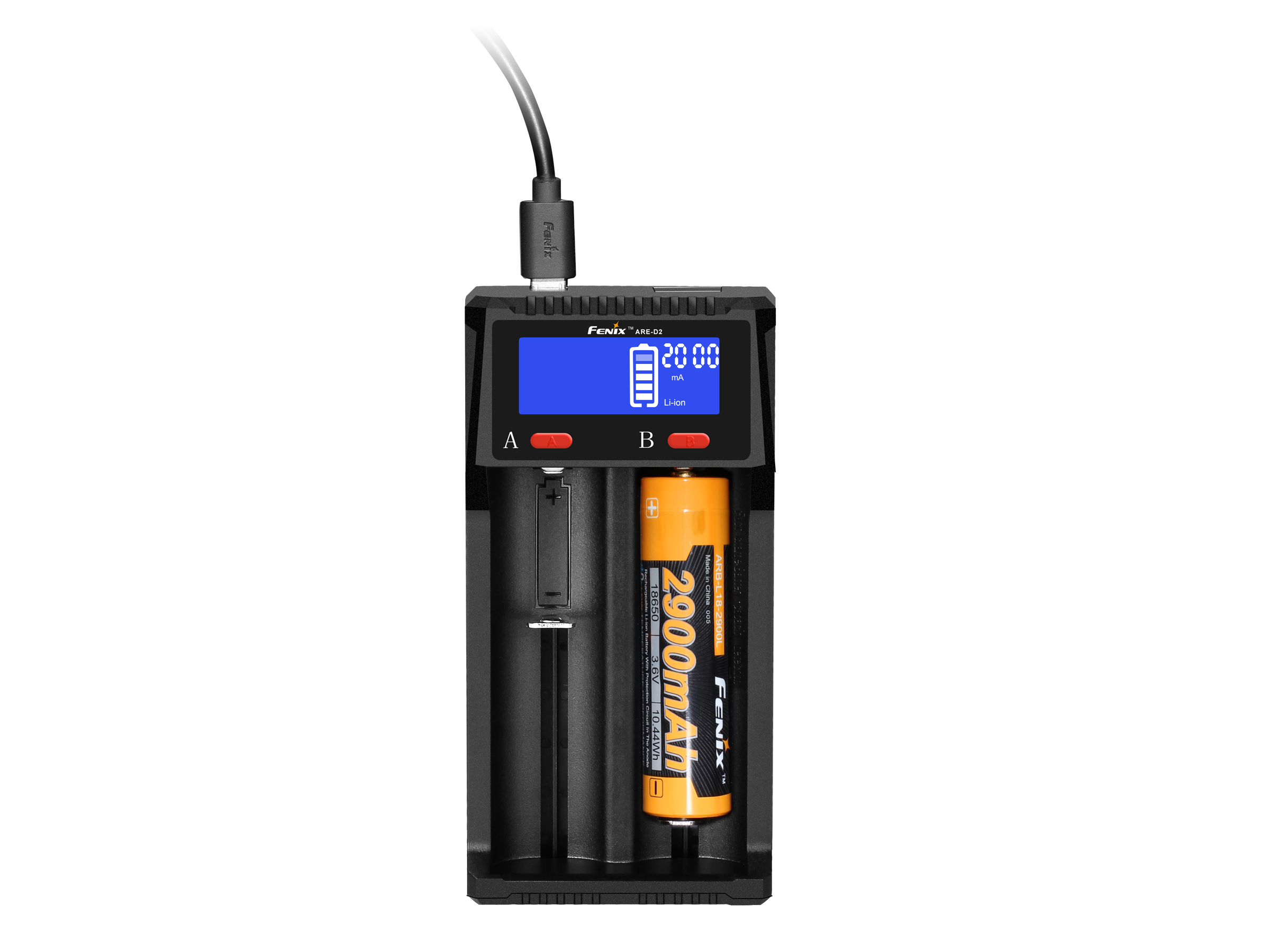

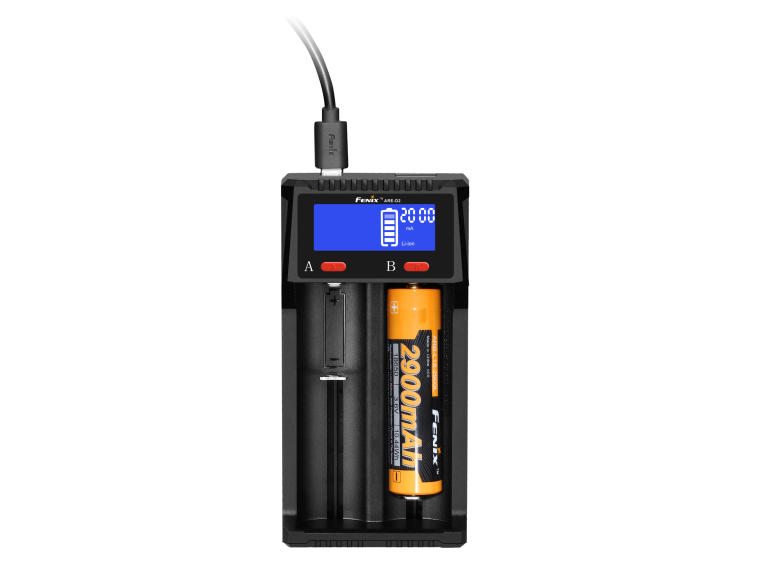

Q3. Can 2000mA charging current be used both in A and B channels ?
 No, only B channel and following requirements should be met: ①only B channel is inserted with battery; ②Connecting to the power source and insert the battery, when the battery symbol flashes, single click the B switch to select 2000mA charging current.
Q4. Do the two channels both have discharging function?
No, only B channel does: ①Only B channel is inserted with battery; ② Must be Li-ion battery.
