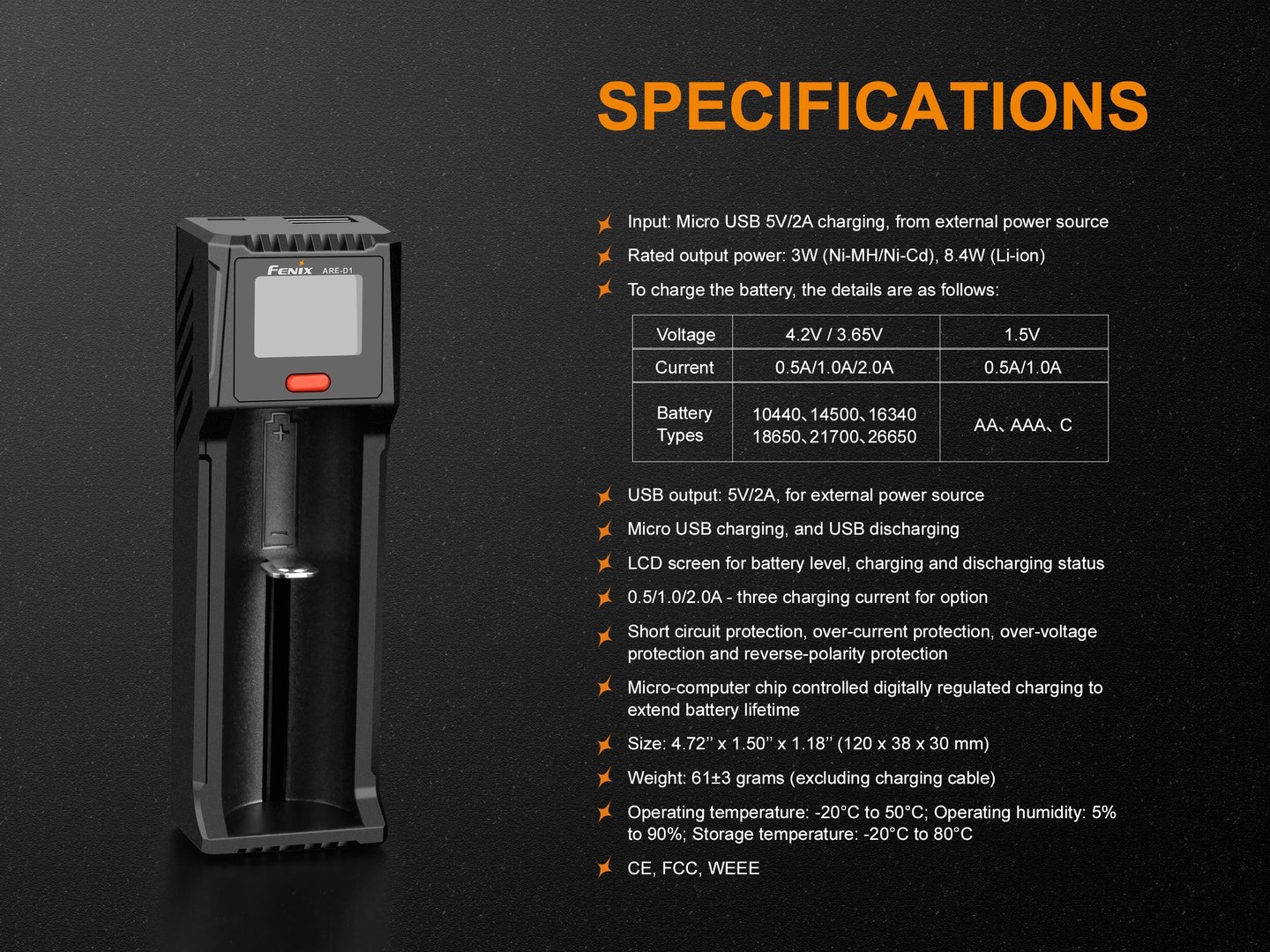

- Micro USB 5V/2A Charging Solutions
Input: Micro USB 5V/2A charging, from external power source
- Power Ratings: 3W & 8.4W
Rated output power: 3W (Ni-MH/Ni-Cd), 8.4W (Li-ion)
- Battery Charging Instructions
To charge the battery, the details are as follows:
- Voltage Levels: 4.2V, 3.65V, 1.5V
Voltage:4.2V/3.65V 1.5V
- Current Ratings: 0.5A to 2.0A
Current:0.5A/1.0A/2.0A 0.5A/1.0A
- Battery Types: Sizes 26650 to AAA
Battery Types:26650、21700、18650、16340、14500、10440 AA/AAA/C

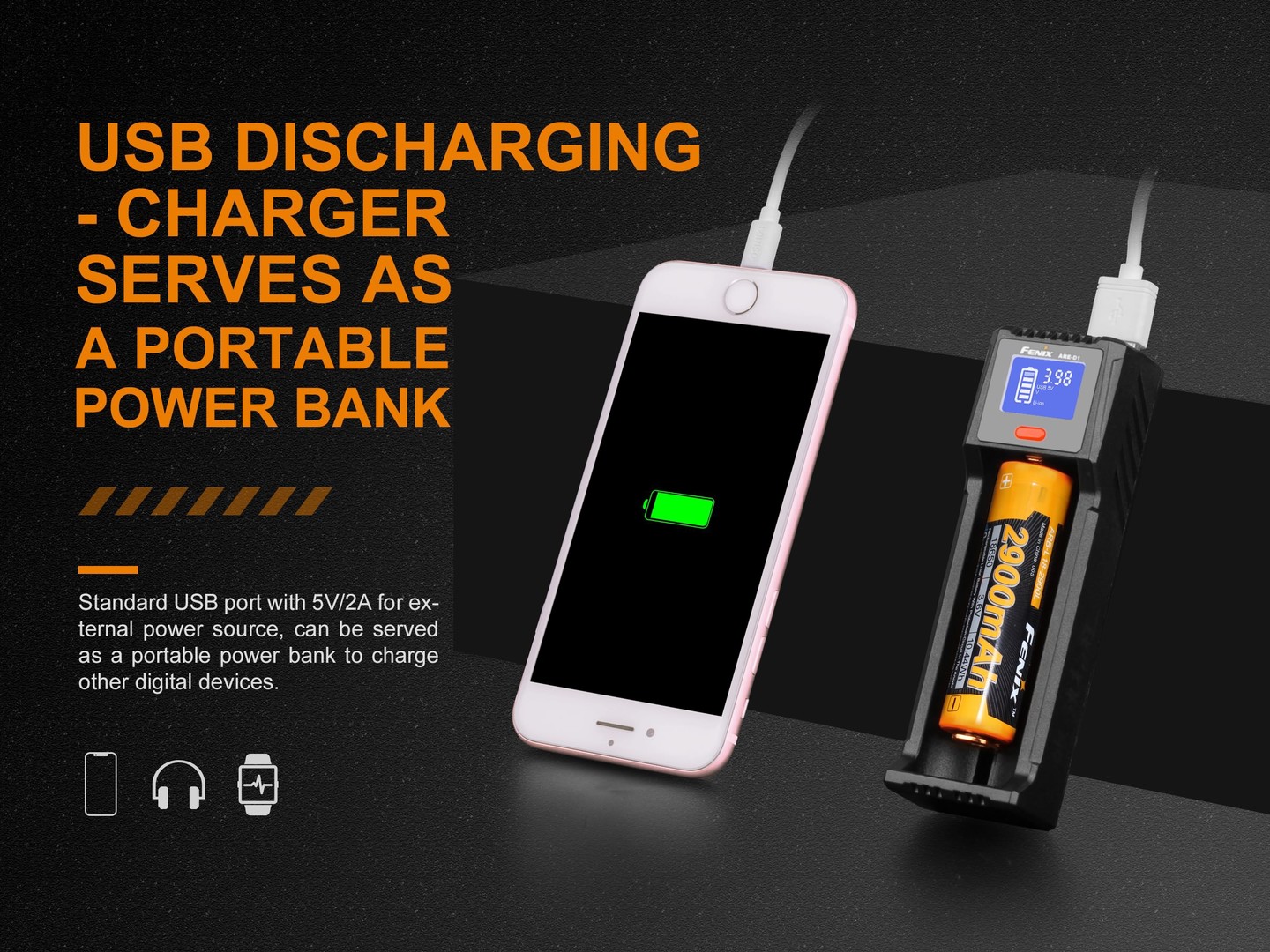

- USB Power Output: 5V/2A
USB output: 5V/2A, for external power source

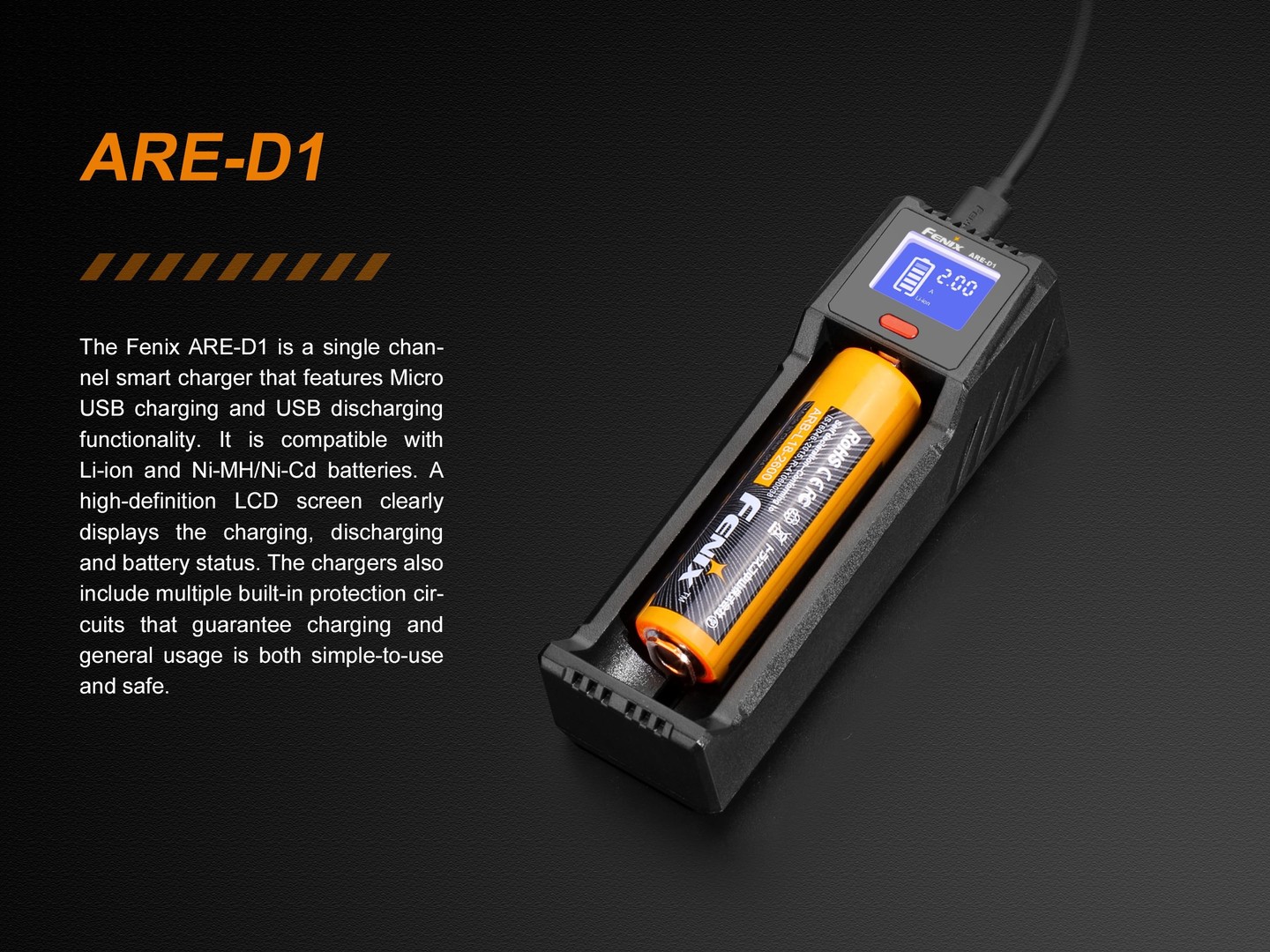

- Micro USB Charging and Discharging
Micro USB charging, and USB discharging

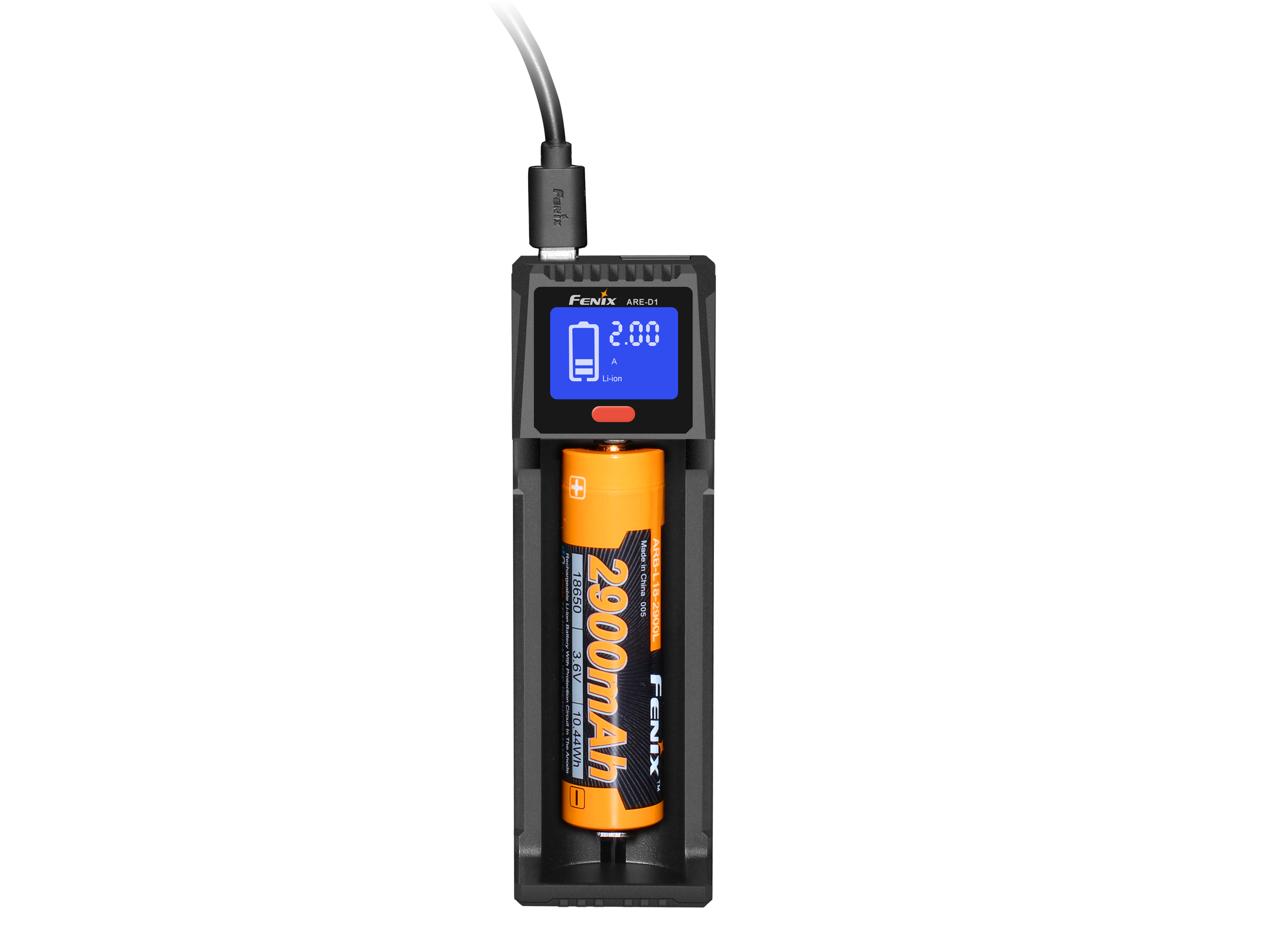

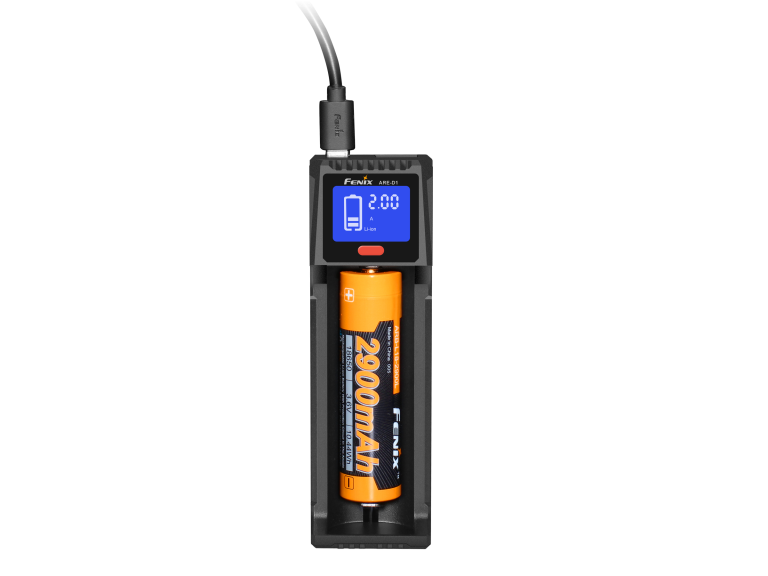

- Battery Status LCD Screen
LCD screen for battery level, charging and discharging status
- Charging Current Options
0.5/1.0/2.0A - three charging current for option
- Protection Mechanisms: Short Circuit, Over-Current, and More
Short circuit protection, over-current protection, over-voltage protection and reverse-polarity protection
- Digital Charging for Extended Battery Life
Micro-computer chip controlled digitally regulated charging to extend battery lifetime

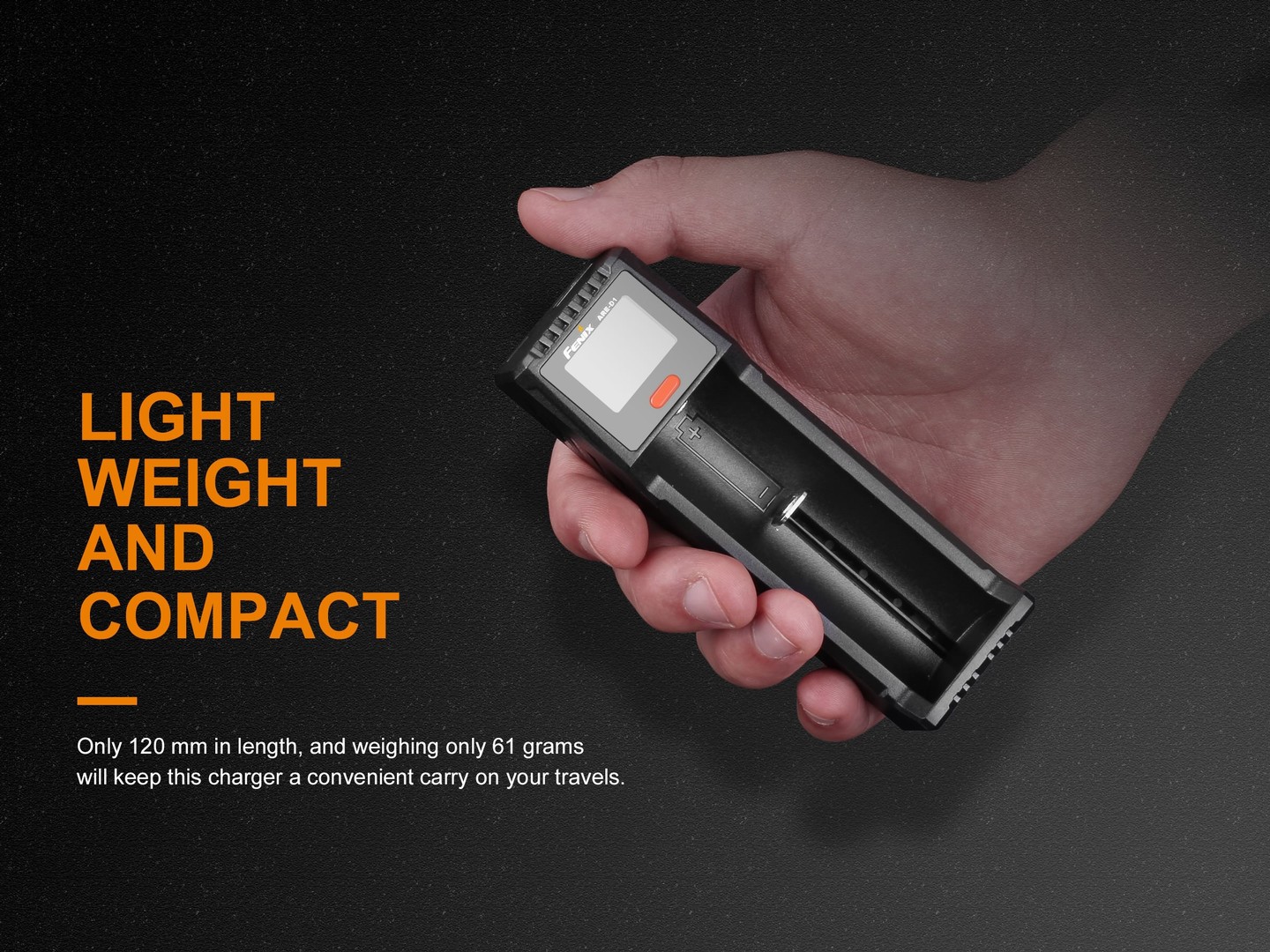

- Dimensions of 4.72'' x 1.50'' x 1.18''
Size: 4.72’’ x 1.50’’ x 1.18’’ (120 x 38 x 30 mm)
- Weight Specification: 61±3 grams
Weight: 61±3 grams (excluding charging cable)
- Operating Temperature Range: -20°C to 50°C
Operating temperature: -20°C to 50°C
- Operating Humidity: 5% to 90%
Operating humidity: 5% to 90%
- Storage Temperature Range: -20°C to 80°C
Storage temperature: -20°C to 80°C
